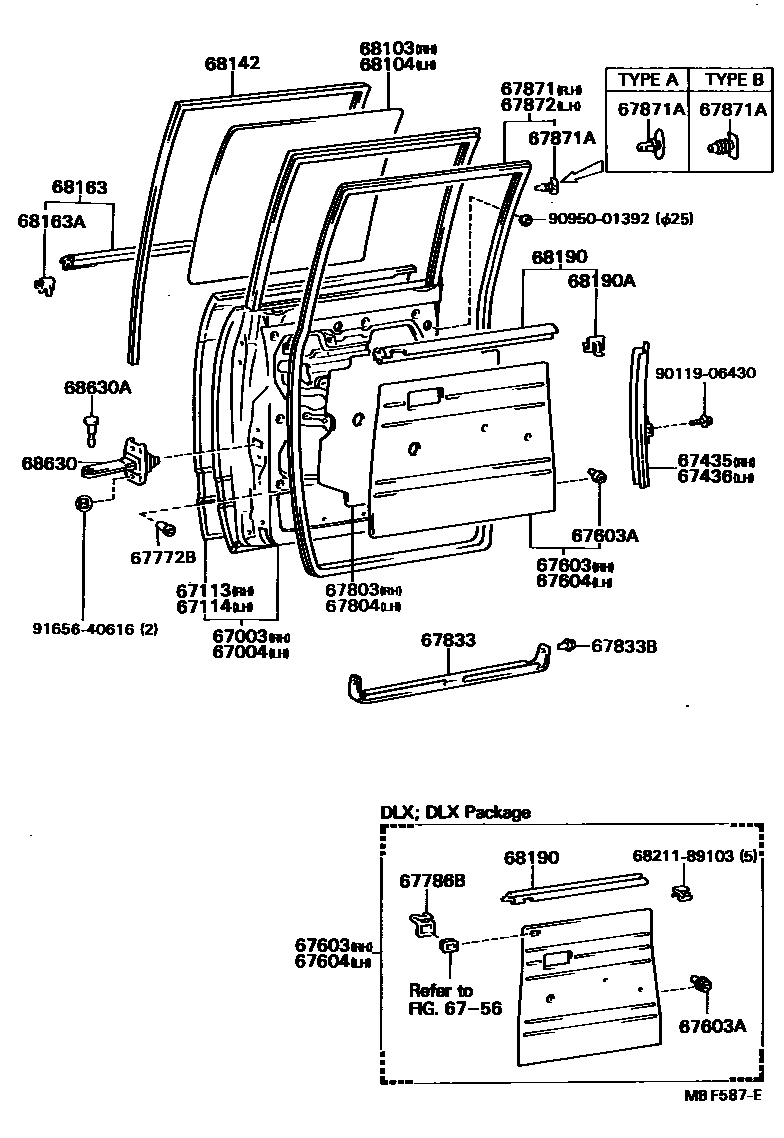

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-89102iLN55,56,65,RN55,YN55,57,65,67..TW198312-198608

sub67003-89104

main67003-89106iLN56,57,65,RN55,58,67,YN55,57,58,67..TW198608-199807

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-89102iLN55,56,65,RN55,YN55,57,65,67..TW198312-198608

sub67004-89104

main67004-89106iLN56,57,65,RN55,58,67,YN55,57,58,67..TW198608-199807

67113PANEL, REAR DOOR, OUTER RH

main67113-89102iLN55,56,65,RN55,YN55,57,65,67..TW198312-198608

sub67113-89103

main67113-89103iLN56,57,65,RN55,58,67,YN55,57,58,67..TW198608-199807

67114PANEL, REAR DOOR, OUTER LH

main67114-89102iLN55,56,65,RN55,YN55,57,65,67..TW198312-198608

sub67114-89103

main67114-89103iLN56,57,65,RN55,58,67,YN55,57,58,67..TW198608-199807

67435FRAME, REAR DOOR WINDOW LOWER, RH

main67407-89102iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

67436FRAME, REAR DOOR WINDOW, LOWER LH

main67408-89102iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

6756

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-89105-03iLN55,65,YN55,57,65..TW..STD198312-198402

LIGHT GRAY,GRAY,TRIM1#,8#

sub67630-89109

main67630-89105-04iLN55,65,YN55,57,65..TW..STD198312-198402

LIGHT BLUE,BLUE,TRIM8#

sub67630-89109

main67630-89105-06iLN55,65,YN55,57,65..TW..STD198312-198402

LIGHT BROWN,BROWN,TRIM4#

sub67630-89109

main67630-89106-03iLN65..DLX198312-198608

GRAY,GRAY,TRIM1#

main67630-89106-03iLN55,56,65,YN55,57,65,67..TW..STD198312-198608

DLX PACKAGE,GRAY,GRAY,TRIM1#

main67630-89106-04iLN65..DLX198312-198608

BLUE,BLUE,TRIM8#

main67630-89106-04iLN55,56,65,YN55,57,65,67..TW..STD198312-198608

DLX PACKAGE,BLUE,BLUE,TRIM8#

main67630-89106-06iLN65..DLX198312-198608

BROWN,BROWN,TRIM4#

main67630-89106-06iLN55,56,65,YN55,57,65,67..TW..STD198312-198608

DLX PACKAGE,BROWN,BROWN,TRIM4#

main67630-89108-03iLN55,65,YN55,57,65..TW..STD198402-198408

LIGHT GRAY,GRAY,TRIM1#,8#

main67630-89108-04iLN55,65,YN55,57,65..TW..STD198402-198408

LIGHT BLUE,BLUE,TRIM8#

main67630-89108-06iLN55,65,YN55,57,65..TW..STD198402-198408

LIGHT BROWN,BROWN,TRIM4#

main67630-89109-03iLN56,65,YN55,57,65,67..TW..STD198408-198608

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

main67630-89109-04iLN56,65,YN55,57,65,67..TW..STD198408-198608

LIGHT BLUE,LIGHT BLUE,TRIM8#

main67630-89109-06iLN56,65,YN55,57,65,67..TW..STD198408-198608

LIGHT BROWN,LIGHT BROWN,TRIM4#

main67630-89110-03iRN55,YN57..TW..ME198508-198608

GRAY,GRAY,TRIM1#

main67630-89110-04iRN55,YN57..TW..ME198508-198608

BLUE,BLUE,TRIM8#

main67630-89110-06iRN55,YN57..TW..ME198508-198608

BROWN,BROWN,TRIM4#

main67630-89111-03iLN56,65,RN55,YN55,57,58,67..TW..STD198608-199807

GRAY,GRAY,TRIM1#

main67630-89111-03iRN55,YN57..TW..4F..ME198610-198708

STD PACKAGE,GRAY,GRAY,TRIM1#

main67630-89111-04iRN55,YN57..TW..4F..ME198610-198708

STD PACKAGE,BLUE,BLUE,TRIM8#

main67630-89111-04iLN56,65,RN55,YN55,57,58,67..TW..STD198608-199807

BLUE,BLUE,TRIM8#

main67630-89111-05iRN55,YN57..TW..4F..ME198610-198708

STD PACKAGE,BEIGE,BEIGE,TRIM4#

main67630-89111-05iLN56,65,RN55,YN55,57,58,67..TW..STD198608-199807

BEIGE,BEIGE,TRIM4#

main67630-89112-03iLN57,65,RN58,67,YN67..TW..DLX198608-199807

DLX PACKAGE,GRAY,GRAY,TRIM1#

main67630-89112-03iLN57,65,RN58,67,YN67..TW..DLX198608-199807

GRAY,GRAY,TRIM1#

main67630-89112-04iLN57,65,RN58,67,YN67..TW..DLX198608-199807

BLUE,BLUE,TRIM8#

main67630-89112-04iLN57,65,RN58,67,YN67..TW..DLX198608-199807

DLX PACKAGE,BLUE,BLUE,TRIM8#

main67630-89113-03iRN55,YN57..TW..DLX198608-199807

GRAY,GRAY,TRIM1#

main67630-89113-04iRN55,YN57..TW..DLX198608-199807

BLUE,BLUE,TRIM8#

main67630-89115-05iLN57,65,RN58,67,YN67..TW..DLX198608-199807

BEIGE,BEIGE,TRIM4#

main67630-89115-05iLN57,65,RN58,67,YN67..TW..DLX198608-199807

DLX PACKAGE,BEIGE,BEIGE,TRIM4#

main67630-89116-05iRN55,YN57..TW..DLX198608-199807

BEIGE,BEIGE,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12010iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-89105-03iLN55,65,YN55,57,65..TW..STD198312-198402

LIGHT GRAY,GRAY,TRIM1#,8#

sub67640-89109

main67640-89105-04iLN55,65,YN55,57,65..TW..STD198312-198402

LIGHT BLUE,BLUE,TRIM8#

sub67640-89109

main67640-89105-06iLN55,65,YN55,57,65..TW..STD198312-198402

LIGHT BROWN,BROWN,TRIM4#

sub67640-89109

main67640-89106-03iYN55,57,65..TW..ME198312-198608

GRAY,GRAY,TRIM1#

main67640-89106-03iLN55,56,65,YN55,57,65,67..TW..STD198312-198608

DLX PACKAGE,GRAY,GRAY,TRIM1#

main67640-89106-04iYN55,67..TW..ME198312-198608

BLUE,BLUE,TRIM8#

main67640-89106-04iLN55,56,65,YN55,57,65,67..TW..STD198312-198608

DLX PACKAGE,BLUE,BLUE,TRIM8#

main67640-89106-06iYN55,67..TW..ME198312-198608

BROWN,BROWN,TRIM4#

main67640-89106-06iLN55,56,65,YN55,57,65,67..TW..STD198312-198608

DLX PACKAGE,BROWN,BROWN,TRIM4#

main67640-89108-03iLN55,65,YN55,57,65..TW..STD198402-198408

LIGHT GRAY,GRAY,TRIM1#,8#

main67640-89108-04iLN55,65,YN55,57,65..TW..STD198402-198408

LIGHT BLUE,BLUE,TRIM8#

main67640-89108-06iLN55,65,YN55,57,65..TW..STD198402-198408

LIGHT BROWN,BROWN,TRIM4#

main67640-89109-03iLN56,65,YN55,57,65,67..TW..STD198408-198608

LIGHT GRAY,LIGHT GRAY,TRIM1#,8#

main67640-89109-04iLN56,65,YN55,57,65,67..TW..STD198408-198608

LIGHT BLUE,LIGHT BLUE,TRIM8#

main67640-89109-06iLN56,65,YN55,57,65,67..TW..STD198408-198608

LIGHT BROWN,LIGHT BROWN,TRIM4#

main67640-89110-03iRN55,YN57..TW..ME198508-198608

GRAY,GRAY,TRIM1#

main67640-89110-04iRN55,YN57..TW..ME198508-198608

BLUE,BLUE,TRIM8#

main67640-89110-06iRN55,YN57..TW..ME198508-198608

BROWN,BROWN,TRIM4#

main67640-89111-03iLN56,65,RN55,YN55,57,58,67..TW..STD198608-199807

GRAY,GRAY,TRIM1#

main67640-89111-03iRN55,YN57..TW..4F..ME198610-198708

STD PACKAGE,GRAY,GRAY,TRIM1#

main67640-89111-04iLN56,65,RN55,YN55,57,58,67..TW..STD198608-199807

BLUE,BLUE,TRIM8#

main67640-89111-04iRN55,YN57..TW..4F..ME198610-198708

STD PACKAGE,BLUE,BLUE,TRIM8#

main67640-89111-05iLN56,65,RN55,YN55,57,58,67..TW..STD198608-199807

BEIGE,BEIGE,TRIM4#

main67640-89111-05iRN55,YN57..TW..4F..ME198610-198708

STD PACKAGE,BEIGE,BEIGE,TRIM4#

main67640-89112-03iLN56,65,YN55,57,58,67..TW..STD..(ARL,EUR,GEN)198608-199807

DLX PACKAGE,GRAY,GRAY,TRIM1#

main67640-89112-03iLN57,65,RN58,67,YN67..TW..DLX198608-199807

GRAY,GRAY,TRIM1#

main67640-89112-04iLN56,65,YN55,57,58,67..TW..STD..(ARL,EUR,GEN)198608-199807

BLUE,BLUE,TRIM8#

main67640-89112-04iLN57,65,RN58,67,YN67..TW..DLX198608-199807

DLX PACKAGE,BLUE,BLUE,TRIM8#

main67640-89113-03iRN55,YN57..TW..DLX198608-199807

GRAY,GRAY,TRIM1#

main67640-89113-04iRN55,YN57..TW..DLX198608-199807

BLUE,BLUE,TRIM8#

main67640-89115-05iLN57,65,RN58,67,YN67..TW..DLX198608-199807

DLX PACKAGE,BEIGE,BEIGE,TRIM4#

main67640-89115-05iLN56,65,YN55,57,58,67..TW..STD..(ARL,EUR,GEN)198608-199807

BEIGE,BEIGE,TRIM4#

main67640-89116-05iRN55,YN57..TW..DLX198608-199807

BEIGE,BEIGE,TRIM4#

67772BCAP, REAR DOOR TRIM RETAINER

main67772-89101iLN56,65,RN55,67,YN55,57,67..TW198608-199807

67786BRETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67786-10010iLN55,56,65,YN55,57,65,67..TW..(ARL,GEN,SA)198312-198608

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-89101iLN55,56,65,RN55,67,YN55,57,58,65,67..TW198312-199807

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-89101iLN55,56,65,RN55,67,YN55,57,58,65,67..TW198312-199807

67833COVER, REAR DOOR SERVICE HOLE

main67842-89102iLN55,56,65,RN55,67,YN55,57,58,65,67..TW198312-199807

67833BCLIP(FOR REAR DOOR SERVICE HOLE COVER)

main90467-07041-03iLN55,56,65,RN55,67,YN55,57,58,65,67..TW198312-199807

GRAY,GRAY,TRIM1#

sub90467-07041

67871WEATHERSTRIP, REAR DOOR, RH

main67871-89102iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-89103iLN55,65,YN55,57,65..TW198312-199807

TYPE A,RH

main67868-30040iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198405-199807

TYPE B

main67868-89101iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

TYPE A,LH

sub67867-89103

67872WEATHERSTRIP, REAR DOOR, LH

main67872-89102iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-89103iLN55,56,65,YN55,57,65..TW198312-199807

*TEM,T=4.0,*TEM,T=4.0

sub68113-89104

main68113-89104iLN55,56,65,YN55,57,65..TW..(GEN,ME)198312-199807

*TT,T=4.0,*TT,T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68113-89103iLN56,57,65,RN55,58,67,YN55,57,58,67..TW198312-199807

*TEM,T=4.0,*TEM,T=4.0

sub68113-89104

main68113-89104iLN55,56,65,YN55,57,65..TW..(GEN,ME)198312-199807

*TT,T=4.0,*TT,T=4.0

68142RUN, REAR DOOR GLASS

main68142-89102iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-89102iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-89105iLN55,56,65,RN55,67,YN55,57,58,65,67..TW198312-199807

sub68211-89104

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-89106iLN55,56,65,YN55,57,65,67..TW..(ARL,GEN,SA)198312-198608

RH

main68173-89106iRN55,YN55,57,65,67..TW..ME198312-198608

DLX PACKAGE,RH

main68173-89107iLN56,65,YN55,57,58,67..TW..(ARL,EUR,GEN)198608-199807

DLX PACKAGE,RH

main68173-89107iLN57,RN55,58,67,YN57,67..TW..DLX198608-199807

RH

main68174-89103iRN55,YN55,57,65,67..TW..ME198312-198608

DLX PACKAGE,LH

main68174-89103iRN55,YN55,57,65,67..TW..ME198312-198608

LH

main68174-89104iLN56,65,YN55,57,58,67..TW..(ARL,EUR,GEN)198608-199807

LH

main68174-89104iLN56,65,YN55,57,58,67..TW..(ARL,EUR,GEN)198608-199807

DLX PACKAGE,LH

main68190-89102iLN56,65,YN55,57,67..TW..STD..(ARL,EUR,GEN)198312-199807

RH

main68240-89102iLN55,56,65,YN55,57,65,67..TW..(ARL,GEN,SA)198312-199807

LH

68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030iLN55,56,65,YN55,57,65,67..TW..(ARL,GEN,SA)198312-199807

68630CHECK ASSY, REAR DOOR

main68630-89102iLN56,57,65,RN55,58,YN55,57,58,65,67..TW198312-199807

68630APIN(FOR REAR DOOR CHECK)

main68617-12010iLN56,65,YN55,57,65..TW198408-198507

sub68617-90A00

main68617-22010iLN55,65,YN55,57,65..TW198312-198408

sub68617-12010

main68617-90A00iLN56,57,65,RN55,58,YN55,57,58,65,67..TW198507-199807

sub68617-90A01

6821189103CHANNEL, DOOR WINDOW SET(FOR CANVAS DOOR)

main68211-89103

9011906430

main90119-06430

9095001392

main90950-01392

9165640616

main91656-40616

32 parts on this diagram · 1 diagram in section
