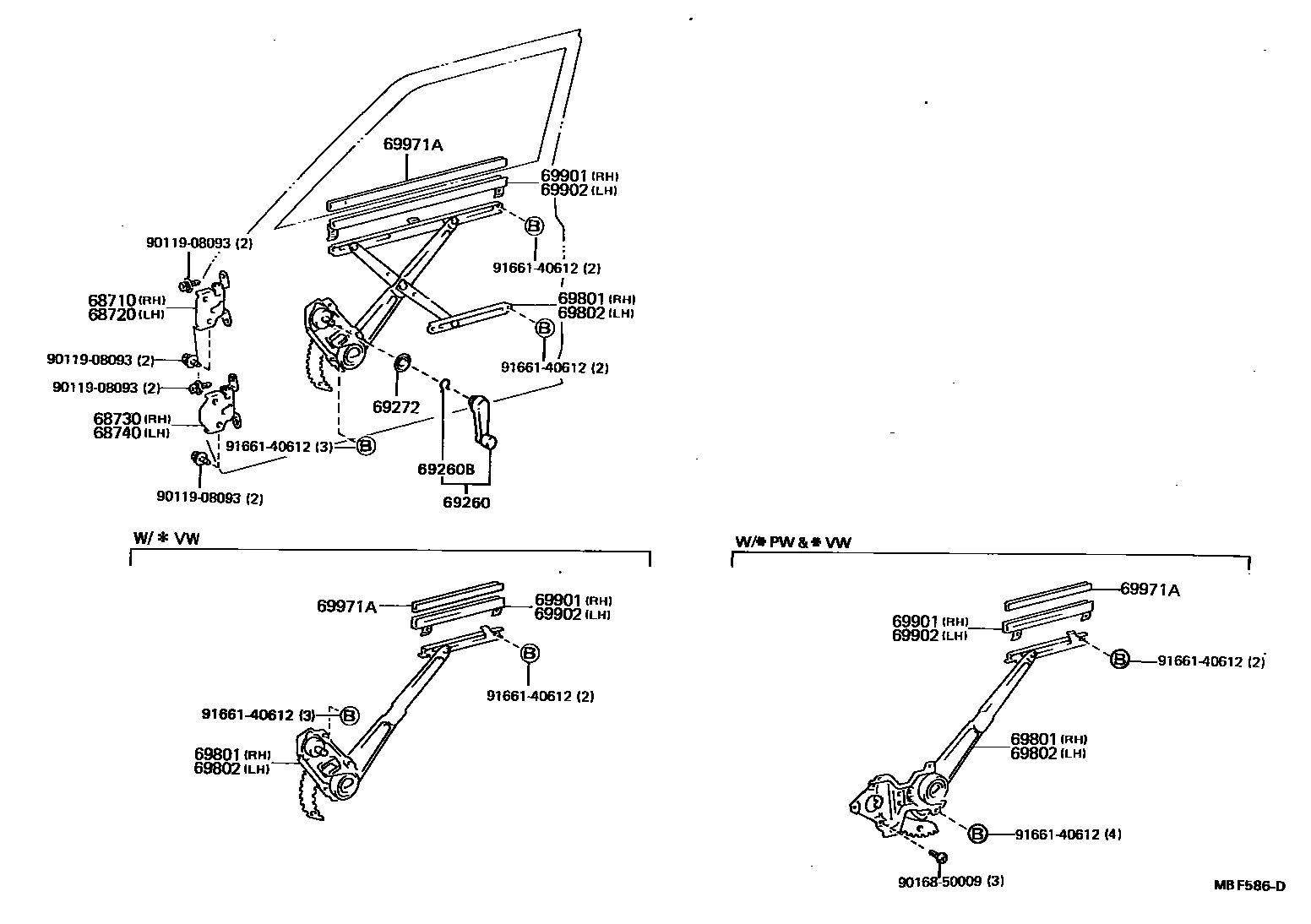

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14030iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

sub68710-60040

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14030iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

sub68720-60040

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14030iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14030iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-13iYN50,55,60,63,67..ME198308-198608

GRAY,GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-14iLN5#,6#,YN50,55,56,57,62,63,65,67..ARL,EUR,GEN,SA198308-198608

BLUE,BLUE,TRIM8#

sub69260-10040

sub69260-16010

main69260-10040-56iLN5#,6#,YN5#,6#198308-198608

BROWN,BROWN,TRIM4#

sub69260-10040

sub69260-16010

main69260-22020-23iRN5#,YN52,57..ME198508-198608

GRAY,GRAY,TRIM1#

sub69260-22020

sub69260-14030

main69260-22020-24iRN5#,YN52,57..ME198508-198608

BLUE,BLUE,TRIM8#

sub69260-22020

sub69260-14030

main69260-22020-33iRN5#,YN52,57..ME198608-199807

GRAY,GRAY,TRIM1#

sub69260-22020

sub69260-14030

main69260-22020-34iRN50,55,YN52,57..DLX..ME198608-199807

BLUE,BLUE,TRIM8#

sub69260-22020

sub69260-14030

main69260-22020-36iRN5#,YN52,57..ME198508-198608

BROWN,BROWN,TRIM4#

sub69260-22020

sub69260-14030

main69260-22020-45iRN5#,YN52,57..ME198608-199807

BEIGE,BEIGE,TRIM4#

sub69260-22020

sub69260-14030

main69260-89104-03iLN6#,YN57,6#..(DLX,SR5)..ARL198608-199807

GRAY,GRAY,TRIM1#

sub69260-89104

main69260-89104-03iRN5#,YN52,57..4F..ME198610-198708

STD PACKAGE,GRAY,GRAY,TRIM1#

sub69260-89104

main69260-89104-04iYN67..ME198608-199807

BLUE,BLUE,TRIM8#

sub69260-89104

main69260-89104-04iRN5#,YN52,57..4F..ME198610-198708

STD PACKAGE,BLUE,BLUE,TRIM8#

sub69260-89104

main69260-89104-05iYN6#..ME198608-199807

BEIGE,BEIGE,TRIM4#

sub69260-89104

main69260-89104-05iRN5#,YN52,57..4F..ME198610-198708

STD PACKAGE,BEIGE,BEIGE,TRIM4#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69266-22010iLN5#,6#,YN5#,6#198308-198508

main69266-22010-08iLN5#,6#,YN50,55,56,57,62,63,65,67..ARL,EUR,GEN,SA198508-198608

NATURAL,NATURAL WHITE

sub69266-22010

main69268-16010iLN5#,6#,RN58,YN50,51,55,56,57,58,6#..ARL,EUR,GEN,SA198608-199807

sub69268-20020

main69272-30010-08iRN50,55,YN52,57..DLX..ME198508-199807

NATURAL,NATURAL WHITE

sub69272-30010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-89107iYN50,55..ME198408-199807

W/O *VW

main69801-89107iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN56..RHD..(EUR,GEN);LN50,51,55,60,65,YN50,55,56,57,60,62,65,67..EUR,GEN198308-198608

main69801-89108iRN50,55,YN52,57,6#..ME198608-199807

main69801-89108iLN50,55,56,6#,YN50,52,55,57,6#..ARL,ME,SA198308-199807

W/*VW

main69801-89109iRN61198712-198903

main69801-89110iYN60,63..SR5..ME198403-199807

W/*PW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-89107iRN50,55,YN52,57..4F..ME198408-199807

W/O *VW

main69802-89107iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN56..RHD..(EUR,GEN);LN50,51,55,60,65,YN50,55,56,57,60,62,65,67..EUR,GEN198308-198608

main69802-89108iYN52,57,60,63,65,67..ME198308-199807

W/*VW

main69802-89108iRN50,55,YN52,57,6#..ME198608-199807

main69802-89109iRN61198712-198903

main69802-89110iYN60,63..SR5..ME198403-199807

W/*PW

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-89108iRN61198308-198903

main69901-89108iYN50,55..ME198408-199807

W/O *VW

main69901-89109iYN52,57,60,63,65,67..ME198308-199807

W/*VW

main69901-89109iRN50,55,YN52,57,6#..ME198608-199807

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-89108iRN50,55,YN52,57..4F..ME198408-199807

W/O *VW

main69901-89108iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN56..RHD..(EUR,GEN);LN50,51,55,60,65,YN50,55,56,57,60,62,65,67..EUR,GEN198308-198903

main69901-89109iYN52,57,60,63,65,67..ME198308-199807

W/*VW

main69901-89109iRN50,55,YN52,57,6#..ME198608-199807

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-89103iRN50,55,YN52,57..4F..ME198408-199807

W/O *VW

main69971-89103iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN56..RHD..(EUR,GEN);LN50,51,55,60,65,YN50,55,56,57,60,62,65,67..EUR,GEN198308-198903

main69971-89104iYN52,57,60,63,65,67..ME198308-199807

W/*VW

sub69971-35020

main69971-89104iRN50,55,YN52,57,6#..ME198608-199807

sub69971-35020

9011908093

main90119-08093

9016850009

main90168-50009

9166140612

main91661-40612

15 parts on this diagram · 1 diagram in section
