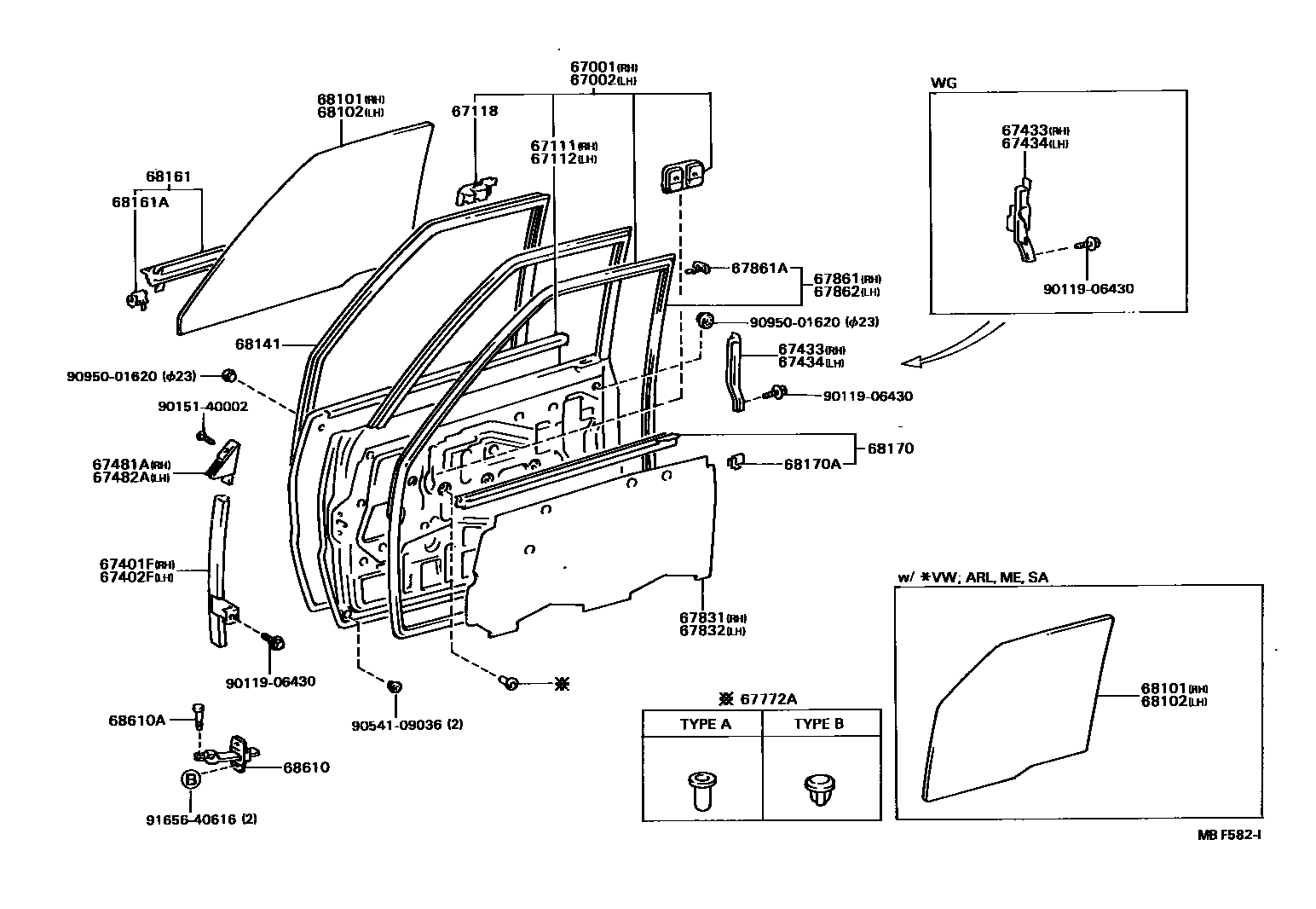

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-89130iLN5#,60,65,YN50,55,57,60,62,65,67..(DLX,STD)..GEN¥52,800198308-198601

sub67001-89160¥52,800

main67001-89131iLN55,YN57..SR5..GEN¥52,800198308-198601

sub67001-89161¥52,800

main67001-89132iLN50,55,6#,YN50,55,57,6#..(DLX,STD)..GEN¥52,800198308-198608

W/DOOR MIRROR

sub67001-89162¥52,800

main67001-89132iYN50,55..ME¥52,800198408-198601

W/O *VW

sub67001-89162¥52,800

main67001-89133iLN56,YN57..SR5..GEN¥52,800198308-198608

W/DOOR MIRROR

sub67001-89163¥52,800

main67001-89134iYN65..5F..GEN¥52,800198407-198501

*SA

sub67001-89164¥52,800

main67001-89134iLN55,56,65,YN50,52,55,57,6#..(DLX,STD)..(ARL,ME)¥52,800198308-198608

W/*VW & DOOR MIRROR

sub67001-89164¥52,800

main67001-89134iYN65..TW..SA¥52,800198501-198508

sub67001-89164¥52,800

main67001-89134iYN50,55..ME¥52,800198408-198601

W/*VW

sub67001-89164¥52,800

main67001-89135iLN56,YN57..SR5..GEN¥52,800198308-198608

W/*VW & DOOR MIRROR

sub67001-89165¥52,800

main67001-89135iLN60,61,YN57,60,63,65,67..SR5..(ARL,ME)¥52,800198309-198608

sub67001-89165¥52,800

main67001-89137iLN55,56,65,YN56,65..EUR¥55,400198308-198608

sub67001-89162¥52,800

main67001-89147iLN50,51,55,6#,YN50,55,57,6#..(DLX,STD)..GEN¥55,500198308-198608

*GIS

sub67001-89160¥52,800

main67001-89147iYN57,67..LHD..STD..GEN¥55,500198703-199807

PERU SPEC

sub67001-89160¥52,800

main67001-89148iLN55,56,YN57..SR5..GEN198308-198608

*GIS

main67001-89149iLN50,55,6#,YN50,55,57,6#..(DLX,STD)..GEN198308-198608

*GIS,W/DOOR MIRROR

main67001-89150iLN55,56,YN57..SR5..GEN198308-198608

*GIS,W/DOOR MIRROR

main67001-89151iLN5#,60,65,YN50,55,57,60,62,65,67..(DLX,STD)..GEN198308-198608

*GIS,W/*VW & DOOR MIRROR

main67001-89152iLN55,YN57..SR5..GEN198308-198608

*GIS,W/*VW & DOOR MIRROR

main67001-89155iYN60,63..SR5..ME198403-198608

W/*PW

main67001-89156iRN5#,YN52,57,60,65,67..DLX..ME198408-198608

W/*RCM

main67001-89157iYN60,63..SR5..ME198408-198608

W/*RCM;W/*PW & *RCM

sub67001-89165¥52,800

main67001-89161iLN5#,65,YN50,55,57,62,67..(DLX,STD)..GEN¥52,800198601-199807

main67001-89163iRN50,55,YN52,57..4F..ME¥52,800198608-199807

W/O *VW,W/DOOR MIRROR

main67001-89163iYN63..ME¥52,800198708-199807

W/0 *VW

main67001-89163iRN61¥52,800198712-199807

main67001-89165iRN50,55,YN52,57,6#..ME¥52,800198608-199807

W/*VW & DOOR MIRROR

main67001-89165iLN56,65,YN56,58,67..ARL..IV¥52,800198708-199807

main67001-89188iRN5#,YN52,57..4F..ME¥52,900198610-198708

W/O *VW

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-89132iLN50,55,6#,YN50,55,57,6#..(DLX,STD)..GEN¥52,800198308-198608

sub67002-89167¥52,800

main67002-89133iLN55,YN57..SR5..GEN¥52,800198308-198608

sub67002-89168¥53,400

main67002-89134iLN5#,60,65,YN50,55,57,60,62,65,67..(DLX,STD)..GEN¥52,800198308-198608

W/DOOR MIRROR

sub67002-89161¥52,800

main67002-89134iYN50,55..ME¥52,800198408-198601

W/O *VW

sub67002-89161¥52,800

main67002-89135iLN55,YN57..SR5..GEN¥52,800198308-198608

W/DOOR MIRROR

sub67002-89162¥53,400

main67002-89136iRN5#,YN52,57,60,65,67..DLX..ME¥52,800198308-198608

W/*VW & DOOR MIRROR

sub67002-89163¥52,800

main67002-89136iYN65..5F..GEN¥52,800198407-198501

*SA

sub67002-89163¥52,800

main67002-89136iYN65..TW..SA¥52,800198501-198508

sub67002-89163¥52,800

main67002-89136iYN50,55..ME¥52,800198408-198601

W/*VW

sub67002-89163¥52,800

main67002-89137iLN55,YN57..SR5..GEN¥52,800198308-198608

W/*VW & DOOR MIRROR

sub67002-89164¥52,800

main67002-89137iLN60,61,YN57,60,63,65,67..SR5..(ARL,ME)¥52,800198308-198608

sub67002-89164¥52,800

main67002-89138iLN55,56,65,YN56,65..EUR¥55,400198308-198608

sub67002-89161¥52,800

main67002-89146iLN5#,60,65,YN50,55,57,60,62,65,67..(DLX,STD)..GEN198308-198608

*GIS

main67002-89147iLN55,56,YN57..SR5..GEN198308-198608

*GIS

main67002-89148iLN50,55,6#,YN50,55,57,6#..(DLX,STD)..GEN¥55,500198308-198608

*GIS,W/DOOR MIRROR

sub67002-89161¥52,800

main67002-89149iLN55,56,YN57..SR5..GEN198308-198608

*GIS,W/DOOR MIRROR

main67002-89150iLN50,55,6#,YN50,55,57,6#..(DLX,STD)..GEN198308-198608

*GIS,W/*VW & DOOR MIRROR

main67002-89151iLN56,YN57..SR5..GEN198308-198608

*GIS,W/*VW & DOOR MIRROR

main67002-89154iYN60,63..SR5..ME198403-198608

W/*PW

main67002-89155iRN5#,YN52,57,60,65,67..DLX..ME198408-198608

W/*RCM

main67002-89156iYN60,63..SR5..ME198408-198608

W/*RCM;W/*PW & *RCM

sub67002-89164¥52,800

main67002-89162iLN56..SR5¥53,400198608-199807

W/O *VW,W/DOOR MIRROR

main67002-89162iYN63..ME¥53,400198708-199807

W/0 *VW

main67002-89164iLN51,56,65,YN50,55,57,67..GEN¥52,800198608-199807

W/*VW & DOOR MIRROR

main67002-89164iLN56,65,YN56,58,67..ARL..IV¥52,800198708-199807

main67002-89168iLN56,65,YN55,57,67..ARL..IV¥53,400198608-199807

main67002-89188iRN5#,YN52,57..4F..ME¥52,900198610-198708

W/O *VW

67111PANEL, FRONT DOOR, OUTER RH

main67111-89116iLN5#,6#,RN5#,YN5#,6#..ARL,EUR,GEN,ME¥21,600198308-198608

sub67111-89126¥21,800

main67111-89120iLN5#,6#,YN50,55,57,6#..GEN198308-198407

*GIS

main67111-89121iLN56..SR5198404-198407

*THS,W/DOOR MIRROR

main67111-89121iLN50,55,6#,YN50,55,57,6#..GEN198308-198407

*GIS,W/DOOR MIRROR

main67111-89122iLN50,55,6#,YN50,55,57,6#..GEN¥21,600198308-198407

*GIS,W/*VW & DOOR MIRROR

sub67111-89116¥21,600

main67111-89125iYN52,57,6#..ME¥21,600198408-198409

W/*RCM

sub67111-89116¥21,600

main67111-89126iLN51,56,61,65,RN50,55,61,YN50,52,55,56,57,58,6#..ARL,EUR,GEN,ME¥21,800198608-199807

67112PANEL, FRONT DOOR, OUTER LH

main67112-89121iLN5#,6#,RN5#,YN5#,6#..ARL,EUR,GEN,ME¥21,700198308-198602

sub67112-89130¥22,000

main67112-89122iLN56..SR5198404-198407

*THS,W/DOOR MIRROR

main67112-89122iLN50,55,6#,YN50,55,57,6#..GEN198308-198407

*GIS,W/DOOR MIRROR

main67112-89123iLN50,55,6#,YN50,55,57,6#..GEN198308-198407

*GIS,W/*VW & DOOR MIRROR

main67112-89124iLN5#,6#,YN50,55,57,6#..GEN198308-198407

*GIS

sub67112-89121¥21,700

main67112-89127iYN52,57,6#..ME198408-198409

W/*RCM

sub67112-89121¥21,700

main67112-89130iLN51,56,61,65,RN50,55,61,YN50,52,55,56,57,58,63,67..ARL,EUR,GEN,ME¥22,000198602-199807

67118RETAINER, OUTER MIRROR

main67118-89103iLN56..EUR..IV;LN56..TW..EUR;LN56..RHD..EUR;LN55,65,YN56,65..EUR¥740198308-198608

RH

sub67118-89107¥750

main67118-89103iLN56..SR5¥740198404-198408

*THS,W/DOOR MIRROR,RH

sub67118-89107¥750

main67118-89103iLN50,55,6#,YN50,55,57,6#..GEN¥740198308-198608

W/DOOR MIRROR,RH

sub67118-89107¥750

main67118-89103iYN50,55..ME¥740198408-198601

RH,W/O *VW

sub67118-89107¥750

main67118-89104iLN5#,60,65,YN50,55,57,60,62,65,67..GEN¥1,160198308-198608

RH

sub67118-89108¥1,180

main67118-89104iLN55,56,6#,YN50,52,55,57,6#..ARL,ME¥1,160198308-198608

W/*VW & DOOR MIRROR,RH

sub67118-89108¥1,180

main67118-89104iYN65..5F..GEN¥1,160198407-198501

*SA,RH

sub67118-89108¥1,180

main67118-89104iYN50,55..ME¥1,160198408-198601

RH,W/*VW

sub67118-89108¥1,180

main67119-89103iLN50,55,6#,YN50,55,57,6#..GEN¥740198308-198608

W/DOOR MIRROR,LH

sub67119-89106¥750

main67119-89103iLN56..EUR..IV;LN56..TW..EUR;LN56..RHD..EUR;LN55,65,YN56,65..EUR¥740198308-198608

LH

sub67119-89106¥750

main67119-89103iYN50,55..ME¥740198408-198601

LH,W/O *VW

sub67119-89106¥750

main67119-89103iLN56..SR5¥740198404-198408

*THS,W/DOOR MIRROR,LH

sub67119-89106¥750

main67119-89104iRN5#,YN52,57,60,65,67..ME¥1,160198308-198608

LH

sub67119-89107¥1,180

main67119-89104iRN5#,YN52,57,60,65,67..ME¥1,160198308-198608

W/*VW & DOOR MIRROR,LH

sub67119-89107¥1,180

main67119-89104iYN65..5F..GEN¥1,160198407-198501

*SA,LH

sub67119-89107¥1,180

main67119-89104iYN50,55..ME¥1,160198408-198601

LH,W/*VW

sub67119-89107¥1,180

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-89107iYN50,55..ME¥2,260198408-199807

W/O *VW

main67401-89107iLN50,51,55,56,60,65,RN61,YN50,55,56,57,60,62,65,67..EUR,GEN¥2,260198308-199807

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-89107iYN63..ME¥2,260198308-199807

main67402-89107iYN50,55..ME¥2,260198408-199807

W/O *VW

67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH

main67403-89101iLN60,61,YN60,63..WG¥1,290198403-198608

sub67403-89102¥2,100

main67403-89102iLN61,RN61,YN63¥2,100198608-199807

main67433-89103iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..T1,T3,TW¥950198308-199807

67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH

main67404-89101iLN60,61,YN60,63..WG¥1,290198403-198608

sub67404-89102¥2,100

main67404-89102iLN61,RN61,YN63¥2,100198608-199807

main67434-89103iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..T1,T3,TW¥950198308-199807

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-89106iYN63..ME¥1,200198308-199807

main67481-89106iRN50,55,YN52,57..4F..ME¥1,200198408-199807

W/O *VW

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-89102iRN50,55,YN52,57..4F..ME¥1,200198408-199807

W/O *VW

main67482-89102iYN63..ME¥1,200198308-199807

67772ACAP, FRONT DOOR TRIM RETAINER

main67772-20021iRN61¥240198308-199807

TYPE A

main67772-89101iRN61¥190198608-199807

TYPE B

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-89106iLN5#,6#,YN5#,6#..T1,T3,TW¥810198308-198501

sub67831-89107¥850

main67831-89107iLN60,61,YN60,63..ARL¥850198403-199807

main67831-89110iYN60,63..SR5..ME¥850198403-199807

main67831-89111iYN60,63..SR5..ME¥840198403-198608

W/*PW

main67831-89114iRN61¥850198712-199807

main67831-89114iYN63..ME¥850198608-199807

W/*PW

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-89106iLN5#,6#,YN5#,6#..T1,T3,TW¥810198308-198501

sub67831-89107¥850

main67831-89107iYN60,63..SR5..ME¥850198403-199807

main67831-89108iYN60,63..SR5..ME¥840198403-198608

W/*PW

main67831-89109iLN60,61,YN60,63..ARL¥850198403-199807

main67831-89115iYN63..ME¥850198608-199807

W/*PW

main67831-89115iRN61¥850198712-199807

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-89105iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#¥7,200198308-199807

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-89103iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#¥100198308-199807

RH

main67868-89101iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#¥170198308-199807

LH

sub67867-89103¥100

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-89104iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#¥7,200198308-199807

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-89112iLN5#,60,65,YN50,55,56,57,60,62,65,67..EUR,GEN¥10,800198308-199807

*TEM,T=4.0,*TEM,T=4.0

sub68111-89113¥12,200

main68111-89112iYN50,55..ME¥10,800198408-198601

*TEM,T=4.0,*TEM,T=4.0,W/O *VW

sub68111-89113¥12,200

main68111-89113iYN63..ME¥12,200198408-199807

*TT,T=4.0,*TT,T=4.0,W/O *VW

main68111-89113iRN50,55,YN52,57..4F..ME¥12,200198308-199807

*TT,T=4.0,*TT,T=4.0

main68111-89114iYN63..ME¥16,200198708-199807

*TT,T=4.0,BRONZE,*TT,T=4.0 BRONZE,W/O *VW

main68111-89115iLN5#,YN50,55,57,65..SA¥8,900198308-199807

*TEM,T=4.0,*TEM,T=4.0

sub68111-89116¥10,000

main68111-89115iYN50,55..ME¥8,900198308-199807

*TEM,T=4.0,*TEM,T=4.0,W/*VW

sub68111-89116¥10,000

main68111-89116iLN50,55,6#,YN50,55,57,6#..GEN¥10,000198308-199807

*TT,T=4.0,*TT,T=4.0,W/*VW

main68111-89116iLN50,55,6#,YN50,55,57,6#..GEN¥10,000198308-198408

*TT,T=4.0,*TT,T=4.0

main68111-89117iYN60,63..SR5..ME¥13,400198403-199807

*TT,T=4.0,BRONZE,*TT,T=4.0,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-89111iLN51,56,65,YN50,55,56,57,67..(DLX,STD)..(EUR,GEN)¥10,800198308-199807

*TEM,T=4.0,*TEM,T=4.0

sub68112-89112¥12,200

main68112-89111iYN50,55..ME¥10,800198408-198601

*TEM,T=4.0,*TEM,T=4.0,W/O *VW

sub68112-89112¥12,200

main68112-89112iYN63..ME¥12,200198408-199807

*TT,T=4.0,*TT,T=4.0,W/O *VW

main68112-89112iRN50,55,YN52,57..4F..ME¥12,200198308-199807

*TT,T=4.0,*TT,T=4.0

main68112-89113iYN63..ME¥16,200198708-199807

*TT,T=4.0,BRONZE,*TT,T=4.0,BRONZE,W/O *VW

main68112-89114iLN50,55,YN50,52,55,57,6#..(T1,TW)..(ME,SA)¥8,900198308-199807

*TEM,T=4.0,*TEM,T=4.0,W/*VW

sub68112-89115¥10,000

main68112-89114iLN50,55,6#,YN50,55,57,6#..GEN¥8,900198308-199807

*TEM,T=4.0,*TEM,T=4.0

sub68112-89115¥10,000

main68112-89115iRN50,55,YN52,57,60,63,65,67..ME¥10,000198308-199807

*TT,T=4.0,*TT,T=4.0,W/*VW

main68112-89115iYN50,52,55,57,6#..ME¥10,000198308-198408

*TT,T=4.0,*TT,T=4.0

main68112-89116iYN60,63..SR5..ME¥13,400198403-199807

*TT,T=4.0,BRONZE,*TT,T=4.0,BRONZE

68141RUN, FRONT DOOR GLASS

main68141-89107iLN50,51,55,56,60,65,RN61,YN50,55,56,57,60,62,65,67..EUR,GEN¥3,310198308-199807

main68141-89107iYN50,55..ME¥3,310198408-198601

W/O *VW

main68141-89108iLN50,55,56,6#,YN50,52,55,57,6#..ARL,ME,SA¥2,840198308-199807

W/*VW

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-89108iLN56..DLX;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN;LN56..RHD..(EUR,GEN);LN50,51,55,60,65,YN50,55,56,57,60,62,65,67..EUR,GEN¥1,830198308-198705

RH

sub68160-89114¥1,830

main68160-89108iYN50,55..ME¥1,830198408-198601

W/O *VW,RH

sub68160-89114¥1,830

main68160-89109iLN56..DLX;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN;LN56..RHD..(EUR,GEN);LN50,51,55,60,65,YN50,55,56,57,60,62,65,67..EUR,GEN¥1,830198308-198705

LH

sub68160-89115¥1,830

main68160-89109iYN50,55..ME¥1,830198408-198601

W/O *VW,LH

sub68160-89115¥1,830

main68160-89110iRN5#,YN52,57,60,63,65,67..ME¥1,830198308-198705

W/*VW

sub68160-89116¥1,810

main68160-89110iYN58..4F;YN58..SR5,STD;LN51,56,60,61,65,YN50,51,55,56,57,60,63,65,67..(4F,4FC,4H,5F)..(ARL,SA)¥1,830198408-199807

sub68160-89116¥1,810

main68160-89114iLN51,56,65,RN61,YN50,55,56,57,67..EUR,GEN¥1,830198705-199807

RH

main68160-89115iLN51,56,65,RN61,YN50,55,56,57,67..EUR,GEN¥1,830198705-199807

LH

main68160-89116iYN58..4F;YN58..SR5,STD;LN51,56,61,65,RN50,55,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)¥1,810198612-199807

W/*VW

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-89104iYN50,55..ME¥400198408-198601

W/O *VW,LH

main68211-89104iLN50,55,6#,YN50,55,56,57,6#..EUR,GEN¥400198308-198402

main68211-89104iLN50,51,55,56,60,65,RN61,YN50,55,56,57,60,62,65,67..EUR,GEN¥400198402-199807

LH

main68211-89105iYN50,55..ME¥400198408-198601

W/O *VW,RH

sub68211-89104¥400

main68211-89105iLN50,51,55,56,60,65,RN61,YN50,55,56,57,60,62,65,67..EUR,GEN¥400198402-199807

RH

sub68211-89104¥400

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-89110iRN50,55,YN52,57..4F..ME¥2,170198610-199807

W/O *VW,RH

main68170-89110iLN50,51,55,56,60,65,YN50,55,56,57,60,62,65,67..STD..(EUR,GEN)¥2,170198308-199807

RH

main68170-89111iLN50,51,55,56,60,65,YN50,55,56,57,60,62,65,67..STD..(EUR,GEN)¥2,170198308-199807

LH

main68170-89111iRN50,55,YN52,57..4F..ME¥2,170198610-199807

W/O *VW,LH

main68170-89112iRN50,55,YN52,57..4F..ME¥1,620198308-199807

RH

main68170-89112iLN50,55,6#,YN50,55,57,6#..STD..GEN¥1,620198308-199807

W/*VW,RH

main68170-89113iLN51,56,60,65,YN50,55,57,60,62,65,67..STD..GEN¥1,620198308-199807

W/*VW,LH

main68170-89113iLN50,51,55,56,65,YN50,51,55,56,57,58,65,67..(4F,4FC,4H,5F)..STD..(ARL,SA)¥1,620198308-199807

LH

main68170-89115iRN61¥3,410198712-199807

RH

main68170-89115iYN63..ME¥3,410198708-199807

W/O *VW,RH

main68170-89116iLN56,61,65,RN58,YN57,58,6#..SR5¥2,360198608-199807

main68171-89121iLN55,56,65,YN57..(DLX,SR5)..GEN¥2,060198308-198608

DLX PACKAGE,RH

sub68171-89125¥2,080

main68171-89121iLN55,56,65,YN57..(DLX,SR5)..GEN¥2,060198308-198608

RH

sub68171-89125¥2,080

main68171-89121iYN50,55..ME¥2,060198408-198601

W/O *VW,RH

sub68171-89125¥2,080

main68171-89122iLN60,61,RN5#,YN52,57,60,63,65,67..(DLX,SR5)..(ARL,ME,SA)¥1,490198308-198608

DLX PACKAGE,W/*VW,RH

sub68171-89124¥1,510

main68171-89122iLN60,YN50,52,55,57,6#..(DLX,SR5)..(ARL,ME,SA)¥1,490198308-198608

RH

sub68171-89124¥1,510

main68171-89122iYN50,55..ME¥1,490198308-198608

W/*VW,RH

sub68171-89124¥1,510

main68171-89122iLN55,56,65,YN57..(DLX,SR5)..GEN¥1,490198308-198608

DLX PACKAGE,RH

sub68171-89124¥1,510

main68171-89124iRN50,55,YN52,57,67..DLX..ME¥1,510198608-199807

RH

main68171-89124iLN51,56,65,YN51,56,57,58,67..(4FC,4H,5F)..STD..(ARL,SA)¥1,510198608-199807

DLX PACKAGE,RH

main68171-89124iLN51,56,65,YN50,55,57,67..STD..GEN¥1,510198608-199807

DLX PACKAGE,W/*VW,RH

main68171-89124iLN51,56,65,YN50,55,57,67..STD..GEN¥1,510198608-199807

W/*VW,RH

main68171-89125iLN51,56,65,YN50,55,56,57,67..STD..(EUR,GEN)¥2,080198608-199807

DLX PACKAGE,RH

main68171-89125iLN51,56,65,YN50,55,56,57,67..STD..(EUR,GEN)¥2,080198608-199807

W/O *VW,RH

main68171-89125iLN56..SR5¥2,080198608-199807

RH

main68172-89106iLN55,56,65,YN57..(DLX,SR5)..GEN¥2,060198308-198608

DLX PACKAGE,LH

sub68172-89110¥2,060

main68172-89106iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN;LN56..RHD..STD..(EUR,GEN);LN50,51,55,60,65,YN50,55,56,57,60,62,65,67..STD..(EUR,GEN)¥2,060198308-198608

LH

sub68172-89110¥2,060

main68172-89106iYN50,55..ME¥2,060198408-198601

W/O *VW,LH

sub68172-89110¥2,060

main68172-89107iLN56..LHD..RCB..EUR..CBU;LN5#,65,YN50,55,57,65,67..STD..(ARL,SA)¥1,490198308-198608

W/*VW,LH

sub68172-89109¥1,510

main68172-89107iLN55,56,65,YN57..(DLX,SR5)..GEN¥1,490198308-198608

DLX PACKAGE,LH

sub68172-89109¥1,510

main68172-89107iLN60,61,RN5#,YN52,57,60,63,65,67..(DLX,SR5)..(ARL,ME,SA)¥1,490198308-198608

LH

sub68172-89109¥1,510

main68172-89107iLN60,61,RN5#,YN52,57,60,63,65,67..(DLX,SR5)..(ARL,ME,SA)¥1,490198308-198608

DLX PACKAGE,W/*VW,LH

sub68172-89109¥1,510

main68172-89109iLN51,56,65,YN50,55,57,67..STD..GEN¥1,510198608-199807

W/*VW,LH

main68172-89109iLN51,56,65,YN50,55,57,67..STD..GEN¥1,510198608-199807

DLX PACKAGE,W/*VW,LH

main68172-89109iLN56..RCB..EUR..CBU;LN5#,65,YN51,55,56,57,67..STD..(ARL,SA)¥1,510198608-199807

DLX,PACKAGE,LH

main68172-89109iRN5#,YN52,57,67..ME¥1,510198608-199807

LH

main68172-89109iYN55..ARL..IV¥1,510198610-198708

DLX PACKAGE,LH

main68172-89110iLN51,56,65,YN50,55,56,57,67..STD..(EUR,GEN)¥2,060198608-199807

DLX PACKAGE,LH

main68172-89110iLN51,56,65,YN50,55,56,57,67..STD..(EUR,GEN)¥2,060198608-199807

W/O *VW,LH

main68172-89110iLN56..SR5¥2,060198608-199807

LH

main68220-89103iRN61¥3,410198712-199807

LH

main68220-89103iYN63..ME¥3,410198708-199807

W/O *VW,LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030iLN51,56,60,65,YN50,55,57,60,62,65,67..STD..GEN¥240198308-199807

W/*VW

main68211-10030iLN50,51,55,56,65,YN50,51,55,56,57,58,65,67..(4F,4FC,4H,5F)..STD..(ARL,SA)¥240198308-199807

68610CHECK ASSY, FRONT DOOR

main68610-89102iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F¥3,650198308-199807

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iLN5#,6#,YN5#,6#¥280198408-198507

sub68617-90A00¥280

main68617-20011iLN5#,67,RN58,YN5#¥180199508-199807

main68617-22010iLN5#,6#,YN5#,6#¥300198308-198408

sub68617-12010¥280

main68617-90A00iLN5#,61,65,RN5#,61,YN5#,63,67¥280198507-199508

sub68617-90A01¥300

9011906430

main90119-06430¥120

9015140002

main90151-40002¥70

9054109036

main90541-09036¥140

9095001620

main90950-01620¥110

9165640616

main91656-40616¥100

31 parts on this diagram · 2 diagrams in section
