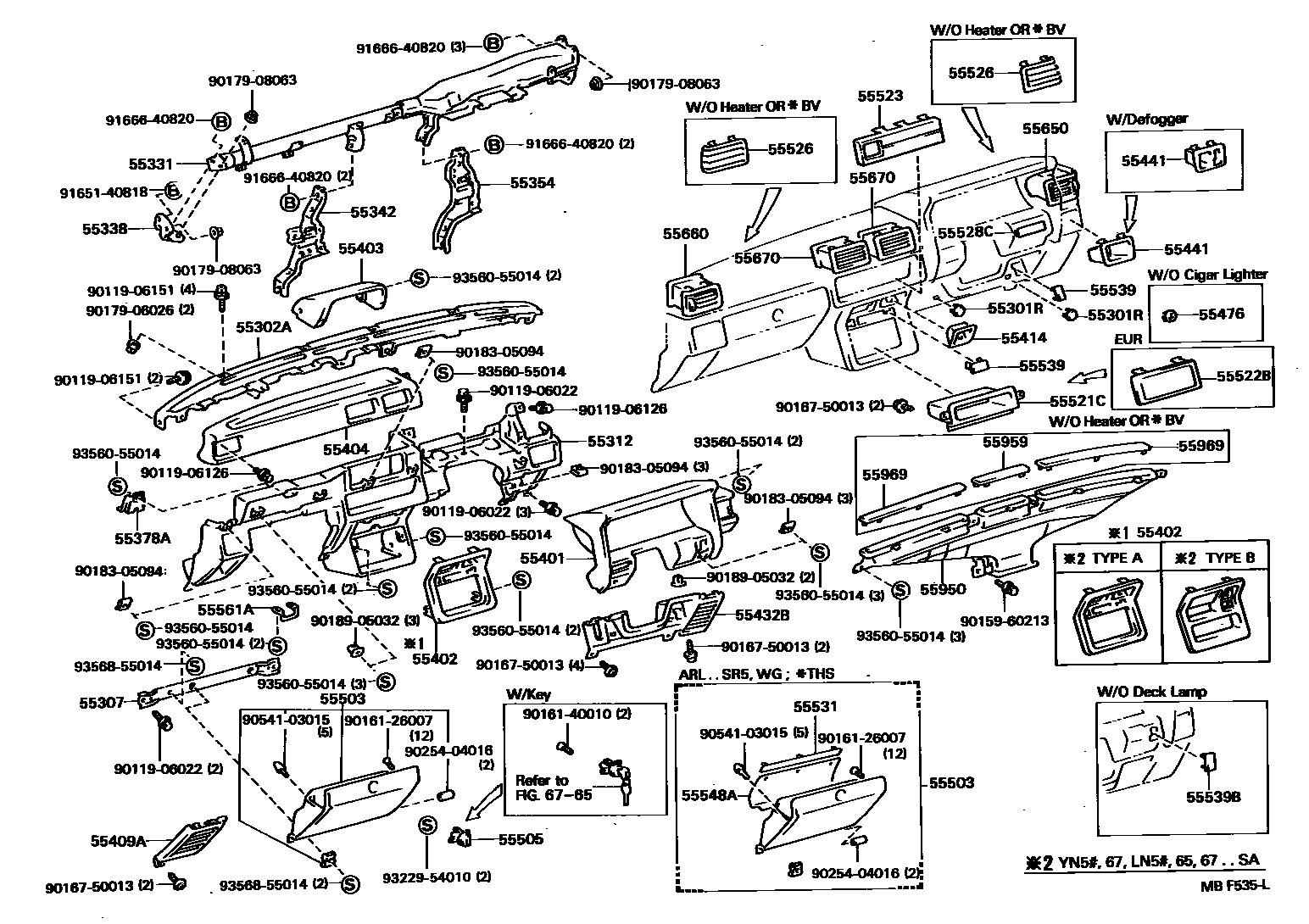

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301RPLUG, HOLE(FOR INSTRUMENT PANEL)

main90950-01400-03iYN55,56,57,65..STD..(ARL,EUR)198308-198608

GRAY,GRAY,TRIM1#

sub90950-01400

main90950-01400-03iLN5#,6#..T1,T3,TW198308-198608

W/THROTTLE BUTTON,GRAY,GRAY,TRIM1#

sub90950-01400

main90950-01400-04iYN50,55,57,65..RHD..GEN198308-198608

BLUE,BLUE,TRIM8#

sub90950-01400

main90950-01400-04iYN50,55,57,65..RHD..GEN198308-198608

W/THROTTLE BUTTON,BLUE,BLUE,TRIM8#

sub90950-01400

main90950-01400-05iYN55,57,6#..ARL198608-199807

BEIGE,BEIGE,TRIM4#

sub90950-01400

main90950-01400-06iLN5#,6#..T1,T3,TW198308-198608

BROWN,BROWN,TRIM4#

sub90950-01400

main90950-01400-06iLN5#,6#..T1,T3,TW198308-198608

W/THROTTLE BUTTON,BROWN,BROWN,TRIM4#

sub90950-01400

main90950-01400-13iYN55,57,6#..ARL198608-199807

GRAY,GRAY,TRIM1#

sub90950-01400

main90950-01400-14iYN55,57,67..ARL198608-199807

BLUE,BLUE,TRIM8#

sub90950-01400

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-89101iLN5#,60,65,67,RN58,67,YN50,51,55,56,57,58,65,67..RHD..(T1,T3,TW)198308-199807

main55302-89102iLN5#,65,RN5#,YN50,52,55,56,57,60,62,65,67..LHD..(DLX,STD)198308-199201

main55302-89103iLN60,61,YN60,63..ARL198403-199807

main55302-89104iRN61,YN60,63..LHD..SR5198403-199807

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55330-89108iRN61198712-199807

main55331-89110iLN5#,6#,RN58,67,YN50,51,55,56,57,58,60,63,65,67..RHD198308-199807

main55331-89111iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198308-199201

55312PANEL, INSTRUMENT, LOWER

main55312-89104-03iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-198608

GRAY,GRAY,TRIM1#

main55312-89104-04iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-198608

BLUE,BLUE,TRIM8#

main55312-89104-05iLN5#,6#,RN58,67,YN50,51,55,56,57,58,6#..RHD198608-199807

BEIGE,BEIGE,TRIM4#

main55312-89104-06iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-198608

BROWN,BROWN,TRIM4#

main55312-89104-13iLN5#,6#,RN58,67,YN50,51,55,56,57,58,6#..RHD198608-199807

GRAY,GRAY,TRIM1#

main55312-89104-14iLN5#,6#,RN58,67,YN50,51,55,56,57,58,6#..RHD198608-199807

BLUE,BLUE,TRIM8#

main55312-89105-03iLN5#,65,YN5#,6#..LHD198308-198601

GRAY,GRAY,TRIM1#

sub55312-89106

main55312-89105-04iLN5#,65,YN5#,6#..LHD198308-198601

BLUE,BLUE,TRIM8#

sub55312-89106

main55312-89105-06iLN5#,65,YN5#,6#..LHD198308-198601

BROWN,BROWN,TRIM4#

sub55312-89106

main55312-89106-03iLN5#,65,RN5#,YN5#,6#..LHD198601-198608

GRAY,GRAY,TRIM1#

main55312-89106-04iLN5#,65,RN5#,YN5#,6#..LHD198601-198608

BLUE,BLUE,TRIM8#

main55312-89106-05iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198608-199201

BEIGE,BEIGE,TRIM4#

main55312-89106-06iLN5#,65,RN5#,YN5#,6#..LHD198601-198608

BROWN,BROWN,TRIM4#

main55312-89106-13iRN58..SR5;LN51,56,RN50,55,6#,YN50,52,55,56,57,6#198608-199807

GRAY,GRAY,TRIM1#

main55312-89106-14iLN51,56,65,RN50,55,YN50,52,55,56,57,67..LHD198608-199807

BLUE,BLUE,TRIM8#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-89104iLN5#,YN5#..LHD198308-198508

sub55330-89109

main55330-89105iLN65,YN6#..LHD198308-198508

sub55330-89110

main55330-89106iLN5#,YN50,55,56,57..RHD198308-198608

sub55330-89113

main55330-89107iLN6#,YN60,63,65,67..RHD198308-198608

sub55330-89114

main55330-89109iLN51,56,RN50,55,YN50,52,55,56,57..LHD198508-199807

main55330-89110iLN65,YN60,62,65,67..LHD198508-199807

main55330-89111iRN61,YN63..LHD198508-199807

main55330-89113iYN51,58;LN51,56,RN58,YN50,55,56,57..RHD..(SR5,STD)198608-199807

main55330-89114iLN61,65,RN67,YN6#..RHD198608-199807

55338EXTENSION, INSTRUMENT PANEL REINFORCEMENT, NO.1

main55338-89101iLN50,51,55,56,65,RN50,55,61,YN50,52,55,56,57,6#..LHD198308-199807

main55338-89102iRN58..SR5;LN50,51,55,56,60,61,65,RN67,YN50,51,55,56,57,58,60,63,65,67..RHD198308-199807

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-89103iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-199807

main55307-89104iLN5#,65,YN5#,6#..LHD198308-198501

sub55307-89105

main55307-89105iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198501-199201

main55307-89106iLN61,YN63..ARL198608-199807

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55306-89103iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198501-199201

main55306-89104iLN61,YN63..ARL198608-199807

main55351-89102iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-199807

main55351-89103iLN5#,65,YN5#,6#..LHD198308-198501

sub55306-89103

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55313-89104iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-89114-03iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD..(4F,4FC,5F)198308-198608

GRAY,GRAY,TRIM1#

main55404-89114-04iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD..(4F,4FC,5F)198308-198608

BLUE,BLUE,TRIM8#

main55404-89114-06iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD..(4F,4FC,5F)198308-198608

BROWN,BROWN,TRIM4#

main55404-89115-03iYN50,55..4H198308-198608

GRAY,GRAY,TRIM1#

main55404-89115-04iYN50,55..4H198308-198608

BLUE,BLUE,TRIM8#

main55404-89115-06iYN50,55..4H198308-198608

BROWN,BROWN,TRIM4#

main55404-89116-03iLN50,55,65,YN5#,6#..LHD198308-198408

GRAY,GRAY,TRIM1#

main55404-89116-04iLN50,55,65,YN5#,6#..LHD198308-198408

BLUE,BLUE,TRIM8#

main55404-89116-06iLN50,55,65,YN5#,6#..LHD198308-198408

BROWN,BROWN,TRIM4#

main55404-89118-03iLN60,61..SR5198403-198608

W/CRUISE CONTROL,GRAY,GRAY,TRIM1#

main55404-89118-04iLN60,61..SR5198403-198608

W/CRUISE CONTROL,BLUE,BLUE,TRIM8#

main55404-89118-06iLN60,61..SR5198403-198608

W/CRUISE CONTROL,BROWN,BROWN,TRIM4#

main55404-89119-03iLN5#,65,RN5#,YN5#,6#..LHD198408-198608

GRAY,GRAY,TRIM1#

main55404-89119-04iLN5#,65,RN5#,YN5#,6#..LHD198408-198608

BLUE,BLUE,TRIM8#

main55404-89119-06iLN5#,65,RN5#,YN5#,6#..LHD198408-198608

BROWN,BROWN,TRIM4#

main55404-89122-03iYN51,55,56..4H198608-199807

GRAY,GRAY,TRIM1#

main55404-89122-04iYN51,55,56..4H198608-199807

BLUE,BLUE,TRIM8#

main55404-89122-05iYN51,55,56..4H198608-199807

BEIGE,BEIGE,TRIM4#

main55404-89124-03iLN5#,65,67,RN58,67,YN50,51,55,56,57,58,67..RHD..(4F,4FC,5F)198608-199807

GRAY,GRAY,TRIM1#

main55404-89124-04iLN5#,65,67,RN58,67,YN50,51,55,56,57,58,67..RHD..(4F,4FC,5F)198608-199807

BLUE,BLUE,TRIM8#

main55404-89124-05iLN5#,65,67,RN58,67,YN50,51,55,56,57,58,67..RHD..(4F,4FC,5F)198608-199807

BEIGE,BEIGE,TRIM4#

main55404-89125-04iLN5#,65,RN5#,YN50,52,55,56,57,67..LHD198608-199201

BLUE,BLUE,TRIM8#

main55404-89126-03iLN61,YN63..ARL198608-199807

GRAY,GRAY,TRIM1#

main55404-89126-05iLN61,YN63..ARL198608-199807

BEIGE,BEIGE,TRIM4#

55402PANEL SUB-ASSY, INSTRUMENT LAYOUT, CENTER

main55405-89152iLN55,56,65,YN55,57,65..STD..ARL198308-198608

W/RADIO

main55405-89152iLN56..SR5198404-198408

*THS

main55405-89152iRN5#,YN50,52,55,57,60,63,65,67..ME198308-198608

main55405-89152iLN65,YN65..LHD..EUR198402-198608

SWITZERLAND SPEC

main55405-89153iLN56..LHD..RCB..EUR..CBU;LN5#,6#,YN50,55,57,6#..(DLX,STD)..(ARL,GEN,SA)198308-198608

main55405-89153iYN57..SR5..GEN198405-198608

*NZ

main55405-89153-03iLN5#,65,67,RN58,67,YN51,56,58,67..SA198608-199807

GRAY,GRAY,TRIM1#

sub55405-89153

main55405-89153-03iLN5#,65,67,RN58,67,YN51,56,58,67..SA198608-199807

*NZ,GRAY,GRAY,TRIM1#

sub55405-89153

main55405-89153-04iLN51,56,61,65,YN50,55,56,57,58,67..(DLX,STD)..(ARL,GEN)198608-199807

*NZ,BLUE,BLUE,TRIM8#

sub55405-89153

main55405-89153-04iYN57..SR5..GEN198608-199807

BLUE,BLUE,TRIM8#

sub55405-89153

main55405-89153-05iLN5#,65,67,RN58,67,YN51,56,58,67..SA198608-199807

BEIGE,BEIGE,TRIM4#

sub55405-89153

main55405-89153-05iLN5#,65,67,RN58,67,YN51,56,58,67..SA198608-199807

*NZ,BEIGE,BEIGE,TRIM4#

sub55405-89153

main55405-89154iLN56..EUR..IV;LN56..TW..EUR;LN56..RHD..EUR;LN55,65,YN56,65..EUR198308-198608

W/RADIO

sub55405-89157

main55405-89155iLN56..EUR..IV;LN56..TW..EUR;LN56..RHD..EUR;LN55,65,YN56,65..EUR198308-198608

sub55405-89157

sub55522-14070

main55405-89156iLN60,61,YN57,60,63,65,67..SR5..(ARL,ME)198403-198608

MOTOR ANTENNA

main55405-89156-03iLN5#,65,67,RN58,67,YN51,56,58,67..SA198608-199807

W/RADIO,GRAY,GRAY,TRIM1#

sub55405-89156

main55405-89156-03iLN5#,65,67,RN58,67,YN51,56,58,67..SA198901-199807

TYPE A,W/RADIO,GRAY,GRAY,TRIM1#

sub55405-89156

main55405-89156-04iLN51,56,65,YN50,57,6#..ARL,EUR,GEN,ME198608-199807

W/RADIO,BLUE,BLUE,TRIM8#

sub55405-89156

main55405-89156-04iLN5#,65,67,RN58,67,YN51,56,58,67..SA198901-199807

TYPE A,W/RADIO,BLUE,BLUE,TRIM8#

sub55405-89156

main55405-89156-05iLN5#,65,67,RN58,67,YN51,56,58,67..SA198608-199807

W/RADIO,BEIGE,BEIGE,TRIM4#

sub55405-89156

main55405-89156-05iLN51,56,61,65,RN61,YN50,57,6#..ARL,EUR,GEN,ME198901-199807

TYPE A,W/RADIO,BEIGE,BEIGE,TRIM4#

sub55405-89156

main55405-89157-03iLN56,65,YN56,67..EUR198608-199807

GRAY,GRAY,TRIM1#

main55405-89157-03iLN5#,65,67,RN58,67,YN51,56,58,67..SA198901-199807

TYPE B,W/RADIO,GRAY,GRAY,TRIM1#

main55405-89157-04iLN56,65,YN56,67..EUR198608-199807

BLUE,BLUE,TRIM8#

main55405-89157-04iLN5#,65,67,RN58,67,YN51,56,58,67..SA198901-199807

TYPE B,W/RADIO,BLUE,BLUE,TRIM8#

main55405-89157-05iLN56,65,YN56,67..EUR198608-199807

BEIGE,BEIGE,TRIM4#

main55405-89157-05iLN5#,65,67,RN58,67,YN51,56,58,67..SA198901-199807

TYPE B,W/RADIO,BEIGE,BEIGE,TRIM4#

55403HOOD SUB-ASSY, METER

main55403-89101-03iLN60,61,YN60,63,65,67..SR5..ARL198308-198608

W/CLINO METER,GRAY,GRAY,TRIM1#

main55403-89101-04iLN60,65,YN6#..GEN,ME198308-198608

W/CLINO METER,BLUE,BLUE,TRIM8#

main55403-89101-06iLN60,61,YN60,63,65,67..SR5..ARL198308-198608

W/CLINO METER,BROWN,BROWN,TRIM4#

main55403-89102-03iLN61,65,YN6#..SR5..ARL198608-199807

W/CLINO METER,GRAY,GRAY,TRIM1#

main55403-89102-04iLN65,YN67..GEN,ME198608-199807

W/CLINO METER,BLUE,BLUE,TRIM8#

main55403-89102-05iLN65,YN6#..GEN,ME198608-199807

W/CLINO METER,BEIGE,BEIGE,TRIM4#

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-89109-03iLN60,61,YN60,63..ARL198403-198608

GRAY,GRAY,TRIM1#

main55401-89109-04iLN60,61,YN60,63..ARL198403-198608

BLUE,BLUE,TRIM8#

main55401-89109-06iLN60,61,YN60,63..ARL198403-198608

BROWN,BROWN,TRIM4#

main55401-89110-03iYN60,63..SR5..ME198403-198608

GRAY,GRAY,TRIM1#

main55401-89110-04iYN60,63..SR5..ME198403-198608

BLUE,BLUE,TRIM8#

main55401-89110-06iYN60,63..SR5..ME198403-198608

BROWN,BROWN,TRIM4#

main55401-89111-03iLN60,61,YN60,63..SR5..ARL198403-198608

W/CLINO METER,GRAY,GRAY,TRIM1#

main55401-89111-04iLN60,61,YN60,63..SR5..ARL198403-198608

W/CLINO METER,BLUE,BLUE,TRIM8#

main55401-89111-06iLN60,61,YN60,63..SR5..ARL198403-198608

W/CLINO METER,BROWN,BROWN,TRIM4#

main55401-89112-03iYN60,63..SR5..ME198403-198608

W/CLINO METER,GRAY,GRAY,TRIM1#

main55401-89112-04iYN60,63..SR5..ME198403-198608

W/CLINO METER,BLUE,BLUE,TRIM8#

main55401-89112-06iYN60,63..SR5..ME198403-198608

W/CLINO METER,BROWN,BROWN,TRIM4#

main55401-89113-03iLN5#,60,65,YN50,55,56,57,65,67..RHD..(T1,T3,TW)198308-198608

GRAY,GRAY,TRIM1#

main55401-89113-04iLN5#,60,65,YN50,55,56,57,65,67..RHD..(T1,T3,TW)198308-198608

BLUE,BLUE,TRIM8#

main55401-89113-06iLN5#,60,65,YN50,55,56,57,65,67..RHD..(T1,T3,TW)198308-198608

BROWN,BROWN,TRIM4#

main55401-89114-03iLN5#,65,RN5#,YN5#,60,62,65,67..LHD..(DLX,STD)198308-198608

GRAY,GRAY,TRIM1#

main55401-89114-04iLN5#,65,RN5#,YN5#,60,62,65,67..LHD..(DLX,STD)198308-198608

BLUE,BLUE,TRIM8#

main55401-89114-06iLN5#,65,RN5#,YN5#,60,62,65,67..LHD..(DLX,STD)198308-198608

BROWN,BROWN,TRIM4#

main55401-89115-03iLN60,65,YN65,67..RHD..GEN198308-198608

W/CLINO METER,GRAY,GRAY,TRIM1#

main55401-89115-04iLN60,65,YN65,67..RHD..GEN198308-198608

W/CLINO METER,BLUE,BLUE,TRIM8#

main55401-89115-06iLN60,65,YN65,67..RHD..GEN198308-198608

W/CLINO METER,BROWN,BROWN,TRIM4#

main55401-89116-03iLN65,YN60,62,65,67..LHD..(DLX,STD)..(GEN,ME)198308-198608

W/CLINO METER,GRAY,GRAY,TRIM1#

main55401-89116-04iLN65,YN60,62,65,67..LHD..(DLX,STD)..(GEN,ME)198308-198608

W/CLINO METER,BLUE,BLUE,TRIM8#

main55401-89116-06iLN65,YN60,62,65,67..LHD..(DLX,STD)..(GEN,ME)198308-198608

W/CLINO METER,BROWN,BROWN,TRIM4#

main55401-89118-03iRN58..SR5;LN51,56,61,65,RN67,YN50,51,55,56,57,58,6#..RHD198608-199807

GRAY,GRAY,TRIM1#

main55401-89118-04iLN5#,65,67,RN58,67,YN50,51,55,56,57,58,67..RHD198608-199807

BLUE,BLUE,TRIM8#

main55401-89118-05iRN58..SR5;LN51,56,61,65,RN67,YN50,51,55,56,57,58,6#..RHD198608-199807

BEIGE,BEIGE,TRIM4#

main55401-89119-03iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198608-199201

GRAY,GRAY,TRIM1#

main55401-89119-04iLN5#,65,RN5#,YN50,52,55,56,57,67..LHD198608-199201

BLUE,BLUE,TRIM8#

main55401-89119-05iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198608-199201

BEIGE,BEIGE,TRIM4#

main55401-89120-03iLN61,65,YN6#..SR5..ARL198608-199807

W/CLINO METER,GRAY,GRAY,TRIM1#

main55401-89120-04iLN65,YN67..RHD..GEN198608-199807

W/CLINO METER,BLUE,BLUE,TRIM8#

main55401-89120-05iLN65,YN67..RHD..GEN198608-199807

W/CLINO METER,BEIGE,BEIGE,TRIM4#

main55401-89121-03iLN65,YN6#..LHD..(GEN,ME)198608-198701

W/CLINO METER,GRAY,GRAY,TRIM1#

sub55401-89119

main55401-89121-04iLN65,YN67..LHD..(GEN,ME)198608-198701

W/CLINO METER,BLUE,BLUE,TRIM8#

sub55401-89119

main55401-89121-05iLN65,YN6#..LHD..(GEN,ME)198608-198701

W/CLINO METER,BEIGE,BEIGE,TRIM4#

sub55401-89119

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-89108-03iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-198608

GRAY,GRAY,TRIM1#

sub55472-89108

main55472-89108-04iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-198608

BLUE,BLUE,TRIM8#

sub55472-89108

main55472-89108-05iRN58..SR5;LN51,56,61,65,RN67,YN50,51,55,56,57,58,6#..RHD198608-199807

BEIGE,BEIGE,TRIM4#

sub55472-89108

main55472-89108-06iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-198608

BROWN,BROWN,TRIM4#

sub55472-89108

main55472-89108-13iRN58..SR5;LN51,56,61,65,RN67,YN50,51,55,56,57,58,6#..RHD198608-199807

GRAY,GRAY,TRIM1#

sub55472-89108

main55472-89108-14iLN5#,65,67,RN58,67,YN50,51,55,56,57,58,67..RHD198608-199807

BLUE,BLUE,TRIM8#

sub55472-89108

main55472-89109-03iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

GRAY,GRAY,TRIM1#

sub55472-89109

main55472-89109-04iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

BLUE,BLUE,TRIM8#

sub55472-89109

main55472-89109-05iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198608-199201

BEIGE,BEIGE,TRIM4#

sub55472-89109

main55472-89109-06iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

BROWN,BROWN,TRIM4#

sub55472-89109

main55472-89109-13iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198608-199201

GRAY,GRAY,TRIM1#

sub55472-89109

main55472-89109-14iLN5#,65,RN5#,YN50,52,55,56,57,67..LHD198608-199201

BLUE,BLUE,TRIM8#

sub55472-89109

55414BEZEL, CIGAR LIGHTER HOLE

main55477-89103iLN55,YN57..(DLX,SR5)..GEN198308-198508

W/CIGAR LIGHTER

main55477-89103iLN56..LHD..EUR..CBU;LN5#,6#,YN50,52,55,57,6#..ARL,ME,SA198308-199807

main55477-89104iRN61198712-199807

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-89109-03iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-198608

GRAY,GRAY,TRIM1#

sub55432-89109

main55432-89109-04iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-198608

BLUE,BLUE,TRIM8#

sub55432-89109

main55432-89109-05iRN58..SR5;LN51,56,61,65,RN67,YN50,51,55,56,57,58,6#..RHD198608-199807

BEIGE,BEIGE,TRIM4#

sub55432-89109

main55432-89109-06iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD198308-198608

BROWN,BROWN,TRIM4#

sub55432-89109

main55432-89109-13iRN58..SR5;LN51,56,61,65,RN67,YN50,51,55,56,57,58,6#..RHD198608-199807

GRAY,GRAY,TRIM1#

sub55432-89109

main55432-89109-14iLN5#,65,67,RN58,67,YN50,51,55,56,57,58,67..RHD198608-199807

BLUE,BLUE,TRIM8#

sub55432-89109

main55432-89110-03iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

GRAY,GRAY,TRIM1#

sub55432-89110

main55432-89110-04iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

BLUE,BLUE,TRIM8#

sub55432-89110

main55432-89110-05iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198608-199201

BEIGE,BEIGE,TRIM4#

sub55432-89110

main55432-89110-06iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

BROWN,BROWN,TRIM4#

sub55432-89110

main55432-89110-13iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198608-199201

GRAY,GRAY,TRIM1#

sub55432-89110

main55432-89110-14iLN5#,65,RN5#,YN50,52,55,56,57,67..LHD198608-199201

BLUE,BLUE,TRIM8#

sub55432-89110

55441BOX, INSTRUMENT PANEL

main55441-89105-03iLN5#,6#,RN5#,YN5#,6#198308-198608

GRAY,GRAY,TRIM1#

sub55441-89105

main55441-89105-04iLN5#,6#,RN5#,YN5#,6#198308-198608

BLUE,BLUE,TRIM8#

sub55441-89105

main55441-89105-05iRN58..SR5;LN51,56,61,65,RN50,55,67,YN5#,6#198608-199807

BEIGE,BEIGE,TRIM4#

sub55441-89105

main55441-89105-06iLN5#,6#,RN5#,YN5#,6#198308-198608

BROWN,BROWN,TRIM4#

sub55441-89105

main55441-89105-13iRN58..SR5;LN51,56,61,65,RN50,55,67,YN5#,6#198608-199807

GRAY,GRAY,TRIM1#

sub55441-89105

main55441-89105-14iLN5#,65,67,RN5#,67,YN5#,67198608-199807

BLUE,BLUE,TRIM8#

sub55441-89105

main55441-89106-03iYN57,65,67..XTR..SR5198309-198608

W/BACK WINDOW *DEF,GRAY,GRAY,TRIM1#

sub55441-89106

main55441-89106-04iYN57,65,67..XTR..SR5198309-198608

W/BACK WINDOW *DEF,BLUE,BLUE,TRIM8#

sub55441-89106

main55441-89106-05iLN65,YN57,58,67..XTR..SR5198608-199807

W/BLACK WINDOW *DEF,BEIGE,BEIGE,TRIM4#

sub55441-89106

main55441-89106-06iYN57,65,67..XTR..SR5198309-198608

W/BACK WINDOW *DEF,BROWN,BROWN,TRIM4#

sub55441-89106

main55441-89106-13iLN65,YN57,58,67..XTR..SR5198608-199807

W/BLACK WINDOW *DEF,GRAY,GRAY,TRIM1#

sub55441-89106

main55441-89106-14iLN65,YN57,58,67..XTR..SR5198608-199807

W/BLACK WINDOW *DEF,BLUE,BLUE,TRIM8#

sub55441-89106

main55441-89107-03iLN55,56,YN57..5F..DLX..GEN198309-198608

W/BACK WINDOW *DEF,GRAY,GRAY,TRIM1#

sub55441-89107

main55441-89107-04iLN55,56,YN57..5F..DLX..GEN198309-198608

W/BACK WINDOW *DEF,BLUE,BLUE,TRIM8#

sub55441-89107

main55441-89107-05iRN61198712-199807

BEIGE,BEIGE,TRIM4#

sub55441-89107

main55441-89107-05iLN56,65,YN57..XTR..DLX..GEN198608-199807

W/BLACK WINDOW *DEF,BEIGE,BEIGE,TRIM4#

sub55441-89107

main55441-89107-06iLN55,56,YN57..5F..DLX..GEN198309-198608

W/BACK WINDOW *DEF,BROWN,BROWN,TRIM4#

sub55441-89107

main55441-89107-13iLN56,65,YN57..XTR..DLX..GEN198608-199807

W/BLACK WINDOW *DEF,GRAY,GRAY,TRIM1#

sub55441-89107

main55441-89107-13iRN61198712-199807

GRAY,GRAY,TRIM1#

sub55441-89107

main55441-89107-14iLN56,65,YN57..XTR..DLX..GEN198608-199807

W/BLACK WINDOW *DEF,BLUE,BLUE,TRIM8#

sub55441-89107

55476COVER, CIGARETTE LIGHTER HOLE

main55532-89102iLN50,55,6#,YN50,55,56,57,6#..STD..(EUR,GEN)198308-198608

main55532-89103-03iLN56,65,YN56,67..EUR198608-199807

GRAY,GRAY,TRIM1#

main55532-89103-04iLN56,65,YN56,67..EUR198608-199807

BLUE,BLUE,TRIM8#

main55532-89103-05iLN51,56,65,YN50,55,57,67..STD..GEN198608-199807

BEIGE,BEIGE,TRIM4#

55503COMPARTMENT SUB-ASSY, GLOVE

main55440-89101-03iLN50,55,6#,YN5#,6#..(T1,T3,TW)..(EUR,GEN,ME,SA)198308-198608

GRAY,GRAY,TRIM1#

sub55440-89102

main55440-89101-04iLN50,55,6#,YN5#,6#..(T1,T3,TW)..(EUR,GEN,ME,SA)198308-198608

BLUE,BLUE,TRIM8#

sub55440-89102

main55440-89101-06iLN56..EUR..IV;LN56..TW..EUR;LN56..LHD..GEN;LN56..RHD..(EUR,GEN,SA);LN51,60,65,RN5#,YN5#,60,62,65,67..(T1,T3,TW)..(EUR,GEN,ME,SA)198308-198608

BROWN,BROWN,TRIM4#

sub55440-89102

main55440-89102-03iLN60,YN60,63..WG;YN57,65,67..SR5..ARL198309-198608

GRAY,GRAY,TRIM1#

sub55440-89102

main55440-89102-03iLN51,56,YN50,55..RHD..T1..GEN..CBU198404-198608

*THS,GRAY,GRAY,TRIM1#

sub55440-89102

main55440-89102-04iLN60,YN60,63..WG;YN57,65,67..SR5..ARL198309-198608

BLUE,BLUE,TRIM8#

sub55440-89102

main55440-89102-04iLN51,56,YN50,55..RHD..T1..GEN..CBU198404-198608

*THS,BLUE,BLUE,TRIM8#

sub55440-89102

main55440-89102-05iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198608-199807

BEIGE,BEIGE,TRIM4#

sub55440-89102

main55440-89102-06iLN51,56,YN50,55..RHD..T1..GEN..CBU198404-198608

*THS,BROWN,BROWN,TRIM4#

sub55440-89102

main55440-89102-06iLN60,YN60,63..WG;YN57,65,67..SR5..ARL198309-198608

BROWN,BROWN,TRIM4#

sub55440-89102

main55440-89102-13iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198608-199807

GRAY,GRAY,TRIM1#

sub55440-89102

main55440-89102-14iLN5#,65,67,RN5#,67,YN5#,67198608-199807

BLUE,BLUE,TRIM8#

sub55440-89102

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-89102-03iLN5#,6#,YN50,55,56,57,6#..ARL,EUR,GEN198308-198608

GRAY,GRAY,TRIM1#

sub55560-89102

main55560-89102-04iLN5#,YN50,55,57,65,67..(DLX,STD)..SA198308-198608

BLUE,BLUE,TRIM8#

sub55560-89102

main55560-89102-05iRN50,55,YN52,57..4F..ME198608-199807

BEIGE,BEIGE,TRIM4#

sub55560-89102

main55560-89102-06iLN5#,YN50,55,57,65,67..(DLX,STD)..SA198308-198608

BROWN,BROWN,TRIM4#

sub55560-89102

main55560-89102-13iLN51,56,65,RN67,YN51,56,58,67..(DLX,STD)..SA198608-199807

GRAY,GRAY,TRIM1#

sub55560-89102

main55560-89102-14iLN51,56,65,RN67,YN51,56,58,67..(DLX,STD)..SA198608-199807

BLUE,BLUE,TRIM8#

sub55560-89102

55521CCOVER, STEREO OPENING

main55521-89101iLN5#,6#,RN58,67,YN50,51,55,56,57,58,6#..ARL,GEN,SA198308-199807

W/O STEREO

main55521-89101iLN56,65,RN61,YN56,67..EUR198402-199807

55522BCOVER, RADIO TUNER OPENING

main55522-14070iLN56,65,YN56,67..EUR198608-199807

55523COVER, HEATER CONTROL OPENING

main55523-89110iYN50,55..SA198308-199807

W/CLOCK

main55523-89111iYN50,55..SA198308-199807

W/O CLOCK

main55523-89112iLN50,51,55,56,65,RN50,55,YN50,52,55,57,6#..LHD..(GEN,ME)198308-199807

W/CLOCK

main55523-89113iLN50,51,55,56,65,RN50,55,YN50,52,55,57,6#..LHD..(GEN,ME)198308-199807

W/O CLOCK

55526COVER, INSTRUMENT PANEL REGISTER OPENING

main55526-89101-03iLN50,55,6#,YN50,55,57,65..RHD..GEN198308-198608

LH-D,GRAY,GRAY,TRIM1#

sub55526-89101

main55526-89101-04iYN50,55..4H..SA198308-198608

LH-D,BLUE,BLUE,TRIM8#

sub55526-89101

main55526-89101-06iLN5#,60,65,YN50,55,57,65,67..RHD..GEN198308-198608

LH-D,BROWN,BROWN,TRIM4#

sub55526-89101

main55526-89102-03iLN50,55,6#,YN50,55,57,65..RHD..GEN198308-198608

LH-P,GRAY,GRAY,TRIM1#

sub55526-89102

main55526-89102-04iLN50,55,6#,YN50,55,57,65..RHD..GEN198308-198608

LH-P,BLUE,BLUE,TRIM8#

sub55526-89102

main55526-89102-06iLN5#,60,65,YN50,55,57,65,67..RHD..GEN198308-198608

LH-P,BROWN,BROWN,TRIM4#

sub55526-89102

main55526-89103-03iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

LH-D,GRAY,GRAY,TRIM1#

sub55526-89103

main55526-89103-04iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

LH-D,BLUE,BLUE,TRIM8#

sub55526-89103

main55526-89103-06iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

LH-D,BROWN,BROWN,TRIM4#

sub55526-89103

main55526-89104-03iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

LH-P,GRAY,GRAY,TRIM1#

sub55526-89104

main55526-89104-04iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

LH-P,BLUE,BLUE,TRIM8#

sub55526-89104

main55526-89104-06iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

LH-P,BROWN,BROWN,TRIM4#

sub55526-89104

main55526-89105-03iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

LH,GRAY,GRAY,TRIM1#

sub55526-89105

main55526-89105-04iLN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME)198608-199201

LH,BLUE,BLUE,TRIM8#

sub55526-89105

main55526-89105-05iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

LH,BEIGE,BEIGE,TRIM4#

sub55526-89105

main55526-89106-03iLN51,56,65,YN50,55,57,67..RHD..GEN198608-199807

RH,GRAY,GRAY,TRIM1#

sub55526-89106

main55526-89106-04iYN51,56..4H..SA198608-199807

RH,BLUE,BLUE,TRIM8#

sub55526-89106

main55526-89106-05iLN51,56,65,YN50,55,57,67..RHD..GEN198608-199807

RH,BEIGE,BEIGE,TRIM4#

sub55526-89106

main55526-89107-03iYN51,56..4H..SA198608-199807

LH,GRAY,GRAY,TRIM1#

sub55526-89107

main55526-89107-03iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

RH,GRAY,GRAY,TRIM1#

sub55526-89107

main55526-89107-04iLN51,56,65,YN50,55,57,67..RHD..GEN198608-199807

LH,BLUE,BLUE,TRIM8#

sub55526-89107

main55526-89107-04iLN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME)198608-199201

RH,BLUE,BLUE,TRIM8#

sub55526-89107

main55526-89107-05iLN51,56,65,YN50,55,57,67..RHD..GEN198608-199807

LH,BEIGE,BEIGE,TRIM4#

sub55526-89107

main55526-89107-05iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

RH,BEIGE,BEIGE,TRIM4#

sub55526-89107

55528CCOVER, AUTO DRIVE OPENING

main55528-89101-03iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#..4F,4FC,5F198608-199807

GRAY,GRAY,TRIM1#

sub55528-89101

main55528-89101-04iRN58..SR5;LN51,56,65,RN50,55,67,YN5#,67..4F,4FC,5F198608-199807

BLUE,BLUE,TRIM8#

sub55528-89101

main55528-89101-05iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#..4F,4FC,5F198608-199807

BEIGE,BEIGE,TRIM4#

sub55528-89101

55531PANEL, GLOVE COMPARTMENT

main55531-89104iLN60,YN60,63..WG;YN57,65,67..SR5..ARL198309-199807

main55531-89104iLN51,56,YN50,55..RHD..T1..GEN..CBU198404-198608

*THS

55539COVER, SPARE SWITCH HOLE

main55539-24010-01iLN65,YN56,65..RHD..EUR198308-198608

BLACK,BLACK

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-01iLN5#,6#,RN5#,YN5#,6#..MTM198508-198608

ENGLAND SPEC,BLACK,BLACK

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-15iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198608-199807

BEIGE,DARK BEIGE,TRIM4#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-43iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198608-199807

GRAY,MEDIUM GRAY,TRIM1#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-54iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198608-199807

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-24010-14iYN60,63..SR5..ME198408-198608

W/*RCM,BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-14iLN5#,60,65,RN5#,YN5#,60,62,65,67..T1,T3,TW198308-198608

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-15iLN5#,65,67,RN5#,67,YN5#,67198608-199807

BEIGE,DARK BEIGE,TRIM4#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-23iLN5#,60,65,RN5#,YN5#,60,62,65,67..T1,T3,TW198308-198608

GRAY,GRAY,TRIM1#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-23iYN60,63..SR5..ME198408-198608

W/*RCM,GRAY,GRAY,TRIM1#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-26iLN5#,60,65,RN5#,YN5#,60,62,65,67..T1,T3,TW198308-198608

BROWN,BROWN,TRIM4#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-26iRN5#,YN52,57,60,65,67..DLX..ME198408-198608

W/*RCM,BROWN,BROWN,TRIM4#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-43iLN5#,65,67,RN5#,67,YN5#,67198608-199807

GRAY,MEDIUM GRAY,TRIM1#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

main55539-24010-54iLN5#,65,67,RN5#,67,YN5#,67198608-199807

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-24010

sub55539-14030

sub55539-20030

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-89103iLN60,YN60,63..WG;YN57,65,67..SR5..ARL198309-199807

main55548-89103iLN51,56,YN50,55..RHD..T1..GEN..CBU198404-198608

*THS

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-32010iLN5#,6#,YN5#,6#198308-198404

main55561-89103iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198404-199807

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-89104-03iYN50,55..4H..SA198308-198608

GRAY,GRAY,TRIM1#

sub55650-89104

main55650-89104-03iYN50,55..4H..SA198401-198608

W/HEATER,GRAY,GRAY,TRIM1#

sub55650-89104

main55650-89104-03iLN50,55,6#,YN50,55,57,65..RHD..GEN198308-198608

W/HEATER OR *BV,GRAY,GRAY,TRIM1#

sub55650-89104

main55650-89104-03iLN51,56..GEN198404-198408

*THS,GRAY,GRAY,TRIM1#

sub55650-89104

main55650-89104-04iLN51,56..GEN198404-198408

*THS,BLUE,BLUE,TRIM8#

sub55650-89104

main55650-89104-04iLN50,55,6#,YN50,55,57,65..RHD..GEN198308-198608

W/HEATER OR *BV,BLUE,BLUE,TRIM8#

sub55650-89104

main55650-89104-04iLN55,56,6#,YN55,56,57,60,63,65,67..RHD..(ARL,EUR)198308-198608

BLUE,BLUE,TRIM8#

sub55650-89104

main55650-89104-04iLN5#,YN50,57,65,67..(4F,5F)..SA198401-198608

W/HEATER,BLUE,BLUE,TRIM8#

sub55650-89104

main55650-89104-06iLN5#,YN50,57,65,67..(4F,5F)..SA198401-198608

W/HEATER,BROWN,BROWN,TRIM4#

sub55650-89104

main55650-89104-06iYN50,55..4H..SA198308-198608

BROWN,BROWN,TRIM4#

sub55650-89104

main55650-89104-06iLN5#,60,65,YN50,55,57,65,67..RHD..GEN198308-198608

W/HEATER OR *BV,BROWN,BROWN,TRIM4#

sub55650-89104

main55650-89104-06iLN51,56..GEN198404-198408

*THS,BROWN,BROWN,TRIM4#

sub55650-89104

main55650-89105-03iYN50,55,60,67..ME198308-198608

W/HEATER OR *BV,GRAY,GRAY,TRIM1#

sub55650-89105

main55650-89105-03iYN50,55,60,67..ME198508-198608

*SOOS,*GUS,W/HEATER,*BV,GRAY,GRAY,TRIM1#

sub55650-89105

main55650-89105-03iLN56..EUR..IV;LN56..TW..EUR;LN55,65,YN56,65..LHD..EUR198308-198608

GRAY,GRAY,TRIM1#

sub55650-89105

main55650-89105-03iYN60,63..SR5..ME198408-198608

W/HEATER & *BV,GRAY,GRAY,TRIM1#

sub55650-89105

main55650-89105-04iYN52,57..ME198308-198608

W/HEATER OR *BV,BLUE,BLUE,TRIM8#

sub55650-89105

main55650-89105-04iLN56..EUR..IV;LN56..TW..EUR;LN55,65,YN56,65..LHD..EUR198308-198608

BLUE,BLUE,TRIM8#

sub55650-89105

main55650-89105-04iYN60,63..SR5..ME198408-198608

W/HEATER & *BV,BLUE,BLUE,TRIM8#

sub55650-89105

main55650-89105-04iYN50,55,60,67..ME198508-198608

*SOOS,*GUS,W/HEATER,*BV,BLUE,BLUE,TRIM8#

sub55650-89105

main55650-89105-06iYN60,63..SR5..ME198408-198608

W/HEATER & *BV,BROWN,BROWN,TRIM4#

sub55650-89105

main55650-89105-06iLN5#,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME)198308-198608

W/HEATER OR *BV,BROWN,BROWN,TRIM4#

sub55650-89105

main55650-89105-06iLN56..EUR..IV;LN56..TW..EUR;LN55,65,YN56,65..LHD..EUR198308-198608

BROWN,BROWN,TRIM4#

sub55650-89105

main55650-89105-06iYN50,55,60,67..ME198508-198608

*SOOS,*GUS,W/HEATER,*BV,BROWN,BROWN,TRIM4#

sub55650-89105

main55650-89106iRN5#,YN52,57..ME198508-198608

W/HEATER OR *BV

main55650-89107-03iLN5#,67,RN58,67,YN51,56,58,67..SA198608-199807

GRAY,GRAY,TRIM1#

sub55650-89107

main55650-89107-04iLN51,56,65,YN50,55,56,57,58,67..RHD..(ARL,GEN)198608-199807

BLUE,BLUE,TRIM8#

sub55650-89107

main55650-89107-05iLN5#,67,RN58,67,YN51,56,58,67..SA198608-199807

BEIGE,BEIGE,TRIM4#

sub55650-89107

main55650-89108-03iRN50,55,YN52,57..4F..ME198610-199807

W/*HEA & *BV,GRAY,GRAY,TRIM1#

sub55650-89108

main55650-89108-03iYN6#..ME198608-199807

GRAY,GRAY,TRIM1#

sub55650-89108

main55650-89108-04iLN5#,65,YN50,55,57,67..LHD..GEN198608-199807

BLUE,BLUE,TRIM8#

sub55650-89108

main55650-89108-04iRN50,55,YN52,57..4F..ME198610-199807

W/*HEA & *BV,GRAY,BLUE,TRIM1#

sub55650-89108

main55650-89108-05iRN50,55,YN52,57..4F..ME198610-199807

W/*HEA & *BV,BEIGE,BEIGE,TRIM4#

sub55650-89108

main55650-89108-05iYN6#..ME198608-199807

BEIGE,BEIGE,TRIM4#

sub55650-89108

main55650-89109iRN50,55,YN52,57..DLX..ME198608-199807

CHROME PLATED

main55650-89110-03iLN56,65,RN61,YN56,67..LHD..EUR198608-199807

GRAY,GRAY,TRIM1#

sub55650-89108

main55650-89110-04iLN56,65,YN56,67..LHD..EUR198608-199807

BLUE,BLUE,TRIM8#

sub55650-89108

main55650-89110-05iLN56,65,RN61,YN56,67..LHD..EUR198608-199807

BEIGE,BEIGE,TRIM4#

sub55650-89108

main55650-89111-03iLN65,YN56,67..RHD..EUR198608-199807

GRAY,GRAY,TRIM1#

sub55650-89107

main55650-89111-04iLN65,YN56,67..RHD..EUR198608-199807

BLUE,BLUE,TRIM8#

sub55650-89107

main55650-89111-05iLN65,YN56,67..RHD..EUR198608-199807

BEIGE,BEIGE,TRIM4#

sub55650-89107

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-89101-03iLN56,65,YN55,56,57,65,67..RHD..(ARL,EUR)198308-198608

GRAY,GRAY,TRIM1#

sub55660-89103

main55660-89101-03iLN56,65,YN55,56,57,65,67..RHD..(ARL,EUR)198308-198608

W/HEATER OR *BV,GRAY,GRAY,TRIM1#

sub55660-89103

main55660-89101-03iLN5#,YN50,57,65,67..(4F,5F)..SA198401-198608

W/HEATER,GRAY,GRAY,TRIM1#

sub55660-89103

main55660-89101-03iLN51,56..GEN198404-198408

*THS,GRAY,GRAY,TRIM1#

sub55660-89103

main55660-89101-04iLN5#,60,65,YN50,55,57,65,67..RHD..GEN198308-198608

W/HEATER OR *BV,BLUE,BLUE,TRIM8#

sub55660-89103

main55660-89101-04iLN55,56,6#,YN55,56,57,6#..RHD..(ARL,EUR)198308-198608

BLUE,BLUE,TRIM8#

sub55660-89103

main55660-89101-04iLN51,56..GEN198404-198408

*THS,BLUE,BLUE,TRIM8#

sub55660-89103

main55660-89101-04iLN5#,YN50,57,65,67..(4F,5F)..SA198401-198608

W/HEATER,BLUE,BLUE,TRIM8#

sub55660-89103

main55660-89101-06iLN56,65,YN55,56,57,65,67..RHD..(ARL,EUR)198308-198608

BROWN,BROWN,TRIM4#

sub55660-89103

main55660-89101-06iLN56,65,YN55,56,57,65,67..RHD..(ARL,EUR)198308-198608

W/HEATER OR *BV,BROWN,BROWN,TRIM4#

sub55660-89103

main55660-89101-06iYN50,55..4H..SA198401-198608

W/HEATER,BROWN,BROWN,TRIM4#

sub55660-89103

main55660-89101-06iLN51,56..GEN198404-198408

*THS,BROWN,BROWN,TRIM4#

sub55660-89103

main55660-89102-03iYN50,55,60,67..ME198308-198608

W/HEATER OR *BV,GRAY,GRAY,TRIM1#

sub55660-89104

main55660-89102-03iYN50,55,60,67..ME198508-198608

*SOOS,*GUS,W/HEATER,*BV,GRAY,GRAY,TRIM1#

sub55660-89104

main55660-89102-03iLN56..EUR..IV;LN56..TW..EUR;LN55,65,YN56,65..LHD..EUR198308-198608

GRAY,GRAY,TRIM1#

sub55660-89104

main55660-89102-04iLN5#,65,YN50,55,57,62,67..LHD..GEN198308-198608

W/HEATER OR *BV,BLUE,BLUE,TRIM8#

sub55660-89104

main55660-89102-04iLN56..EUR..IV;LN56..TW..EUR;LN55,65,YN56,65..LHD..EUR198308-198608

BLUE,BLUE,TRIM8#

sub55660-89104

main55660-89102-04iYN50,55,60,67..ME198508-198608

*SOOS,*GUS,W/HEATER,*BV,BLUE,BLUE,TRIM8#

sub55660-89104

main55660-89102-06iYN52,57..ME198508-198608

*SOOS,*GUS,W/HEATER,*BV,BROWN,BROWN,TRIM4#

sub55660-89104

main55660-89102-06iLN5#,65,YN50,52,55,57,6#..LHD..(DLX,STD)..(GEN,ME)198308-198608

W/HEATER OR *BV,BROWN,BROWN,TRIM4#

sub55660-89104

main55660-89102-06iLN56..EUR..IV;LN56..TW..EUR;LN55,65,YN56,65..LHD..EUR198308-198608

BROWN,BROWN,TRIM4#

sub55660-89104

main55660-89103-03iLN60,61,YN60,63..ARL198408-198608

GRAY,GRAY,TRIM1#

sub55660-89103

main55660-89103-04iLN60,61,YN60,63..ARL198408-198608

BLUE,BLUE,TRIM8#

sub55660-89103

main55660-89103-06iLN60,61,YN60,63..ARL198408-198608

BROWN,BROWN,TRIM4#

sub55660-89103

main55660-89104-03iYN60,63..ARL198408-198608

W/HEATER & *BV,GRAY,GRAY,TRIM1#

sub55660-89104

main55660-89104-04iYN60,63..ARL198408-198608

W/HEATER & *BV,BLUE,BLUE,TRIM8#

sub55660-89104

main55660-89104-06iYN60,63..ARL198408-198608

W/HEATER & *BV,BROWN,BROWN,TRIM4#

sub55660-89104

main55660-89105iRN5#,YN52,57..ME198508-198608

W/HEATER OR *BV

main55670-89108-03iLN5#,6#,YN50,55,56,57,58,6#..ARL,GEN198608-199807

GRAY,GRAY,TRIM1#

sub55670-89109

sub55670-89108

main55670-89108-03iRN50,55,YN52,57..4F..ME198610-199807

W/*HEA & *BV,GRAY,GRAY,TRIM1#

sub55670-89109

sub55670-89108

main55670-89108-04iYN67..ME198608-199807

BLUE,BLUE,TRIM8#

sub55670-89109

sub55670-89108

main55670-89108-04iRN50,55,YN52,57..4F..ME198610-199807

W/*HEA & *BV,BLUE,BLUE,TRIM8#

sub55670-89109

sub55670-89108

main55670-89108-05iYN67..ME198608-199807

BEIGE,BEIGE,TRIM4#

sub55670-89109

sub55670-89108

main55670-89108-05iRN50,55,YN52,57..4F..ME198610-199807

W/*HEA & *BV,BEIGE,BEIGE,TRIM4#

sub55670-89109

sub55670-89108

main55670-89109-03iYN63..ME198608-199807

GRAY,GRAY,TRIM1#

sub55670-89109

sub55670-89112

main55670-89109-05iYN63..ME198608-199807

BEIGE,BEIGE,TRIM4#

sub55670-89109

sub55670-89112

main55670-89110iRN50,55,YN52,57..ME198608-199807

CHROME PLATED

sub55670-89113

main55670-89114-03iLN56,65,RN61,YN56,67..EUR198608-199807

GRAY,GRAY,TRIM1#

main55670-89114-04iLN56,65,YN56,67..EUR198608-199807

BLUE,BLUE,TRIM8#

main55670-89114-05iLN56,65,RN61,YN56,67..EUR198608-199807

BEIGE,BEIGE,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-89103-03iLN60,61,YN60,63..ARL198408-198608

W/HEATER & *BV,GRAY,GRAY,TRIM1#

sub55670-89103

main55670-89103-03iYN60,63..SR5..ME198408-198608

GRAY,GRAY,TRIM1#

sub55670-89103

main55670-89103-04iLN60,61,YN60,63..ARL198408-198608

W/HEATER & *BV,BLUE,BLUE,TRIM8#

sub55670-89103

main55670-89103-04iYN60,63..SR5..ME198408-198608

BLUE,BLUE,TRIM8#

sub55670-89103

main55670-89103-06iYN60,63..SR5..ME198408-198608

BROWN,BROWN,TRIM4#

sub55670-89103

main55670-89103-06iYN60,63..SR5..ME198408-198608

W/HEATER & *BV,BROWN,BROWN,TRIM4#

sub55670-89103

main55670-89104-03iYN50,55,60,63,67..ME198308-198608

GRAY,GRAY,TRIM1#

sub55670-89104

main55670-89104-03iYN50,55,60,63,67..ME198508-198608

*SOOS OR *GUS,GRAY,GRAY,TRIM1#

sub55670-89104

main55670-89104-04iYN50,55..4H..SA198308-198608

BLUE,BLUE,TRIM8#

sub55670-89104

main55670-89104-04iYN52,57..ME198508-198608

*SOOS OR *GUS,BLUE,BLUE,TRIM8#

sub55670-89104

main55670-89104-06iLN5#,65,YN50,55,57,62,67..GEN198508-198608

*SOOS OR *GUS,BROWN,BROWN,TRIM4#

sub55670-89104

main55670-89104-06iYN50,55,60,63,67..ME198308-198608

BROWN,BROWN,TRIM4#

sub55670-89104

main55670-89105-03iYN52,57..ME198308-198608

W/HEATER OR *BV,GRAY,GRAY,TRIM1#

sub55670-89103

main55670-89105-03iLN56,65,YN55,56,57,65,67..ARL,EUR198308-198608

GRAY,GRAY,TRIM1#

sub55670-89103

main55670-89105-03iLN5#,YN50,57,65,67..(4F,5F)..SA198401-198608

W/HEATER,GRAY,GRAY,TRIM1#

sub55670-89103

main55670-89105-03iYN50,55,60,67..ME198508-198608

*SOOS,*GUS,W/HEATER,*BV,GRAY,GRAY,TRIM1#

sub55670-89103

main55670-89105-04iYN52,57..ME198308-198608

W/HEATER OR *BV,BLUE,BLUE,TRIM8#

sub55670-89103

main55670-89105-04iYN52,57..ME198508-198608

*SOOS,*GUS,W/HEATER,*BV,BLUE,BLUE,TRIM8#

sub55670-89103

main55670-89105-04iYN50,55..4H..SA198401-198608

W/HEATER,BLUE,BLUE,TRIM8#

sub55670-89103

main55670-89105-04iLN5#,YN50,57,65,67..(4F,5F)..SA198308-198608

BLUE,BLUE,TRIM8#

sub55670-89103

main55670-89105-06iYN52,57..ME198508-198608

*SOOS,*GUS,W/HEATER,*BV,BROWN,BROWN,TRIM4#

sub55670-89103

main55670-89105-06iLN5#,YN50,57,65,67..(4F,5F)..SA198308-198608

BROWN,BROWN,TRIM4#

sub55670-89103

main55670-89105-06iLN5#,YN50,57,65,67..(4F,5F)..SA198401-198608

W/HEATER,BROWN,BROWN,TRIM4#

sub55670-89103

main55670-89105-06iLN5#,6#,YN50,52,55,57,6#..GEN,ME198308-198608

W/HEATER OR *BV,BROWN,BROWN,TRIM4#

sub55670-89103

main55670-89106iRN5#,YN52,57..ME198508-198608

W/HEATER OR *BV

main55670-89107iRN5#,YN52,57..ME198508-198608

main55670-89108-03iYN67..ME198608-199807

GRAY,GRAY,TRIM1#

sub55670-89109

sub55670-89108

main55670-89108-03iYN67..ME198608-199807

W/HEATER,GRAY,GRAY,TRIM1#

sub55670-89109

sub55670-89108

main55670-89108-04iYN51,56..4H..SA198608-199807

BLUE,BLUE,TRIM8#

sub55670-89109

sub55670-89108

main55670-89108-04iYN51,56..4H..SA198608-199807

W/HEATER,BLUE,BLUE,TRIM8#

sub55670-89109

sub55670-89108

main55670-89108-05iLN51,56,65,YN50,55,57,67..GEN198608-199807

W/HEATER,BEIGE,BEIGE,TRIM4#

sub55670-89109

sub55670-89108

main55670-89108-05iRN50,55,YN52,57..4F..ME198608-199807

BEIGE,BEIGE,TRIM4#

sub55670-89109

sub55670-89108

main55670-89109-03iYN63..ME198608-199807

GRAY,GRAY,TRIM1#

sub55670-89109

sub55670-89112

main55670-89109-05iYN63..ME198608-199807

BEIGE,BEIGE,TRIM4#

sub55670-89109

sub55670-89112

main55670-89110iRN50,55,YN52,57..DLX..ME198608-199807

CHROME PLATED

sub55670-89113

main55670-89111-03iYN67..ME198608-199807

GRAY,GRAY,TRIM1#

sub55670-89108

sub55670-89112

main55670-89111-03iYN67..ME198608-199807

W/HEATER & *BV,GRAY,GRAY,TRIM1#

sub55670-89108

sub55670-89112

main55670-89111-03iRN50,55,YN52,57..4F..ME198610-199807

W/*HEA & *BV,GRAY,GRAY,TRIM1#

sub55670-89108

sub55670-89112

main55670-89111-04iLN5#,65,67,RN58,67,YN51,58,67..SA198608-199807

BLUE,BLUE,TRIM8#

sub55670-89108

sub55670-89112

main55670-89111-04iLN56,65,YN55,56,57,58,67..ARL198608-199807

W/HEATER & *BV,BLUE,BLUE,TRIM8#

sub55670-89108

sub55670-89112

main55670-89111-04iRN50,55,YN52,57..4F..ME198610-199807

W/*HEA & *BV,BLUE,BLUE,TRIM8#

sub55670-89108

sub55670-89112

main55670-89111-05iYN67..ME198608-199807

W/HEATER & *BV,BEIGE,BEIGE,TRIM4#

sub55670-89108

sub55670-89112

main55670-89111-05iYN67..ME198608-199807

BEIGE,BEIGE,TRIM4#

sub55670-89108

sub55670-89112

main55670-89111-05iRN50,55,YN52,57..4F..ME198610-199807

W/*HEA & *BV,BEIGE,BEIGE,TRIM4#

sub55670-89108

sub55670-89112

main55670-89112-03iLN61,YN63198608-199807

W/HEATER & *BV,GRAY,GRAY,TRIM1#

sub55670-89112

main55670-89112-05iLN61,YN63198608-199807

W/HEATER & *BV,BEIGE,BEIGE,TRIM4#

sub55670-89112

main55670-89113iRN50,55,YN52,57..DLX..ME198608-199807

W/HEATER & *BV,CHROME PLATED

main55670-89114-03iLN56,65,RN61,YN56,67..EUR198608-199807

GRAY,GRAY,TRIM1#

main55670-89114-04iLN56,65,YN56,67..EUR198608-199807

BLUE,BLUE,TRIM8#

main55670-89114-05iLN56,65,RN61,YN56,67..EUR198608-199807

BEIGE,BEIGE,TRIM4#

55950NOZZLE ASSY, DEFROSTER

main55950-89105iLN50,51,55,56,60,65,YN50,55,57,65,67..RHD..GEN198308-199807

W/HEATER OR *BV

main55950-89105iYN50,51,55,56..4H..SA198401-199807

W/HEATER

main55950-89106iLN55,56,65,RN61,YN56,65,67..LHD..EUR198308-199807

main55950-89106iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-199201

W/HEATER OR *BV

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-89102iLN51,56..GEN198404-198408

THAILAND SPEC,W/O HEATER

main55959-89102iLN51,56,60,65,RN50,55,YN50,52,55,57,6#..GEN,ME198308-199807

W/O HEATER OR *BV

main55959-89102iYN50,51,55,56..4H..SA198401-199807

W/O HEATER

55969COVER, DEFROSTER NOZZLE OPENING, NO.2

main55959-89103iYN50,51,55,56..4H..SA198401-199807

RH,W/O HEATER

main55959-89103iLN51,56..GEN198404-198408

RH,*THS,W/O HEATER

main55959-89103iLN50,55,6#,YN50,52,55,57,6#..GEN,ME198308-199807

RH,W/O HEATER OR *BV

main55969-89101iLN51,56,60,65,RN50,55,YN50,52,55,57,6#..GEN,ME198308-199807

LH,W/O HEATER OR *BV

main55969-89101iLN51,56..GEN198404-198408

LH,*THS,W/O HEATER

main55969-89101iYN50,51,55,56..4H..SA198401-199807

LH,W/O HEATER

6765

9011906022

main90119-06022

9011906126

main90119-06126

9011906151

main90119-06151

9015960213

main90159-60213

9016126007

main90161-26007

9016140010

main90161-40010

9016750013

main90167-50013

9017906026

main90179-06026

9017908063

main90179-08063

9018305094

main90183-05094

9018905032

main90189-05032

9025404016

main90254-04016

9054103015

main90541-03015

9165140818

main91651-40818

9166640820

main91666-40820

9322954010

main93229-54010

9356055014

main93560-55014

9356855014

main93568-55014

55 parts on this diagram · 2 diagrams in section
