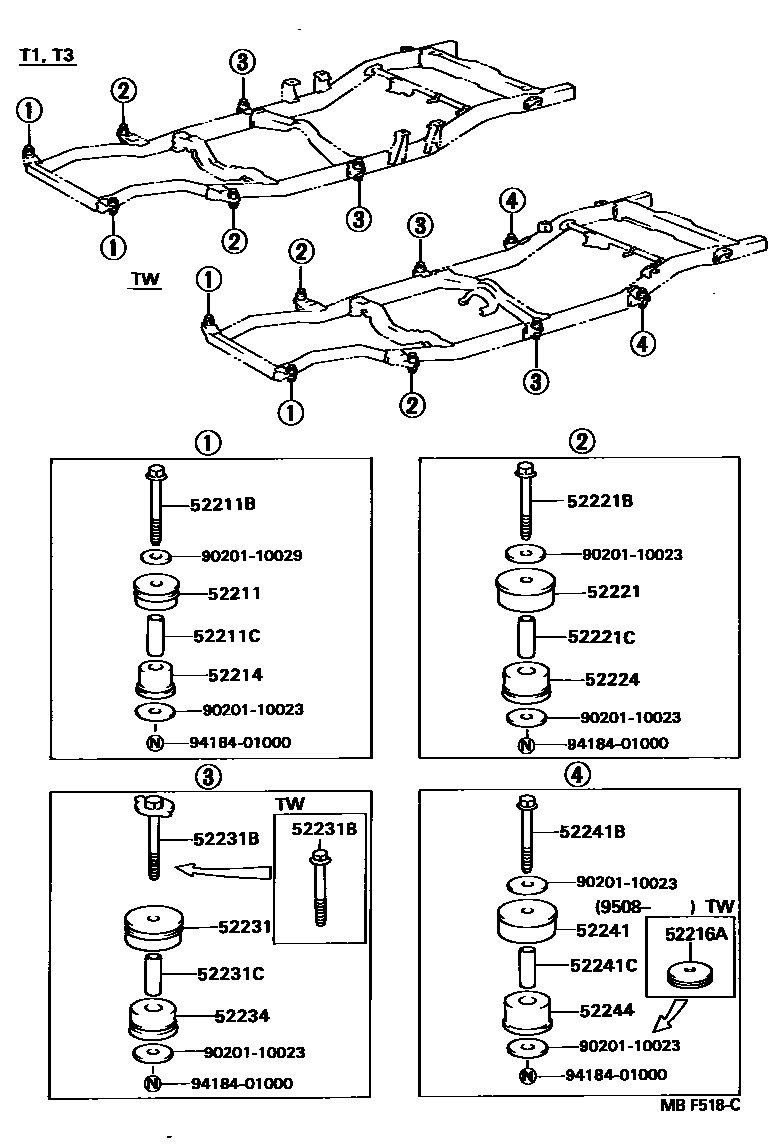

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52201-35021iLN65,RN67,YN65,67..TW198308-199807

main52201-35030iLN67,RN67198308-199807

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90105-10019iLN5#,6#,RN5#,61,YN5#,6#198308-199807

main90119-10545iLN5#,RN58,YN5#199105-199807

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main90440-16007iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

52214CUSHION, BODY MOUNT, NO.1 LOWER

main52202-35021iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main52202-35030iLN67,RN67198308-199807

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-35020iLN57,RN58..TW199508-199807

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52203-35031iLN5#,6#,RN5#,61,YN5#,6#198308-199807

main52203-35100iLN5#,RN58,YN5#199105-199807

52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)

main90105-10019iLN5#,6#,RN5#,61,YN5#,6#198308-199807

main90119-10545iYN51,56,58199108-199807

52221CSPACER(FOR BODY MOUNT NO.2 CUSHION)

main90440-16007iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

52224CUSHION, BODY MOUNT, NO.2 LOWER

main52204-35031iLN5#,6#,RN5#,61,YN5#,6#198308-199807

main52204-35100iLN5#,RN58,YN5#199105-199807

52231CUSHION, BODY MOUNT, NO.3 UPPER

main52203-35031iLN55,56,RN55,67,YN55,57,58..TW198308-199807

main52203-35040iLN5#,RN5#,YN5#..RCB,XTR198308-199105

main52205-35020iLN5#,RN58,YN5#199105-199807

52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)

main90105-10019iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

main90109-10066iLN5#,65,RN67,YN67..RCB198308-199807

main90109-10124iLN5#,RN58,YN5#..RCB198808-199807

52231CSPACER(FOR BODY MOUNT NO.3 CUSHION)

main90440-16007iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

52234CUSHION, BODY MOUNT, NO.3 LOWER

main52204-35031iLN55,56,RN55,67,YN55,57,58..TW198308-199807

main52204-35040iLN5#,RN5#,YN5#..RCB,XTR198308-199105

main52206-35010iLN5#,RN58,YN5#199105-199807

52241CUSHION, BODY MOUNT, NO.4 UPPER

main52203-35031iLN55,56,65,RN55,67,YN55,57,58,65,67..TW198312-199807

main52205-35020iLN57,RN58..TW199508-199807

main52207-35010iLN60,61,RN61,YN60,63..WG198403-198903

52241BBOLT(FOR BODY MOUNT NO.4 CUSHION)

main90105-10019iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

main90109-10066iLN60,61,RN61,YN60,63..WG198403-198808

main90109-10124iLN61,RN61,YN63198808-198903

52241CSPACER(FOR BODY MOUNT NO.4 CUSHION)

main90440-16007iLN60,61,RN61,YN60,63..WG198312-199807

52244CUSHION, BODY MOUNT, NO.4 LOWER

main52204-35031iLN55,56,65,RN55,67,YN55,57,58,65,67..TW198312-199807

main52206-35010iLN57,RN58..TW199508-199807

main52208-35010iLN60,61,RN61,YN60,63..WG198403-198903

9020110023

main90201-10023

9020110029

main90201-10029

9418401000

main94184-01000

20 parts on this diagram · 2 diagrams in section
