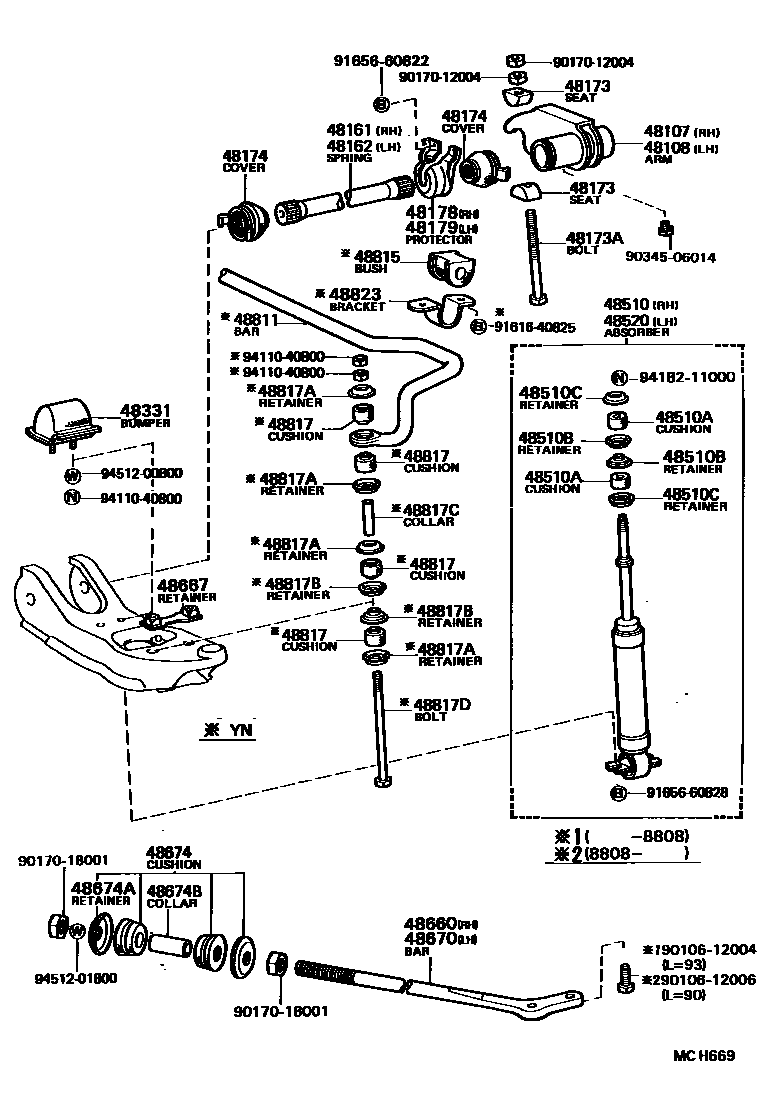

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-35020iLN5#,RN5#,YN5#198308-198808

sub48107-35040

main48107-35030iLN61,RN61,YN63198508-198808

main48107-35040iLN61,RN61,YN63198808-199407

main48107-35060iLN5#,RN58,YN5#199407-199807

48108ARM SUB-ASSY, ANCHOR, LH

main48108-35020iLN5#,RN5#,YN5#198308-198808

sub48108-35040

main48108-35030iLN61,RN61,YN63198508-198808

main48108-35040iLN61,RN61,YN63198808-199407

main48108-35060iLN5#,RN58,YN5#199407-199807

48161SPRING, TORSION BAR, RH

main48161-35040iYN57..XTR..SR5198308-199407

main48161-35060iYN50,55,57..(T1,TW)..(DLX,STD)..GEN198308-199407

W/FR6.00-14-6,RR6.50-14-8 TIRE

main48161-35080iYN50,55,57..(DLX,STD)..GEN198308-199407

W/6.50-14-8 OR 185R14C-8 TIRE

main48161-35080iYN57..SR5..SA;RN50,YN5#..(DLX,STD)..(ARL,EUR,ME,SA)198308-199108

main48161-35090iLN5#,RN55198308-199108

main48161-35110iRN61198712-198903

main48161-35130iLN61,YN63198508-199407

main48161-35170iRN58,YN51,56,58..RCB199108-199807

main48161-35220iLN51,56199108-199807

48162SPRING, TORSION BAR, LH

main48162-35040iYN57..XTR..SR5198308-199407

main48162-35060iYN50,52,55,57..ME198308-199407

W/FR6.00-14-6,RR6.50-14-8 TIRE

main48162-35080iYN50,55,57..(DLX,STD)..GEN198308-199407

W/6.50-14-8 OR 185R-14C-8 TIRE

main48162-35080iYN57..SR5..SA;RN50,YN5#..(DLX,STD)..(ARL,EUR,ME,SA)198308-199108

main48162-35090iLN5#,RN55198308-199108

main48162-35110iRN61198712-198903

main48162-35130iLN61,YN63198508-199407

main48162-35170iRN58,YN51,56,58..RCB199108-199807

main48162-35220iLN51,56199108-199807

48173SEAT, ANCHOR ARM ADJUSTER

main48173-35010iLN61,RN61,YN63198808-199407

main48173-35010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

UPR

main48173-35030iLN61,RN61,YN63198508-198808

main48173-35030iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

LWR

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12104iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main90101-12118iLN61,RN61,YN63198508-198808

main90101-12159iLN61,RN61,YN63198808-198903

48174COVER, TORSION BAR DUST

main48174-26010iLN61,RN61,YN63198508-198903

main48174-35010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

FR

main48174-35020iLN5#,RN5#,YN5#198308-199407

RR

main48174-35030iLN5#,RN58,YN5#199407-199807

RR

sub48174-35031

48178PROTECTOR, TORSION BAR DUST COVER, RH

main48178-35020iLN5#,RN5#,YN5#198308-199407

main48178-35050iLN61198508-198903

48179PROTECTOR, TORSION BAR DUST COVER, LH

main48178-35020iLN5#,RN5#,YN5#198308-199407

main48179-35020iRN61,YN63198508-198808

main48179-35030iRN61,YN63198808-198903

48331BUMPER, FRONT SPRING, NO.1

main48304-35080iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main48304-35100iLN60,65,67,RN67,YN60,62,65,67198308-199807

RH

main48304-35110iLN60,65,67,RN67,YN60,62,65,67198308-199807

LH

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-35280iRN61198712-198802

sub48511-39565

main48511-35300iLN61,YN63198508-198802

sub48511-39575

main48511-39415iLN5#,RN5#,YN50,52,55,56,57..(DLX,STD)..(ARL,EUR,GEN,ME)198308-199407

sub48511-39416

main48511-39425iYN57,58..XTR..SR5198308-199407

MARK 48511-35190

sub48511-39675

main48511-39455iLN6#,YN6#..EUR,GEN,ME198308-199407

sub48511-39456

main48511-39475iLN65,67,RN67,YN67..SA198308-199601

sub48511-39476

main48511-39475iLN65,YN65..RHD..RCB..GEN198308-198508

NEW ZEALAND SPEC

sub48511-39476

main48511-39475iLN6#,YN6#..GEN198402-198502

AFRICA SPEC

sub48511-39476

main48511-39475iYN65..5F..GEN198407-198508

*SA

sub48511-39476

main48511-39476iLN67,RN67199601-199807

main48511-39565iRN61198802-198810

sub48511-39567

main48511-39566iRN61198810-198903

sub48511-39567

main48511-39575iLN61,YN63198802-198810

sub48511-39577

main48511-39576iLN61,YN63198810-198903

sub48511-39577

main48511-39595iLN65,YN67..ARL198803-199407

sub48511-39596

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01002iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main90948-01003iLN61,RN61,YN63198308-199807

T=15

main90948-01045iLN61,RN61,YN63198810-198903

T=21

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002iLN6#,RN61,YN6#198308-199807

ID=10.5

main90948-02005iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main90948-02131iLN61,RN61,YN63198810-198903

ID=24

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02007iLN6#,YN6#198308-198508

main90948-02069iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main90948-02087iLN65,67,RN67,YN67198508-199807

ID=12

main90948-02119iLN61,RN61,YN63198810-198903

ID=14

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-35280iRN61198712-198802

sub48511-39565

main48511-35300iLN61,YN63198508-198802

sub48511-39575

main48511-39415iLN5#,RN5#,YN50,52,55,56,57..(DLX,STD)..(ARL,EUR,GEN,ME)198308-199407

sub48511-39416

main48511-39425iYN57,58..XTR..SR5198308-199407

MARK 48511-35190

sub48511-39675

main48511-39455iLN6#,YN6#..EUR,GEN,ME198308-199407

sub48511-39456

main48511-39475iLN60,65,YN60,65,67..ARL,SA198308-199601

sub48511-39476

main48511-39475iLN65,YN65..RHD..RCB..GEN198308-198508

NEW ZEALAND SPEC

sub48511-39476

main48511-39475iYN65..5F..GEN198407-198508

*SA

sub48511-39476

main48511-39475iLN6#,YN6#..GEN198402-198502

AFRICA SPEC

sub48511-39476

main48511-39476iLN67,RN67199601-199807

main48511-39565iRN61198802-198810

sub48511-39567

main48511-39566iRN61198810-198903

sub48511-39567

main48511-39575iLN61,YN63198802-198810

sub48511-39577

main48511-39576iLN61,YN63198810-198903

sub48511-39577

main48511-39595iLN65,YN67..ARL198803-199407

sub48511-39596

48660BAR ASSY, STRUT, RH

main48661-35021iLN5#,RN5#,YN5#198308-198808

sub48661-35030

sub90106-12006

main48661-35030iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198808-199807

48667RETAINER, STRUT BAR

main48667-35010iLN5#,RN5#,YN5#198308-198808

main48667-35020iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198808-199807

sub48667-35030

48670BAR ASSY, STRUT, LH

main48671-35021iLN5#,RN5#,YN5#198308-198808

sub48671-35030

sub90106-12006

main48671-35030iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198808-199807

48674CUSHION, STRUT BAR

main48674-29026iLN50,51,55,56198308-199807

main48674-39035iYN58..4F;YN58..SR5,STD;RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

48811BAR, STABILIZER, FRONT

main48811-35091iYN60..SR5..ME198308-199407

main48811-35140iYN5#..(DLX,STD)..(ARL,EUR,GEN,ME)198308-199807

main48811-35160iYN57..XTR..SR5198308-199407

main48811-35180iRN50,55198601-199807

main48811-35190iLN61,YN63198508-198708

sub48811-35240

main48811-35200iLN5#..RHD..T1..GEN..CBU198504-198608

sub48811-35230

sub48815-35060

main48811-35210iYN56..LHD..CBU198508-199407

W/POWER STEERING

main48811-35230iLN5#..RHD..T1..GEN..CBU198608-199407

main48811-35240iLN61,RN61,YN63198708-198903

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20030iLN65,YN60,62,65,67..LHD..(EUR,GEN)198308-199407

main48815-30050iYN5#..DLX,STD;YN57..SR5..SA198308-199807

main48815-30060iYN57..XTR..SR5198308-199407

main48815-35060iLN5#..RHD..T1..GEN..CBU198608-199407

THAILAND SPEC

main48815-35060iRN5#,YN50,52,57..ME198508-199407

W/POWER STEERING

48817CUSHION, FRONT STABILIZER

main48817-30010iLN5#..RHD..T1..GEN..CBU198308-199807

main90948-01002iLN65,YN60,62,65,67..LHD..(EUR,GEN)198308-199407

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iLN65,YN60,62,65,67..LHD..(EUR,GEN)198308-199407

main90948-02032iLN5#..RHD..T1..GEN..CBU198308-199807

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iYN58..4F;YN58..SR5,STD;RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main90948-02034iLN61,RN61,YN63198308-199407

48817CCOLLAR(FOR STABILIZER BAR)

main90387-09004iYN58..4F;YN58..SR5,STD;RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main90440-14003iYN60..SR5..ME198308-199407

48817DBOLT(FOR FRONT STABILIZER)

main90101-08038iLN5#..RHD..T1..GEN..CBU198308-199807

main90101-10058iLN65,YN60,62,65,67..LHD..(EUR,GEN)198308-199407

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-35030iLN65,YN60,62,65,67..LHD..(EUR,GEN)198308-199807

9010612004

main90106-12004

9010612006

main90106-12006

9017012004

main90170-12004

9017018001

main90170-18001

9034506014

main90345-06014

9161640825

main91616-40825

9165660822

main91656-60822

9165660828

main91656-60828

9411040800

main94110-40800

9418211000

main94182-11000

9451200800

main94512-00800

9451201800

main94512-01800

41 parts on this diagram · 6 diagrams in section
