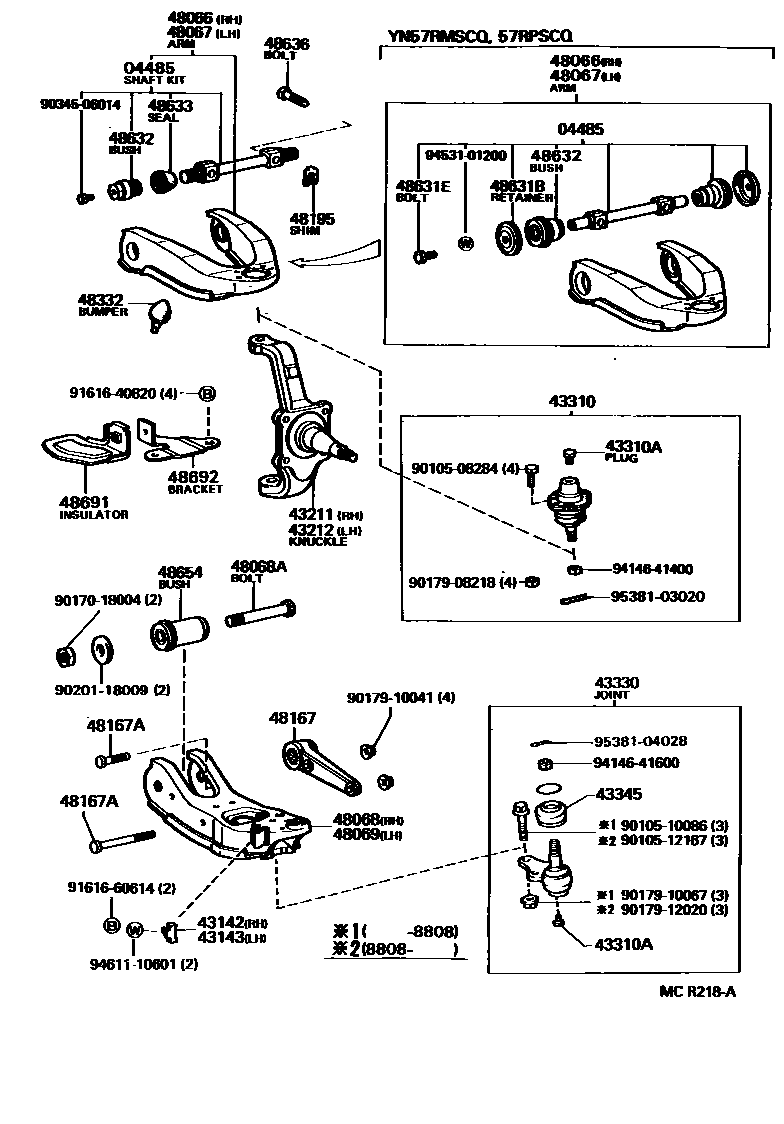

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-35020iYN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F198308-199807

main04485-35030iYN57,58..SR5..ARL198308-198808

main04485-35040iLN61,RN61,YN63198508-198903

43142SEAT, STEERING KNUCKLE STOPPER, RH

main43142-35010iLN51,56,YN5#199308-199807

43143SEAT, STEERING KNUCKLE STOPPER, LH

main43142-35010iLN51,56,YN5#199308-199807

43211KNUCKLE, STEERING, RH

main43201-35020iLN61,RN61,YN63198508-198903

sub43201-35040

main43211-35050iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-199407

FR DRUM BRAKE

main43211-35070iLN5#,RN5#,YN5#198308-199201

FR DISC BRAKE

main43211-35080iLN5#,YN50,55,57..GEN198308-199407

FR DRUM BRAKE

main43211-35090iLN60,65,67,RN67,YN60,62,65,67198308-199807

FR DISC BRAKE

main43211-35130iLN51,56,RN58,YN51,56,58..RCB199108-199807

43212KNUCKLE, STEERING, LH

main43202-35010iLN61,RN61,YN63198508-198903

sub43202-35030

main43211-35080iLN5#,YN50,55,57..GEN198308-199407

FR DRUM BRAKE

main43212-35020iLN65,YN62,67..GEN198308-199407

FR DRUM BRAKE

main43212-35040iYN57198308-199407

FR DISC BRAKE

main43212-35050iLN60,65,67,RN67,YN60,62,65,67198308-199807

FR DISC BRAKE

main43212-35090iLN51,56,RN58,YN51,56,58..RCB199108-199807

43310JOINT ASSY, UPPER BALL

main43350-39035iLN5#,RN5#,YN5#198308-198808

sub43350-39075

main43350-39045iLN61,RN61,YN63198508-198903

RH

main43350-39075iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198808-199807

main43360-39075iLN61,RN61,YN63198508-198903

LH

43310APLUG (FOR BALL JOINT)

main90345-06014iYN58..4F;YN58..SR5,STD;LN50,51,55,56,61,RN50,55,61,YN50,51,52,55,56,57,63..4F,4FC,4H,5F198308-199807

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39165iLN5#,RN5#,YN5#198308-198808

RH

main43330-39195iLN61,RN61,YN63198508-198903

RH

main43330-39245iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198808-199807

RH

sub43330-39295

main43340-39145iLN5#,RN5#,YN5#198308-198808

LH

sub43330-39165

main43340-39175iLN61,RN61,YN63198508-198903

LH

main43340-39225iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198808-199807

LH

sub43330-39295

43345COVER, LOWER BALL JOINT DUST

main43345-26010iLN50,51,55,56,YN50,52,55,56,57..4F,4FC,4H,5F198308-199807

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-35050iYN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F198308-199807

sub48066-35130

main48066-35060iYN57,58..SR5..ARL198308-198808

main48066-35070iLN61,RN61,YN63198508-198808

sub48066-35100

main48066-35100iLN61,YN63198808-198903

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48066-35050iYN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F198308-199807

sub48066-35130

main48066-35060iYN57,58..SR5..ARL198308-198808

main48067-35030iLN61,RN61,YN63198508-198808

sub48067-35040

main48067-35040iLN61,RN61,YN63198808-198903

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-35040iLN61,RN61,YN63198508-198903

main48605-35060iLN5#,YN5#198308-198705

sub48605-35070

main48605-35070iLN5#,YN50,51,55,57,58..SA198403-198808

main48605-35070iLN50,55,YN50,52,55,57..GEN,ME198308-198705

HEAVY DUTY SPEC

main48605-35120iLN5#,YN5#198808-199308

sub48605-35121

main48605-35121iLN51,56,YN5#199308-199807

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90114-18003iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-35040iLN61,RN61,YN63198508-198903

main48606-35060iLN5#,RN5#,YN50,52,55,56,57..ARL,EUR,GEN,ME198308-198705

sub48606-35070

main48606-35070iLN5#,YN50,51,55,57,58..SA198403-198808

main48606-35070iLN5#,RN5#,YN50,52,55,57..GEN,ME198308-198705

HEAVY DUTY SPEC

main48606-35120iLN5#,YN5#198808-199308

sub48606-35121

main48606-35121iLN51,56,YN5#199308-199807

48167ARM, TORQUE

main48106-35010iLN61,RN61,YN63198508-198804

sub48106-35011

main48106-35011iLN61,RN61,YN63198804-198903

main48167-35020iLN5#,RN5#,YN5#198308-199407

main48167-35040iLN5#,RN58,YN5#199407-199807

48167ABOLT(FOR TORQUE ARM SETTING)

main90105-10087iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

L=127

main90105-10088iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

L=26

sub91512-81025

main90105-12112iLN61,RN61,YN63198508-198903

48195SHIM, CAMBER ADJUST

main90565-12004iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

T=4.0,T=4.0

main90565-12008iLN5#,RN5#,YN5#198308-199807

T=1.6,T=1.6

main90565-12009iLN5#,RN5#,YN5#198308-199807

T=1.2,T=1.2

48332BUMPER, FRONT SPRING, NO.2

main48332-35020iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02020iYN57,58..SR5..ARL198308-199407

main90948-02065iLN61,RN61,YN63198508-199407

FR

main90948-02066iLN61,RN61,YN63198508-199407

RR

sub90948-02142

48631EBOLT(FOR UPPER SUSPENSION ARM)

main90105-12017iYN57,58..SR5..ARL198308-199407

48632BUSH, UPPER ARM

main48632-26010iLN61,RN61,YN63198508-198903

FR

main48632-30012iYN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F198308-199807

main48632-30040iYN57,58..SR5..ARL198308-199407

main48635-26010iLN61,RN61,YN63198508-198903

RR

48633SEAL, UPPER ARM PIVOT DUST

main48633-35010iYN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F198308-199807

48636BOLT, UPPER ARM SET

main90105-12080iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

48654BUSH, LOWER ARM

main48061-35010iLN61,YN63198508-198511

sub48061-35011

main48061-35011iLN61,RN61,YN63198511-198903

main48654-35010iYN58..4F;YN58..SR5,STD;LN51,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198508-199807

main48654-35030iLN5#,YN5#198308-198508

sub48654-35010

48691INSULATOR, UPPER ARM BUSH, HEAT

main48691-35010iYN50,52,55,57198308-198406

main48691-35011iYN58..4F;YN58..SR5,STD;RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198406-199807

48692BRACKET, UPPER ARM BUSH INSULATOR

main48692-35010iYN50,52,55,57198308-198406

main48692-35011iRN5#,YN50,52,55,57198406-199807

9010508284

main90105-08284

9010510086

main90105-10086

9010512167

main90105-12167

9017018004

main90170-18004

9017908218

main90179-08218

9017910041

main90179-10041

9017910067

main90179-10067

9017912020

main90179-12020

9020118009

main90201-18009

9034506014

main90345-06014

9161640820

main91616-40820

9161660614

main91616-60614

9414641400

main94146-41400

9414641600

main94146-41600

9453101200

main94531-01200

9461110601

main94611-10601

9538103020

main95381-03020

9538104028

main95381-04028

44 parts on this diagram · 3 diagrams in section
