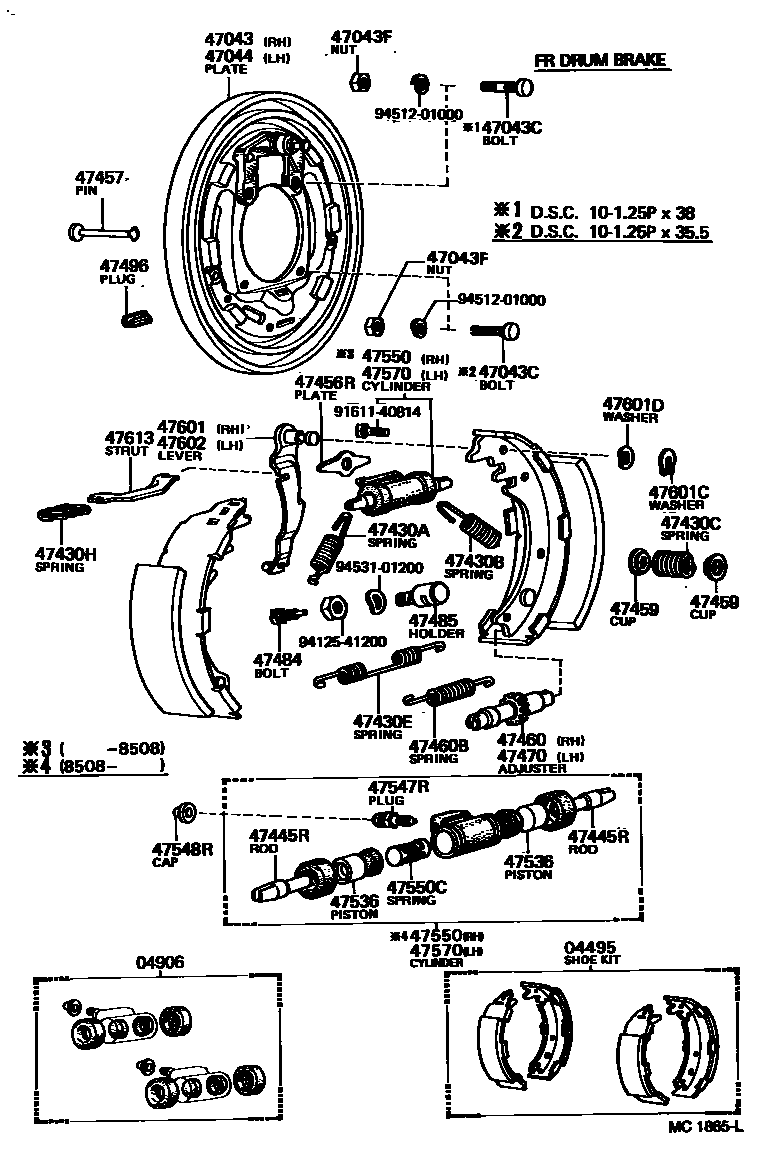

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0004 1 0005 1 0006 1 0007 1

04495SHOE KIT, REAR BRAKE

main04495-26020iLN5#,YN50,52,55,57..GEN,ME198308-198608

FR DRUM BRAKE

sub04495-26021

main04495-26050iLN61,RN61,YN63198608-198903

sub04495-26051

main04495-26060iLN5#,YN50,55,57..GEN198608-199201

FR DRUM BRAKE

sub04495-26061

main04495-35051iYN57..SR5..(GEN,SA)198305-198501

FR DISC BRAKE

sub04495-35052

main04495-35051iLN65,YN62,67..GEN198509-199201

FR DRUM BRAKE

sub04495-35052

main04495-35060iYN57,58..SR5..ARL198308-198808

sub04495-35061

main04495-35090iLN65,YN62,67..GEN198508-198509

FR DRUM BRAKE

sub04495-35051

main04495-35090iLN6#,YN6#198308-198508

sub04495-35051

main04495-35100iYN57..DLX,STD198501-199201

FR DISC BRAKE

sub04495-35101

main04495-35100iLN5#,6#,RN58,67,YN5#,67199201-199603

sub04495-35101

main04495-35110iLN61,YN63198508-198608

sub04495-35111

main04495-35120iYN56..RHD;YN56..DLX;LN56..EUR..IV;LN56..TW..EUR;LN56..ARL,GEN,SA198801-198809

DENMARK SPEC

sub04495-35121

main04495-35121iLN56,YN56198809-198812

DENMARK SPEC

sub04495-35122

main04495-35122iLN56,YN56..4F,4H,5F198812-199807

DENMARK SPEC

main04495-35180iLN5#,67,RN58,67,YN5#199603-199807

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30040iLN6#,RN67,YN6#198308-199807

FR DISC BRAKE

main04906-30100iYN57,58..SR5..ARL198308-198808

main04906-31010iLN5#,YN50,52,55,57..GEN,ME198308-199201

W/C

main04906-31010iLN65,YN62,67..GEN198308-199201

FR DRUM BRAKE

main04906-35080iLN5#,RN58,YN5#198308-199807

main04906-35080iYN57,58..ARL,GEN,ME198308-199201

W/C

main04906-35090iLN61,YN63198508-198608

sub04906-30100

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35041iLN50,55,YN50,52,55,57..GEN,ME198308-198607

FR DRUM BRAKE

sub47043-35042

main47043-35042iLN5#,YN50,55,57..GEN198607-199201

FR DRUM BRAKE

main47043-35050iYN57..DLX,STD198308-198607

FR DISC BRAKE

sub47043-35051

main47043-35051iYN57..DLX,STD198607-198608

FR DISC BRAKE

main47043-35060iYN57..SR5..ARL198308-198608

sub47043-35061

sub47492-28010

main47043-35061iYN57,58..SR5..ARL198608-198808

main47043-35100iLN6#,RN67,YN6#198308-199807

main47043-35120iLN61,RN61,YN63198508-198808

sub47043-35150

main47043-35130iLN5#,RN5#,YN50,51,52,55,56198608-199201

FR DISC BRAKE

main47043-35130iLN5#,RN58,YN5#199201-199807

main47043-35150iLN61,RN61,YN63198808-198903

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002iLN5#,RN5#,YN5#198308-199807

*10-1.25PX37-18.5

main90114-10002iLN6#,RN6#,YN6#198308-199807

*10-1.25PX37-18.5,*10-1.25PX35.5

main90114-10016iLN5#,6#,RN5#,6#,YN5#,6#198308-199807

*10-1.25PX41-18,*10-1.25PX41

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10191iLN6#,YN6#198308-198508

main90179-10041iLN5#,YN5#198308-198508

main90179-10067iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198508-199807

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-35031iLN5#,YN50,52,55,57..GEN,ME198308-198607

FR DRUM BRAKE

sub47044-35032

main47044-35032iLN5#,YN50,55,57..GEN198607-199201

FR DRUM BRAKE

main47044-35040iYN57..SR5..(GEN,SA)198308-198607

FR DISC BRAKE

sub47044-35041

main47044-35041iYN57..SR5..(GEN,SA)198607-198608

FR DISC BRAKE

main47044-35050iYN57..SR5..ARL198308-198608

sub47044-35051

sub47492-28010

main47044-35051iYN57,58..SR5..ARL198608-198808

main47044-35090iLN6#,RN67,YN6#198308-199807

main47044-35110iLN61,RN61,YN63198508-198808

sub47044-35140

main47044-35120iYN57,58..GEN,ME,SA198608-199201

FR DISC BRAKE

main47044-35120iLN5#,RN58,YN5#199201-199807

main47044-35140iLN61,RN61,YN63198808-198903

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331iYN57,58..GEN,ME,SA198308-199807

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331iLN60,65,YN60,62,65,67198308-199201

FR DISC BRAKE

main90506-26331iLN5#,6#,RN58,67,YN5#,67199201-199807

main90506-26394iYN57..SR5..(GEN,SA)198308-199201

FR DRUM BRAKE

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iLN61,RN61,YN63198508-198903

main90501-20225iLN50,55,YN50,52,55,57..GEN,ME198308-199201

FR DRUM BRAKE

main90501-20604iYN57,58..GEN,ME,SA198308-199201

FR DISC BRAKE

main90501-20604iLN5#,6#,RN58,67,YN5#,67199201-199807

main90501-20756iYN57,58..SR5..ARL198308-198808

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015iYN57,58..SR5..ARL198308-198808

main90506-16343iLN60,65,YN60,62,65,67198308-199201

FR DISC BRAKE

main90506-16343iLN5#,6#,RN58,67,YN5#,67199201-199807

main90506-26002iLN5#,YN50,52,55,57..GEN,ME198308-199201

FR DRUM BRAKE

main90506-26011iLN61,RN61,YN63198508-198903

RH

main90506-26014iLN61,RN61,YN63198508-198903

LH

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90504-18012iLN5#,6#,RN5#,6#,YN5#,6#198308-199807

47445RROD, REAR WHEEL CYLINDER

main47538-35010iLN5#,6#,RN5#,6#,YN5#,6#198308-199807

47456RPLATE, REAR BRAKE SHOE GUIDE

main47456-20010iLN5#,6#,RN5#,6#,YN5#,6#198308-199807

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iYN57,58..GEN,ME,SA198308-199807

main47447-30020iYN57,58..SR5..ARL198308-198903

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-20011iLN5#,YN50,52,55,57..GEN,ME198308-199201

FR DRUM BRAKE

main47449-30020iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-35020iYN57,58..SR5..ARL198308-198808

main47061-60011iLN61,RN61,YN63198508-198903

main47405-30010iLN5#,YN50,55,57..GEN198308-198605

FR DRUM BRAKE

sub47405-30011

main47405-30011iLN5#,YN50,55,57..GEN198605-199201

FR DRUM BRAKE

main47405-30020iYN57,58..STD..ARL198308-199201

FR DISC BRAKE

main47405-30020iLN5#,6#,RN58,67,YN5#,67199201-199807

47460BSPRING, TENSION(FOR REAR BRAKE ADJUSTER)

main90506-23344iLN5#,YN50,55,57..GEN198308-199201

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-35020iYN57,58..SR5..ARL198308-198808

main47062-60011iLN61,RN61,YN63198508-198903

main47406-30010iLN5#,YN50,55,57..GEN198308-198605

FR DRUM BRAKE

sub47406-30011

main47406-30011iLN5#,YN50,55,57..GEN198605-199201

FR DRUM BRAKE

main47406-30020iLN60,65,YN50,58,60,62,65,67198308-199201

FR DISC BRAKE

main47406-30020iLN5#,6#,RN58,67,YN5#,67199201-199807

47484BOLT, REAR BRAKE SHOE RETRACTING SPRING CLAMP

main47408-30020iLN50,55,YN50,52,55,57..GEN,ME198308-199201

47485SPACER OR HOLDER, SHOE RETRACTING SPRING CLAMP

main47485-35010iLN50,55,YN50,52,55,57..GEN,ME198308-199201

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iYN57,58..SR5..ARL198308-198903

main47491-35040iLN5#,60,65,RN5#,YN50,51,52,55,56,60,62,65,67198308-199807

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iYN57,58..SR5..ARL198308-198808

main47051-35010iLN61,YN63198508-198604

sub47051-35011

main47051-35011iLN61,YN63198604-198608

main47531-20071iLN5#,YN50,52,55,56198308-198508

sub47531-26070

main47531-26070iLN5#,RN58,YN5#198508-199807

main47531-26080iLN5#,YN50,55,57..GEN198508-199201

FR DRUM BRAKE

main47531-30110iLN6#,YN6#198308-198508

FR DISC BRAKE

sub47531-35130

main47531-31011iLN50,55,YN50,52,55,57..GEN,ME198308-198508

sub47531-26080

main47531-31011iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-198508

FR DRUM BRAKE

sub47531-26080

main47531-35130iLN6#,RN67,YN6#198508-199807

FR DISC BRAKE

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iYN57,58..SR5..ARL198308-198808

main47547-26010iYN57,58..STD..ARL198308-199807

main47547-60020iLN61,RN61,YN63198508-198903

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iLN5#,6#,RN5#,6#,YN5#,6#198308-199807

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26090iYN57..SR5..(GEN,SA)198508-199807

main47550-26100iLN5#,YN50,55,57..GEN198508-199201

FR DRUM BRAKE

main47550-29265iLN5#,YN50,52,55,56198308-198508

sub47550-26090

sub91611-60814

main47550-29275iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-198508

FR DRUM BRAKE

sub47550-26100

sub91611-60814

main47550-29275iLN50,55,YN50,52,55,57..GEN,ME198308-198508

sub47550-26100

sub91611-60814

main47550-29305iLN6#,YN6#198308-198508

FR DISC BRAKE

sub47550-35160

main47550-30130iYN57,58..SR5..ARL198608-198808

main47550-35150iLN61,YN63198508-198604

sub47550-35151

main47550-35151iLN61,YN63198604-198608

main47550-35160iLN6#,RN67,YN6#198508-199807

FR DISC BRAKE

main47550-35170iLN61,RN61,YN63198608-198903

sub47550-35190

main47550-39275iYN57..SR5..ARL198308-198608

sub47550-30130

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010iLN6#,RN67,YN6#198308-199807

FR DISC BRAKE

main47509-20010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main47509-22010iLN5#,YN50,52,55,57..GEN,ME198308-198508

W/C

main47509-22010iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-199201

FR DRUM BRAKE

main90501-09079iLN61,RN61,YN63198608-198903

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26090iYN57..SR5..(GEN,SA)198508-199807

main47550-26100iLN65,YN62,67..GEN198508-199201

FR DRUM BRAKE

main47550-29265iLN5#,YN50,52,55,56198308-198508

sub47550-26090

sub91611-60814

main47550-29275iLN5#,YN50,52,55,57..GEN,ME198308-198508

sub47550-26100

sub91611-60814

main47550-29275iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-198508

FR DRUM BRAKE

sub47550-26100

sub91611-60814

main47550-29305iLN6#,YN6#198308-198508

FR DISC BRAKE

sub47550-35160

main47550-30130iYN57,58..SR5..ARL198608-198808

main47550-35150iLN61,YN63198508-198604

sub47550-35151

main47550-35151iLN61,YN63198604-198608

main47550-35160iLN6#,RN67,YN6#198508-199807

FR DISC BRAKE

main47550-35170iLN61,RN61,YN63198608-198903

sub47550-35190

main47550-39275iYN57..SR5..ARL198308-198608

sub47550-30130

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-35011iYN57,58..STD..ARL198308-199807

main47601-35020iLN6#,RN67,YN6#198308-199807

main47611-35020iYN57,58..SR5..ARL198308-198808

main47611-35040iLN61,RN61,YN63198508-198903

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iLN6#,RN6#,YN6#198308-199807

T=1.6

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059iLN5#,RN5#,YN5#198308-199807

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-35011iYN57,58..STD..ARL198308-199807

main47602-35020iLN6#,RN67,YN6#198308-199807

main47612-35020iYN57,58..SR5..ARL198308-198808

main47612-35040iLN61,RN61,YN63198508-198903

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-35011iLN5#,RN5#,YN5#198308-199807

RH

main47613-35020iLN6#,RN67,YN6#198308-199807

RH

main47614-35011iLN5#,RN5#,YN5#198308-199807

LH

main47614-35020iLN6#,RN67,YN6#198308-199807

LH

9161140814

main91611-40814

9412541200

main94125-41200

9451201000

main94512-01000

9453101200

main94531-01200

36 parts on this diagram · 5 diagrams in section
