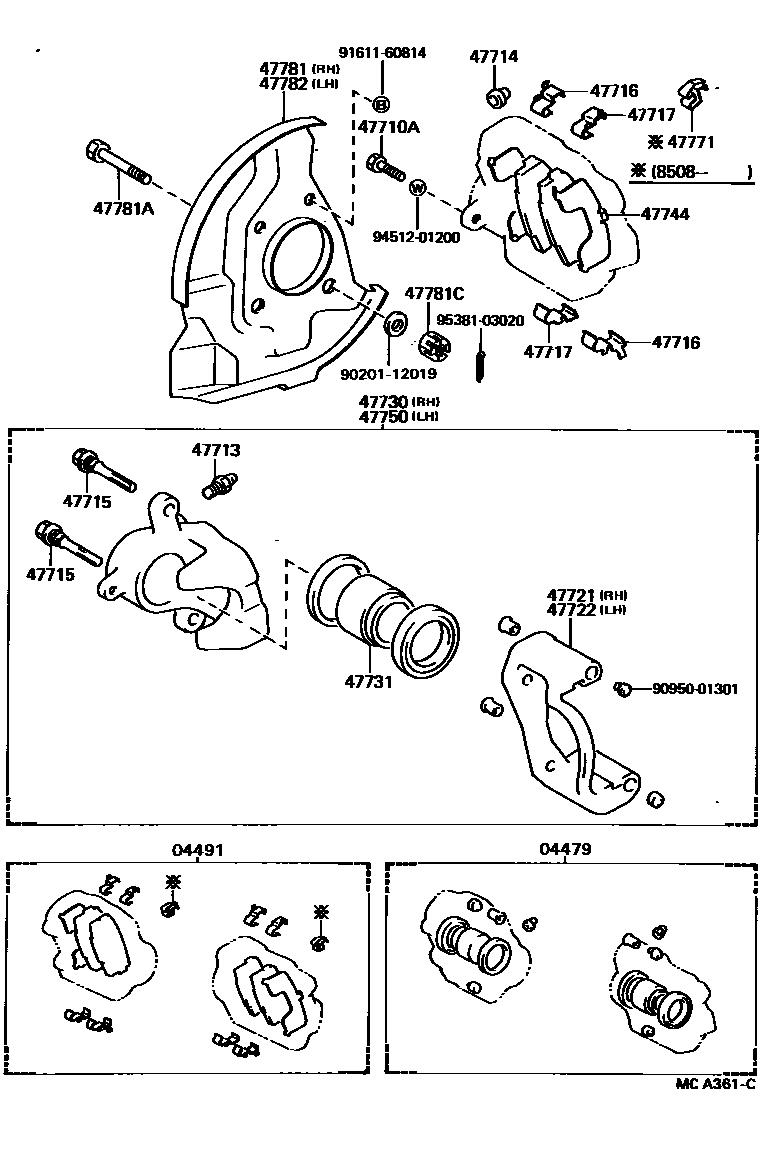

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0005 1 0006 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22010iYN57,58..SR5..ARL198308-198808

main04479-30030iLN60,61,65,RN6#,YN6#198308-199807

sub04479-30031

main04479-40010iYN57,58..GEN,ME,SA198308-199807

sub04479-35050

04491PAD KIT, DISC BRAKE, FRONT

main04491-22140iYN57..SR5..ARL198308-198608

sub04465-22140

main04491-35050iYN57..RHD..RCB..5F..GEN198408-198901

THAI LAND SPEC

sub04491-35051

main04491-35050iLN51,56..GEN198404-198408

sub04491-35051

main04491-35051iYN57..RHD..RCB198901-199201

THAI LAND SPEC

sub04465-35020

main04491-35060iYN57..DLX,STD198308-198408

sub04491-35061

main04491-35061iLN5#,YN50,52,55,56198408-198508

sub04491-35063

main04491-35062iYN57,58..GEN,ME,SA198508-198708

sub04491-35063

main04491-35062iYN57..GEN,ME,SA198408-198508

THAI LAND SPEC

sub04491-35063

main04491-35063iYN58..STD198708-199505

sub04465-26210

main04491-35070iLN65,YN65,67..EUR,SA198308-198803

sub04491-35071

main04491-35070iYN65..5F..GEN198407-198508

*SA

sub04491-35071

main04491-35071iLN65,YN67..EUR,SA198803-199505

sub04465-35210

main04491-35080iLN60,65,YN60,62,65,67..ARL,GEN,ME198308-199201

sub04465-35170

main04491-35090iYN57,58..SR5..ARL198608-198711

sub04491-35091

main04491-35091iYN58..SR5..ARL198711-198808

sub04465-22140

main04491-35100iLN61,YN63198705-198803

sub04491-35101

main04491-35101iLN61,YN63198803-198903

sub04465-35170

main04491-35120iRN61198712-198903

sub04465-35210

main04491-35130iLN56,YN56..LHD..T1..EUR198801-198808

DENMARK SPEC

sub04491-35200

main04491-60010iLN61,YN63198508-198705

sub04465-35170

main04491-60040iLN65..LHD..EUR198801-198808

DENMARK SPEC

sub04465-60060

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12030iLN5#,RN5#,YN5#198308-198809

*12-1.25PX31-20

main90101-12060iLN61,RN61,YN63198508-198903

*12-1.25PX38-23

main90101-12144iLN65,YN67198811-199807

*12-1.25PX38-23

main90101-12491iLN60,65,YN60,62,65,67198308-198811

*12-1.25PX42-24

main90119-12058iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198809-199807

*12-1.25PX31-20

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iYN57,58..STD..ARL198308-199807

main47547-20030iLN60,61,65,RN6#,YN6#198308-199807

main47547-35020iYN57,58..SR5..ARL198308-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLN5#,6#,RN5#,6#,YN5#,6#198308-199807

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-22010iYN57,58..SR5..ARL198308-198808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22010iYN57,58..SR5..ARL198308-198808

main47716-26040iYN57;LN51,56,RN58,YN51,56,58..RCB199112-199807

main47716-40010iYN57..SR5..(GEN,SA)198308-199112

sub47716-26040

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47714-40010iYN57,58..STD..ARL198308-199112

main47717-22010iYN57,58..SR5..ARL198308-198808

main47717-26010iYN57;LN51,56,RN58,YN51,56,58..RCB199112-199807

main47717-40010iLN5#,RN5#,YN50,51,52,55,56198308-199112

sub47717-26010

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26040iLN5#,RN5#,YN50,51,52,55,56198308-199807

main47721-35010iYN57,58..SR5..ARL198308-198808

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-26040iYN57,58..STD..ARL198308-199807

main47722-35010iYN57,58..SR5..ARL198308-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-26040iYN57,58..STD..ARL198308-199807

main47730-35010iLN6#,RN67,YN6#198308-199807

main47730-35030iYN57,58..SR5..ARL198308-198808

main47730-60021iLN61,RN61,YN63198508-198903

47731PISTON, FRONT DISC BRAKE

main47731-30020iLN60,61,65,RN6#,YN6#198308-199807

OD=42.82

main47731-30050iYN57,58..SR5..ARL198308-198808

main47731-40010iYN57,58..GEN,ME,SA198308-199807

main47732-30010iLN60,61,65,RN6#,YN6#198308-199807

OD=33.93

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-22040iYN57,58..SR5..ARL198308-198711

main47744-22081iYN58..SR5..ARL198711-198808

main47744-26020iYN57,58..STD..ARL198308-199807

main47744-35010iLN61,RN61,YN63198705-198903

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-26040iYN57,58..GEN,ME,SA198308-199807

main47750-35010iLN6#,RN67,YN6#198308-199807

main47750-35030iYN57,58..SR5..ARL198308-198808

main47750-60021iLN61,RN61,YN63198508-198903

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22030iYN57,58..SR5..ARL198508-198808

main47771-35010iYN50,51,52,55,56198508-199807

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-35020iLN6#,RN67,YN6#198308-199807

main47703-35030iLN61,RN61,YN63198508-198903

main47781-26030iLN5#,YN50,51,55,56,57,58..EUR,SA198308-199407

main47781-35030iYN57,58..SR5..ARL198308-198808

main47781-35040iYN57..SR5..GEN198308-199201

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12006iLN5#,RN5#,YN5#198308-199108

main90102-12006iLN5#,RN58,YN5#199108-199807

*12-1.25PX68.7-21.5

main90102-12011iLN5#,RN58,YN5#199108-199807

*12-1.25PX63.7-21.5

main91112-71028iLN6#,RN67,YN6#198308-199807

sub91111-71028

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90171-12006iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-35020iLN6#,RN67,YN6#198308-199807

main47704-35030iLN61,RN61,YN63198508-198903

main47782-26030iLN5#,YN50,51,55,56,57,58..EUR,SA198308-199407

main47782-35030iYN57,58..SR5..ARL198308-198808

main47782-35040iLN5#,RN5#,YN50,52,55,56,58..ARL,GEN,ME198308-199201

9020112019

main90201-12019

9095001301

main90950-01301

9161160814

main91611-60814

9451201200

main94512-01200

9538103020

main95381-03020
