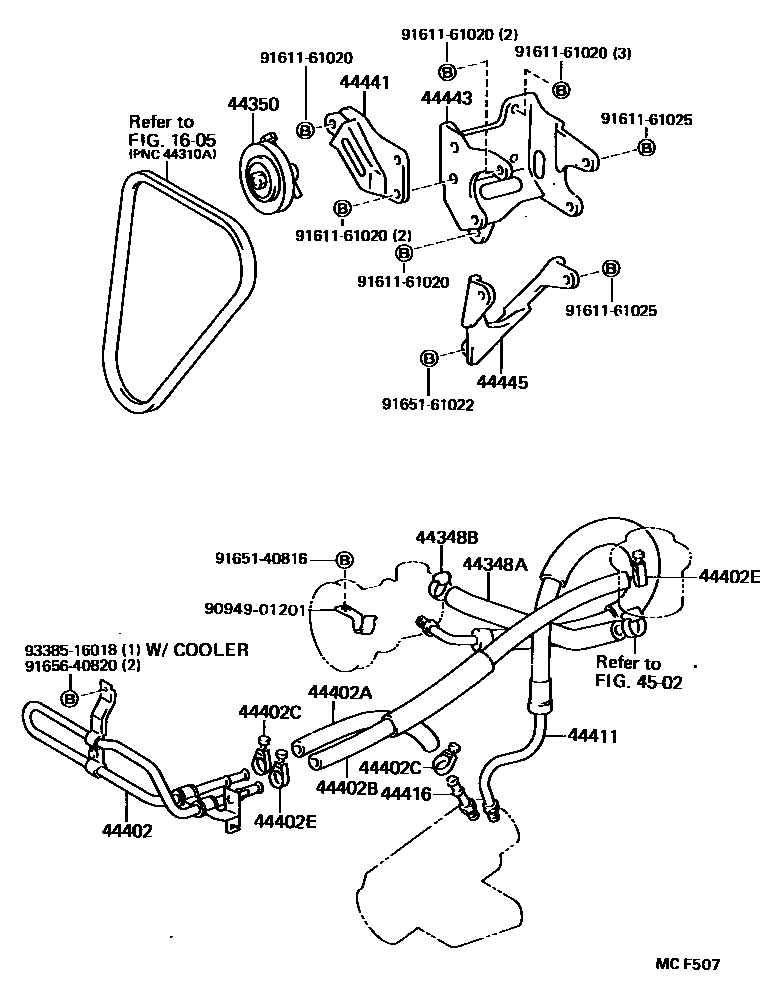

POWER STEERING TUBE

0001 1 0002 1 0003 1 0006 1 0008 1 0011 1

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-35040iRN61198712-198903

sub44348-35041

main44348-35050iLN56..TW..EUR;LN56..DLX..EUR198508-199201

main44348-35061iLN60..ARL198403-198508

main44348-35090iLN61198508-199807

main44348-35170iRN67199407-199807

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iLN60..ARL198403-199807

44350PULLEY ASSY, POWER STEERING IDLE

main44350-28011iYN56..LHD..CBU198308-199407

main44350-35010iLN56..LHD..EUR..CBU198508-199807

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44420-35030iYN67..EUR..IV198403-199201

44402AHOSE, POWER STEERING OIL COOLER INLET

main90445-18067iYN56..LHD..CBU198508-198808

sub90445-18089

main90445-18128iYN67..EUR..IV198403-199201

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main90445-18100iYN56..LHD..CBU198403-198604

sub90447-18042

main90447-18017iRN61198712-198903

main90447-18034iYN6#..LHD..CBU198604-199201

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001iYN6#..LHD..(GEN,ME)198403-199201

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001iYN60..SR5..ME198403-199201

44411HOSE, PRESSURE FEED

main44411-35040iLN60..ARL198403-198508

main44411-35060iLN56..TW..EUR;LN56..DLX..EUR198508-199201

main44411-35070iYN57..SR5..ARL198308-198608

main44411-35090iYN63..ARL198608-199407

main44411-35100iYN67..LHD..(GEN,ME)198403-199201

main44411-35130iYN56..LHD..CBU198508-198608

sub44411-35210

main44411-35140iRN61198712-198903

main44411-35160iYN63..ME198508-198604

sub44411-35220

main44411-35170iLN61198508-199508

main44411-35210iYN56..LHD198608-198808

main44411-35220iYN63..ME198604-198903

main44411-35330iLN57,67199508-199807

main44411-35410iRN67199407-199807

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-35020iRN61,YN67..LHD..EUR..CBU198403-199201

main44416-35040iLN61198308-199807

main44416-35060iYN56..LHD..CBU198508-198808

44441BRACKET, PUMP, FRONT

main44441-20010iRN61198712-199807

main44441-35011iLN56..TW..EUR;LN56..DLX..EUR198508-199201

44443BRACKET, PUMP

main44443-22020iLN60..ARL198403-198608

main44443-28011iYN56..LHD..CBU198508-198808

main44443-28021iYN67..EUR..CBU198308-199407

main44443-30080iLN57,67198508-199807

main44443-35011iLN56..TW..EUR;LN56..DLX..EUR198508-199201

main44443-35020iRN61198712-199807

44445BRACKET, PUMP, LOWER

main44445-35010iRN61198712-199807

4502

9094901201

main90949-01201

9161161020

main91611-61020

9161161025

main91611-61025

9165140816

main91651-40816

9165161022

main91651-61022

9165640820

main91656-40820

9338516018

main93385-16018

22 parts on this diagram · 6 diagrams in section
