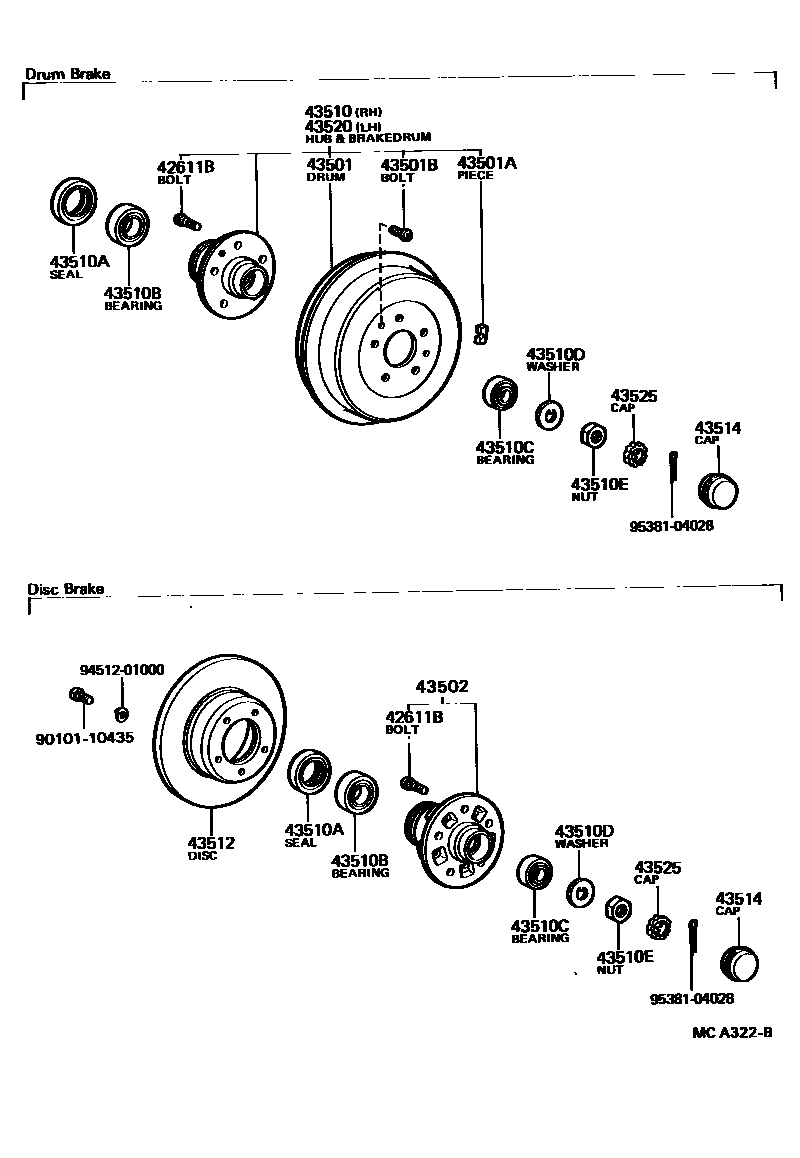

FRONT AXLE HUB

0001 1 0002 1 0003 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02034iLN50,55,6#,YN50,52,55,57,6#..GEN,ME198308-198410

FR DRUM BRAKE

sub90942-02052

main90942-02035iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

FR DISC BRAKE

sub90942-02047

main90942-02044iLN6#,YN6#198308-198411

FR DISC BRAKE

sub90942-02053

main90942-02049iLN61,RN61,YN63198508-199407

main90942-02052iLN5#,65,YN50,55,57,62,67..GEN198410-199407

FR DRUM BRAKE

main90942-02053iLN60,65,67,RN67,YN60,62,65,67198411-199807

FR DISC BRAKE

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-35050iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-198508

sub43512-35051

sub90113-10003

main43512-35051iLN65,YN62,67..GEN198508-199407

sub43512-60110

main43512-35100iLN50,55,YN50,52,55,57..GEN,ME198308-199407

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iLN50,55,YN50,52,55,57..GEN,ME198308-199407

40.5G,40.5G

main90937-01117iLN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)198308-199407

10G,10G

main90937-01118iLN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)198308-199407

20G,20G

main90937-01119iLN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)198308-199407

30G,30G

main90937-01120iLN65,YN62,67..GEN198308-198612

40G,40G

main90937-01121iLN65,YN62,67..GEN198308-199407

50G,50G

main90937-01122iLN60,65,YN60,62,65,67..(DLX,STD)..(GEN,ME)198308-199407

60G,60G

main90937-01146iLN5#,YN50,52,55,57..GEN,ME198308-199407

25G,50G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10003iLN60,65,YN60,62,65,67..(DLX,STD)..(GEN,ME)198507-199407

main90113-10035iLN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)198308-199407

43502HUB SUB-ASSY, FRONT AXLE

main43502-35020iRN58..SR5;LN50,51,55,56,RN50,55,YN5#198308-199807

sub43502-35090

main43502-60020iLN60,65,67,RN67,YN60,62,65,67198308-199807

FR DISC BRAKE

sub43502-39095

main43502-60030iLN65,YN60,62,67..GEN,ME198508-199407

FR DRUM BRAKE

sub43502-69055

main43511-35100iLN61,RN61,YN63198808-198903

sub43511-35905

main43511-35904iLN61,RN61,YN63198508-198808

sub43511-35905

main43511-60012iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-198507

FR DRUM BRAKE

sub43502-60030

main43511-60013iLN6#,YN6#..4F198507-198508

FR DRUM BRAKE

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-35071iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-198411

sub43510-60080

main43510-35120iLN50,55,YN50,52,55,57..GEN,ME198308-199407

sub43510-35280

main43510-60080iLN6#,YN6#..(DLX,STD)..(GEN,ME)198411-198507

sub43510-60081

main43510-60081iLN6#,YN6#..4F198507-199407

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main90311-62001iLN60,65,67,RN67,YN60,62,65,67198308-199807

main90311-66001iLN61,RN61,YN63198508-198903

sub90311-66003

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001iYN58..4F;YN58..SR5,STD;LN51,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198512-199807

main90368-34039iLN5#,YN5#198308-198512

sub90368-34001

main90368-49084iLN60,61,65,RN6#,YN6#198308-199807

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001iYN58..4F;YN58..SR5,STD;LN51,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198603-199807

main90368-21065iLN5#,RN5#,YN5#198308-198603

sub90368-21001

main90368-45087iLN60,61,65,RN6#,YN6#198308-199807

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main90214-42030iLN60,61,65,RN67,YN6#198308-199807

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

43512DISC, FRONT

main43512-26040iYN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F198308-199807

sub43512-26070

main43512-35070iLN60,65,RN67,YN60,62,65,67198308-199807

sub43512-60060

main43512-35080iYN57..SR5..ARL198308-198505

main43512-35081iYN57..SR5..ARL198505-199407

main43512-35110iLN61,RN61,YN63198508-198808

sub43512-35190

main43512-35190iRN61,YN63198808-198903

43514CAP, FRONT HUB GREASE

main43423-35010iLN65,YN67..ARL,EUR,GEN,ME198508-199407

main43423-60011iLN60,65,YN60,62,65,67..ARL,EUR,GEN,ME198308-198610

sub43423-35010

main43514-35010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-35071iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-198411

sub43510-60080

main43510-35120iLN50,55,YN50,52,55,57..GEN,ME198308-199407

sub43510-35280

main43510-60080iLN6#,YN6#..(DLX,STD)..(GEN,ME)198411-198507

sub43510-60081

main43510-60081iLN6#,YN6#..4F198507-199407

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

18 parts on this diagram · 3 diagrams in section
