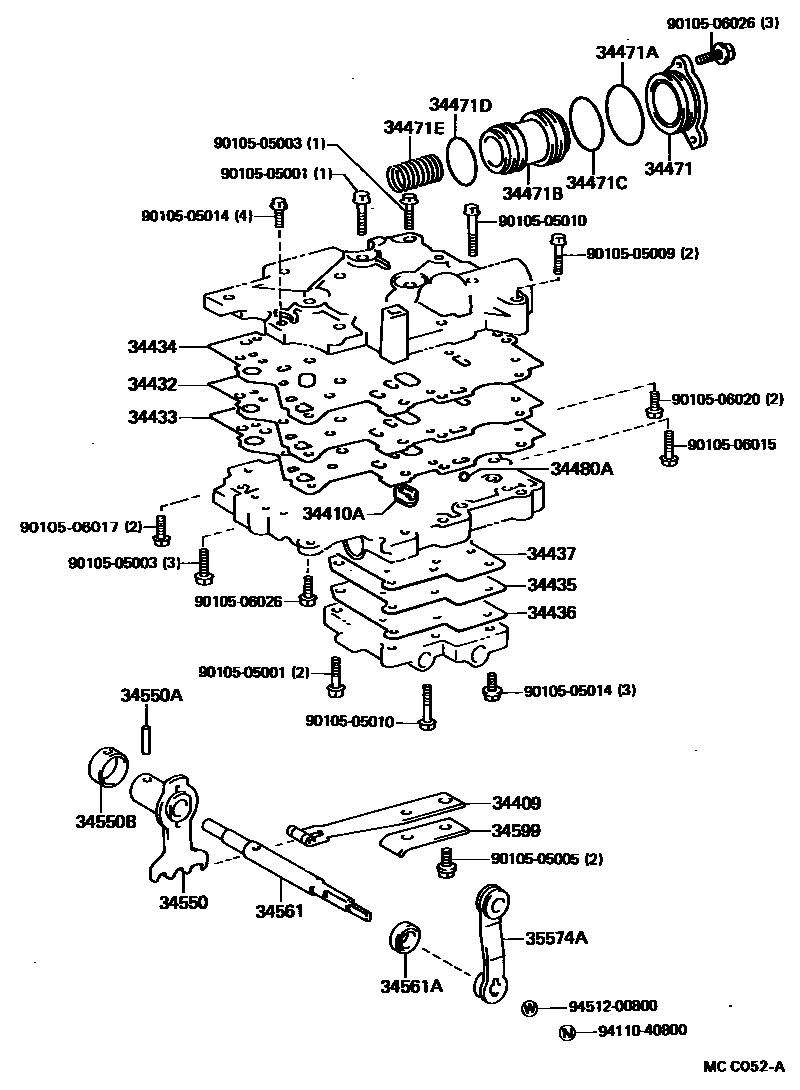

TRANSFER VALVE BODY & VALVE LEVER
34409SPRING SUB-ASSY, TRANSFER MANUAL DETENT
34410ASTRAINER, OIL (FOR TRANSFER VALVE BODY)
34432PLATE, TRANSFER VALVE BODY, UPPER
34433GASKET, TRANSFER UPPER VALVE BODY, NO.1
34434GASKET, TRANSFER UPPER VALVE BODY, NO.2
34435PLATE, TRANSFER VALVE BODY, LOWER
34436GASKET, TRANSFER LOWER VALVE BODY, NO.1
34437GASKET, TRANSFER LOWER VALVE BODY, NO.2
34471COVER, LOW SPEED BRAKE ACCUMULATOR
34471ARING, O (FOR LOW SPEED BRAKE ACCUMULATOR COVER)
sub90301-31010
34471BPISTON, LOW SPEED BRAKE ACCUMULATOR
34471CRING, O (FOR LOW SPEED BRAKE ACCUMULATOR PISTON)
34471DRING, O (FOR LOW SPEED BRAKE ACCUMULATOR PISTON)
34471ESPRING (FOR LOW SPEED BRAKE ACCUMULATOR PISTON)
34480BODY ASSY, TRANSFER UPPER VALVE
34550LEVER ASSY, TRANSFER MANUAL VALVE
34550APIN, SLOTTED SPRING (FOR TRANSFER MANUAL VALVE LEVER)
34550BSPACER (FOR TRANSFER MANUAL VALVE LEVER)
sub90560-20025
34561SHAFT, TRANSFER MANUAL VALVE LEVER
34561ASEAL, OIL (FOR TRANSFER MANUAL VALVE LEVER SHAFT)
34599COVER, TRANSFER MANUAL DETENT SPRING
35574ALEVER, TRANSFER CONTROL SHAFT
9010505001
main90105-05001
9010505003
main90105-05003
9010505005
main90105-05005
9010505009
main90105-05009
9010505010
main90105-05010
9010505014
main90105-05014
9010506015
main90105-06015
9010506017
main90105-06017
9010506020
main90105-06020
9010506026
main90105-06026
9411040800
main94110-40800
9451200800
main94512-00800
35 parts on this diagram · 2 diagrams in section
