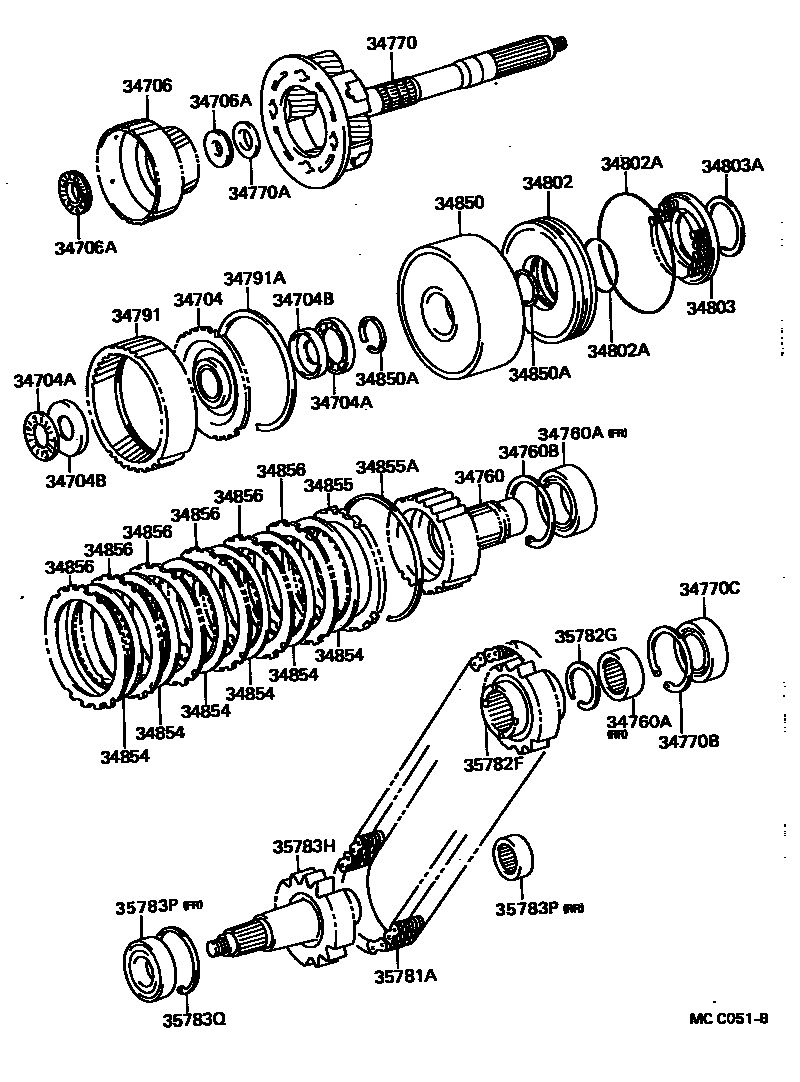

FRONT DRIVE CLUTCH & GEAR
34704FLANGE SUB-ASSY, TRANSFER PLANETARY RING GEAR
34704ABEARING, THRUST (FOR TRANSFER PLANETARY RING GEAR FLANGE)
FR
RR
34704BRACE, THRUST BEARING (FOR PLANETARY RING GEAR FLANGE)
34706GEAR SUB-ASSY, TRANSFER PLANETARY SUN
34706ABEARING, THRUST (FOR TRANSFER PLANETARY SUN GEAR)
RR
FR
34760SHAFT ASSY, TRANSFER FRONT OUTPUT
34760ABEARING (FOR TRANSFER FRONT OUTPUT SHAFT)
FR
RR
34760BRING, HOLE SNAP (FOR TRANSFER FRONT OUTPUT SHAFT BEARING)
34770ARACE, THRUST BEARING (FOR TRANSFER REAR OUTPUT SHAFT)
34770BRING, SNAP (FOR TRANSFER REAR OUTPUT SHAFT)
34770CBEARING (FOR TRANSFER REAR OUTPUT SHAFT)
34791GEAR, TRANSFER PLANETARY RING
34791ARING, HOLE SNAP (FOR TRANSFER PLANETARY RING GEAR)
34802PISTON SUB-ASSY, TRANSFER FRONT DRIVE CLUTCH
34802ARING, O (FOR TRANSFER FRONT DRIVE CLUTCH PISTON)
INNER
OUTER
34803SPRING SUB-ASSY, FRONT DRIVE CLUTCH RETURN
34803ARING, SHAFT SNAP (FOR FRONT DRIVE CLUTCH RETURN SPRING)
34850DRUM ASSY, TRANSFER FRONT DRIVE CLUTCH
34850ARING, SHAFT SNAP (FOR TRANSFER FRONT DRIVE (CLUTCH DRUM)
34855FLANGE, TRANSFER FRONT DRIVE CLUTCH
34855ARING, HOLE SNAP (FOR TRANSFER FRONT DRIVE CLUTCH FLANGE)
34856PLATE, TRANSFER FRONT DRIVE CLUTCH
35781ACHAIN, FRONT DRIVE
35782FSPROCKET, DRIVE
35782GRING, SHAFT SNAP(FOR DRIVE SPROCKET)
35783HSPROKET, DRIVEN
35783PBEARING(FOR TRANSFER DRIVEN SPROKET)
FR
RR
35783QRING, HOLE SNAP(FOR TRANSFER DRIVEN SPROKET BEARING)
30 parts on this diagram · 1 diagram in section
