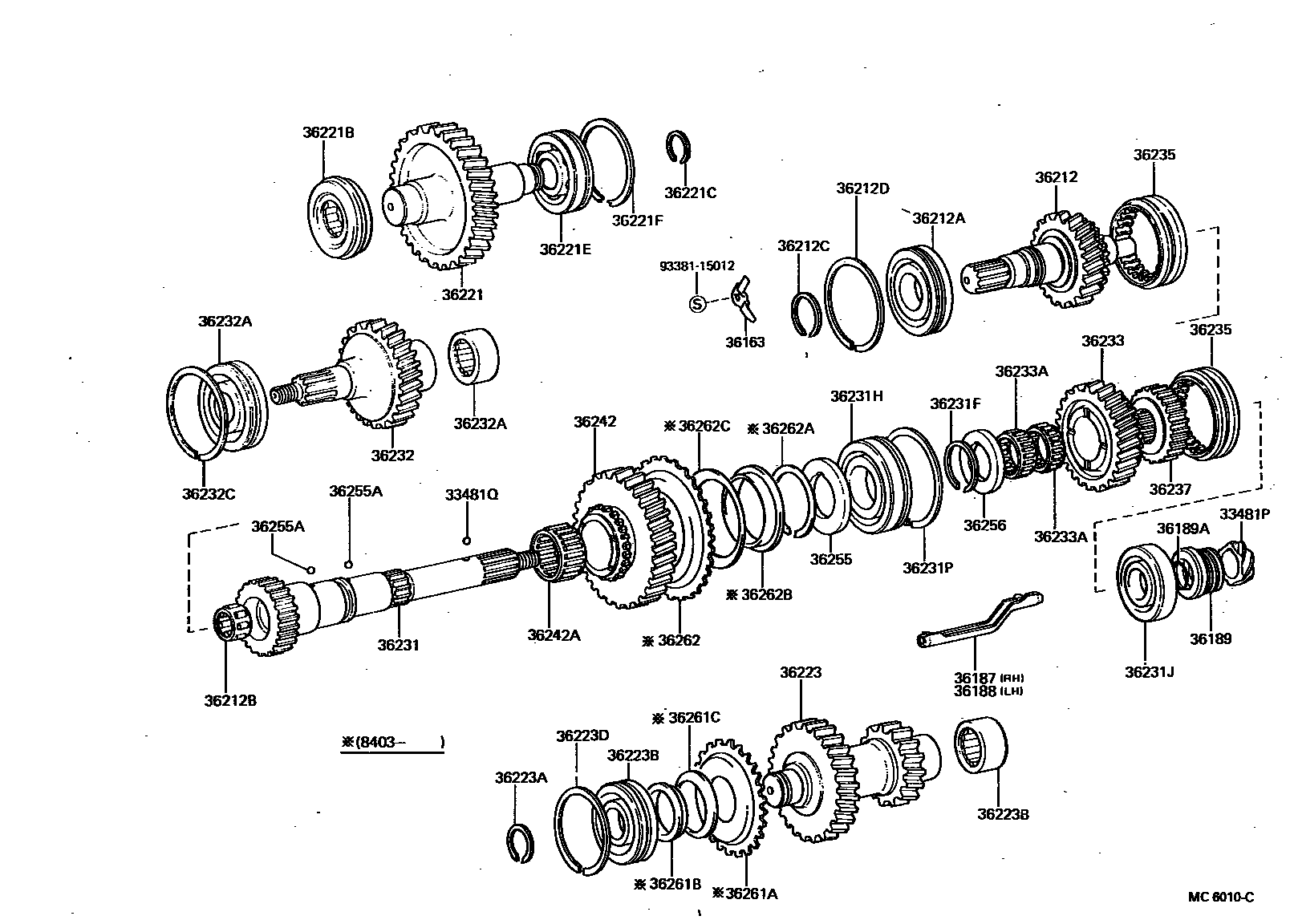

TRANSFER GEAR

33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

main33481-20070iYN65..TW..SA198408-199201

N=5,MARK 5X17-19,N=5,W/205R16C TIRE

main33481-20070iLN65..SA198808-199807

N=5,MARK 5X17-19,N=5

main33481-20070iYN65..ARL198308-198408

N=5,MARK 5X17-19,N=5,W/DIFF R=4.875&205R16CTIRE

main33481-22010iLN60,YN60,62,65,67..STD198308-199807

N=6,MARK 6X18-20,N=6

33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)

main90360-06004iLN60,61,65,RN6#,YN6#..MTM198308-199807

36163STOPPER, TRANSFER FRONT BEARING

main36163-35010iLN60,61,65,RN6#,YN6#..MTM198403-199807

36187PIPE, TRANSFER OIL SUPPLY, RH

main36187-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36188PIPE, TRANSFER OIL SUPPLY, LH

main36188-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36189SCREW, TRANSFER OIL PUMP

main36189-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36189ARING, O (FOR TRANSFER OIL PUMP SCREW)

main96711-24028iLN60,61,65,RN6#,YN6#..MTM198308-199807

36212GEAR, TRANSFER INPUT

main36212-35011iLN6#,YN6#198308-198403

sub36212-35012

main36212-35012iLN60,61,65,RN6#,YN6#..MTM198403-199807

36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)

main90363-35009iLN60,61,65,RN6#,YN6#..MTM198308-199807

36212BBEARING, NEEDLE ROLLER (FOR TRANSFER INPUT GEAR)

main90364-19006iLN6#,RN67,YN67199208-199807

main90364-19043iLN6#,RN61,YN6#..MTM198308-199208

sub90364-19006

36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)

main90520-33168iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=2.05,MARK 1,T=2.05,MARK 1

main90520-33170iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=2.15,MARK 3,T=2.15,MARK 3

main90520-33172iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=2.25,MARK 5,T=2.25,MARK 5

36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)

main90520-76001iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=1.65

36221GEAR, TRANSFER IDLER

main36221-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36221BBEARING (FOR TRANSFER IDLER GEAR)

main90365-38001iLN60,61,65,RN6#,YN6#..MTM198308-199807

36221CRING, SHAFT SNAP (FOR TRANSFER IDLER GEAR)

main90520-28242iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=1.50-1.55,MARK A,T=1.50,MARK A

main90520-28243iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=1.60-1.65,MARK B,T=1.60,MARK B

36221EBEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR)

main90363-30012iLN60,61,65,RN6#,YN6#..MTM198308-199807

36221FRING, SHAFT SNAP (FOR TRANSFER IDLER GEAR BEARING)

main90520-68193iLN60,61,65,RN6#,YN6#..MTM198308-199807

36223GEAR, TRANSFER COUNTER

main36223-35010iLN6#,YN6#198308-198403

sub36223-35011

main36223-35011iLN60,61,65,RN6#,YN6#..MTM198403-199807

36223ARING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR)

main90520-30215iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=2.10,MARK 1,T=2.10,MARK 1

main90520-30217iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=2.20,MARK 3,T=2.20,MARK 3

36223BBEARING (FOR TRANSFER COUNTER GEAR)

main90363-32006iLN60,61,65,RN6#,YN6#..MTM198308-199807

FR

main90369-45001iLN60,61,65,RN6#,YN6#..MTM198308-199807

RR

36223DRING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR BEARING)

main90520-71221iLN60,61,65,RN6#,YN6#..MTM198308-199807

36231SHAFT, TRANSFER OUTPUT, REAR

main36231-35011iLN60,61,65,RN6#,YN6#..MTM198308-199807

36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

main90520-36250iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=2.40-2.45,T=2.40,NO MARK

main90520-36251iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=2.45-2.50,T=2.45,MARK 1

main90520-36252iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=2.50-2.55,T=2.50,MARK 2

main90520-36253iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=2.55-2.60,T=2.55,MARK 3

main90520-36254iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=2.60-2.65,T=2.60,MARK 4

main90520-36255iLN60,61,65,RN6#,YN6#..MTM198308-199807

T=2.65-2.70,T=2.65,MARK 5

36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)

main90363-40007iLN60,61,65,RN6#,YN6#..MTM198308-199807

36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

main90363-28002iLN6#,YN6#198308-198608

sub90363-28004

main90363-28004iLN65,RN6#,YN6#..5F198608-199807

36231PRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT FRONT BEARING)

main90520-86001iLN60,61,65,RN6#,YN6#..MTM198308-199807

36232GEAR, TRANSFER FRONT DRIVE

main36232-35011iLN60,61,65,RN6#,YN6#..MTM198308-199807

36232ABEARING (FOR TRANSFER FRONT DRIVE GEAR)

main90363-30014iLN60,61,65,RN6#,YN6#..MTM198308-199807

FR

main90369-45001iLN60,61,65,RN6#,YN6#..MTM198308-199807

RR

36232CRING, SHAFT SNAP (FOR TRANSFER FRONT DRIVE GEAR BEARING)

main90520-76001iLN60,61,65,RN6#,YN6#..MTM198308-199807

36233GEAR, TRANSFER DRIVE

main36233-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36233ABEARING, NEEDLE ROLLER (FOR TRANSFER DRIVE GEAR)

main90364-35001iLN60,61,65,RN6#,YN6#..MTM198308-199807

36235SLEEVE, TRANSFER HIGH & LOW CLUTCH

main36235-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36237HUB, TRANSFER CLUTCH

main36237-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36242GEAR, TRANSFER LOW

main36242-35010iLN6#,YN6#198308-198403

sub36242-35011

main36242-35011iLN60,61,65,RN6#,YN6#..MTM198403-199807

36242ABEARING, NEEDLE ROLLER (FOR TRANSFER LOW GEAR)

main90364-45002iLN60,61,65,RN6#,YN6#..MTM198308-199807

36255SPACER, TRANSFER OUTPUT SHAFT, NO.1

main36255-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)

main90360-06004iLN60,61,65,RN6#,YN6#..MTM198308-199807

36256SPACER, TRANSFER OUTPUT SHAFT, NO.2

main36256-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36261ASUB-GEAR, TRANSFER, NO.1

main36261-35011iLN60,61,65,RN6#,YN6#..MTM198403-199807

36261BSPACER (FOR TRANSFER SUB-GEAR NO.1

main90560-38002iLN60,61,65,RN6#,YN6#..MTM198403-199807

36261CSPRING, SUB-GEAR THRUST, NO.1

main33357-35010iLN60,61,65,RN6#,YN6#..MTM198403-199807

36262SUB-GEAR, TRANSFER, NO.2

main36262-35011iLN60,61,65,RN6#,YN6#..MTM198403-199807

36262ARING, SNAP (FOR TRANSFER SUB-GEAR NO.2

main90520-59003iLN60,61,65,RN6#,YN6#..MTM198403-199807

36262BSPACER (FOR TRANSFER SUB-GEAR NO.2)

main90561-63002iLN60,61,65,RN6#,YN6#..MTM198403-199807

36262CSPRING, SUB-GEAR THRUST, NO.2

main33357-35021iLN60,61,65,RN6#,YN6#..MTM198403-199807

9338115012

main93381-15012

46 parts on this diagram · 1 diagram in section
