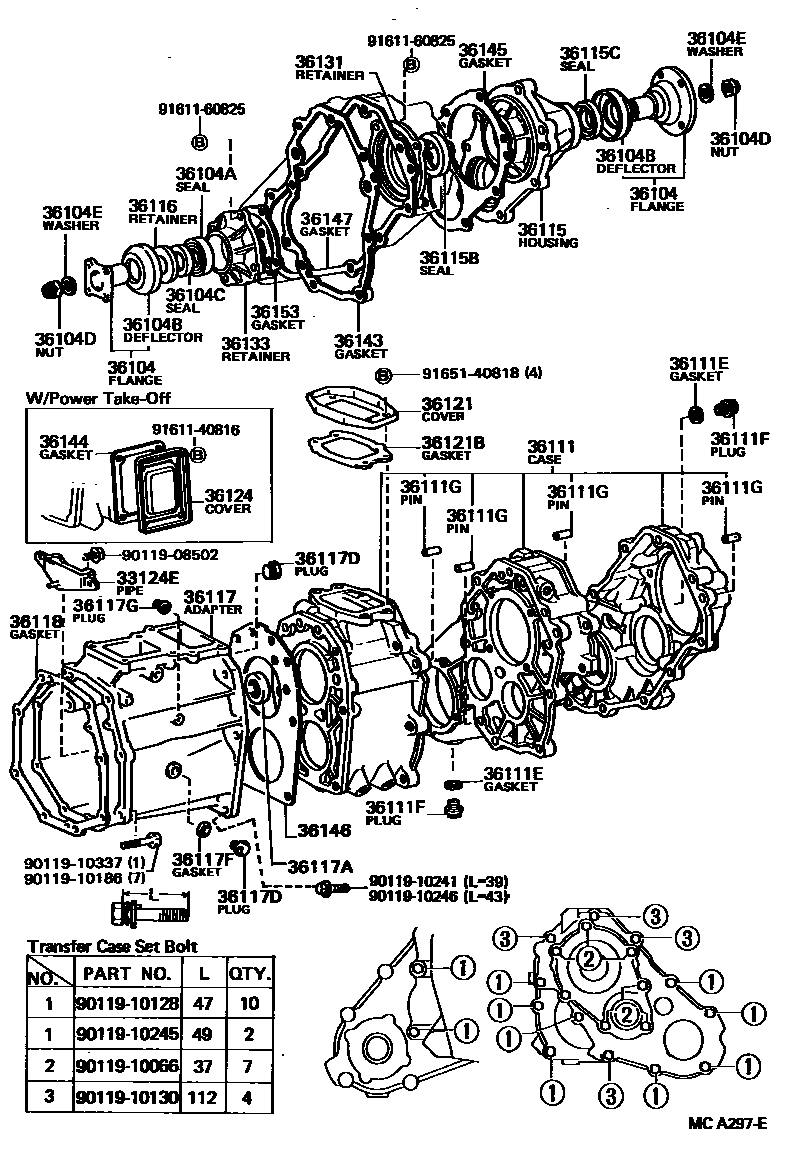

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33106-35010iRN61198712-198903

sub33106-35040

main33124-35020iLN60,61,65,RN67,YN6#..5F198308-199807

36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)

main33309-35030iLN60,61,65,RN6#,YN6#..MTM198308-199807

FR DRIVE

main33309-35040iLN60,61,65,RN6#,YN6#..MTM198308-199807

RR DRIVE

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90311-38016iLN60,61,65,RN6#,YN6#..MTM198308-199807

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-35020iLN60,61,65,RN6#,YN6#..MTM198308-199807

36104CSEAL, DUST (FOR TRANSFER OUTPUT SHAFT)

main90303-38010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20001iLN60,61,65,RN6#,YN6#..MTM198308-199807

36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

main90201-20005iLN60,61,65,RN6#,YN6#..MTM198308-199807

36111CASE, TRANSFER

main36103-35012iLN6#,YN6#198308-198403

sub36103-35013

main36103-35013iLN6#,YN6#..MTM198403-198703

sub36103-35014

main36103-35014iLN61,65,RN6#,YN6#..5F198703-199807

main36103-35022iLN6#,YN6#..GEN198308-198403

W/POWER TAKE OFF

sub36103-35023

main36103-35023iLN65,YN65,67..LHD..EUR198403-198703

W/POWER TAKE OFF

sub36103-35024

main36103-35024iLN65,YN67..GEN198703-199201

W/POWER TAKE OFF

36111EGASKET (FOR TRANSFER CASE)

main90430-18007iLN6#,YN6#198308-198408

sub90430-18008

main90430-18008iLN60,61,65,RN6#,YN6#..MTM198408-199807

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iLN60,61,65,RN6#,YN6#..MTM198308-199807

FILLER

main90341-18057iLN61,65,RN6#,YN6#..5F198703-199807

DRAIN

main90341-18081iLN6#,YN6#..MTM198308-198703

DRAIN

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10232iLN60,61,65,RN6#,YN6#..MTM198308-199807

L=15,OD=8

36115HOUSING, TRANSFER EXTENSION

main36115-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36115BSEAL, TYPE V OIL (FOR TRANSFER EXTENSION HOUSING)

main90312-48001iLN60,61,65,RN6#,YN6#..MTM198308-199807

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38140iLN60,61,65,RN6#,YN6#..MTM198308-199807

36116RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL

main33145-30010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36117ADAPTER, TRANSFER

main36107-35050iRN61198712-198903

sub36107-35051

main36107-35091iLN6#,YN6#..5F198808-199011

sub36107-35092

main36107-35092iLN6#,RN67,YN67199011-199807

main36117-35040iLN6#,YN6#..MTM198308-198808

sub36107-35090

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-32009iRN61198308-199807

36117DPLUG(FOR TRANSFER ADAPTER)

main90341-18006iLN60,61,65,RN67,YN6#..MTM198308-199807

FILLER PLUG

main90341-30003iLN60,61,65,RN67,YN6#..MTM198308-199807

SHAFT HOLE PLUG

36117FGASKET(FOR TRANSFER ADAPTER PLUG)

main90430-18007iLN6#,YN6#198308-198408

sub90430-18008

main90430-18008iLN60,61,65,RN67,YN6#..MTM198408-199807

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-10065iRN61198712-198903

main90341-12008iLN60,61,65,RN67,YN6#..MTM198308-199807

36118GASKET, TRANSFER ADAPTER

main33138-28020iLN60,61,65,YN6#198308-199807

main33142-22010iRN61198712-198808

36121COVER, TRANSFER CASE, NO.1

main36121-35010iLN60,61,65,RN67,YN6#..MTM198308-199807

36121BGASKET, TRANSFER CASE COVER

main36147-35010iLN60,61,65,RN67,YN6#..MTM198308-199807

36124COVER, TRANSFER POWER TAKE-OFF

main33161-25010iLN60,65,YN60,62,65,67..GEN198308-199807

36131RETAINER, TRANSFER OUTPUT SHAFT FRONT BEARING

main36131-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36133RETAINER, TRANSFER FRONT DRIVE GEAR BEARING

main36133-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36143GASKET, TRANSFER CASE, FRONT

main36143-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36144GASKET, TRANSFER POWER TAKE-OFF COVER

main33162-25010iLN65,YN65,67..LHD..EUR198308-199807

36145GASKET, TRANSFER EXTENSION HOUSING

main36145-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36146GASKET, TRANSFER REDUCTION CASE

main36146-35020iLN6#,YN6#198308-198405

sub36146-35021

main36146-35021iLN60,61,65,RN6#,YN6#..MTM198405-199807

36147GASKET, TRANSFER CASE

main36141-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

36153GASKET, FRONT DRIVE GEAR BEARING RETAINER

main36153-35010iLN60,61,65,RN6#,YN6#..MTM198308-199807

9011908502

main90119-08502

9011910066

main90119-10066

9011910128

main90119-10128

9011910130

main90119-10130

9011910186

main90119-10186

9011910241

main90119-10241

9011910245

main90119-10245

9011910246

main90119-10246

9011910337

main90119-10337

9161140816

main91611-40816

9161160825

main91611-60825

9165140818

main91651-40818

44 parts on this diagram · 4 diagrams in section
