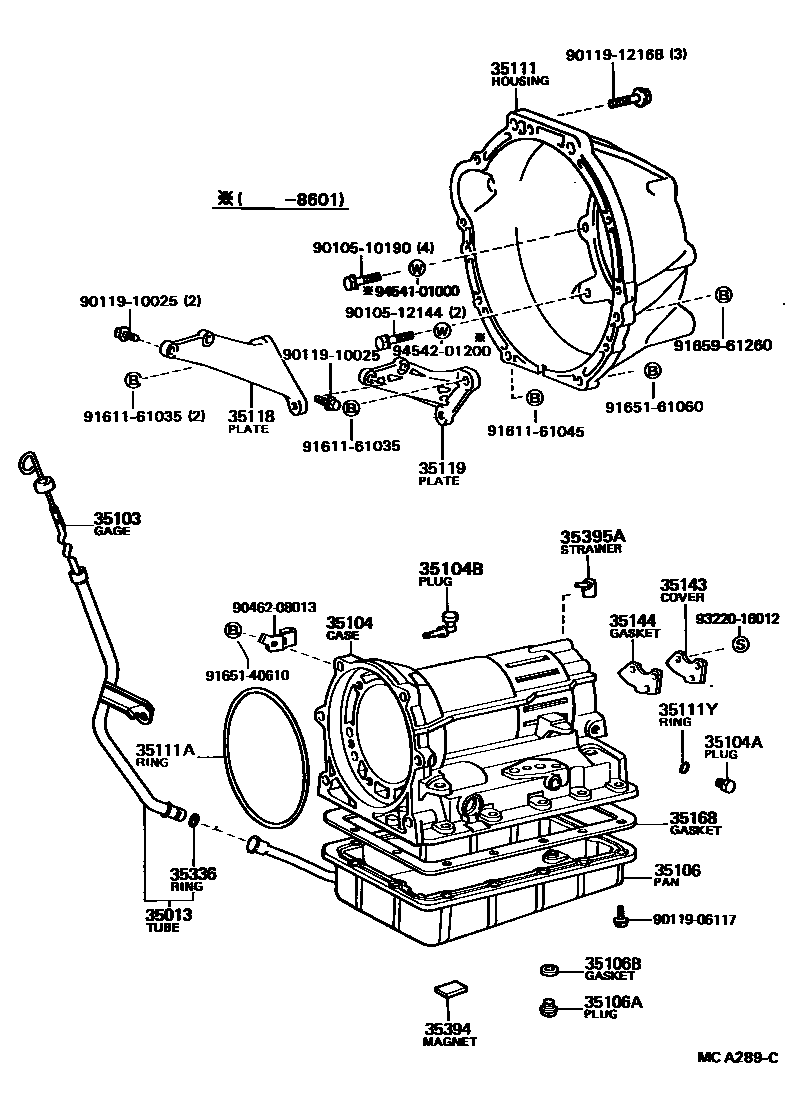

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-30080iLN56..4FC198308-198808

main35013-35040iYN57,58..4FC198308-198808

main35013-35070iYN63..EFI198608-198903

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-26012iYN57..4FC198308-198312

main35103-30101iLN56..4FC198308-198808

main35103-35030iYN57,58..4FC198312-198808

main35103-35050iYN63..EFI198608-198903

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26020iLN56,YN57..4FC198308-198410

sub35104-26030

main35104-26021iLN56,YN57,58..4FC198410-198808

main35104-35011iYN63..EFI198608-198903

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iLN56,YN57,58,63..4FC198308-198903

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03069iLN56,YN57..4FC198308-198808

main90930-03098iYN63..EFI198608-198903

TRANSMISSION CASE SIDE

main90930-03099iYN63..EFI198608-198903

BODY SIDE

main90930-03108iYN58198708-198808

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30040iLN56..4FC198308-198808

sub35106-30041

main35106-30060iYN57,58..4FC198308-198808

sub35106-30061

main35106-35010iYN63..EFI198608-198903

sub35106-35011

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iLN56,YN57,58,63..4FC198308-198903

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iLN56,YN57,58,63..4FC198308-198903

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22060iLN56..4FC198308-198808

sub35111-26030

main35111-28010iYN57..4FC198308-198509

sub35111-28011

main35111-28011iYN57,58..4FC198509-198808

main35111-35040iYN63..EFI198608-198903

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99006iLN56,YN57..4FC198308-198708

sub90301-99054

main90301-99054iLN56,YN57,58..4FC198708-198808

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iLN56,YN57,58,63..4FC198308-198903

35118PLATE, STIFENER, RH (ATM)

main33118-25020iLN56..4FC198308-198808

main33118-28010iYN57,58,63..4FC198308-198903

35119PLATE, STIFENER, LH (ATM)

main33119-25020iLN56..4FC198308-198808

main33119-28010iYN57,58,63..4FC198308-198903

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iLN56,YN57,58..4FC198308-198808

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iLN56,YN57,58..4FC198308-198808

sub35144-28010

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22010iLN56,YN57..4FC198308-198408

sub35168-22011

main35168-22011iLN56,YN57,58..4FC198408-198808

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iLN56,YN57,58,63..4FC198308-198903

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iLN56,YN57,58,63..4FC198308-198903

35395ASTRAINER, GOVERNOR OIL

main35395-40010iLN56,YN57,58..4FC198308-198808

9010510190

main90105-10190

9010512144

main90105-12144

9011906117

main90119-06117

9011910025

main90119-10025

9011912168

main90119-12168

9046208013

main90462-08013

9161161035

main91611-61035

9161161045

main91611-61045

9165140610

main91651-40610

9165161060

main91651-61060

9165961260

main91659-61260

9322016012

main93220-16012

9454101000

main94541-01000

9454201200

main94542-01200

33 parts on this diagram · 3 diagrams in section
