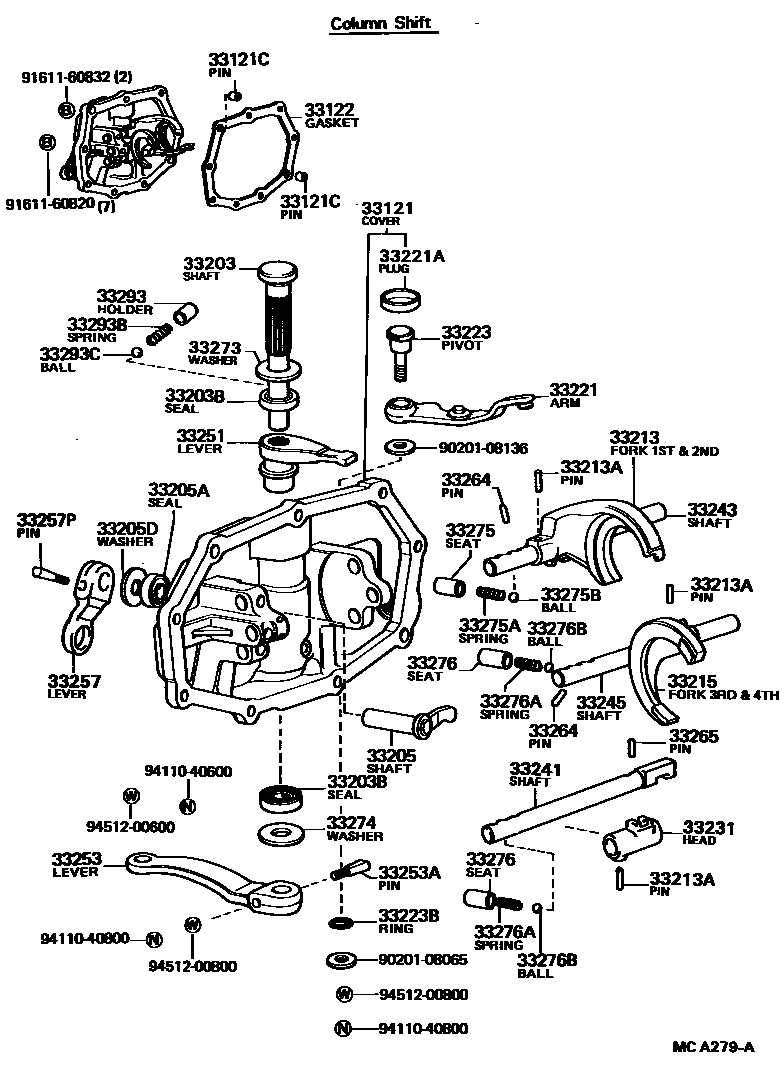

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0008 1 0009 1

33121COVER, MANUAL TRANSMISSION CASE

main33102-35010iLN50,55,YN50,55..4F198308-199012

main33102-35040iYN50,51,55,56..4H198308-199108

33121CPIN(FOR TRANSMISSION CASE COVER)

main90253-11001iLN50,55,YN50,55..4F198308-199108

L=11,OD=11

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iYN50,51,55,56..4H198308-199108

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33251-20040iYN57..5F198308-199807

main33261-20010iLN50,55,YN50,55..4F198308-199012

main33261-30020iYN50,51,55,56..4H198308-199108

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iYN50,51,55,56..4H198308-199108

UPR

main90311-18002iLN50,55,YN50,55..4F198308-199807

main90312-15003iYN50,51,55,56..4H198308-199108

LWR

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-26010iYN50,51,55,56..4H198308-199108

main33262-28020iYN51,56..STD199108-199807

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iYN50,51,55,56..4H198308-199807

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iYN51,56..STD199512-199807

OD=28

main94612-11300iYN51,56..STD198308-199512

33213FORK, 1ST & 2ND SHIFT

main33212-20050iYN57..5F198308-198508

main33212-22010iRN61198712-198903

main33212-26030iYN51,56..STD199108-199807

main33212-28010iYN50,51,55,56..4H198308-199108

main33212-35022iLN5#,6#,YN56,6#..5F198308-198501

sub33212-35023

sub33242-35022

sub90105-06143

sub90520-12003

main33212-35023iLN5#,6#,YN52,57,6#..4F198501-199807

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iLN5#,6#,YN5#,6#..MTM198308-199807

main90254-05016iRN61198712-198903

33215FORK, 3RD & 4TH SHIFT

main33213-22030iRN61198712-198903

sub33213-22040

main33213-26020iLN50,55,YN50,55..4F198308-199108

main33213-28011iYN51,56..STD199108-199209

sub33220-26010

sub33364-26020

main33213-31010iYN57..5F198308-198508

main33213-35031iLN51,56,6#,YN52,57,6#..4F198308-198501

sub33213-35033

sub33243-35042

sub33364-26020

sub90105-06143

sub90520-12003

main33213-35032iLN5#,6#,YN56,6#..5F198501-199209

sub33213-35033

sub33364-26020

main33213-35033iRN67,YN67;LN51,56,65,RN58,YN51,58..RCB..5F199209-199807

sub33213-35034

main33220-26030iYN51,56..STD199209-199807

33221ARM, REVERSE SHIFT

main33221-22011iRN61198712-198903

main33221-28010iLN51,56,6#,YN52,57,6#..4F198308-199807

main33221-30010iYN50,51,55,56..4H198308-199108

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-12500iLN50,55,YN50,51,55,56..4F,4H198308-198612

sub96411-42500

main96411-42500iYN50,51,55,56..4F,4H198612-199108

33223PIVOT, SHIFT ARM

main33223-30011iLN50,55,YN50,55..4F198308-199108

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iYN50,51,55,56..4H198308-199108

33231HEAD, REVERSE SHIFT

main33231-22011iRN61198712-198903

main33231-26010iLN50,55,YN50,55..4F198308-199108

main33231-28010iYN51,56..STD199108-199210

sub33231-28020

sub33220-26010

sub33232-28020

sub33364-26020

main33231-28020iYN51,56..STD199210-199807

main33231-35040iLN5#,6#,YN56,6#..5F198308-199305

sub33231-35070

sub33214-35040

sub33244-35050

sub33245-35080

sub33395-26020

sub90105-06143

main33231-35050iLN51,56,60,65,RN5#,YN52,57,58,60,65..4F198308-199108

main33231-35070iRN67,YN67;LN51,56,65,RN58,YN51,58..RCB..5F199305-199807

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iLN50,55,YN50,55..4F198308-199108

main33244-20902iYN57..5F198308-198508

main33244-22020iRN61198712-198903

main33244-28011iYN51,56..STD199108-199807

main33244-35020iLN5#,6#,YN56,6#..5F198308-198805

sub33244-35021

sub90520-12003

main33244-35021iLN5#,6#,RN5#,YN51,52,56,57,58,6#..5F198805-199305

sub33244-35050

sub33214-35040

sub33231-35070

sub33245-35080

sub33395-26020

sub90105-06143

main33244-35030iLN51,56,60,65,RN5#,YN52,57,58,60,65..4F198308-198805

sub33244-35031

sub90520-12003

main33244-35031iLN5#,RN5#,YN52,57,58..4F198805-199108

main33244-35050iRN67,YN67;LN51,56,65,RN58,YN51,58..RCB..5F199305-199807

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-20060iYN57..5F198308-198508

main33242-22020iRN61198712-198903

main33242-26010iYN50,51,55,56..4H198308-199108

main33242-26020iYN51,56..STD199108-199807

main33242-35020iLN5#,6#,YN56,6#..5F198308-198501

sub33242-35023

sub90520-12003

main33242-35021iLN5#,6#,YN52,57,6#..4F198501-198805

sub33242-35022

sub90520-12003

main33242-35022iRN58..SR5;LN51,56,61,65,RN50,55,67,YN51,52,56,57,58,6#..4F,5F198805-199807

33245SHAFT, 3RD & 4TH SHIFT FORK

main33240-22020iRN61198712-198903

sub33240-22021

main33243-20031iYN57..5F198308-198508

main33243-26010iLN50,55,YN50,55..4F,4H198308-198410

main33243-35040iLN5#,6#,YN56,6#..5F198308-198501

sub33243-35043

sub90520-12003

main33243-35041iLN5#,6#,YN52,57,6#..4F198501-198805

sub33243-35042

sub90520-12003

main33243-35042iRN58..SR5;LN51,56,61,65,RN50,55,67,YN51,52,56,57,58,6#..4F,5F198805-199807

main33243-35051iYN51,56..STD199108-199807

main33243-35060iYN50,51,56..4F,4H198410-199108

33251LEVER, SHIFT & SELECT

main33251-26010iYN50,51,55,56..4H198308-199108

main33251-28012iYN51,56..STD199108-199303

sub33251-28030

sub33261-28030

main33251-28030iYN51,56..STD199303-199807

main33251-30040iLN50,55,YN50,55..4F198308-198808

main33251-35060iLN51,56,YN52,57..4F198308-199807

sub33251-35061

sub90109-08305

main33251-35070iRN61198712-198903

sub33251-35071

sub90109-08305

main33261-35080iRN67198308-199807

sub33261-35081

sub90109-08305

33253LEVER, SHIFT OUTER, NO.1

main33253-35060iYN50,51,55,56..4H198308-199108

main33253-35070iYN51,56..STD199108-199807

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iYN50,51,55,56..4H198412-199807

main33281-30010iYN50,55..4H198308-198412

sub33281-16020

33257LEVER, SELECT OUTER

main33257-35060iYN50,51,55,56..4H198308-199108

main33257-35070iYN51,56..STD199108-199807

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iYN50,51,55,56..4H198308-199108

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-22010iRN61198712-198903

main33264-30010iLN50,55,YN50,51,55,56..4F,4H198308-199108

OD=6,L=16

main33264-31010iYN57..5F198308-198508

main90360-10003iLN5#,6#,YN56,6#..5F198308-199807

OD=9.52,STEEL,BALL

main90361-10002iLN5#,6#,YN56,6#..5F198308-199807

L=21.6,PIN,PIN,L=21.6

main90361-10003iLN5#,6#,YN56,6#..5F198308-199807

L=13.6,OD=9.5,PIN,L=13.6

33265PIN, SHIFT INTERLOCK, NO.2

main33265-22010iRN61198712-198903

L=11.2,OD=4,L=11.2

main33265-30010iLN50,55,YN50,51,55,56..4F,4H198308-199108

L=28.8,OD=6.0

main33266-22010iRN61198712-198903

L=13.6,OD=6,L=13.6

main90250-05020iLN51,56,6#,YN52,57,6#..4F198308-199807

L=11.1,OD=4.8

main90250-06007iRN61198712-198903

L=8.6,OD=6,L=8.6

33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main90201-15137iYN50,51,55,56..4H198308-199108

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main94612-11300iYN50,51,55,56..4H198308-199108

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iLN50,55,YN50,55..4F198308-199108

main90341-10004iYN57..5F198308-198508

main90341-12008iLN5#,6#,YN56,6#..5F198308-199807

OD=18

main90341-12014iRN61198712-198903

OD=17

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-10061iRN58..SR5;LN51,56,61,65,RN50,55,67,YN51,52,56,57,58,6#..4F,5F198308-199807

L=22.1,L=22.1

main90501-13001iYN57..5F198308-198508

L=16.5

main90501-13004iRN61198712-198903

L=20.65

sub90501-14123

main90501-14061iLN5#,6#,RN5#,YN51,52,56,57,58,6#..5F198308-198904

L=18.3,L=18.3

sub90501-14123

main90501-14062iLN5#,6#,YN56,6#..5F198308-198912

L=30.6,L=30.6

sub90501-14132

main90501-14090iYN50,51,55,56..4F,4H198410-199108

L=16.4

main90501-14123iYN51,56..STD199108-199807

L=20.2

main90501-14123iRN58..SR5;LN51,56,65,RN67,YN5#,67198904-199807

L=20.2,L=18.3

main90501-14132iRN58..SR5;LN51,56,65,RN67,YN5#,67198912-199807

L=31,L=30.6

main90501-14132iYN51,56..STD199108-199807

L=31

main90501-14638iLN50,55,YN50,55..4F,4H198308-198410

L=15.2

33275BBALL, SHAFT DETENT

main90360-08009iYN57..5F198308-198508

main90360-10003iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#..MTM198308-199807

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main33275-10010iLN50,55,YN50,55..4F198308-199108

main90341-10064iYN57..5F198308-198508

main90341-12005iRN61198712-198903

sub90341-12018

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-13001iYN57..5F198308-198508

main90501-13004iRN61198712-198903

sub90501-14123

main90501-14090iYN50,51,55,56..4F,4H198410-199108

main90501-14638iLN50,55,YN50,55..4F,4H198308-198410

33276BBALL, SHIFT DETENT, NO.2

main90360-08009iYN57..5F198308-198508

main90360-10003iRN61198308-199108

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iYN50,51,55,56..4H198308-199108

main33293-30010iLN50,55,YN50,55..4F198308-199012

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14007iYN50,51,55,56..4H198308-199108

main90501-16041iLN50,55,YN50,55..4F198308-199012

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iLN50,55,YN50,55..4F198308-199108

9020108065

main90201-08065

9020108136

main90201-08136

9161160820

main91611-60820

9161160832

main91611-60832

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800
