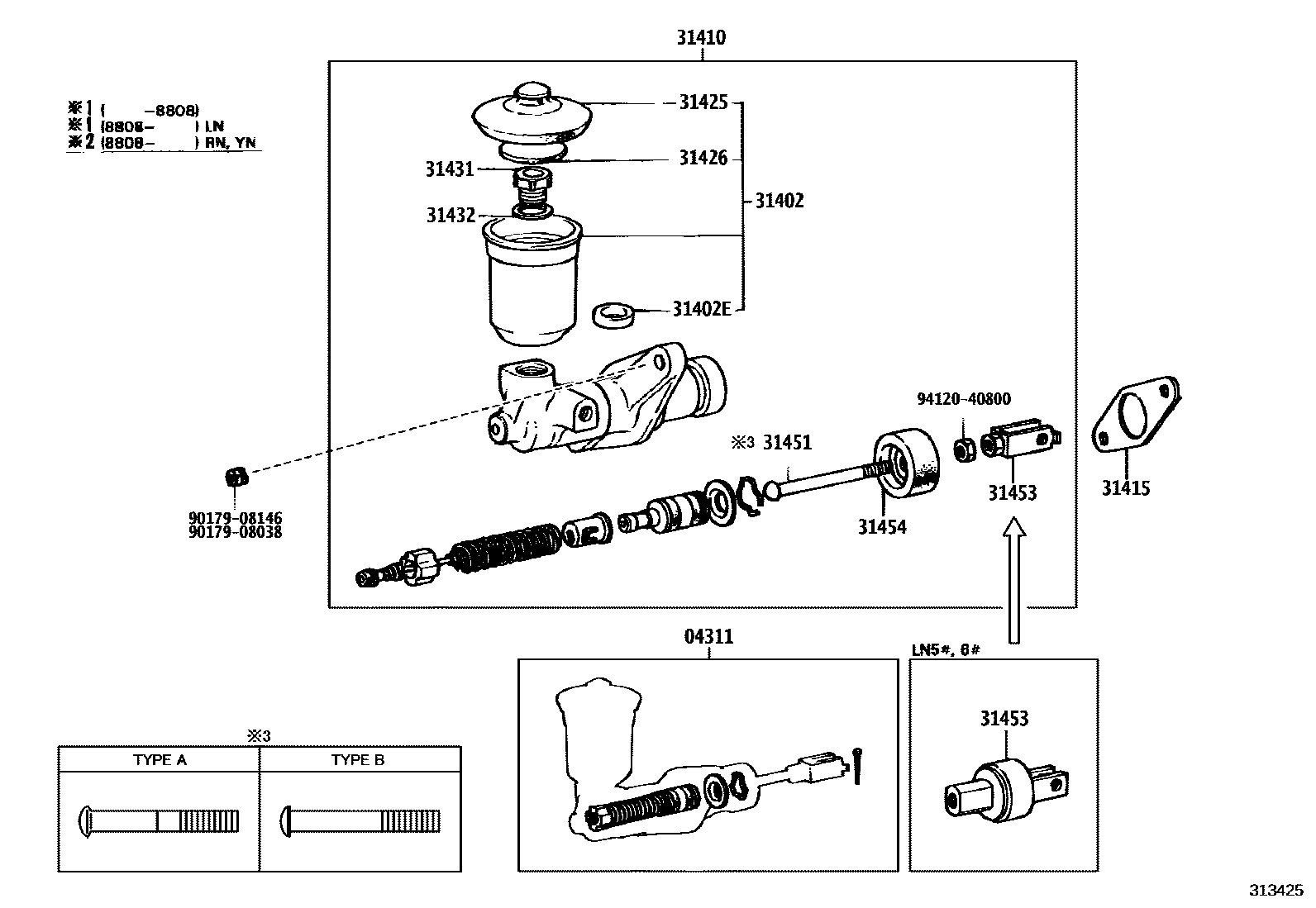

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12080iRN67;RN58..SR5199407-199807

main04311-14011iYN50,51,55,56198308-198611

PNC 31451=TYPE A

sub04311-14012

main04311-14030iLN5#,6#,YN5#,6#..MTM198611-198704

PNC 31451=TYPE B

sub04311-14031

main04311-14031iYN58..4FC..IV;LN5#,6#,YN5#,6#..MTM198704-198710

PNC 31451=TYPE B

sub04311-14032

main04311-14032iYN58..4F;YN58..5F..(SR5,STD);LN51,56,61,65,YN50,51,52,55,56,57,6#..4F,4H,5F198710-199807

PNC 31451=TYPE B

sub04311-28010

main04311-22050iRN5#198601-198710

main04311-30080iLN5#,6#,YN52,57,58,6#..MTM198508-198611

PNC 31451=TYPE A

sub04311-14020

main04311-60080iRN5#,61198710-198903

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20010iRN5#,61198704-198903

main31402-30030iYN58..4F;YN58..5F..(SR5,STD);LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..4F,4H,5F198308-199807

main31402-35010iRN5#198601-198704

sub31402-20010

main31402-35030iRN67;RN58..SR5199407-199807

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iRN5#,61198601-198903

31410CYLINDER ASSY, CLUTCH MASTER

main31410-22140iLN5#,6#,YN52,57,58,6#..MTM198508-198704

sub31410-35180

main31410-24012iLN5#,6#..MTM198308-198508

sub31410-22140

main31410-35130iYN50,51,55,56198308-198704

sub31410-35131

main31410-35131iYN50,51,55,56198704-198710

sub31410-35132

main31410-35132iYN50,51,55,56..4F,4H,5F198710-199807

sub31410-35142

main31410-35140iRN5#198601-198704

sub31410-35141

main31410-35141iRN5#198704-198710

sub31410-35142

main31410-35142iRN5#,61198710-198903

main31410-35180iYN52,57,58,6#198704-198710

sub31410-35181

main31410-35181iYN58..4F;YN52,57,6#;YN58..SR5,STD198710-199807

sub31410-22142

main31410-35240iLN5#,6#..MTM198706-198710

sub31410-35241

main31410-35241iLN51,56,61,65..MTM198710-199807

sub31410-22240

main31410-35281iRN67;RN58..SR5199407-199807

sub31410-35350

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iRN67,YN57,67;RN58,61,YN50,51,55,56,58,63..T1,WG198808-199807

main31415-30030iLN51,56,61,65198308-199807

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iRN5#198601-198704

sub47230-20040

main47230-20040iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198308-199807

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM198308-199807

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main31427-35010iRN5#,61198601-198903

main47231-30010iYN58..4F;YN58..5F..(SR5,STD);LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..4F,4H,5F198308-199807

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iYN58..4F;YN58..5F..(SR5,STD);LN50,51,55,56,60,61,65,YN50,51,52,55,56,57,6#..4F,4H,5F198308-199807

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iRN5#,YN50,51,55,56198308-198611

TYPE A:REFER ILLUST.

main31451-22060iRN50,55,61,YN50,51,55,56198611-199807

TYPE B:REFER ILLUST.

main31451-22070iYN58..4F;YN58..5F..(SR5,STD);LN51,56,61,65,YN52,57,6#..MTM198611-199807

TYPE B:REFER ILLUST.

main31451-30060iLN5#,6#..MTM198308-198611

TYPE A:REFER ILLUST.

main31451-35070iRN67;RN58..SR5199407-199807

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iLN5#,6#,YN52,57,58,6#..MTM198508-198809

sub31404-28012

main31404-28012iYN57,6#;YN58..4F;YN58..SR5198809-199807

main31404-30041iLN5#,6#..MTM198308-198508

main31404-30050iLN5#,6#..MTM198706-198904

sub31404-30051

main31404-30051iLN51,56,65198904-199807

main31453-22010iYN50,55,56198308-198509

sub31453-35010

main31453-35010iRN58..SR5;RN50,55,6#,YN50,51,55,56198509-199807

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iYN5#,6#..MTM198308-199807

main31454-16010iRN67;RN58..SR5199407-199807

main31454-24010iYN58..4F;YN58..5F..(SR5,STD);LN51,56,61,65,YN52,57,6#..MTM198308-199807

9017908038

main90179-08038

9017908146

main90179-08146

9412040800

main94120-40800

15 parts on this diagram · 2 diagrams in section
