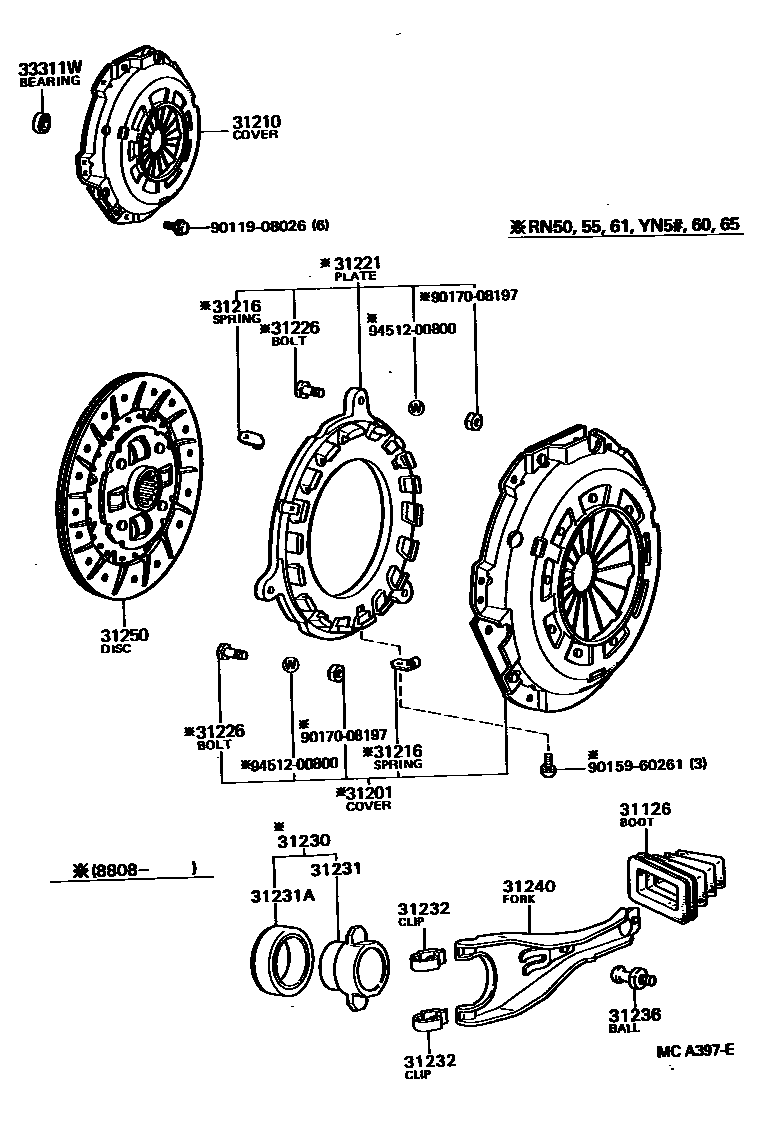

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iLN50,55..4F198308-198408

main31126-20060iRN58..SR5;RN50,55,6#,YN5#,6#..MTM198308-199807

main31126-20070iLN6#;LN50,55..5F198308-199807

31201COVER SUB-ASSY, CLUTCH

main31201-19095iLN51,56,6#,YN52,57..MTM198308-198808

sub31201-14110

main31201-29085iLN50,55,YN56198308-198702

sub31201-26010

main31201-29115iYN58..MTM198608-198808

sub31201-24010

main31201-29125iRN5#,61198601-198801

main31201-39047iYN50,55198308-198506

main31201-39146iYN60,65198308-198608

sub31201-30121

31210COVER ASSY, CLUTCH

main31210-14130iLN51,56,6#,YN52,57..MTM198308-198903

sub31210-35090

main31210-22120iYN50,51,55,56198812-199208

sub31210-22121

main31210-24010iYN58..MTM198608-198808

sub31210-24011

main31210-24020iRN5#,61198601-198801

sub31210-35130

main31210-26030iYN50,55198506-198702

sub31210-26070

main31210-26070iYN50,51,55,56198702-198808

sub31210-22121

main31210-26100iYN67198905-199407

sub31210-27060

main31210-30191iYN60,65198308-198608

sub31210-26050

main31210-30240iRN67199407-199807

sub31210-30241

main31210-30250iLN5#,65,YN57199110-199208

sub31210-30251

main31210-30251iLN51,56,65199208-199807

sub31210-35340

main31210-35042iYN50,55198308-198506

sub31210-22120

main31210-35060iYN62,63,67..CBR198508-198905

sub31210-26100

main31210-35080iYN50,51,55,56198808-198812

sub31210-22120

main31210-35090iLN5#,65,YN57198903-199110

sub31210-22100

main31210-35100iLN57,YN58198808-199807

sub31210-35101

main31210-35110iRN58..SR5198808-199807

sub31210-53040

main31210-35121iLN67199508-199807

sub31210-35122

main31210-35130iRN5#,61198801-198808

sub31210-53040

main31210-36029iLN50,55,YN51,56198308-198702

sub31210-36200

31216SPRING, CLUTCH RETRACTING

main31216-14010iYN60,65198308-198608

main31216-30010iLN5#,6#,RN5#,61,YN52,57,58..MTM198308-198808

31221PLATE, CLUTCH PRESSURE

main31221-29035iYN50,55198506-198702

main31221-29055iRN5#,61198601-198801

main31221-39045iYN50,55198308-198506

sub31221-35020

main31221-39056iLN5#,6#,YN51,52,56,57..MTM198308-198808

sub31221-36025

main31221-39115iYN58..MTM198608-198808

sub31221-30100

main31221-39135iYN60,65198308-198608

sub31221-30120

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022iLN5#,6#,RN5#,61,YN5#,60,65..MTM198308-198808

31230BEARING ASSY, CLUTCH RELEASE

main31230-35060iLN57,67199508-199807

sub31230-35061

main31230-35070iRN58,67198808-199807

sub31230-35071

main31230-35090iYN58..4F;YN58..SR5;YN50,51,55,56,57,6#..4F,4H,5F198808-199807

sub31230-35091

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLN6#;LN50,55..5F198308-198808

main31231-30080iLN50,55..4F198308-198408

main31231-36070iYN5#,6#..MTM198308-198808

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLN5#,6#,RN5#,61,YN5#,6#..MTM198308-198808

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iLN50,55..5F198308-198808

main31232-30020iLN50,55..4F198308-198408

main31232-35020iLN5#,6#,RN61,YN5#,6#..MTM198808-199807

NSK BEARING

main31232-35030iLN5#,6#,RN58,67,YN5#198808-199807

KOYO BEARING

main31232-35040iLN5#,6#,RN61198808-199407

KOYO BEARING

31236BALL, RELEASE FORK

main31236-30060iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM198308-199807

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iYN5#,6#..MTM198308-198511

sub31204-20072

main31204-20071iRN58..SR5;RN50,55,6#,YN5#,6#..MTM198511-199807

main31204-20090iLN6#;LN50,55..5F198308-198808

main31204-26010iLN50,55..4F198308-198408

main31204-35050iLN51,56,61,65198808-199807

31250DISC ASSY, CLUTCH

main31250-20130iYN52,56,57..MTM198310-198508

sub31250-20131

main31250-20240iYN5#199208-199702

sub31250-20241

main31250-20241iYN5#199702-199807

sub31250-20242

main31250-22101iLN56..EUR..IV198509-198701

PORTUGAL SPEC

sub31250-22102

main31250-22101iLN5#..RHD..T1..GEN..CBU198409-198509

THAILAND SPEC

sub31250-22102

main31250-25122iYN56..5H;YN51,57,58198808-199208

sub31250-20240

main31250-26051iLN56..EUR..IV198701-198801

PORTUGAL SPEC

sub31250-26052

main31250-26052iLN51,56..GEN,SA198801-199807

sub31250-26053

main31250-26052iLN56..EUR..IV198801-198912

PORTUGAL SPEC

sub31250-26053

main31250-26090iYN51,52,56,57,58..MTM198508-198702

sub31250-26091

main31250-26091iYN51,52,57,58..MTM198702-199108

sub31250-25122

main31250-26105iLN57199508-199604

sub31250-26106

main31250-26180iLN67199508-199807

sub31250-26181

main31250-30252iYN52,56,57..MTM198308-198310

sub31250-20130

main31250-30350iLN56..5F..(ARL,EUR)198308-198605

sub31250-30351

sub31250-60150

main31250-30351iLN65..GEN198605-198808

sub31250-35170

main31250-35061iYN50,55198308-198502

sub31250-35062

main31250-35062iYN50,55198502-198811

sub31250-35063

main31250-35063iYN50,55198811-199007

sub31250-35064

main31250-35064iYN55199007-199012

sub31250-35065

main31250-35101iLN6#198308-198408

sub31250-60110

main31250-35120iYN6#..CBR198308-198712

sub31250-35121

main31250-35121iYN6#..CBR198712-199407

sub31250-35380

main31250-35140iRN5#,61198601-198801

sub31250-35180

main31250-35151iLN6#..ARL198712-198903

sub31250-35200

main31250-35170iLN56..EUR;LN65..EUR..IV;LN65..DLX..EUR;LN65..RHD..(EUR,SA)198712-198904

sub31250-60151

main31250-35180iRN5#,61198801-198903

sub31250-14171

main31250-35201iLN57199604-199708

sub31250-35202

main31250-35270iRN58199407-199708

sub31250-35370

main31250-35321iRN67199407-199708

sub31250-35380

main31250-35370iRN58199708-199807

sub31250-35371

main31250-35380iRN67199708-199807

sub31250-35381

main31250-60151iLN65;LN56..EUR198904-198912

sub31250-60152

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM198308-199807

sub90363-12024

9011908026

main90119-08026

9015960261

main90159-60261

9017008197

main90170-08197

9451200800

main94512-00800

18 parts on this diagram · 2 diagrams in section
