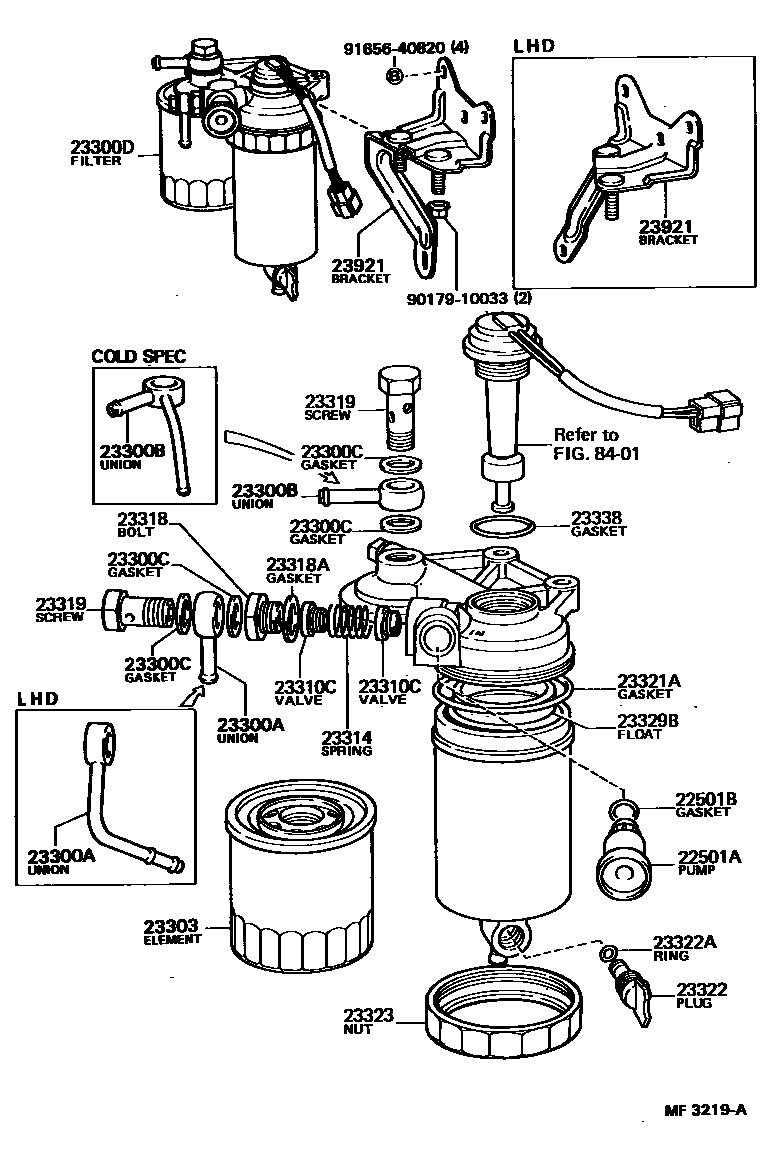

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

22501APUMP SUB-ASSY, PRIMING

main22501-54010iL,2L..LN5#,6#198308-198508

22501BGASKET(FOR PRIMING PUMP)

main23344-54020iL,2L..LN5#,6#198308-198508

23300FILTER ASSY, FUEL

main23300-15010i22R..RN67;22R..RN58..SR5198601-199807

main23300-34100i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90405-08012iL,2L..LN5#,65..LHD198308-198508

main90405-08016iL,2L..LN5#,6#..RHD198308-198607

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main23323-54120iL,2L..LN55,56,65..RHD..EUR198308-198508

COLD SPEC

main23323-54130i2L..LN56..EUR..IV;L,2L..LN55,65..LHD..EUR198308-198508

COLD SPEC

main23323-54160i2L..LN5#,6#198508-198607

main90405-08016iL,2L..LN5#,6#198308-198508

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030iL,2L..LN5#,6#198308-198607

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-54080iL,2L..LN5#,6#..RHD198308-198508

main23300-54090iL,2L..LN5#,65..LHD198308-198508

main23300-54200iL,2L..LN55,56,65..RHD..EUR198308-198508

COLD SPEC

main23300-54210i2L..LN56..EUR..IV;L,2L..LN55,65..LHD..EUR198308-198508

COLD SPEC

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54071iL,2L..LN5#,6#198308-198508

sub23303-54072

main23303-64010i2L,3L..LN5#,6#198508-199807

23310CVALVE SUB-ASSY, FUEL FILTER

main23316-54010iL,2L..LN5#,6#198308-198508

23314SPRING, FUEL FILTER

main23314-54010iL,2L..LN5#,6#198308-198508

23318BOLT, UNION

main23323-54020iL,2L..LN5#,6#198308-198508

23318AGASKET(FOR UNION BOLT)

main15318-44010iL,2L..LN5#,6#198308-198508

23319SCREW, FUEL PIPE FOLLOW

main90099-18011iL,2L..LN5#,6#198308-198607

23321AGASKET, FUEL FILTER CAP

main23312-54010iL,2L..LN5#,6#198308-198508

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-54010iL,2L..LN5#,6#198308-198508

main23322-64010i2L,3L..LN5#,6#198508-199807

23322ARING, O(FOR DRAIN PLUG)

main23344-54010iL,2L,3L..LN5#,6#198308-199807

23323NUT(FOR FUEL FILTER CASE SUPPORT)

main23323-54010iL,2L..LN5#,6#198308-198508

23329BFLOAT, LEVEL WARNING

main23329-54010iL,2L..LN5#,6#198308-198508

23338GASKET(FOR WARNING SWITCH)

main23338-54010iL,2L..LN5#,6#198308-198508

main23344-64010i2L,3L..LN5#,6#198508-199807

23921SUPPORT, FUEL FILTER

main23921-35060i22R..RN5#..RCB198601-198808

main23921-35090i22R..RN55..TW198601-198808

main23921-35110i22R..RN67;22R..RN58..SR5199407-199807

main23921-54090iL,2L..LN5#,6#..RHD198308-198508

main23921-54100iL,2L..LN5#,65..LHD198308-198508

main23921-54180i2L..LN5#,6#..RHD198508-199508

main23921-54190i2L..LN5#,65..LHD198508-199508

main23921-54270i2L,3L..LN5#,67199508-199807

main90929-01063i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

8401

9017910033

main90179-10033

9165640820

main91656-40820

23 parts on this diagram · 6 diagrams in section
