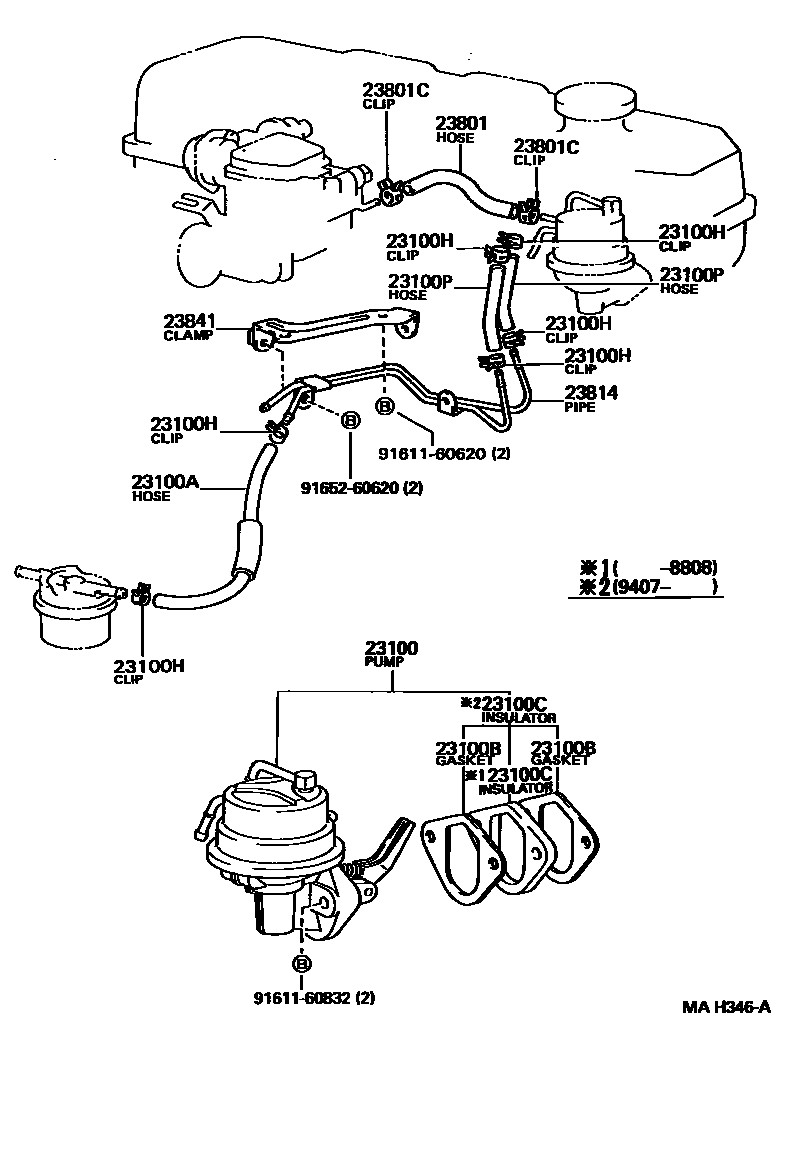

FUEL PUMP & PIPE

0001 1 0002 1

23100PUMP ASSY, FUEL

main23100-35031i22R..RN5#¥10,000198708-198808

sub23100-39336¥11,300

main23100-35040i22R..RN67;22R..RN58..SR5¥10,800199407-199807

main23100-39336i22R..RN5#¥11,300198601-198708

main23100-73021i4Y..YN67;4Y..YN58..4F;4Y..YN58..SR5;4Y,4YC..YN58,63..ARL,ME¥9,800198807-199807

main23100-79025i1Y,2Y#,3Y..YN50,51,52,55,56,57¥9,500198308-198812

sub23100-79026¥9,900

main23100-79026i1Y,2Y,3Y..YN50,51,55,56,57..4F,4H,5F¥9,900198812-199807

sub23100-79027¥9,500

main23100-79065i4Y,4YC..YN58,6#¥9,200198708-198807

sub23100-73021¥9,800

sub90923-05016¥140

sub90923-06008¥380

23100AHOSE, FUEL

main90447-12023i1Y#,2Y,3Y,4Y..YN5#,6#¥670198608-198701

main90447-12084i4Y..YN6#;4Y..YN58..4F;4Y..YN58..SR5;1Y#,2Y#,3Y,4YC..YN5#..4F,4FC,4H,5F¥1,130198701-199807

main95332-06030i22R..RN5#..RCB¥590198601-198611

*H,L=260

sub95333-06030¥580

main95332-06030i1Y#,2Y,3Y,4Y..YN5#,6#¥590198308-198606

sub95333-06030¥580

main95332-06040i22R..RN55..TW¥760198601-198611

L=400

sub95333-06040¥730

main95333-06026i22R..RN5#..RCB¥590198611-198702

sub95333-06030¥580

main95333-06030i22R..RN5#..RCB¥580198702-198808

*H,L=260

sub95338-06030¥580

main95333-06030i1Y#,2Y,3Y,4Y..YN5#,6#¥580198606-199807

sub95338-06030¥580

main95333-06040i22R..RN55..TW¥730198611-198808

23100BGASKET, FUEL PUMP

main90923-05005i22R..RN5#¥250198308-198808

sub90923-05019¥250

main90923-05016i1Y,2Y#,3Y,4Y,4YC..YN5#,6#¥140198708-198912

sub90923-06010¥570

sub90923-06014¥900

main90923-05022i1Y,2Y,3Y,4Y..YN5#,67¥310198912-199807

23100CINSULATOR, FUEL PUMP

main90923-06001i22R..RN5#¥380198308-198808

sub90923-06009¥350

main90923-06008i1Y,2Y#,3Y,4Y,4YC..YN5#,6#¥380198708-199002

sub90923-06010¥570

sub90923-06014¥900

main90923-06010i22R..RN67;22R..RN58..SR5¥570199407-199807

main90923-06014i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN51,55,56,57,67..4F,4H,5F¥900199002-199807

23100HCLIP(FOR FUEL HOSE)

main96132-30600i22R..RN5#¥200198308-199807

sub96132-51100¥120

main96132-30600i22R..RN67;22R..RN58..SR5¥200199407-199807

FUEL PUMP IN OUT

sub96132-51100¥120

main96132-41100i22R..RN67;22R..RN58..SR5¥160199407-199807

FUEL FILTER TO PIPE

sub96132-51100¥120

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95332-06020i22R..RN5#¥350198601-198606

*H,L=120

sub95333-06020¥480

main95333-06012i22R..RN5#¥500198606-198702

sub95333-06020¥480

main95333-06020i22R..RN5#¥480198702-199409

*H,L=120

sub95337-06020¥570

main95334-06012i22R..RN58,67¥280199409-199807

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23811-71010i1Y#,2Y,3Y..YN5#,6#¥2,920198308-198404

sub23811-71011¥3,230

main23811-71011i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F¥3,230198404-199807

main95332-06020i22R..RN5#¥350198601-198606

L=200(*H,L=190)

sub95333-06020¥480

main95333-06019i22R..RN5#¥500198606-198702

L=200(*H,L=190)

sub95333-06020¥480

main95333-06020i22R..RN5#¥480198702-199807

L=200(*H,L=190)

sub95337-06020¥570

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i22R..RN5#¥200198308-199807

sub96132-51100¥120

main96132-41100i22R..RN67;22R..RN58..SR5¥160199407-199807

sub96132-51100¥120

23814PIPE, FUEL DELIVERY

main23814-35110i22R..RN5#¥4,050198601-199807

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-35060i22R..RN5#¥740198601-199807

9161160620

main91611-60620¥90

9161160832

main91611-60832¥190

9165260620

main91652-60620¥110

13 parts on this diagram · 2 diagrams in section
