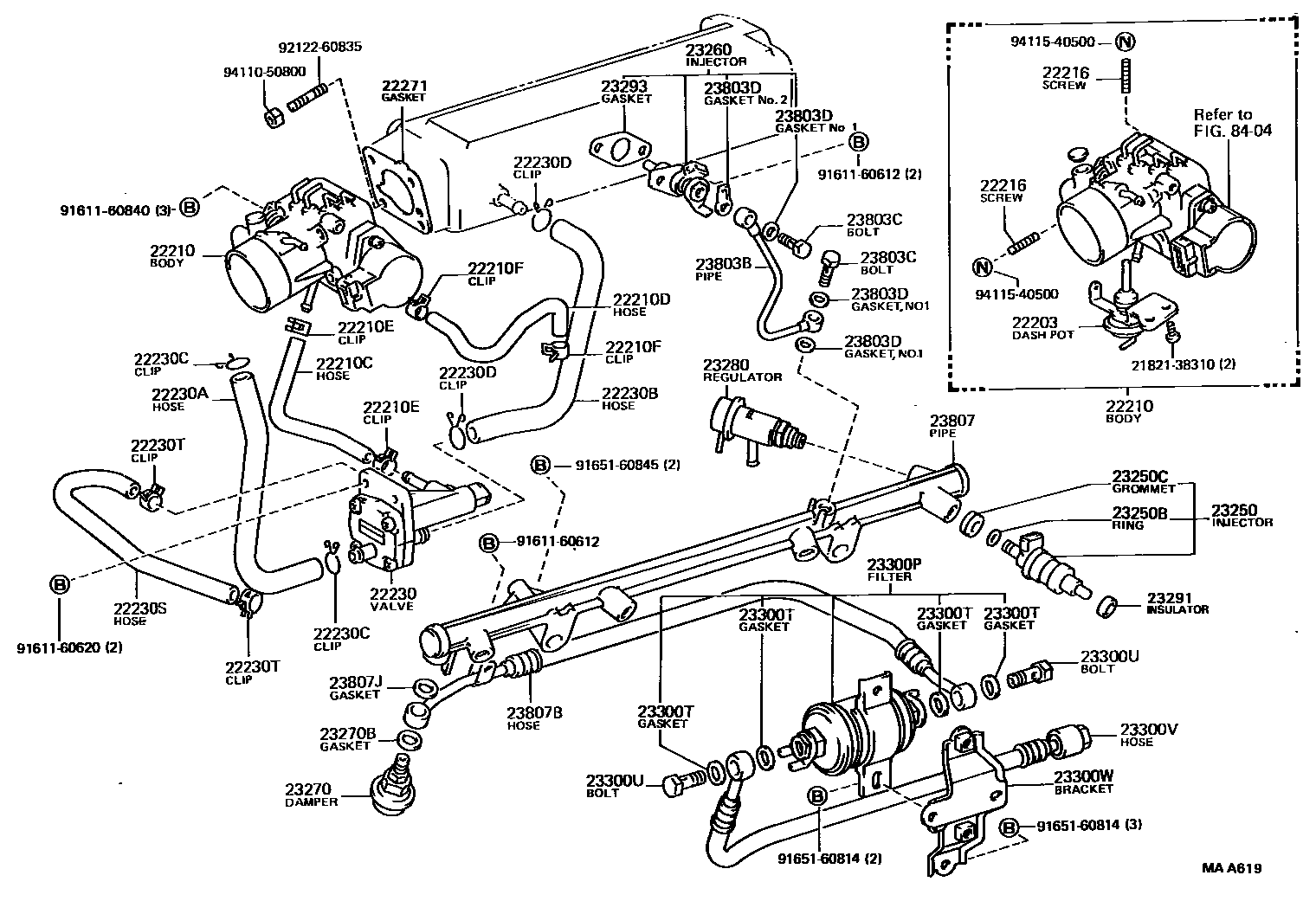

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
sub96135-51300
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
sub96135-51300
22216SCREW, DASH POT ADJUSTING
22230VALVE ASSY, AUXILIARY AIR
22230AHOSE, AUXILIARY AIR VALVE, NO.1
22230BHOSE, AUXILIARY AIR VALVE, NO.2
22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1
22230DCLIP, AUXILIARY AIR VALVE HOSE, NO.2
22230SHOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE)
22230TCLAMP OR CLIP, HOSE(FOR WATER BY-PASS)
sub96135-51300
23250BRING, O(FOR FUEL INJECTOR)
DELIVERY PIPE SIDE
MANIFOLD SIDE
23250CGROMMET(FOR FUEL INJECTOR)
23270BGASKET(FOR PULSATION DAMPER HOSE)
PIPE SIDE
23280REGULATOR ASSY, FUEL PRESSURE
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300VHOSE, FUEL(FOR FUEL INLET)
23300WBRACKET, FUEL FILTER
23803BPIPE SUB-ASSY, FUEL, NO.3
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
8404
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
9161160612
main91611-60612
9161160620
main91611-60620
9161160840
main91611-60840
9165160814
main91651-60814
9165160845
main91651-60845
9212260835
main92122-60835
9411050800
main94110-50800
9411540500
main94115-40500
45 parts on this diagram · 6 diagrams in section
