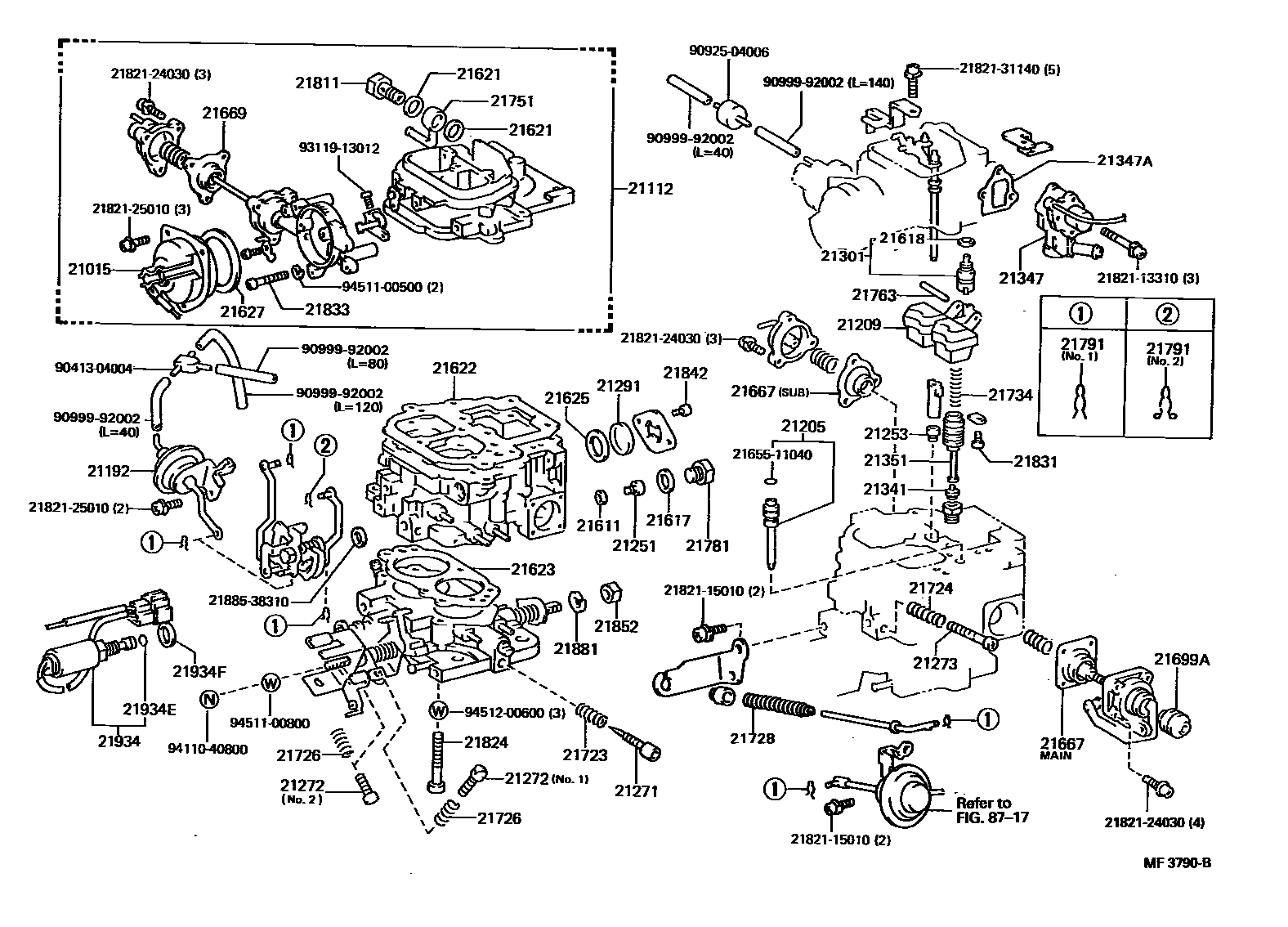

CARBURETOR

0001 1 0002 1 0003 1 0006 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1

21015HOUSING SUB-ASSY, COIL

main21015-35420i22R..RN5#198601-198808

main21015-35540i22R..RN67;22R..RN58..SR5199407-199807

main21141-71030i1YC,2Y,3Y..YN55,56,57,6#..ARL,EUR198308-198508

main21141-71060i2Y,3Y..YN56,65..EUR198412-198608

main21141-71090i2Y,3Y,4Y..YN52,56,57,6#..EUR,ME198608-199807

main21141-71090i3Y,4Y..YN57,63,67..ARL198508-198708

*NSW

main21141-73140i4Y..YN62,63,67198508-198708

main21141-73190i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

main21142-71090i1YC..YN55198508-198708

21112HORN, AIR

main21012-71030i3Y..YN57,6#..ARL198308-198508

*NSW

main21012-71030i2Y,3Y..YN56,65..EUR198308-198412

main21012-71050i3Y..YN57,6#..ARL198308-198508

main21012-71060i2Y,3Y..YN56,65..EUR198412-198608

main21012-71070i1Y,3Y..YN50,52,55,57,6#..GEN,ME198308-198311

main21012-71071i1Y,3Y..YN50,52,55,57,60..GEN,ME,SA198508-198608

main21012-71080i1Y,3Y..YN50,52,55,57,6#..GEN,ME,SA198311-198508

sub21012-71040

main21012-71090i1YC..YN55198508-198708

main21012-71140i1Y..YN50,55198608-198808

main21012-72210i2Y..YN56..EUR198608-198808

main21012-72280i1Y..YN50,55198808-199807

main21012-72330i2Y..YN51,56..SA198803-198912

main21012-72331i2Y..YN51,56198912-199108

main21012-72390i2Y..YN51,56199108-199807

main21012-73140i3Y..YN57..5F..ARL198508-198608

*NSW

main21012-73140i3Y,4Y..YN57,6#..5F..ARL198608-198708

main21012-73150i3Y,4Y..YN57,63,67..ARL198508-198708

*NSW

main21012-73190i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

main21012-73200i4Y..YN67..EUR198608-198808

main21012-73210i3Y..YN57..GEN198608-198808

main21012-73220i4Y..YN58,67..GEN,SA198608-198903

main21012-73350i4Y..YN58,67198808-199807

main21012-73351i4Y..YN58,67198911-199106

main21012-73352i4Y..YN58,67..SA199106-199807

main21012-73360i3Y..YN57198808-199807

main21112-35420i22R..RN5#198601-198808

main21112-35590i22R..RN67;22R..RN58..SR5199407-199807

21192BREAKER

main21192-35350i22R..RN67;22R..RN58..SR5198601-199807

sub21192-35210

21205JET SUB-ASSY, SLOW

main21205-34400i1Y#,2Y,3Y..YN5#,6#198308-198708

main21205-35360i22R..RN5#198601-198808

main21205-35361i22R..RN67;22R..RN58..SR5199407-199807

main21205-71030i1YC..YN55198407-198508

*NSW

sub21205-73110

main21205-72210i1Y,2Y..YN50,51,55,56..4F,4H,5F198608-199807

main21205-73110i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

main21205-73220i4Y..YN58..4F;4Y..YN58..SR5;3Y,4Y..YN52,57,6#..EUR,GEN,ME,SA198608-199807

main21205-73270i3Y,4Y..YN57,6#..ARL198608-198708

*NSW

21209FLOAT SUB-ASSY

main21209-37041i22R..RN5#198601-199807

main21209-71030i4Y..YN62,63,67198308-198708

main21209-73110i1Y,3Y..YN50,52,55,57,60..GEN,ME,SA198311-199807

main21209-73110i1YC,3Y,4Y..YN55,57,63,67..ARL198508-198708

*NSW

21251JET, 1ST MAIN

main21244-36120i1Y,3Y..YN50,52,55,57,60..GEN,ME,SA198308-198903

main21244-36120i3Y..YN57,6#..ARL198308-198508

*NSW

main21244-71050i1Y,2Y,3Y..YN5#,6#198308-198608

main21244-73140i3Y..YN57..5F..ARL198508-198708

main21244-73150i3Y,4Y..YN57,63,67..ARL198508-198608

*NSW

main21244-73260i2Y..YN51,56199108-199807

main21244-73270i3Y,4Y..YN57,6#..ARL198608-198708

*NSW

main21251-72210i1Y,2Y,3Y,4Y..YN5#,6#..EUR,GEN,ME,SA198608-199807

main90999-41113i22R..RN67;22R..RN58..SR5199407-199807

main90999-41114i22R..RN5#198601-198808

ID=1.14

21253JET, 2ND MAIN

main21253-37040i22R..RN67;22R..RN58..SR5198601-199807

sub21253-35410

main21253-71030i1Y,2Y,3Y..YN5#,60,65..EUR,GEN,ME,SA198308-198708

main21253-73110i4Y..YN67..GEN199108-199807

main21253-73140i3Y..YN57..5F..ARL198508-199807

main21253-73150i3Y,4Y..YN57,63,67..ARL198508-198602

*NSW

main21253-73290i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

main21254-73140i4Y..YN62,63,67198602-198708

21271SCREW, IDLE ADJUSTING

main21207-34420i3Y,4Y..YN57,6#..ARL198608-198708

*NSW

main21207-34420i2Y,3Y,4Y..YN56,65,67..EUR198308-198808

main21271-37080i22R..RN67;22R..RN58..SR5199407-199807

main21271-63070i22R..RN5#198601-198808

sub21271-35010

main21271-71030i1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA198308-199807

main21271-72280i1Y,2Y,3Y..YN50,51,55,56,57..4F,4H,5F198803-199807

sub21271-71030

main21271-73290i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

21272SCREW, 1ST IDLE ADJUSTING

main21273-26370i22R..RN67;22R..RN58..SR5198601-199807

NO.2

main21844-33010i22R..RN5#198601-199807

NO.1

21273SCREW, THROTTLE ADJUSTING

main21272-71030i1Y#,2Y#,3Y,4Y,4YC..YN5#,6#198308-198811

main21272-72250i4Y..YN63198803-199807

main21273-71010i22R..RN67;22R..RN58..SR5198601-199807

21291GLASS, LEVEL GAGE

main21291-34320i22R..RN5#198601-199807

main21291-36120i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

21301VALVE SUB-ASSY, NEEDLE

main21301-35010i22R..RN67;22R..RN58..SR5198601-199807

main21301-71030i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

21341VALVE, POWER

main21304-61060i22R..RN5#198601-199807

21347VALVE, SOLENOID

main21347-35420i22R..RN5#198601-198808

sub21347-35510

main21347-35590i22R..RN67;22R..RN58..SR5199407-199807

21347AGASKET(FOR VALVE, SOLENOID)

main21641-35010i22R..RN5#198601-199807

sub21641-35510

21351PISTON, POWER

main21351-37040i22R..RN5#198601-198808

main21351-73390i22R..RN67;22R..RN58..SR5199407-199807

21611GASKET, MAIN JET

main21611-22010i22R..RN5#198601-198808

main21611-40021i1Y#,2Y#,3Y,4Y,4YC..YN5#,6#198308-198811

21617GASKET, MAIN PASSAGE PLUG

main21617-30010i22R..RN5#198601-199807

main21633-44150i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i22R..RN5#198601-199807

main21637-71030i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

21621GASKET, UNION NIPPLE

main21633-24030i22R..RN5#198601-199807

21622GASKET, AIR HORN

main21622-35540i22R..RN67;22R..RN58..SR5199407-199807

main21622-63010i22R..RN5#198601-198808

sub21622-35540

main21622-71030i1YC,3Y,4Y#..YN55,57,6#..ARL198308-198708

sub21622-71060

main21622-72250i1Y,2Y,3Y,4Y..YN5#,67198911-199807

main21622-73190i1Y,2Y,3Y,4Y..YN5#,67198608-198911

sub21622-72250

main21622-73220i4Y..YN63198608-198903

21623GASKET, BODY FLANGE

main21623-35290i22R..RN5#198601-198808

sub21623-35510

main21623-35510i22R..RN67;22R..RN58..SR5199407-199807

sub21623-75080

21625GASKET, LEVEL GAGE

main21625-36120i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

main21655-60200i22R..RN5#198601-199807

21627GASKET, COIL HOUSING

main21627-28150i22R..RN5#198601-199807

21667DIAPHRAGM

main21667-35291i22R..RN5#198601-198808

MAIN

sub21667-35510

main21667-35510i22R..RN67;22R..RN58..SR5199407-199807

MAIN

main21667-72080i22R..RN5#198601-198808

SUB

sub21675-35510

main21675-35510i22R..RN67;22R..RN58..SR5199407-199807

SUB

21669DIAPHRAGM

main21669-37040i22R..RN5#198601-198808

sub21669-35510

21699BOOT(FOR PUMP PLUNGER)

main21656-71030i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

21699ABOOT(FOR ACCELERATION PUMP)

main21699-37040i22R..RN5#198601-199807

21723SPRING, IDLE ADJUSTING

main21723-30030i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

main21723-37040i22R..RN5#198601-199807

21724SPRING, THROTTLE ADJUSTING

main21723-38330i22R..RN5#198601-199807

main21723-71030i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

21726SPRING, 1ST IDLE ADJUSTING

main21726-38310i22R..RN5#198601-199807

21728SPRING, THROTTLE VALVE RETURN

main21728-71030i1YC,3Y,4Y..YN55,57,6#..ARL198308-198708

sub21728-73190

main21728-73190i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(EUR,GEN,ME,SA)198608-199807

main21864-31400i22R..RN5#198601-198808

21734SPRING, POWER PISTON

main21734-71010i22R..RN5#198601-199807

21751UNION, NIPPLE

main21894-37040i22R..RN67;22R..RN58..SR5198601-199807

21763PIN, FLOAT LEVER

main21763-34320i22R..RN5#198601-198808

main21763-73390i22R..RN67;22R..RN58..SR5199407-199807

main21768-71030i3Y..YN57..5F..ARL198308-198708

main21768-73110i2Y,3Y..YN56,65198311-199807

main21768-73110i1YC,3Y,4Y..YN55,57,63,67..ARL198508-198708

*NSW

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21776-44310i3Y..YN57198308-199807

main21776-72390i4Y..YN58,67..SA199106-199807

main21781-15230i22R..RN5#198601-198808

main21781-16510i22R..RN67;22R..RN58..SR5199407-199807

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-13010i22R..RN5#198601-198808

NO.2

main21791-13011i22R..RN67;22R..RN58..SR5199407-199807

sub21791-13010

main21791-60010i22R..RN5#198601-198808

NO.1

sub21791-13011

main21797-44050i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

21811BOLT, UNION NIPPLE

main21811-11060i22R..RN67;22R..RN58..SR5198601-199807

21824SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)

main93110-16035i22R..RN5#198601-199807

21831SCREW, POWER PISTON STOP

main21821-15060i22R..RN5#198601-199807

21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

main21804-71030i2YC,4Y,4YC..YN56,58,6#..ARL198308-199807

main21804-73150i3Y..YN57..5F..ARL198508-198608

*NSW

main21804-73150i3Y,4Y..YN52,57,58,6#198608-199807

main21833-33010i22R..RN5#198601-198808

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21832-36120i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

main21842-33010i22R..RN67;22R..RN58..SR5198601-199807

21852NUT, THROTTLE LEVER SET

main21852-30010i22R..RN67;22R..RN58..SR5198601-199807

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-60010i22R..RN5#198601-199807

21934SOLENOID, THROTTLE VALVE

main21062-35421i22R..RN5#198601-198808

sub21062-35422

main21062-35422i22R..RN67;22R..RN58..SR5199407-199807

main21391-71030i2Y,3Y..YN56,65198308-198608

sub21391-71070

main21391-71070i1Y,3Y..YN50,52,55,57,6#..GEN,ME,SA198308-198508

main21391-71071i1Y,2Y,3Y..YN50,51,55,56,57..GEN,SA198508-198808

main21391-72280i1Y,2Y,3Y..YN50,51,55,56,57..4F,4H,5F198808-199807

main21391-73150i4Y..YN58,67..GEN,SA198608-198808

sub21391-71071

main21391-73150i1YC,3Y,4Y..YN55,57,63,67..ARL198508-198608

*NSW

sub21391-71071

main21391-73190i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

NO.1

main21392-73190i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

NO.2

main21392-73220i4Y..YN6#;4Y..YN58..4F;4Y..YN58..SR5198808-199807

sub21391-72280

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i22R..RN5#198601-199807

21934FGASKET

main21617-10010i22R..RN67;22R..RN58..SR5198601-199807

8717

2165511040RING, O(FOR LIFTER ROD)

main21655-11040

2182113310SCREW, 2ND THROTTLE VALVE SET

main21821-13310

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182124030SCREW, 2ND THROTTLE VALVE SET

main21821-24030

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2188538310

main21885-38310

9041304004

main90413-04004

9092504006

main90925-04006

9099992002

main90999-92002

9311913012

main93119-13012

9411040800

main94110-40800

9451100500

main94511-00500

9451100800

main94511-00800

9451200600

main94512-00600

63 parts on this diagram · 10 diagrams in section
