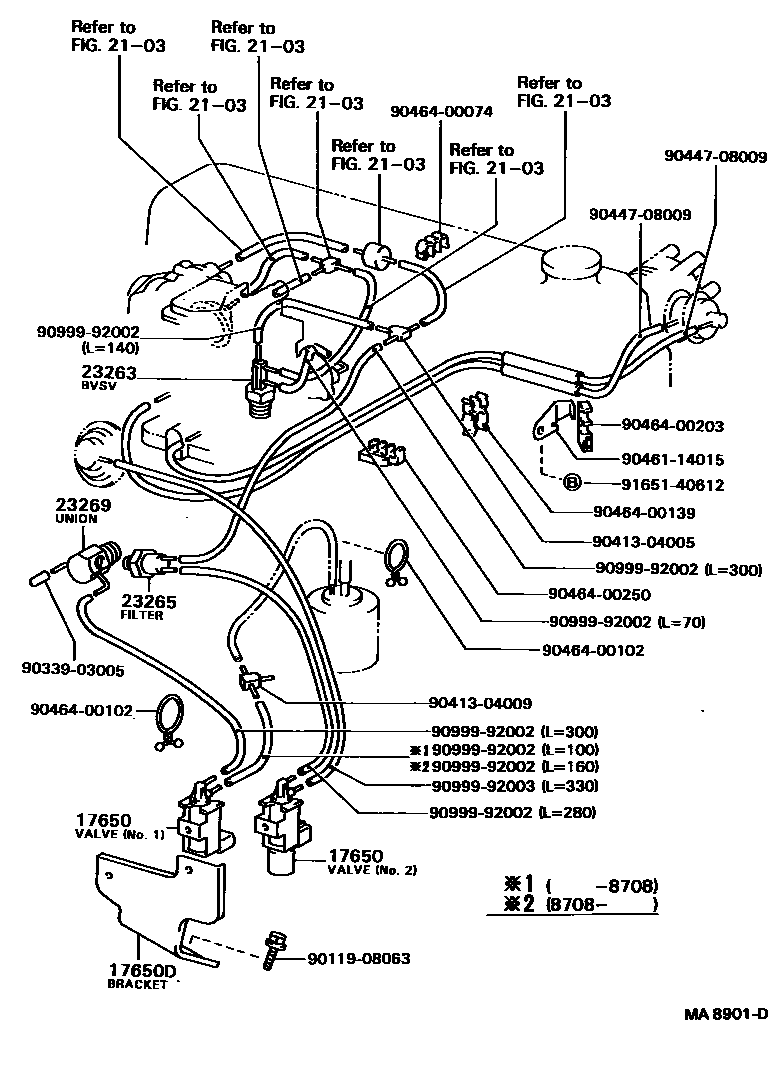

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0014 1 0016 1 0017 1 0018 1 0020 1 0021 1 0022 1 0023 1 0025 1 0027 1 0028 1

17650VALVE ASSY, VACUUM SWITCHING

main89570-35180i3Y,4Y..YN57,63,67..5F..ARL198308-198703

*NSW

main89570-35180i1YC..YN55198308-198708

main89570-35200i2Y,4Y..YN56,67..EUR198608-198903

main89570-35200i1Y,3Y..YN50,52,55,57,6#..ME198401-198608

*SAA

main90910-12035i22R..RN5#198601-198808

NO.1

main90910-12036i22R..RN5#198601-198808

NO.2

main90910-12038i2Y,4Y..YN51,56,58,67..SA198703-199807

main90910-12039i4YE..YN63198608-198903

main90910-12066i22REC..RN61198712-198808

NO.2

main90910-12067i22REC..RN61198712-198808

NO.1

main90910-12084i22REC..RN61198808-198903

NO.1

main90910-12085i22REC..RN61198808-198903

NO.2

17650DBRACKET, VACUUM SWITCHING VALVE

main25861-35010i22R..RN5#198601-198808

main25861-35020i22REC..RN61198808-198903

main25861-73020i4YE..YN63198608-198903

2103

23263VALVE, BIMETAL VACUUM SWITCHING, NO.2

main25810-27010i22R..RN5#198601-198709

main25820-13010i22REC..RN61198808-198903

main90925-05078i22REC..RN61198712-198808

sub25820-13010

main90925-05080i22R..RN5#198709-198808

sub25810-27010

23265FILTER, GAS, NO.1

main90917-11022i1Y..YN50,55..RHD198608-199807

W(HOT AIR INTAKE)

main90917-11022i4YE..YN63198608-198903

main90917-11022i1Y,3Y,4Y..YN50,55,57,65,67..RHD..GEN198308-198608

W/HAI

main90917-11023i22R..RN67;22R..RN58..SR5198601-199807

main90917-11024i3Y,4Y..YN57,63,65,67..ARL198308-198708

*NSW

sub90917-11027

main90917-11024i1Y,3Y..YN50,52,55,57,6#..ME198401-198508

*SAA

sub90917-11027

main90917-11024i1YC..YN55198308-199004

sub90917-11027

main90917-11027i2Y..YN51,56199004-199807

23269UNION(FOR GAS FILTER)

main90404-54030i22R..RN67;22R..RN58..SR5198601-199807

9011908063

main90119-08063

9033903005

main90339-03005

9041304005

main90413-04005

9041304009

main90413-04009

9044708009

main90447-08009

9046114015

main90461-14015

9046400074

main90464-00074

9046400102

main90464-00102

9046400139

main90464-00139

9046400203

main90464-00203

9046400250

main90464-00250

9099992002

main90999-92002

9099992003

main90999-92003

9165140612

main91651-40612

20 parts on this diagram · 23 diagrams in section
