V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132i2L..LN51,56,6#198308-198909

DOUBLE V BELTS

sub90916-02281

main90916-02133iL..LN50,55198308-198408

main90916-02209i2L,3L..LN5#,67199508-199604

sub90916-02211

main90916-02211i2L,3L..LN5#,67199604-199807

main90916-02281i2L..LN5#,65198909-199508

main99331-10870i22R#..RN5#,61198601-199807

main99364-20830i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN51,55,56,57,67..4F,4H,5F199011-199807

MITSUBOSHI

main99364-50830i1Y#,2Y#,3Y,4Y,4YC..YN5#,6#198308-199011

sub99364-80830

main99364-70830i1Y,2Y,3Y,4Y..YN5#,67199011-199402

BANDO

sub99364-80830

main99364-80830i2Y,4Y..YN5#,67199402-199807

BANDO

main99365-50820i4YE..YN63198608-198903

sub99365-80820

44310ABELT, V(FOR VANE PUMP)

main90916-02080iLN60..ARL198403-198608

main99332-00830iLN57199608-199807

L=830

main99332-00850iLN61;LN65..RHD..(EUR,GEN)198508-199807

L=850

main99332-01040iYN56..LHD..CBU198508-198903

L=1040

main99332-01055iYN6#..SR5198308-199807

L=1055

main99332-10865iLN65..LHD198508-199807

L=865

main99332-11120iRN61198712-198903

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00875iYN58..4F;YN58..SR5,STD;YN51,55,56,57,6#..(4FC,4H,5F)..(ARL,SA)198608-199807

sub99332-10875

main99322-00880iYN50,55,57,60,63,65,67..ARL,SA198308-198608

sub99332-00880

main99332-00880iYN50,52,55,57,6#..GEN,ME198403-199807

L=880

main99332-10860iRN67;RN58..SR5199407-199807

L=860

main99332-10890iRN5#,61198601-198903

L=890

main99332-11200iLN65..LHD..GEN198508-199807

L=1200,W/PS

main99332-11250iLN51,56,61,65..ARL,SA198608-199807

L=1250

main99332-11260iLN51,56,65..GEN198308-199807

L=1260

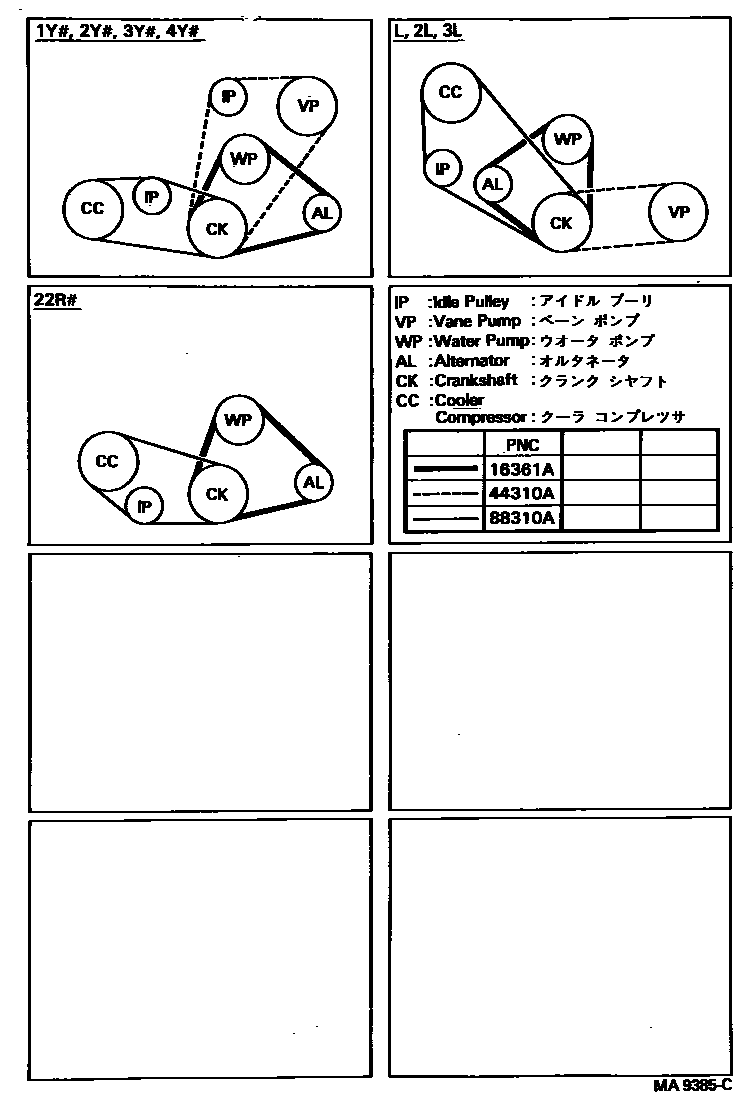

3 parts on this diagram · 1 diagram in section
