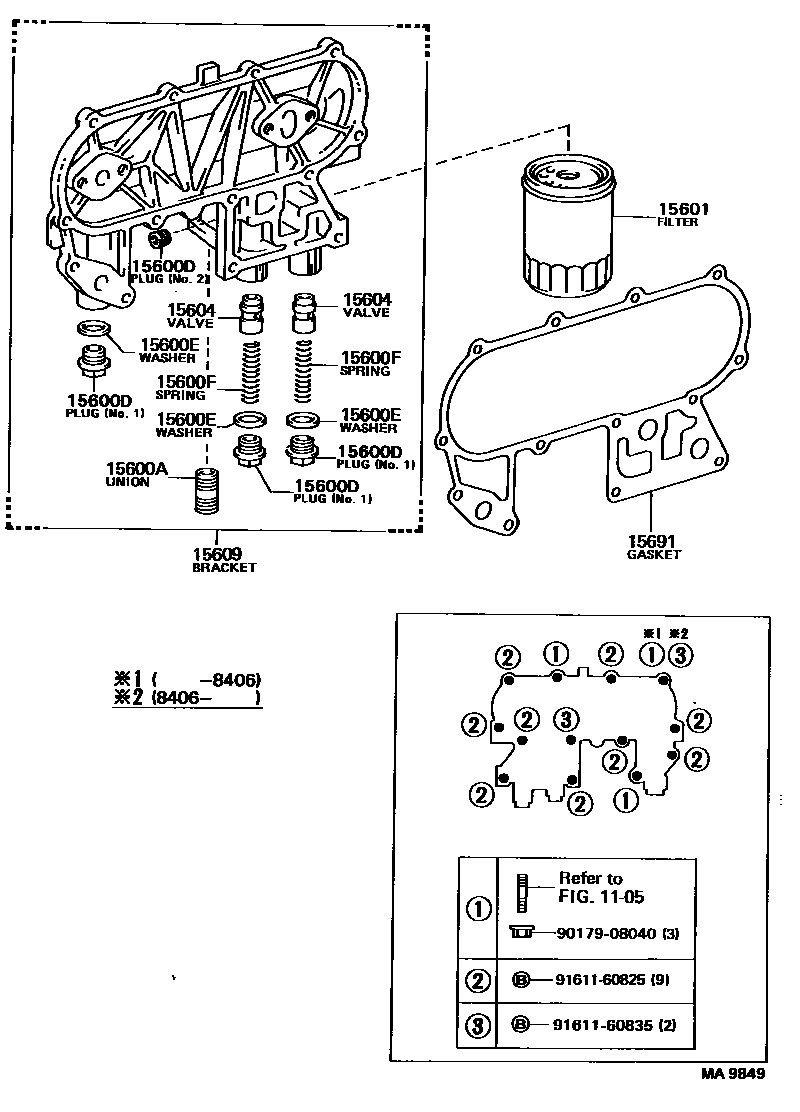

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54010iL,2L..LN5#,6#198308-198910

main15116-54020i2L..LN56,65..EUR198708-199508

sub15116-54021

main90404-19011i2L,3L..LN5#,67199508-199807

main90404-20173i22R..RN67;22R..RN58..SR5198601-199807

15600DPLUG(FOR OIL FILTER)

main90072-34402i2L..LN56..EUR198708-199508

NO.2

sub90344-51005

main90341-18015i3L..LN67198308-199807

NO.1

main90341-18015iL,2L..LN5#;2L..LN65..LHD..RCB..EUR..CBU;2L..LN65..RHD..STD..(ARL,EUR)198308-198708

main90344-54003i2L..LN6#198308-199307

NO.2

main90344-54004i3L..LN67199307-199807

NO.2

15600EWASHER(FOR OIL FILTER)

main90430-18001iL,2L..LN5#,6#198308-199112

main90430-18011i2L..LN5#,6#198411-198907

sub90430-18001

main90430-18021i2L..LN5#,65199112-199310

main90430-18029i2L,3L..LN5#,67199308-199807

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026iL,2L,3L..LN5#,6#198308-199807

15601FILTER SUB-ASSY, OIL

main15600-41010iL,2L..LN5#,6#198308-199807

sub90915-40002

main15601-33021i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198308-199807

main15601-44011i22R..RN5#198601-199807

sub90915-40002

sub90915-03002

main90915-03002i22REC..RN61198712-198903

sub90915-20001

main90915-03006i2L..LN56,65..EUR198708-199508

sub90915-30002

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010iL,2L,3L..LN5#,6#198308-199807

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54011iL,2L..LN5#;2L..LN65..5F198308-198406

sub15609-54012

sub32924-26012

sub91611-60835

main15609-54012iL,2L..LN5#;2L..LN65..LHD..RCB..EUR..CBU;2L..LN65..RHD..STD..(ARL,EUR)198406-198806

main15609-54013i2L,3L..LN5#198806-199509

main15609-54014i2L,3L..LN5#199509-199807

main15609-54040i2L..LN6#198308-198402

sub15609-54041

sub90119-08467

main15609-54041i2L..LN6#198402-198806

main15609-54042i2L..LN6#..ARL,GEN,SA198806-199509

main15609-54043i3L..LN67199509-199807

main15609-54070i2L..LN56..EUR..IV;2L..LN56..TW..EUR;2L..LN56..DLX..EUR198708-198806

main15609-54071i2L..LN56..EUR198806-199508

main15609-54080i2L..LN65..EUR198708-198806

main15609-54081i2L..LN65..EUR198806-199508

main15609-71010i1Y#,2Y,3Y,4Y..YN5#,6#198308-198608

main15609-71011i4Y..YN6#;4Y..YN58..4F;4Y..YN58..SR5;1Y#,2Y#,3Y,4YC,4YE..YN5#,63..4F,4FC,4H,5F198608-199807

15691GASKET, OIL FILTER

main15691-54012iL,2L..LN5#,6#198308-198608

sub15692-54020

main15691-71010i1Y#,2Y#,3Y,4Y#..YN5#,6#198308-198912

sub15691-71011

main15691-71011i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN51,55,56,57,67..4F,4H,5F198912-199807

main15692-54020i2L..LN5#,6#198608-198806

sub15692-54040

main15692-54030i2L,3L..LN5#,6#198806-199705

sub15692-54050

main15692-54050i2L,3L..LN5#,67199705-199807

9017908040

main90179-08040

9161160825

main91611-60825

9161160835

main91611-60835

12 parts on this diagram · 6 diagrams in section
