CRANKSHAFT & PISTON

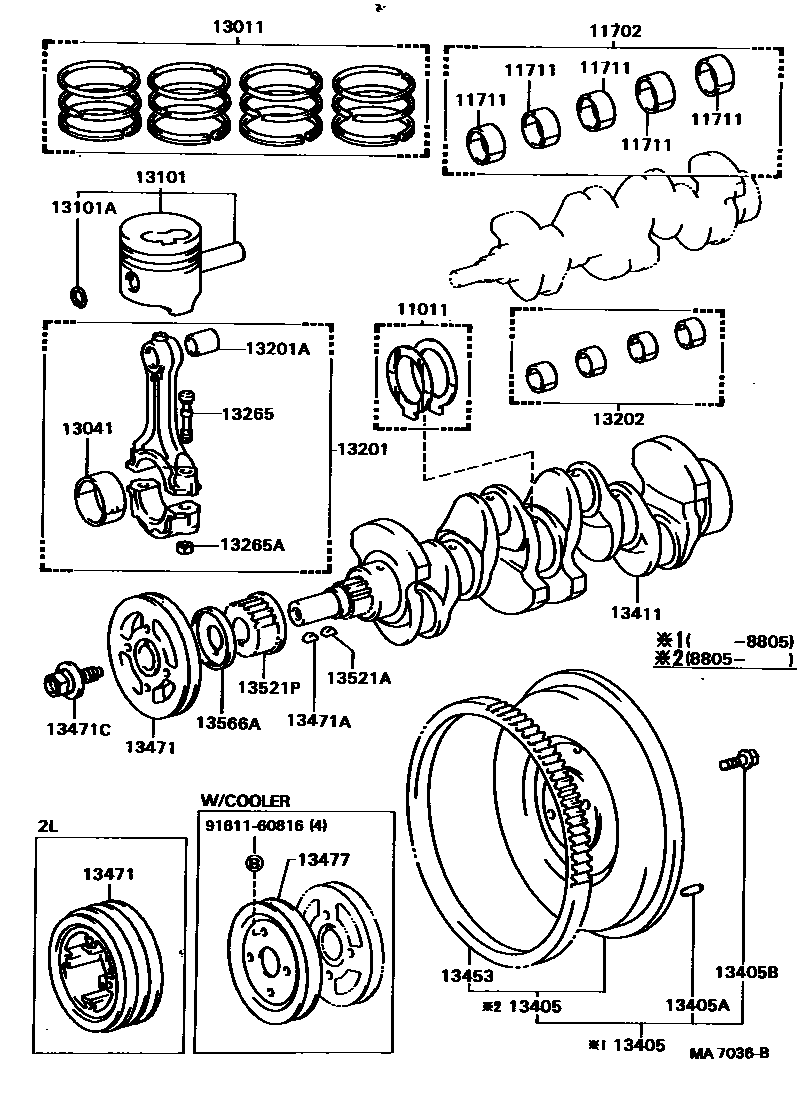

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-25010i198308-199807
STD
main11011-35020i198601-199807
STD,STD
main11011-54010i198308-198808
STD,STD
sub11011-54020
main11011-54020i198808-199807
STD,STD
main11012-35030i198601-199807
O/S 0.125,O/S 0.125
main11012-54010i198308-198808
O/S 0.125,O/S 0.125
sub11012-54020
main11012-54020i198808-199807
O/S 0.125,O/S 0.125
main11013-35030i198601-199807
O/S 0.250,O/S 0.250
main11013-54010i198308-198808
O/S 0.250,O/S 0.250
sub11013-54020
main11013-54020i198808-199807
O/S 0.250,O/S 0.250
11702BEARING SET, CRANKSHAFT
main11704-35040i198601-199807
U/S 0.25,U/S 0.25
main11704-54060i198308-198803
U/S 0.25,U/S 0.25
sub11704-54061
main11704-54061i198803-199807
U/S 0.25,U/S 0.25
sub11704-54080
main11704-71020i198308-199807
U/S 0.25,U/S 0.25
main11705-54060i198308-198803
U/S 0.50,U/S 0.50
sub11705-54061
main11705-54061i198803-199807
U/S 0.50,U/S 0.50
sub11705-54080
11711BEARING, CRANKSHAFT
main11701-35030-03i198601-199807
MARK 3,MARK 3
main11701-35030-04i198601-199807
MARK 4,MARK 4
main11701-35030-05i198601-199807
MARK 5,MARK 5
main11701-54060-01i198308-198803
MARK 1,MARK 1
sub11701-54061
main11701-54060-02i198308-198803
MARK 2,MARK 2
sub11701-54061
main11701-54060-03i198308-198803
MARK 3,MARK 3
sub11701-54061
main11701-54061-01i198803-199807
MARK 1,MARK 1
sub11701-54080
main11701-54061-02i198803-199807
MARK 2,MARK 2
sub11701-54080
main11701-54061-03i198803-199807
MARK 3,MARK 3
sub11701-54080
main11701-71020-01i198308-199807
MARK 1,MARK 1
main11701-71020-02i198308-199807
MARK 2,MARK 2
main11701-71020-03i198308-199807
MARK 3,MARK 3
13011RING SET, PISTON
main13011-35040i198601-198602
STD,STD
sub13011-35041
main13011-35052i198712-198903
STD,STD
main13011-35070i198602-198608
STD,STD
sub13011-35071
main13011-35071i198608-199807
STD,STD
main13011-54041i198308-198405
STD
sub13011-54042
main13011-54042i198405-198408
STD
sub13011-54080
main13011-54060i198308-198509
STD,STD
sub13011-54061
main13011-54061i198509-198710
STD,STD
sub13011-54062
main13011-54062i198710-199508
STD,STD
main13011-54100i199508-199807
STD,STD
main13011-54120i199508-199807
STD,STD
main13011-71021i198708-198808
STD,STD
sub13011-71012
main13011-71030i198308-198702
STD,STD
sub13011-71031
main13011-71031i198702-199010
STD,STD
sub13011-71032
main13011-71032i199010-199212
STD,STD
sub13011-71033
main13011-71033i199212-199807
STD,STD
main13011-73020i198608-198705
STD,STD
sub13011-73021
main13011-73021i198705-198903
STD,STD
sub13011-73011
main13011-73030i198508-198705
STD,STD
sub13011-73031
main13011-73031i198705-199212
STD,STD
sub13011-73032
main13011-73032i199212-199807
STD,STD
main13013-35040i198601-198602
O/S 0.50,O/S 0.50
sub13013-35041
main13013-35052i198712-198903
O/S 0.50,O/S 0.50
main13013-35070i198602-198608
O/S 0.50,O/S 0.50
sub13013-35071
main13013-35071i198608-199807
O/S 0.50,O/S 0.50
main13013-54041i198308-198408
O/S 0.50
sub13013-54042
main13013-54042i198408-198408
O/S 0.50
sub13013-54080
main13013-54060i198308-198509
O/S 0.50
sub13013-54061
main13013-54061i198509-198710
O/S 0.50,O/S 0.50
sub13013-54062
main13013-54062i198710-199508
O/S 0.50,O/S 0.50
main13013-54100i199508-199807
O/S 0.50,O/S 0.50
main13013-54120i199508-199807
O/S 0.50,O/S 0.50
main13013-71021i198708-198808
O/S 0.50,O/S 0.50
main13013-71030i198308-198702
O/S 0.50,O/S 0.50
sub13013-71031
main13013-71031i198702-199010
O/S 0.50,O/S 0.50
sub13013-71032
main13013-71032i199010-199212
O/S 0.50,O/S 0.50
sub13013-71033
main13013-71033i199212-199807
O/S 0.50,O/S 0.50
main13013-73020i198608-198705
O/S 0.05,O/S 0.50
sub13013-73021
main13013-73021i198705-198903
O/S 0.50,O/S 0.50
sub13013-73032
main13013-73030i198508-198705
O/S 0.50,O/S 0.50
sub13013-73031
main13013-73031i198705-199212
O/S 0.50,O/S 0.50
sub13013-73032
main13013-73032i199212-199807
O/S 0.50,O/S 0.50
main13014-54100i199508-199807
O/S 0.75,O/S 0.75
main13014-71021i198708-198808
O/S 0.75,O/S 0.75
main13014-71030i198308-198702
O/S 0.75
sub13014-71031
main13014-71031i198702-199010
O/S 0.75,O/S 0.75
sub13014-71032
main13014-71032i199010-199212
O/S 0.75,O/S 0.75
sub13014-71033
main13014-71033i199212-199807
O/S 0.75,O/S 0.75
main13015-35040i198601-198602
O/S 1.00,O/S 1.00
sub13015-35041
main13015-35052i198712-198903
O/S 1.00,O/S 1.00
main13015-35070i198602-198608
O/S 1.00,O/S 1.00
sub13015-35071
main13015-35071i198608-199807
O/S 1.00,O/S 1.00
main13015-54100i199508-199807
O/S 1.00,O/S 1.00
main13015-71021i198708-198808
O/S 1.00,O/S 1.00
main13015-71030i198308-198702
O/S 1.00,O/S 1.00
sub13015-71031
main13015-71031i198702-199010
O/S 1.00,O/S 1.00
sub13015-71032
main13015-71032i199010-199212
O/S 1.00,O/S 1.00
sub13015-71033
main13015-71033i199212-199807
O/S 1.00,O/S 1.00
13041BEARING, CONNECTING ROD
main13041-35030-0Ai198601-198903
MARK A,MARK A
sub13041-35030
main13041-35030-0Bi198601-198903
MARK B,MARK B
sub13041-35030
main13041-35030-0Ci198601-198903
MARK C,MARK C
sub13041-35030
main13041-35030-A0i199407-199807
MARK A,MARK A
sub13041-35030
main13041-35030-B0i199407-199807
MARK B,MARK B
sub13041-35030
main13041-35030-C0i199407-199807
MARK C,MARK C
sub13041-35030
main13041-54012-01i198308-198310
MARK 1,MARK 1
sub13041-54024
sub13041-54013
main13041-54012-02i198308-198310
MARK 2,MARK 2
sub13041-54024
sub13041-54013
main13041-54012-03i198308-198310
MARK 3,MARK 3
sub13041-54024
sub13041-54013
main13041-54013-01i198310-198808
MARK 1,MARK 1
sub13041-54024
main13041-54013-02i198310-198808
MARK 2,MARK 2
sub13041-54024
main13041-54013-03i198310-198808
MARK 3,MARK 3
sub13041-54024
main13041-54024-01i198808-199807
MARK 1,MARK 1
main13041-54024-02i198808-199807
MARK 2,MARK 2
main13041-54024-03i198808-199807
MARK 3,MARK 3
main13041-54041-01i199508-199807
MARK 1,MARK 1
sub13041-54042
main13041-54041-02i199508-199807
MARK 2,MARK 2
sub13041-54042
main13041-54041-03i199508-199807
MARK 3,MARK 3
sub13041-54042
main13041-71011-06i198808-199807
MARK 6,MARK 6
sub13041-73010
main13041-71011-07i198808-199807
MARK 7,MARK 7
sub13041-73010
main13041-71011-08i198808-199807
MARK 8,MARK 8
sub13041-73010
main13041-71021-06i198308-198808
MARK 6,MARK 6
sub13041-71011
main13041-71021-07i198308-198808
MARK 7,MARK 7
sub13041-71011
main13041-71021-08i198308-198808
MARK 8,MARK 8
sub13041-71011
13101PISTON SUB-ASSY, W/PIN
main13101-35031i198601-198801
STD,STD
sub13101-35032
main13101-35032-01i198801-199807
STD,STD,MARK 1,MARK 1
main13101-35032-02i198801-199807
STD,STD,MARK 2,MARK 2
main13101-35032-03i198801-199807
STD,STD,MARK 3,MARK 3
main13101-35070-01i198808-198903
STD,STD,MARK 1,MARK 1
main13101-35070-02i198808-198903
STD,STD,MARK 2,MARK 2
main13101-35070-03i198808-198903
STD,STD,MARK 3,MARK 3
main13101-54040i198308-198408
STD
main13101-54060i198308-198801
STD,STD
main13101-54060-01i198801-199508
STD,STD,MARK 1,MARK 1
sub13101-54060
main13101-54060-02i198801-199508
STD,STD,MARK 2,MARK 2
sub13101-54060
main13101-54060-03i198801-199508
STD,STD,MARK 3,MARK 3
sub13101-54060
main13101-54070-01i199508-199807
STD,STD,MARK 1,MARK 1
main13101-54070-02i199508-199807
STD,STD,MARK 2,MARK 2
main13101-54070-03i199508-199807
STD,STD,MARK 3,MARK 3
main13101-54101-01i199508-199807
STD,STD,MARK 1,MARK 1
main13101-54101-02i199508-199807
STD,STD,MARK 2,MARK 2
main13101-54101-03i199508-199807
STD,STD,MARK 3,MARK 3
main13101-71010i198308-198802
STD,STD
main13101-71010-01i198802-199807
STD,STD,MARK 1,MARK1
sub13101-71010
main13101-71010-02i198802-199807
STD,STD,MARK 2,MARK2
sub13101-71010
main13101-71010-03i198802-199807
STD,STD,MARK 3,MARK3
sub13101-71010
main13101-72010i198308-198802
STD,STD
main13101-72010-01i198802-199807
STD,STD,MARK 1,MARK 1
sub13101-72010
main13101-72010-02i198802-199807
STD,STD,MARK 2,MARK 2
sub13101-72010
main13101-72010-03i198802-199807
STD,STD,MARK 3,MARK 3
sub13101-72010
main13101-73010i198308-198802
STD,STD
main13101-73010-01i198802-199807
STD,STD,MARK 1,MARK1
sub13101-73010
main13101-73010-02i198802-199807
STD,STD,MARK 2,MARK2
sub13101-73010
main13101-73010-03i198802-199807
STD,STD,MARK 3,MARK3
sub13101-73010
main13101-73030i198508-198708
STD,STD
main13101-73031-01i198708-199807
STD,STD,MARK 1,MARK 1
sub13101-73031
main13101-73031-02i198708-199807
STD,STD,MARK 2,MARK 2
sub13101-73031
main13101-73031-03i198708-199807
STD,STD,MARK 3,MARK 3
sub13101-73031
main13103-35041i198601-198801
O/S 0.50,O/S 0.50
sub13103-35042
main13103-35042i198801-198807
O/S 0.50,O/S 0.50
main13103-35042i199407-199807
O/S 0.50,0/S 0.50
main13103-35070i198808-198903
O/S 0.50,O/S 0.50
main13103-54040i198308-198408
O/S 0.50
main13103-54060i198308-199508
O/S 0.50,O/S 0.50
main13103-54070i199508-199807
O/S 0.50,O/S 0.50
main13103-54101i199508-199807
O/S 0.50,O/S 0.50
main13103-71010i198308-199807
O/S 0.50,O/S 0.50
main13103-72010i198308-199807
O/S 0.50,O/S 0.50
main13103-73010i198308-199807
O/S 0.50,O/S 0.50
main13103-73030i198508-198708
O/S 0.50,O/S 0.50
main13103-73031i198708-199807
O/S 0.50,O/S 0.50
main13104-54070i199508-199807
O/S 0.75,O/S 0.75
main13104-71010i198308-199807
O/S 0.75,O/S 0.75
main13104-72010i198308-199807
O/S 0.75,O/S 0.75
main13104-73010i198308-199807
O/S 0.75,O/S 0.75
main13105-35041i198601-198801
O/S 1.00,O/S 1.00
sub13105-35042
main13105-35042i199407-199807
O/S 1.00,0/S 1.00
main13105-35042i198801-198807
O/S 1.00,O/S 1.00
main13105-35070i198808-198903
O/S 1.00,O/S 1.00
main13105-54070i199508-199807
O/S 1.00,O/S 1.00
main13105-71010i198308-199807
O/S 1.00,O/S 1.00
main13105-72010i198308-199807
O/S 1.00,O/S 1.00
main13105-73010i198308-199807
O/S 1.00,O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90521-25105i198601-199807
main90521-29003i198308-199807
main90521-31001i199508-199807
13201ROD SUB-ASSY, CONNECTING
main13201-39015i198601-199807
main13201-59016i198308-198807
sub13201-59017
main13201-59017i198807-199508
main13201-59095i199508-199801
sub13201-59096
main13201-59096i199801-199807
main13201-59105i199508-199801
sub13201-59106
main13201-59106i199801-199807
sub13201-59216
main13201-71011i198308-199807
main13201-79045i198308-199807
sub13201-79046
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73072i198601-199807
main90999-73083i198308-198807
main90999-73114i199508-199807
main90999-73115i199508-199807
main90999-73117i198807-199508
13202BEARING SET, CONNECTING ROD
main13204-35040i198601-199807
U/S 0.25,U/S 0.25
main13204-54012i198308-198310
U/S 0.25
sub13204-54013
main13204-54013i198310-198808
U/S 0.25,U/S 0.25
sub13204-54024
main13204-54024i198808-199508
U/S 0.25,U/S 0.25
main13204-54041i199508-199807
U/S 0.25,U/S 0.25
sub13204-54042
main13204-71021i198308-199807
U/S 0.25,U/S 0.25
sub13204-71011
main13205-54012i198308-198310
U/S 0.50
sub13205-54013
main13205-54013i198310-198808
U/S 0.50,U/S 0.50
sub13205-54024
main13205-54024i198808-199807
U/S 0.50,U/S 0.50
main13205-54041i199508-199807
U/S 0.50,U/S 0.50
sub13205-54042
13265BOLT, CONNECTING ROD
main13265-29025i198308-199807
main13265-39025i198601-199807
main13265-54011i198308-198807
sub13265-54020
main13265-54020i198807-199801
sub13265-54021
main13265-54021i199801-199807
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198308-199807
main90170-10005i198308-198807
sub90179-10123
main90170-10198i198601-199807
main90179-10123i198807-199807
13405FLYWHEEL SUB-ASSY
main13405-35021i198803-198903
N=115
main13405-35021i199407-199807
main13405-35030i199407-199807
main13405-39225i198601-198803
N=115
sub13405-35021
main13405-54060i198805-199807
main13405-54070i199508-199807
main13405-54080i199508-199807
main13405-59035i198308-198408
sub13405-54013
sub90105-12109
main13405-59066i198308-198805
main13405-71011i198903-199807
main13405-72011i198903-199807
main13405-79045i198308-198903
sub13405-72011
main13405-79055i198308-198903
sub13405-71011
main13405-79065i198308-199807
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i198308-199807
L=23,OD=8
13405BBOLT, FLYWHEEL SETTING
main90105-10042i198308-199807
main90105-12011i198308-198501
main90105-12109i198501-199807
main90913-01011i198601-199807
*11-1.25PX26-18
13411CRANKSHAFT
main13401-54013i198308-198408
main13401-54030i198308-198805
main13401-54031i198805-199508
main13401-54040i199508-199807
main13401-54060i199508-199608
sub13401-54061
main13401-54061i199608-199807
sub13401-54100
main13411-38010i198601-199807
main13411-71900i198308-199807
main13411-72010i198308-199807
sub13411-72900
main13411-73010i198308-199807
sub13411-73900
13453GEAR, FLYWHEEL RING
main13453-20010i198308-199807
N=115
main13453-54010i198308-199807
13471PULLEY, CRANKSHAFT
main13408-54020i198308-199508
main13408-54080i199508-199608
sub13408-54090
main13408-54090i199608-199807
main13408-71010i198308-199807
main13408-73010i198608-198903
main13470-35020i198601-199807
main13471-54011i198308-198408
main13471-71010i198308-199807
sub13408-71010
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05005i199209-199807
main90280-05010i198308-198609
main95161-10519i198609-199209
main95161-20622i198308-199205
sub95161-30622
main95161-30622i199205-199807
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-14004i198601-199807
main90105-14013i198308-198901
sub90105-14069
main90105-14069i198901-199807
main90119-14005i198308-199508
*14-1.5PX40-31
main90901-19028i199508-199807
13477PULLEY, CRANKSHAFT, NO.2
main13477-38010i198712-199807
main88451-20110i198308-199807
W/COOLER
main88451-35010i198308-198408
W/COOLER
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-33010i198308-199807
N=18
main13521-35010i198601-198903
sub13521-75010
main13521-75010i199407-199807
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05005i199209-199807
main90280-05010i198308-198609
main95161-10519i198609-199209
main95161-20622i198308-199508
sub95161-30622
main95161-30622i199508-199807
13521PPULLEY, CRANKSHAFT TIMING
main13521-54020i198308-199508
main13521-54030i199508-199807
13566AGUIDE, TIMING BELT
main13566-54010i198308-198808
sub13566-54040
main13566-54040i198808-199807
9161160816
main91611-60816

26 parts on this diagram · 4 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
