HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

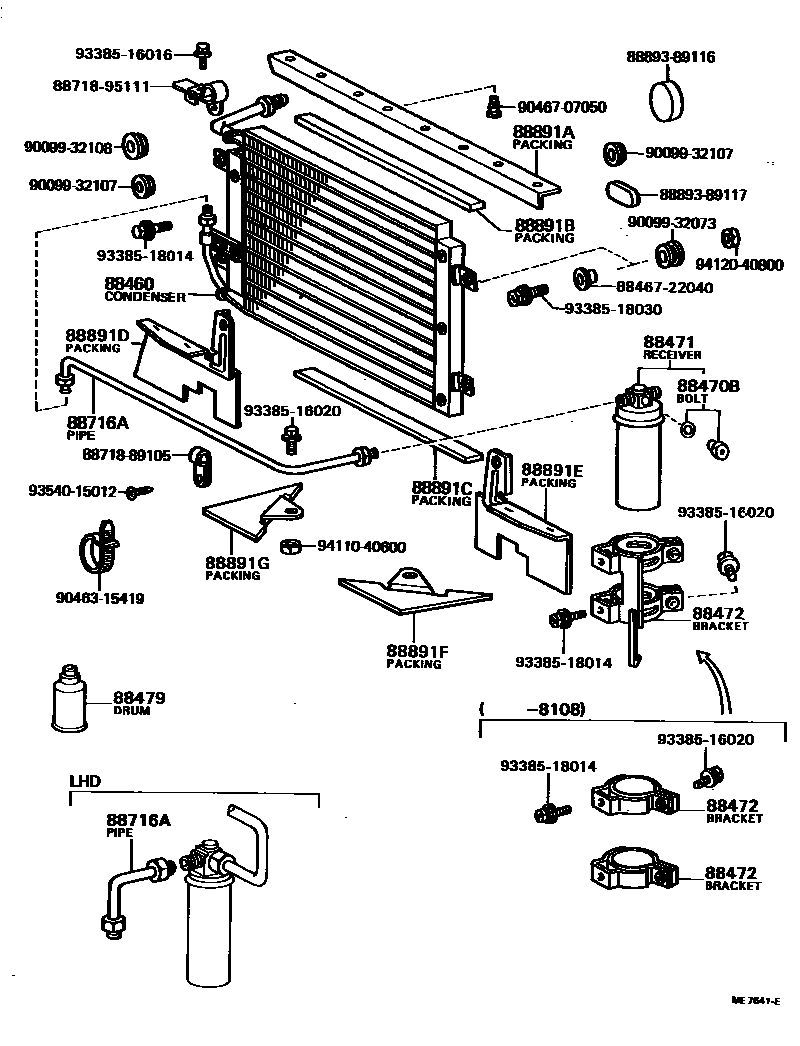

88460CONDENSER ASSY, COOLER

main88460-89107iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA¥34,600197808-198403

88470BBOLT, FUSE

main90099-04579iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA197808-198403

sub88475-12020

88471TANK, RECEIVER AIR CONDITIONER

main88470-12030iRN3#,4#..LHD..(GEN,PHL)¥8,200197808-198108

sub88470-12031¥9,100

main88470-12031iLN46..TW;LN46..IV3;RN46..ARL..CBU;LN3#,40..ARL,GEN;LN46..T1..GEN..CBU¥9,100198108-198403

main88470-20070iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(GEN,SA);RN3#,40,41..RHD..(ARL,GEN,SA)¥7,800197808-198403

88472BRACKET, RECEIVER TANK, NO.1

main88472-89103iRN30,31,40,41..ARL,GEN,PHL,SA197901-198108

main88472-89104iRN30,31,40,41..ARL,GEN,PHL,SA197808-198108

main88472-89106iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(GEN,SA);RN3#,40,41..RHD..(ARL,GEN,SA)198108-198403

main88472-89107iLN46..TW..ARL;LN46..RHD..IV3;RN46..ARL..CBU;LN46..RHD..GEN..CBU;LN3#,40..RHD..(ARL,GEN)198108-198403

main88472-89108iLN3#,4#,RN3#,4#..LHD..(GEN,ME)198108-198307

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA197808-198403

400G

sub90986-02004

sub90986-02005

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-89119iLN3#,4#,RN3#,4#..RHD..(ARL,GEN,SA)¥4,650197808-198403

main88716-89120iLN3#,4#,RN3#,4#..LHD..(GEN,PHL)197808-198307

88891APACKING A (FOR COOLER)

main88893-89113iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA197808-198403

88891BPACKING B (FOR COOLER)

main88893-89114iRN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;RN3#,40,41..ARL,GEN,ME,PHL,SA197808-198403

main88893-89116iLN46..TW..ARL;LN46..RHD..IV3;RN46..ARL..CBU;LN46..RHD..GEN..CBU;LN3#,40..RHD..(ARL,GEN)198108-198403

main88893-89118iLN3#,4#..GEN197909-198307

sub88893-89120

88891CPACKING C (FOR COOLER)

main88893-89115iRN46..ARL..IV3;RN46..GEN,ME,SA;LN46..T1..ARL..CBU;RN3#,40,41..ARL,GEN,ME,PHL,SA197808-198403

main88893-89118iLN3#,4#..GEN197909-198108

sub88893-89120

main88893-89120iLN46..TW;LN46..IV3;RN46..ARL..CBU;LN3#,40..ARL,GEN;LN46..T1..GEN..CBU198108-198403

88891DPACKING D (FOR COOLER)

main88898-89109iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA197808-198403

88891EPACKING E (FOR COOLER)

main88898-89110iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA197808-198403

88891FPACKING F (FOR COOLER)

main88898-89112iRN30,40..ARL,GEN,ME,SA197808-198403

main88898-89114iLN46..TW;LN46..T1..IV3;RN46..ARL..CBU;LN3#,40..ARL,GEN;LN46..T1..GEN..CBU197909-198403

88891GPACKING G (FOR COOLER)

main88898-89111iRN30,40..ARL,GEN,ME,SA197808-198403

main88898-89115iLN46..TW;LN46..T1..IV3;RN46..ARL..CBU;LN3#,40..ARL,GEN;LN46..T1..GEN..CBU197909-198403

8846722040CUSHION, COOLER CONDENSER, NO.1

main88467-22040

8871889105PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-89105

8871895111PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95111

8889389116COLLAR (FOR COOLER IDLER PULLEY)

main88893-89116

8889389117COLLAR (FOR COOLER IDLER PULLEY)

main88893-89117

9009932073

main90099-32073

9009932107

main90099-32107

9009932108

main90099-32108

9046315419

main90463-15419¥540

9046707050

main90467-07050¥170

9338516016

main93385-16016¥80

9338516020

main93385-16020¥130

9338518014

main93385-18014¥160

9338518030

main93385-18030

9354015012

main93540-15012¥70

9411040600

main94110-40600¥80

9412040800

main94120-40800¥90
