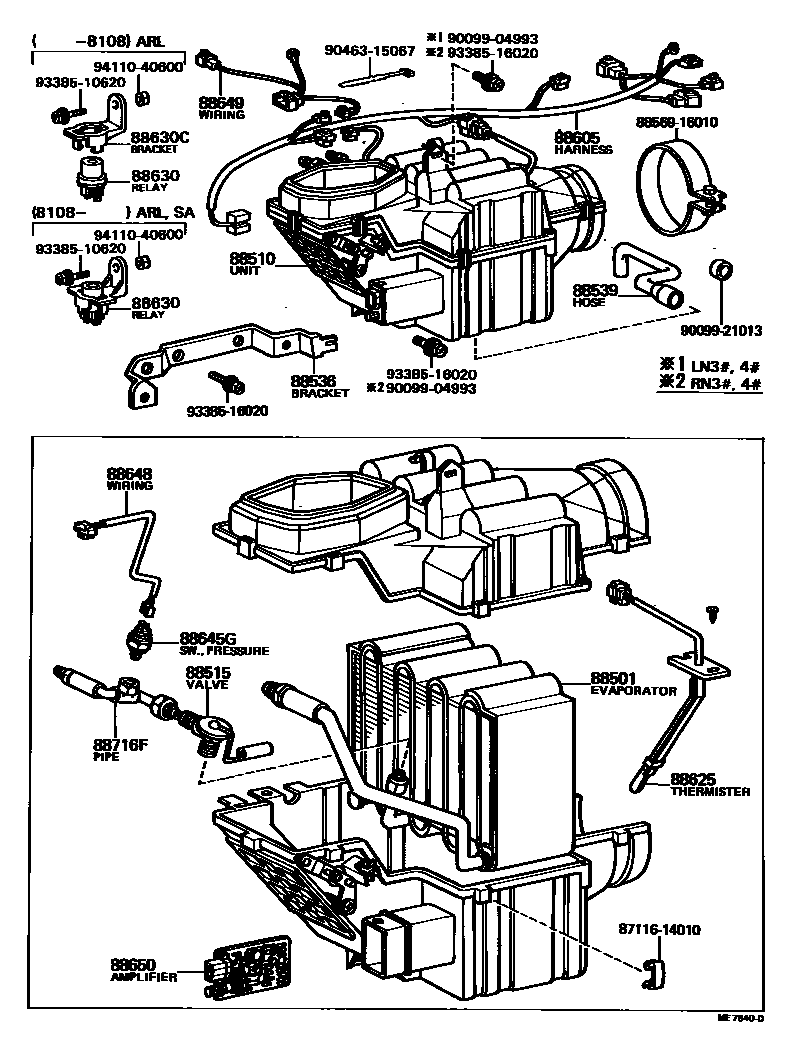

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-89101iRN46..RHD..IV3;RN46..RHD..GEN..CBU;RN3#,40,41..RHD..(ARL,GEN,SA)197808-197903

sub88501-89103

main88501-89102iRN3#,4#..LHD..(GEN,PHL)197808-197903

sub88501-89104

main88501-89103iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(GEN,SA);RN3#,40,41..RHD..(ARL,GEN,SA)197903-198403

sub88501-89108

main88501-89104iRN3#,4#..LHD..(GEN,ME)197903-198307

88510UNIT ASSY, COOLER

main88510-89109iRN46..RHD..IV3;RN46..RHD..GEN..CBU;RN3#,40,41..RHD..(ARL,GEN,SA)197808-197903

sub88510-89111

main88510-89110iRN3#,4#..LHD..(GEN,PHL)197808-197903

sub88510-89112

main88510-89111iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(GEN,SA);RN3#,40,41..RHD..(ARL,GEN,SA)197903-198403

main88510-89112iRN3#,4#..LHD..(GEN,ME)197903-198307

88515VALVE, COOLER EXPANSION

main88515-20040iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA197808-198403

sub88515-16031

88536BRACKET, COOLING UNIT, NO.1

main88536-89120iLN46..TW..ARL;LN46..RHD..IV3;RN46..ARL..CBU;LN46..RHD..GEN..CBU;LN3#,40..RHD..(ARL,GEN)197808-198403

main88536-89121iRN3#,4#..LHD..(GEN,ME)197808-198307

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-89101iLN46..TW..ARL;LN46..RHD..IV3;RN46..ARL..CBU;LN46..RHD..GEN..CBU;LN3#,40..RHD..(ARL,GEN)197808-198403

main88539-89102iRN3#,4#..LHD..(GEN,PHL)197808-198307

main88539-89103iLN3#,4#..LHD..GEN197909-198307

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-89110iRN46..RHD..IV3;RN46..RHD..GEN..CBU;RN3#,40,41..RHD..(ARL,GEN,SA)197808-198108

main88605-89111iRN3#,4#..LHD..(GEN,PHL)197808-198108

main88605-89113iRN30,31,40,41..ARL197903-198108

main88605-89114iLN3#,4#..RHD..GEN197909-198108

main88605-89115iLN3#,4#..LHD..GEN197909-198108

main88605-89118iRN30,40,41..SA198108-198312

W/CYCLONE AIR CLEANER

main88605-89118iRN3#,4#..GEN,ME198108-198403

main88605-89119iRN46..SA198108-198307

main88605-89120iLN46..TW;LN46..IV3;RN46..ARL..CBU;LN3#,40..ARL,GEN;LN46..T1..GEN..CBU198108-198403

88625THERMISTOR, COOLER, NO.1

main88626-89101iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA197808-198403

88630RELAY ASSY, COOLER

main88630-60020iRN46..SA198108-198403

main90987-02001iRN30,31,40,41..ARL197808-198108

sub90999-99089

88630CBRACKET, COOLER RELAY

main85999-26010iRN30,31,40,41..ARL197808-198108

88645GSWITCH, PRESSURE

main88645-22010iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA197808-198403

sub88645-30250

88648WIRING, COOLER, NO.1

main88648-12110iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA197808-198403

88649WIRING, COOLER, NO.2

main88648-89103iLN30,40..GEN197909-198108

main88649-89113iRN30,31,40,41..ARL197808-197903

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20100iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA197808-198403

sub88650-14051

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-89124iLN3#,4#..RHD..GEN197808-198403

main88716-89125iLN3#,4#,RN3#,4#..LHD..(GEN,PHL)197808-198307

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8856916010CLAMP (FOR COOLER RELAY)

main88569-16010

9009904993

main90099-04993

9009921013

main90099-21013

9046315067

main90463-15067

9338510620

main93385-10620

9338516020

main93385-16020

9411040600

main94110-40600

22 parts on this diagram · 1 diagram in section
