RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

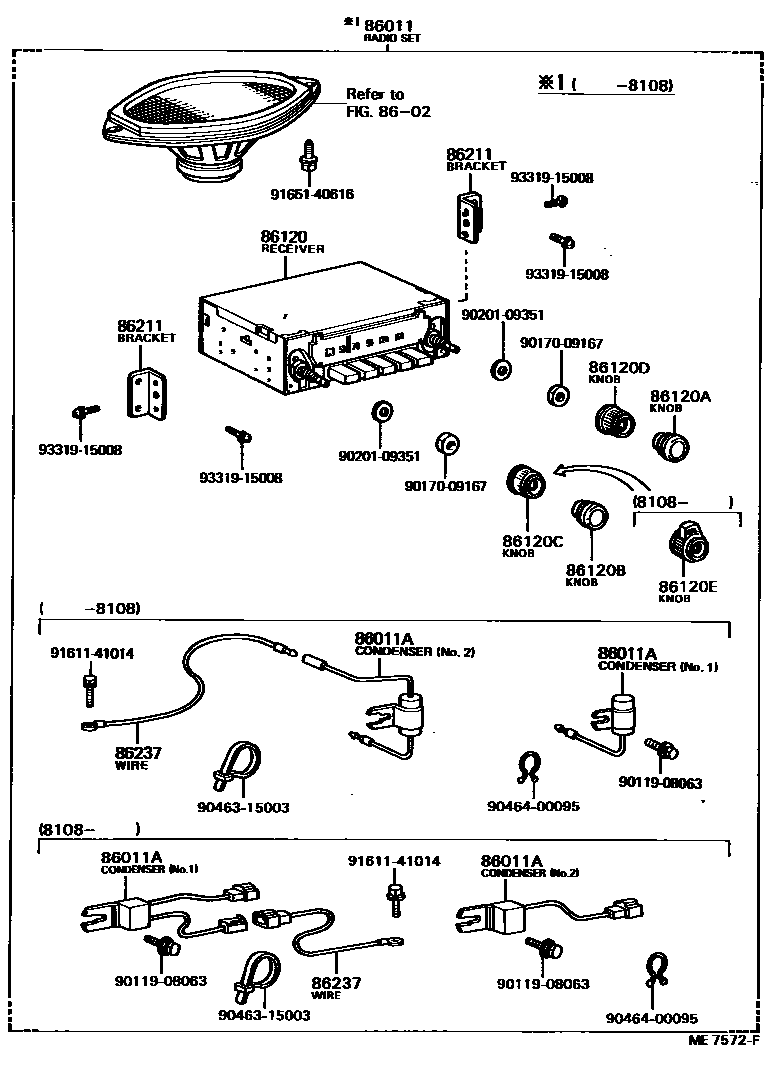

86011RADIO & SETTING PARTS SET

main86011-39035iLN3#,4#,RN41;RN3#,40,46..ARL,GEN,PHL197808-198108

AM

main86011-39055iLN30,40,RN41;RN30,31,40..T1..(ARL,GEN,PHL)197808-198108

AM/FM

86011ACONDENSER, RADIO SETTING

main90980-04011iLN40;LN3#,46,RN3#,4#..ARL,GEN,PHL197808-198108

NO.1

main90980-04029iRN46..GEN;RN46..ARL..IV3;RN3#,40,41..ARL,GEN,PHL197808-198108

NO.2

main90980-04038iRN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198108-198307

NO.1

main90980-04038iRN3#,40,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198108-198307

NO.1,LW/MW/UKW,W/ARI

main90980-04038iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198208-198307

NO.1,W/AM/FM MULTIPLEX

main90980-04040iLN3#,4#,RN3#,4#198108-198403

NO.2

main90980-04040iLN3#,4#,RN3#,4#198108-198307

NO.2,COLD SPEC OR W/ARI

8602

86120RECEIVER ASSY, RADIO

main86120-89106iRN30,40..T1..(ARL,GEN,PHL)197808-198108

AM/FM

main86120-89118iLN40,RN41..RHD..SR5..(ARL,GEN)198209-198403

AM/FM MULTIPLEX

main86120-90A00iRN31..ECB;RN41..SR5..(GEN,SA)..ECB;LN3#,4#,RN30,36,4#..DLX,STD198108-198307

AM

main86120-90A05iLN40,RN31,41..RHD..SR5..(ARL,GEN)198108-198209

AM/FM MULTIPLEX

sub86120-89118

main86120-95704iLN36,46,RN36,46..LHD..EUR198108-198307

LW/MW/UKW,W/ARI

sub86120-90A06

main86120-95A00iLN3#,4#,RN41;RN3#,40,46..ARL,GEN,PHL197808-198108

AM

main86120-95A03iRN3#,4#..GEN197808-198108

SW/MW

main86120-95A08iLN3#,4#,RN30,36,40,46..(DLX,STD)..(GEN,ME)198108-198307

MW/SW

main86120-95A09iLN4#,RN40,46..RHD..EUR198108-198307

LW/AM

86120AKNOB, RADIO RECEIVER SWITCH

main86125-12011iLN36,46,RN36,46..LHD..EUR198108-198307

LW/MW/UKW,W/ARI

main86125-89101iLN3#,4#,RN3#,4#198108-198403

main86125-95A00iLN3#,4#,RN41;RN3#,40,46..ARL,GEN,PHL197808-198108

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86125-12011iLN36,46,RN36,46..LHD..EUR198108-198307

LW/MW/UKW,W/ARI

main86125-89101iLN3#,4#,RN3#,4#198108-198403

main86125-95A00iLN3#,4#,RN41;RN3#,40,46..ARL,GEN,PHL197808-198108

86120CKNOB, RADIO RECEIVER TUNING, NO.2

main86124-12010iLN36,46,RN36,46..LHD..EUR198108-198307

LW/MW/UKW,W/ARI

main86124-89104iRN31..ECB;RN41..SR5..(GEN,SA)..ECB;LN3#,4#,RN30,36,4#..DLX,STD198108-198307

main86124-95A00iLN3#,4#,RN41;RN3#,40,46..ARL,GEN,PHL197808-198108

86120DKNOB, RADIO RECEIVER TONE

main86124-12010iLN36,46,RN36,46..LHD..EUR198108-198307

LW/MW/UKW,W/ARI

main86124-89104iLN3#,4#,RN3#,4#198108-198403

main86124-95A00iLN3#,4#,RN41;RN3#,40,46..ARL,GEN,PHL197808-198108

86120EKNOB, RADIO RECEIVER BALANCE

main86124-89102iLN3#,4#,RN3#,4#..LHD..GEN198108-198403

W/AM/FM MULTIPLEX

86211BRACKET, RADIO, NO.1

main86211-89104iLN3#,4#,RN41;RN3#,40,46..ARL,GEN,PHL197808-198108

main86211-89107iLN3#,4#,RN3#,4#198108-198307

W/AM,LW/AM,MW/SW,AM/FM MULTI

main86211-89107iLN40..SR5198307-198403

main86211-95111iLN36,46,RN36,46..LHD..EUR198108-198307

W/LW/MW/UKW,W/ARI

86237WIRE, CONDENSER

main86237-89101iRN30,40..ARL,GEN,PHL197808-198108

L=450

main86237-89102iRN46..GEN;RN46..ARL..IV3;RN31,36,41..ARL,GEN197808-198108

L=310

main86237-89103iRN30,40198108-198307

main86237-89104iRN31,36,41;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198108-198312

AM,LW/AM,LW/MW/UKW W/ARI

main86237-89104iLN36,46..LHD..EUR198108-198307

LW/MW/UKW W/ARI

main86237-89104iLN3#,4#,RN3#,4#..LHD..GEN198208-198307

W/AM/FM MULTIPLEX

9011908063

main90119-08063

9017009167

main90170-09167

9020109351

main90201-09351

9046315003

main90463-15003

9046400095

main90464-00095

9161141014

main91611-41014

9165140616

main91651-40616

9331915008

main93319-15008

19 parts on this diagram · 2 diagrams in section
