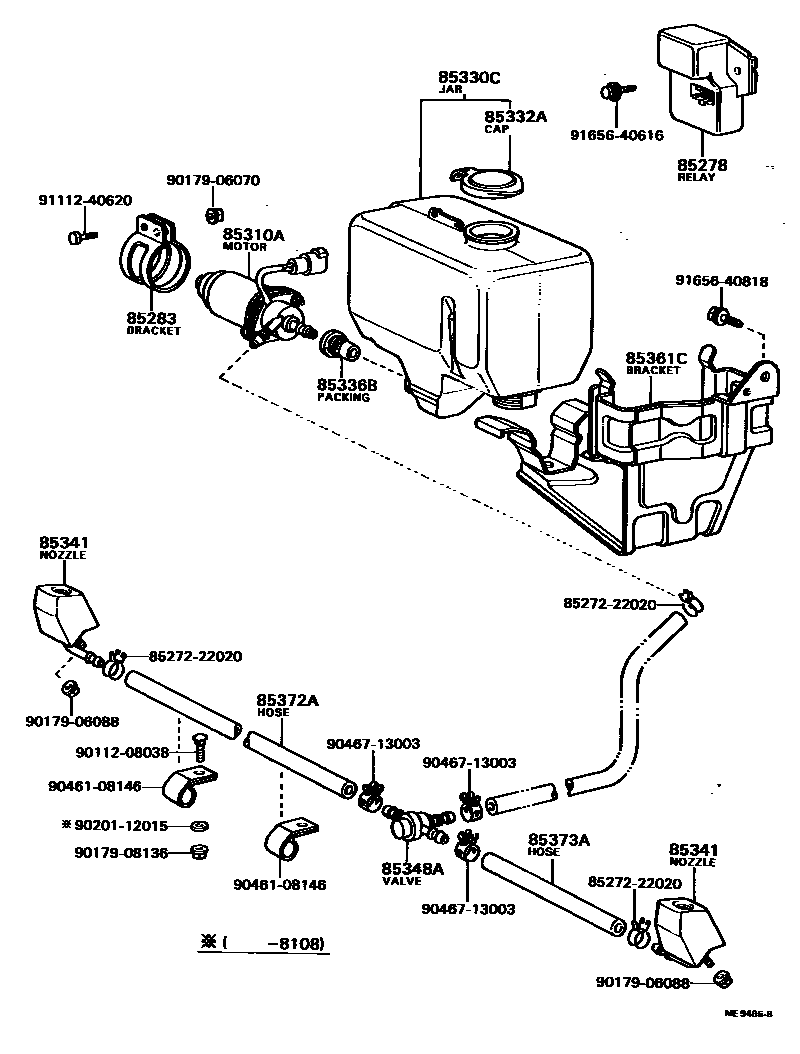

HEADLAMP CLEANER

0001 1 0002 1

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14010iLN36,4#,RN30,40..LHD..EUR198008-198307

85283BRACKET, HEADLAMP CLEANER WASHER

main85361-14100iLN36,4#,RN30,40..LHD..EUR198008-198307

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-10090iLN40..5F..ECB..CBU198008-198307

main85310-22070iRN30,40..4F..EUR198008-198108

85330CJAR ASSY, HEADLAMP CLEANER WASHER

main85330-22120iLN36,4#,RN30,40..LHD..EUR198008-198307

85332ACAP, HEADLAMP CLEANER WASHER JAR

main85332-16010iLN36,4#,RN30,40..LHD..EUR198008-198307

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iLN36,4#,RN30,40..LHD..EUR198008-198307

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-89103iLN40,RN30,40..LHD..EUR198008-198108

main85035-89104iLN40,RN30,40..LHD..EUR198108-198307

main85035-95110iLN36,46..LHD..EUR198108-198307

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85031-12010iLN36,4#,RN30,40..LHD..EUR198008-198307

85361CBRACKET, WASHER

main53752-89104iRN30,40..4F..EUR198008-198307

main53752-89105iLN40..5F..EUR198008-198307

main53752-95110iLN36,46..LHD..EUR198108-198307

85372AHOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)

main90445-14061iLN36,4#,RN30,40..LHD..EUR198008-198307

L=1320(*H,L=990)

sub90445-14072

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main90445-14048iLN36,46..LHD..EUR198108-198307

L=150

sub90445-14059

main90445-14059iLN40,RN30,40..LHD..EUR198008-198307

L=190

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

9011208038

main90112-08038

9017906070

main90179-06070

9017906088

main90179-06088

9017908136

main90179-08136

9020112015

main90201-12015

9046108146

main90461-08146

9046713003

main90467-13003

9111240620

main91112-40620

9165640616

main91656-40616

9165640818

main91656-40818

22 parts on this diagram · 2 diagrams in section
