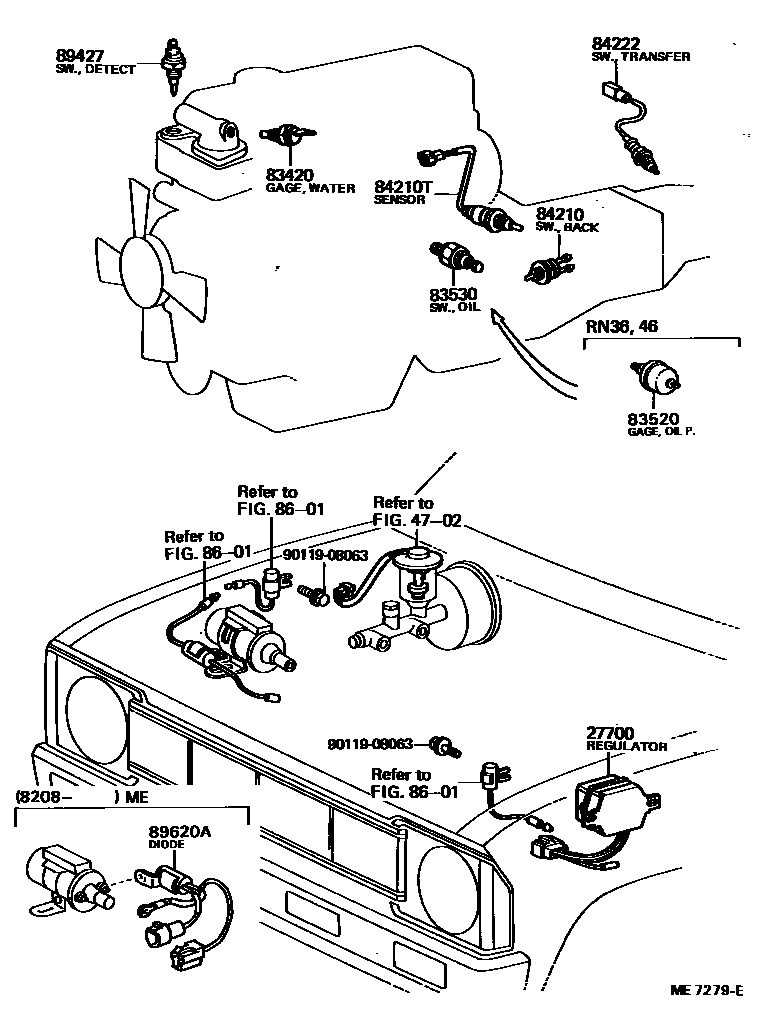

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

27700REGULATOR ASSY, GENERATOR

main27700-13010iL,12R#,18R..LN3#,4#,RN3#,4#197808-198108

sub27700-36020

main27700-13050iL,12R#,18R..LN3#,4#,RN3#,4#198108-198403

4702

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iLN3#,4#,RN3#,4#197912-198403

DENSO

sub83420-20020

main83420-20011iRN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41197808-197912

main83420-20020iLN3#,4#,RN3#,4#197912-198403

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-55010iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198108

sub83520-55011

main83520-55011iRN36,46..EUR,GEN,SA198108-198307

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14010iLN3#,4#,RN3#,4#198202-198403

sub83530-14030

main83530-36011iLN3#,4#,RN3#,4#197808-198202

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-10060iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198206

main84210-14010iRN31,41..SR5197808-198312

main84210-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main84210-35010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198206-198302

sub84210-10060

main84210-35020iLN30..5F;LN40..RHD..(5F,5H);LN40..LHD..5F..GEN198208-198403

sub84210-16021

main84210-60021iLN40..5F..EUR198208-198307

84210TSENSOR ASSY, SHIFT POINT

main84220-35011iRN30,40..4F..EUR197808-198307

main84220-35040iRN40..GEN..ECB..IV3;RN30,40..4H..RCB..CBU197808-198202

HONG KONG SPEC

sub84220-35020

main84220-35040iRN40..4H..EUR198108-198307

NEW SOUTH WALES SPEC

sub84220-35020

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35011iLN36,46,RN36,46197901-198202

sub84222-35012

main84222-35012iLN36,46,RN36,46198202-198307

8601

89427SWITCH, TEMPERATURE DETECT

main89428-12030iRN30,40..EUR197808-198307

main89428-12030iRN40..GEN..ECB..IV3;RN30,40..4H..RCB..CBU197808-198202

HONG KONG SPEC

main89428-26010iRN30,40..ARL197808-198307

NEW SOUTH WALES SPEC

89620ADIODE, IGNITION COIL

main90919-14011iRN30,31,40,41..ME198208-198307

9011908063

main90119-08063

12 parts on this diagram · 8 diagrams in section
