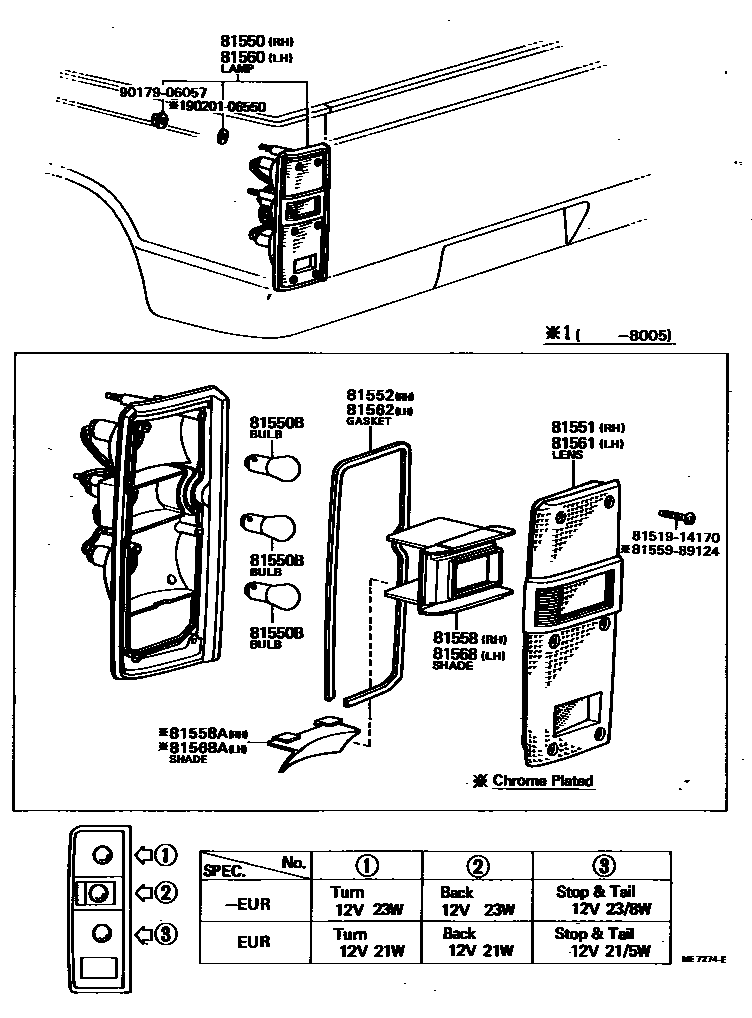

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-29407iLN30,40,RN30,31,40,41..GEN¥10,100198201-198403

HORIZONTAL TYPE

main81550-39495iRN46..ARL..IV3;LN40,RN3#,40,41..ARL¥11,200197808-198008

PAINTED

main81550-39505iLN30,40,RN3#,4#..GEN,PHL,SA¥11,200197808-198008

PAINTED

main81550-39515iRN30,36,40,46..EUR¥12,400197808-198008

PAINTED

main81550-39585iRN3#,4#..LHD..GEN¥15,800197908-198008

CHROME PLATED

sub81550-39645¥13,200

main81550-39605iLN4#,RN3#,4#..ARL¥12,200198008-198307

PAINTED

main81550-39615iLN36,4#,RN30,36,40,46..EUR¥13,200198008-198307

PAINTED

main81550-39625iRN31,41..SR5..GEN..ECB..CBU¥12,100198008-198403

PAINTED

main81550-39645iRN31,41..LHD..DLX..CBU¥13,200198008-198307

CHROME PLATED

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLN36,4#,RN30,36,40,46..EUR¥170197808-198307

12V 21W,12V 21W

main99132-11230iLN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA197808-198403

12V 23W,12V 23W

main99132-21210iLN30,40,RN30,31,40,41..GEN¥190198201-198403

12V 21/5W,12V 21/5W,HORIZONTAL TYPE

main99132-21210iLN36,4#,RN3#,4#..ARL,EUR¥190197808-198307

12V 21/5W,12V 21/5W

main99132-21230iLN3#,4#,RN3#,4#..GEN,ME,PHL,SA197808-198403

12V 23/8W,12V 23/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLN30,40,RN30,31,40,41..GEN¥1,860198201-198403

HORIZONTAL TYPE

main81551-89121iLN36,4#,RN30,36,40,46..EUR¥4,180197808-198307

PAINTED

main81551-89122iLN3#,4#,RN3#,4#..ARL,GEN,PHL,SA¥3,590197808-198403

PAINTED

sub81551-89121¥4,180

main81551-89123iLN36,46,RN36,46..(GEN,ME)..CBU¥3,790197908-198307

CHROME PLATED

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-89122iLN3#,4#,RN3#,4#¥470197808-198403

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iLN30,40,RN30,31,40,41..GEN¥750198201-198403

HORIZONTAL TYPE

main81557-89122iLN3#,4#,RN3#,4#¥280197808-198403

PAINTED

main81557-89124iLN36,46,RN3#,4#..LHD..GEN..CBU¥300197908-198307

CHROME PLATED

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81557-25060iLN30,40,RN30,31,40,41..GEN¥750198201-198403

HORIZONTAL TYPE

main81557-89123iLN30,40,RN30,40..LHD..(GEN,ME)¥300197908-198307

CHROME PLATED

81560LAMP ASSY, REAR COMBINATION, LH

main81560-29397iLN30,40,RN30,31,40,41..GEN¥10,100198201-198403

HORIZONTAL TYPE

main81560-39465iRN46..ARL..IV3;LN40,RN3#,40,41..ARL¥11,200197808-198008

PAINTED

main81560-39475iLN30,40,RN3#,4#..GEN,PHL,SA¥11,200197808-198008

PAINTED

main81560-39485iRN30,36,40,46..EUR¥12,300197808-198008

PAINTED

main81560-39545iRN3#,4#..LHD..GEN¥15,800197908-198008

CHROME PLATED

sub81560-39605¥13,200

main81560-39565iLN4#,RN3#,4#..ARL¥12,200198008-198307

PAINTED

main81560-39575iLN36,4#,RN30,36,40,46..EUR¥13,200198008-198307

PAINTED

main81560-39585iRN41..SR5..IV3;LN3#,4#,RN3#,4#..(DLX,STD)..(GEN,PHL,SA)¥12,100198008-198403

PAINTED

main81560-39605iRN31,41..LHD..DLX..CBU¥13,200198008-198307

CHROME PLATED

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLN30,40,RN30,31,40,41..GEN¥1,860198201-198403

HORIZONTAL TYPE

main81561-89121iLN36,4#,RN30,36,40,46..EUR¥4,180197808-198307

PAINTED

main81561-89122iLN3#,4#,RN3#,4#..ARL,GEN,PHL,SA¥3,590197808-198403

PAINTED

sub81561-89121¥4,180

main81561-89123iRN31,41..RCB¥3,790197908-198307

CHROME PLATED

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-89122iLN3#,4#,RN3#,4#¥470197808-198403

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLN30,40,RN30,31,40,41..GEN¥750198201-198403

HORIZONTAL TYPE

main81557-89122iLN3#,4#,RN3#,4#¥280197808-198403

PAINTED

main81557-89124iLN36,46,RN3#,4#..LHD..GEN..CBU¥300197908-198307

CHROME PLATED

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81557-25060iLN30,40,RN30,31,40,41..GEN¥750198201-198403

HORIZONTAL TYPE

main81567-89120iRN40..GEN..ECB..IV3197908-198307

CHROME PLATED

8151914170BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-14170¥220

8155989124MOULDING, REAR COMBINATION LAMP, RH

main81559-89124¥230

9017906057

main90179-06057¥210

9020106550

main90201-06550¥180

15 parts on this diagram · 2 diagrams in section
