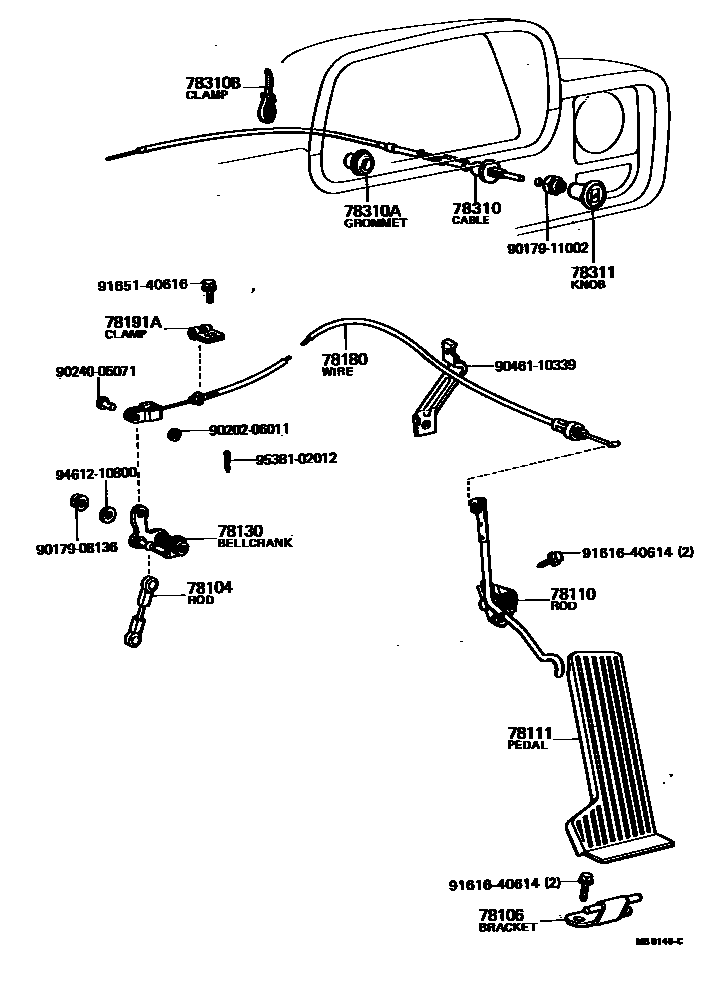

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-20041iRN30,40..LHD197808-198307

main78104-30100iLN30,40197909-198101

main78104-89104iRN30,40..RHD197808-198403

main78104-89105iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198101-198403

78106BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT

main78011-89101iLN36,46..LHD197808-198403

main78011-95110iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198307

78110ROD ASSY, ACCELERATOR PEDAL

main78120-89101iRN30,31,40,41..RHD197808-198403

main78120-89102iRN30,31,40,41..LHD197808-198307

main78120-89105iLN30,40..RHD197909-198403

main78120-89106iLN30,40..LHD197909-198008

main78120-89109iLN30,40..LHD198008-198307

main78120-95110iRN46..RHD..GEN;RN46..ARL..IV3;RN36..RHD..(ARL,GEN)197901-198104

W/THROTTLE KNOB

main78120-95117iRN36..RHD;RN46..ARL..IV3;RN46..RHD..(EUR,GEN)197901-198307

sub78120-95110

main78120-95118iRN36,46..LHD197901-198307

sub78120-95119

main78120-95119iRN36,46..LHD..GEN197901-198307

W/THROTTLE KNOB

main78120-95122iRN36,46..RHD..EUR197901-198103

COLD SPEC

sub78120-95130

main78120-95123iRN36,46..LHD..EUR197901-198307

COLD SPEC

main78120-95127iLN36,46..LHD198103-198307

main78120-95128iLN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN)198103-198307

main78120-95128iRN46..RHD..GEN;RN46..ARL..IV3;RN36..RHD..(ARL,GEN)198104-198307

W/THROTTLE KNOB

main78120-95130iLN46,RN36,46..RHD..EUR198103-198307

COLD SPEC

main78120-95131iLN36,46..LHD..EUR198108-198307

COLD SPEC

78111PEDAL, ACCELERATOR

main78010-95111iLN36,46,RN36,46..EUR197901-198111

COLD SPEC

sub78010-95113

main78010-95113iLN36,46,RN36,46..EUR198111-198307

COLD SPEC

main78111-89102iLN3#,4#,RN3#,4#197808-198111

sub78111-89103

main78111-89103iLN3#,4#,RN3#,4#198111-198403

78130BELLCRANK ASSY, ACCELERATOR

main78130-89108iRN30,40..RHD197808-198403

78180WIRE ASSY, ACCELERATOR

main78180-89117iRN30,40..RHD197808-198403

main78180-89118iRN31,41..RHD197808-198312

main78180-89122iLN30,40..RHD197909-198101

main78180-89123iLN30,40..LHD197909-198101

main78180-89126iLN30,40..LHD198101-198307

main78180-89127iLN30,40..RHD198101-198403

main78180-95113iRN36..RHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(EUR,GEN,SA)197901-198307

main78180-95118iLN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN)198103-198112

main78180-95119iLN36,46..LHD198103-198112

main78180-95120iLN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN)198112-198307

main78180-95121iLN36,46..LHD198112-198307

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main90461-08148iRN30,40..RHD197808-198403

main90461-10287iLN30,40197909-198307

main90461-10357iRN36..RHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(EUR,GEN,SA)197901-198307

SUPPORT CABLE

main90461-10559iLN30,40198101-198403

main90463-08235iRN36..RHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(EUR,GEN,SA)198001-198307

BRAKE CABLE,TANDEM

main90463-15002iRN36,46..RHD..GEN197901-198307

BRAKE CABLE

78310CABLE ASSY, CHOKE

main78310-89109iRN30,40..RHD197808-198403

main78310-89110iRN30,40..LHD197808-198307

78310AGROMMET, CHOKE CABLE

main90480-15001iRN30,40197808-198403

78310BCLAMP, CHOKE CABLE

main90461-08363iRN30,40..LHD197808-198307

main90463-12002iRN30,40..RHD197808-198403

78311KNOB, CHOKE CONTROL CABLE

main78311-89101iRN30,40197808-198008

sub78311-89102

main78311-89102iRN30,40198008-198403

9017908136

main90179-08136

9017911002

main90179-11002

9020206011

main90202-06011

9024005071

main90240-05071

9046110339

main90461-10339

9161640614

main91616-40614

9165140616

main91651-40616

9461210800

main94612-10800

9538102012

main95381-02012

20 parts on this diagram · 10 diagrams in section
