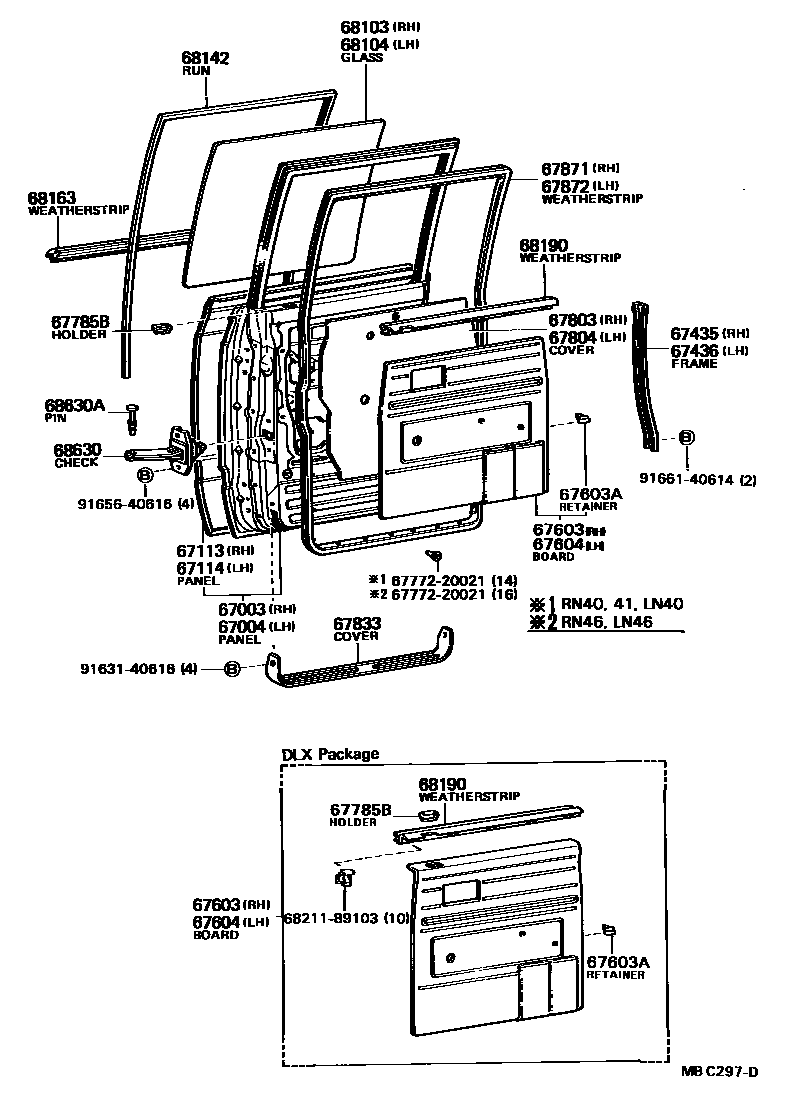

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
sub67003-92300
67004PANEL SUB-ASSY, REAR DOOR, LH
sub67004-92300
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67435FRAME, REAR DOOR WINDOW LOWER, RH
67436FRAME, REAR DOOR WINDOW, LOWER LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DLX PACKAGE,BLACK,BLACK,TRIM2#
DLX PACKAGE,BLUE,BLUE,TRIM8#
DLX PACKAGE,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DLX PACKAGE,BLACK,BLACK,TRIM2#
DLX PACKAGE,BLUE,BLUE,TRIM8#
DLX PACKAGE,BROWN,BROWN,TRIM4#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DLX PACKAGE,BLACK,BLACK,TRIM2#
DLX PACKAGE,BLUE,BLUE,TRIM8#
DLX PACKAGE,BEIGE,BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DLX PACKAGE,BLACK,BLACK,TRIM2#
DLX PACKAGE,BLUE,BLUE,TRIM8#
DLX PACKAGE,BROWN,BROWN,TRIM4#
67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)
DLX PACKAGE
67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67833COVER, REAR DOOR SERVICE HOLE
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=4.0,*TT,T=4.0
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=4.0,*TT,T=4.0
68142RUN, REAR DOOR GLASS
68163WEATHERSTRIP, REAR DOOR GLASS, OUTER
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
RH
LH
68630CHECK ASSY, REAR DOOR
68630APIN(FOR REAR DOOR CHECK)
sub68617-12010
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
6821189103CHANNEL, DOOR WINDOW SET(FOR CANVAS DOOR)
main68211-89103
9163140616
main91631-40616
9165640616
main91656-40616
9166140614
main91661-40614
27 parts on this diagram · 1 diagram in section
