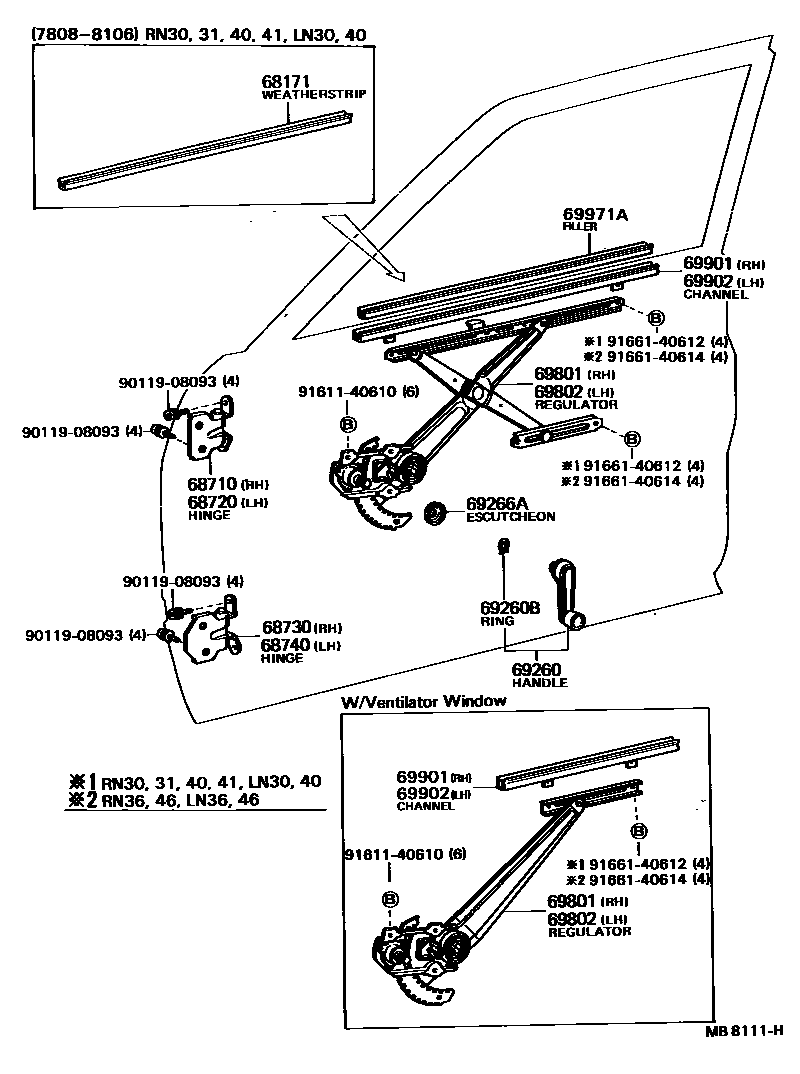

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68173-89102iRN30,31,40,41..EUR,GEN,PHL197808-198106

W/O *VW

sub69971-89102

main68173-89103iLN30,40,RN30,31,40,41..ARL,GEN,PHL,SA197808-198106

W/*VW

sub69971-89101

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-14020iLN3#,4#,RN3#,4#197808-198403

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-14020iLN3#,4#,RN3#,4#197808-198403

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-14020iLN3#,4#,RN3#,4#197808-198403

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-14020iLN3#,4#,RN3#,4#197808-198403

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-01iLN3#,4#,RN3#,4#197808-198403

BLACK,BLACK,TRIM2#

sub69260-10040

sub69260-16010

main69260-10040-04iLN3#,4#,RN3#,4#197808-198403

BLUE,BLUE,TRIM8#

sub69260-10040

sub69260-16010

main69260-10040-05iLN3#,4#,RN3#,4#..STD197808-198403

BEIGE,BEIGE,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-06iLN40,RN3#,4#..DLX,SR5198108-198403

BROWN,BROWN,TRIM4#

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLN3#,4#,RN3#,4#197808-198403

sub90520-01274

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010iLN3#,4#,RN3#,4#197908-198403

main69266-22010-01iRN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3197808-197908

BLACK,BLACK,TRIM2#

sub69266-22010

main69266-22010-04iRN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3197808-197908

BLUE,BLUE,TRIM8#

sub69266-22010

main69266-22010-05iRN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3197808-197908

BEIGE,BEIGE,TRIM4#

sub69266-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-89105iLN3#,4#,RN3#,4#..EUR,GEN,PHL197808-198403

W/O *VW

main69801-89106iLN3#,4#,RN3#,4#..ARL,GEN,PHL,SA197808-198312

W/*VW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-89105iLN3#,4#..EUR,GEN,SA197808-198403

W/O *VW

main69802-89106iLN30,40,RN30,4#..ECB197808-198312

W/*VW

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-89105iLN3#,4#,RN3#,4#..EUR,GEN,PHL197808-198403

W/O *VW

main69901-89106iLN3#,4#,RN30,36,40,46..ARL,GEN,ME,PHL,SA197808-198312

W/*VW

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-89105iRN3#,4#..EUR,GEN,PHL197808-198403

W/O *VW

main69901-89106iLN3#,4#,RN3#,4#..ARL,GEN,PHL,SA197808-198312

W/*VW

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-89101iRN31,41..ECB198106-198209

W/*VW

sub69971-89102

main69971-89102iLN30,40..EUR,GEN,SA198106-198209

W/O *VW

main69971-95110iLN36,46,RN36,46..EUR,GEN197901-198403

W/O *VW

sub69971-90K00

main69971-95111iLN3#,4#,RN30,36,40,46..ARL,GEN,ME,PHL,SA197901-198312

W/*VW

sub68173-22010

9011908093

main90119-08093

9161140610

main91611-40610

9166140612

main91661-40612

9166140614

main91661-40614

17 parts on this diagram · 1 diagram in section
