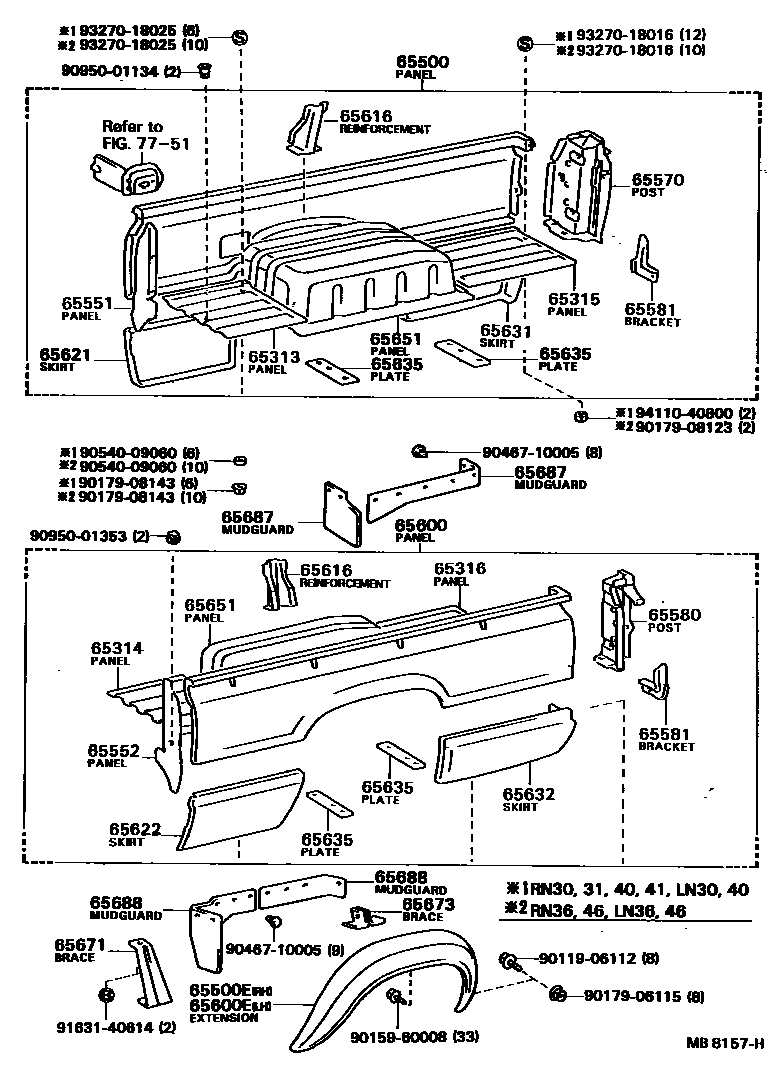

REAR BODY SIDE PANEL

0001 1 0002 1

65313PANEL, FLOOR FRONT CORNER, RH

main65313-89108iLN30,RN30,31..RCB..CBU197808-198403

main65313-89109iLN3#,RN3#..ECB..CBU197808-198312

main65313-89110iLN40,RN40,41..RCB..CBU197808-198403

main65313-89111iLN4#,RN4#..T1..ECB..CBU197808-198312

65314PANEL, FLOOR FRONT CORNER, LH

main65314-89110iLN30,RN30..RCB197808-198403

main65314-89111iLN3#,RN3#..ECB..CBU197808-198312

main65314-89112iLN40,RN40,41..RCB..CBU197808-198403

main65314-89113iLN4#,RN4#..T1..ECB..CBU197808-198312

65315PANEL, FLOOR REAR CORNER, RH

main65315-89106iLN30,RN3#..CBU197808-198307

sub65315-89109

main65315-89107iRN46..(EUR,GEN)..CBU;LN40,RN40,41..T1..CBU197808-198307

sub65315-89110

main65315-89108iLN40,RN40..TW197901-198108

main65315-89109iLN30,RN30,31..CBU197911-198403

main65315-89110iLN40,RN40,41..T1..CBU197911-198403

main65315-89111iLN40,RN40,41..TW..CBU198108-198307

65316PANEL, FLOOR REAR CORNER, LH

main65316-89106iLN30,RN3#..CBU197808-198307

sub65316-89109

main65316-89107iRN46..(EUR,GEN)..CBU;LN40,RN40,41..T1..CBU197808-198307

sub65316-89110

main65316-89108iLN40,RN40..TW197901-198108

main65316-89109iLN30,RN30,31..CBU197911-198403

main65316-89110iLN40,RN40,41..T1..CBU197911-198403

main65316-89111iLN40,RN40,41..TW..CBU198108-198307

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-89122iLN30,RN30..RCB..CBU197808-198008

sub65500-89138

main65500-89123iLN30,RN30,31..ECB..CBU197808-198008

sub65500-89140

main65500-89127iLN40,RN40..RCB..CBU197808-198008

sub65500-89139

main65500-89129iLN40,RN40,41..T1..ECB..CBU197808-198008

sub65500-89141

main65500-89132iLN40,RN40..TW197901-198008

sub65500-89144

main65500-89138iLN30,RN30,31..RCB..CBU198008-198108

main65500-89139iLN40,RN40,41..RCB..CBU198008-198108

main65500-89140iLN30,RN30,31..ECB..CBU198008-198108

main65500-89141iLN40,RN40,41..T1..ECB..CBU198008-198108

main65500-89144iLN40,RN40..TW198008-198108

main65500-89148iLN30,RN30..RCB198108-198403

main65500-89149iLN30,RN30,31..(EUR,GEN,ME,SA)..ECB..CBU198108-198312

main65500-89150iLN40,RN40,41..RCB..CBU198108-198403

main65500-89151iLN40,RN40,41..T1..(EUR,GEN,ME,SA)..ECB..CBU198108-198312

main65500-89152iRN30,31..ARL198108-198307

main65500-89153iLN40,RN40,41..T1..ARL..CBU198108-198307

main65500-89157iLN40,RN40..TW..(GEN,ME)..CBU198108-198307

main65500-89160iLN40,RN41..TW..ARL198208-198307

main65500-95130iRN36..CBU197901-198008

sub65500-95163

main65500-95131iRN46..T1..(EUR,GEN)..CBU197901-198008

sub65500-95164

main65500-95158iRN46..TW198001-198008

sub65500-95167

main65500-95163iLN36,RN36..CBU198008-198108

main65500-95164iLN46,RN46..T1..CBU198008-198108

main65500-95167iLN46,RN46..TW..CBU198008-198108

main65500-95F03iLN36,RN36..(EUR,GEN,ME)..CBU198108-198307

main65500-95F04iLN46,RN46..T1..(EUR,GEN,ME,SA)..CBU198108-198307

main65500-95F05iLN46,RN46..TW..GEN198108-198307

main65500-95F06iRN36..ARL198108-198307

main65500-95F07iLN46,RN46..T1..ARL..CBU198108-198307

main65500-95F08iLN46..TW..ARL198108-198307

65500EEXTENSION, REAR WHEEL OPENING, RH

main61681-95110-02iRN36..CBU;RN46..T1..(EUR,GEN)..CBU197901-198008

RED,RED/MAROON

sub61681-35901

main61681-95110-04iLN36,46,RN36,46..T1..CBU197901-198208

MIDIUM BLUE,BLUE

sub61681-35901

main61681-95110-05iLN36,46,RN36,46..T1..CBU197909-198108

BEIGE,BEIGE

sub61681-35901

main61681-95110-06iLN36,46,RN36,46..T1..CBU197901-198108

ORANGE,BROWN

sub61681-35901

main61681-95110-07iLN36,46,RN36,46..T1..CBU197901-198108

GREEN,GREEN

sub61681-35901

main61681-95110-08iRN36..CBU;RN46..(EUR,GEN)..CBU197901-197909

WHITE,IVORY

sub61681-35901

main61681-95110-09iLN36,46,RN36,46..T1..CBU197901-198208

YELLOW,YELLOW

sub61681-35901

main61681-95110-14iLN36,46,RN36,46..T1..CBU198208-198307

BLUE,BLUE

sub61681-35901

main61681-95110-15iLN36,46,RN36,46..T1..CBU198108-198208

BEIGE,BEIGE

sub61681-35901

main61681-95110-17iRN36..CBU;RN46..(EUR,GEN)..CBU197901-197906

PURE GREEN,GREEN

sub61681-35901

main61681-95110-18iLN36,46,RN36,46..T1..CBU197909-198208

WHITE,IVORY

sub61681-35901

main61681-95110-19iLN36,46,RN36,46..T1..CBU198208-198307

YELLOW,YELLOW

sub61681-35901

main61681-95110-22iLN36,46,RN36,46..T1..CBU198008-198307

RED,RED/MAROON

sub61681-35901

main61681-95110-27iLN36,46,RN36,46..T1..CBU198108-198307

DARK GREEN,GREEN

sub61681-35901

main61681-95110-28iLN36,46,RN36,46..T1..CBU198208-198307

WHITE,IVORY

sub61681-35901

main61681-95110-29iLN36,46,RN36,46..T1..CBU198208-198307

LIGHT YELLOW,YELLOW

sub61681-35901

main61681-95112-02iRN46..TW198001-198008

RED,RED/MAROON

sub61681-35902

main61681-95112-04iLN46,RN46..TW..CBU198001-198208

MIDIUM BLUE,BLUE

sub61681-35902

main61681-95112-05iLN46,RN46..TW..CBU198001-198108

BEIGE,BEIGE

sub61681-35902

main61681-95112-06iLN46,RN46..TW..CBU198001-198108

ORANGE,BROWN

sub61681-35902

main61681-95112-07iLN46,RN46..TW..CBU198001-198108

GREEN,GREEN

sub61681-35902

main61681-95112-08iLN46,RN46..TW..CBU198001-198208

WHITE,IVORY

sub61681-35902

main61681-95112-09iLN46,RN46..TW..CBU198001-198208

YELLOW,YELLOW

sub61681-35902

main61681-95112-12iLN46,RN46..TW..CBU198008-198307

RED,RED/MAROON

sub61681-35902

main61681-95112-14iLN46,RN46..TW198208-198307

BLUE,BLUE

sub61681-35902

main61681-95112-15iLN46,RN46..TW198108-198208

BEIGE,BEIGE

sub61681-35902

main61681-95112-19iLN46,RN46..TW198208-198307

YELLOW,YELLOW

sub61681-35902

main61681-95112-27iLN46,RN46..TW198108-198307

DARK GREEN,GREEN

sub61681-35902

main61681-95112-28iLN46,RN46..TW198208-198307

WHITE,IVORY

sub61681-35902

main61681-95112-29iLN46,RN46..TW198208-198307

LIGHT YELLOW,YELLOW

sub61681-35902

65551PANEL, FRONT END POST INNER, RH

main65551-89105iRN46..T1..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..T1..CBU197808-198108

sub65551-89107

sub90950-01275

main65551-89106iLN40,RN40,41..TW..CBU197901-198307

main65551-89107iLN3#,4#,RN3#,4#..T1..CBU198008-198403

main65551-95121iLN46,RN46..TW..CBU198001-198307

65552PANEL, FRONT END POST INNER, LH

main65552-89105iRN46..T1..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..T1..CBU197808-198008

sub65552-89107

sub90950-01275

main65552-89106iLN40,RN40,41..TW..CBU197901-198307

main65552-89107iLN3#,4#,RN3#,4#..T1..CBU198008-198403

main65552-95121iLN46,RN46..TW..CBU198001-198307

65570POST ASSY, SIDE PANEL REAR END, RH

main65550-89106iLN3#,4#,RN3#,4#..CBU197808-198108

main65550-89109iLN4#,RN3#,4#..ARL..CBU198108-198307

main65550-89110iLN3#,4#,RN3#,4#..(EUR,GEN,ME,PHL,SA)..CBU198108-198403

65580POST ASSY, SIDE PANEL REAR END, LH

main65560-89106iLN3#,4#,RN3#,4#..CBU197808-198108

main65560-89109iLN4#,RN3#,4#..ARL..CBU198108-198307

main65560-89110iLN3#,4#,RN3#,4#..(EUR,GEN,ME,PHL,SA)..CBU198108-198403

65581BRACKET, REAR END POST

main65565-89102iLN3#,4#,RN3#,4#..CBU198108-198403

RH

main65566-89102iLN3#,4#,RN3#,4#..CBU198108-198403

LH

main65581-89101iRN46..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..CBU197808-197911

RH

main65581-89102iLN3#,4#,RN3#,4#..CBU197911-198108

RH

main65582-89101iRN46..(EUR,GEN)..CBU;LN30,40,RN3#,40,41..CBU197808-197911

LH

main65582-89102iLN3#,4#,RN3#,4#..CBU197911-198108

LH

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-89125iLN30,RN30..RCB..CBU197808-198008

sub65600-89141

main65600-89126iLN30,RN30,31..ECB..CBU197808-198008

sub65600-89143

main65600-89130iLN40,RN40..RCB..CBU197808-198008

sub65600-89142

main65600-89132iLN40,RN40,41..T1..ECB..CBU197808-198008

sub65600-89144

main65600-89135iLN40,RN40..TW197901-198008

sub65600-89147

main65600-89141iLN30,RN30,31..RCB..CBU198008-198108

main65600-89142iLN40,RN40,41..RCB..CBU198008-198108

main65600-89143iLN30,RN30,31..ECB..CBU198008-198108

main65600-89144iLN40,RN40,41..T1..ECB..CBU198008-198108

main65600-89147iLN40,RN40..TW198008-198108

main65600-89151iLN30,RN30,31..RCB198108-198403

main65600-89152iLN30,RN30,31..(EUR,GEN,ME,SA)..ECB..CBU198108-198312

main65600-89153iLN40,RN40,41..RCB..CBU198108-198403

main65600-89154iLN40,RN40,41..T1..(EUR,GEN,ME,SA)..ECB..CBU198108-198312

main65600-89155iRN30,31..ARL198108-198307

main65600-89156iLN40,RN40,41..T1..ARL..CBU198108-198307

main65600-89160iLN40,RN40..TW..(GEN,ME)..CBU198108-198307

main65600-89163iLN40,RN41..TW..ARL198208-198307

main65600-95130iRN36..CBU197901-198008

sub65600-95163

main65600-95131iRN46..T1..(EUR,GEN)..CBU197901-198008

sub65600-95164

main65600-95158iRN46..TW198001-198008

sub65600-95167

main65600-95163iLN36,RN36..CBU198008-198108

main65600-95164iLN46,RN46..T1..CBU198008-198108

main65600-95167iLN46,RN46..TW..CBU198008-198108

main65600-95F03iLN36,RN36..(EUR,GEN,ME)..CBU198108-198307

main65600-95F04iLN46,RN46..T1..(EUR,GEN,ME,SA)..CBU198108-198307

main65600-95F05iLN46,RN46..TW..GEN198108-198307

main65600-95F06iRN36..ARL198108-198307

main65600-95F07iLN46,RN46..T1..ARL..CBU198108-198307

main65600-95F08iLN46..TW..ARL198108-198307

65600EEXTENSION, REAR WHEEL OPENING, LH

main61682-95110-02iRN36..CBU;RN46..T1..(EUR,GEN)..CBU197901-198008

RED,RED/MAROON

sub61682-35901

main61682-95110-04iLN36,46,RN36,46..T1..CBU197901-198208

MIDIUM BLUE,BLUE

sub61682-35901

main61682-95110-05iLN36,46,RN36,46..T1..CBU197909-198108

BEIGE,BEIGE

sub61682-35901

main61682-95110-06iLN36,46,RN36,46..T1..CBU197901-198108

ORANGE,BROWN

sub61682-35901

main61682-95110-07iLN36,46,RN36,46..T1..CBU197901-198108

GREEN,GREEN

sub61682-35901

main61682-95110-08iRN36..CBU;RN46..(EUR,GEN)..CBU197901-197909

WHITE,IVORY

sub61682-35901

main61682-95110-09iLN36,46,RN36,46..T1..CBU197901-198208

YELLOW,YELLOW

sub61682-35901

main61682-95110-14iLN36,46,RN36,46..T1..CBU198208-198307

BLUE,BLUE

sub61682-35901

main61682-95110-15iLN36,46,RN36,46..T1..CBU198108-198208

BEIGE,BEIGE

sub61682-35901

main61682-95110-17iRN36..CBU;RN46..(EUR,GEN)..CBU197901-197906

PURE GREEN,GREEN

sub61682-35901

main61682-95110-18iLN36,46,RN36,46..T1..CBU197909-198208

WHITE,IVORY

sub61682-35901

main61682-95110-19iLN36,46,RN36,46..T1..CBU198208-198307

YELLOW,YELLOW

sub61682-35901

main61682-95110-22iLN36,46,RN36,46..T1..CBU198008-198307

RED,RED/MAROON

sub61682-35901

main61682-95110-27iLN36,46,RN36,46..T1..CBU198108-198307

DARK GREEN,GREEN

sub61682-35901

main61682-95110-28iLN36,46,RN36,46..T1..CBU198208-198307

WHITE,IVORY

sub61682-35901

main61682-95110-29iLN36,46,RN36,46..T1..CBU198208-198307

LIGHT YELLOW,YELLOW

sub61682-35901

main61682-95112-02iRN46..TW198001-198008

RED,RED/MAROON

sub61682-35902

main61682-95112-04iLN46,RN46..TW..CBU198001-198208

MIDIUM BLUE,BLUE

sub61682-35902

main61682-95112-05iLN46,RN46..TW..CBU198001-198108

BEIGE,BEIGE

sub61682-35902

main61682-95112-06iLN46,RN46..TW..CBU198001-198108

ORANGE,BROWN

sub61682-35902

main61682-95112-07iLN46,RN46..TW..CBU198001-198108

GREEN,GREEN

sub61682-35902

main61682-95112-08iLN46,RN46..TW..CBU198001-198208

WHITE,IVORY

sub61682-35902

main61682-95112-09iLN46,RN46..TW..CBU198001-198208

YELLOW,YELLOW

sub61682-35902

main61682-95112-12iLN46,RN46..TW..CBU198008-198307

RED,RED/MAROON

sub61682-35902

main61682-95112-14iLN46,RN46..TW198208-198307

BLUE,BLUE

sub61682-35902

main61682-95112-15iLN46,RN46..TW198108-198208

BEIGE,BEIGE

sub61682-35902

main61682-95112-19iLN46,RN46..TW198208-198307

YELLOW,YELLOW

sub61682-35902

main61682-95112-27iLN46,RN46..TW198108-198307

DARK GREEN,GREEN

sub61682-35902

main61682-95112-28iLN46,RN46..TW198208-198307

WHITE,IVORY

sub61682-35902

main61682-95112-29iLN46,RN46..TW198208-198307

LIGHT YELLOW,YELLOW

sub61682-35902

65616REINFORCEMENT, SIDE PANEL

main65616-89103iLN40,RN40,41..T1..CBU197808-198403

65621SKIRT, SIDE PANEL, FRONT RH

main65621-89107iLN30,RN30..RCB197808-198403

main65621-89108iLN30,RN30,31..ECB..CBU197808-198312

main65621-89109iLN40,RN40,41..RCB..CBU197808-198403

main65621-89110iLN40,RN40,41..T1..ECB..CBU197808-198312

main65621-89111iLN40,RN40,41..TW..CBU197901-198307

main65621-95119iLN36,RN36..CBU197901-198307

main65621-95120iLN46,RN46..T1..CBU197901-198307

main65621-95125iLN46,RN46..TW..CBU198001-198307

65622SKIRT, SIDE PANEL, FRONT LH

main65622-89107iLN30,RN30,31..RCB..CBU197808-198403

main65622-89108iLN30,RN30,31..ECB..CBU197808-198312

main65622-89109iLN40,RN40,41..RCB..CBU197808-198403

main65622-89110iLN40,RN40,41..T1..ECB..CBU197808-198312

main65622-89111iLN40,RN40,41..TW..CBU197901-198307

main65622-95118iLN36,RN36..CBU197901-198307

main65622-95119iLN46,RN46..T1..CBU197901-198307

main65622-95124iLN46,RN46..TW..CBU198001-198307

65631SKIRT, SIDE PANEL, REAR RH

main65623-89103iLN30,RN30,31..CBU197808-198403

main65623-89107iLN40,RN40,41..CBU197808-198403

main65623-95111iLN36,RN36..CBU197901-198307

main65623-95112iLN46,RN46..CBU197901-198307

65632SKIRT, SIDE PANEL, REAR, LH

main65624-89103iLN30,RN30,31..CBU197808-198403

main65624-89107iLN40,RN40,41..CBU197808-198403

main65624-95112iLN36,RN36..CBU197901-198307

main65624-95113iLN46,RN46..CBU197901-198307

65635PLATE, REAR WHEEL HOUSE

main65631-95115iLN36,46,RN36,46..T1..CBU198107-198307

FR

main65635-95112iLN36,46,RN36,46..T1..CBU198107-198307

RR

65651PANEL, WHEEL HOUSE

main65605-89102iLN40,RN40..TW197901-198008

RH

sub65605-89103

main65605-89103iLN40,RN40,41..TW..CBU198008-198307

RH

main65605-95110iRN36..CBU;RN46..T1..(EUR,GEN)..CBU197901-198008

RH

sub65605-95112

main65605-95111iRN46..TW198001-198008

RH

sub65605-95114

main65605-95112iLN36,46,RN36,46..T1..CBU198008-198307

RH

main65605-95114iLN46,RN46..TW..CBU198008-198307

RH

main65606-89102iLN40,RN40..TW197901-198008

LH

sub65606-89103

main65606-89103iLN40,RN40,41..TW..CBU198008-198307

LH

main65606-95110iRN36..CBU;RN46..T1..(EUR,GEN)..CBU197901-198008

LH

sub65606-95112

main65606-95111iRN46..TW198001-198008

LH

sub65606-95113

main65606-95112iLN36,46,RN36,46..T1..CBU198008-198307

LH

main65606-95113iLN46,RN46..TW..CBU198008-198307

LH

main65651-89105iLN30,40,RN30,31,40,41..T1..CBU197808-198008

RH

sub65651-89106

main65651-89106iLN30,40,RN30,31,40,41..T1..CBU198008-198403

RH

main65652-89106iLN30,40,RN30,31,40,41..T1..CBU197808-198008

LH

sub65652-89107

main65652-89107iLN30,40,RN30,31,40,41..T1..CBU198008-198403

LH

65671BRACE, SIDE PANEL SKIRT, FRONT

main65671-89103iLN3#,4#,RN3#,4#..T1..CBU197808-198403

65673BRACE, SIDE PANEL SKIRT, REAR

main65608-89104iLN30,40,RN30,31,40,41..CBU197808-198403

RH

main65609-89102iLN30,40,RN30,31,40,41..CBU197808-198403

LH

main65673-95115iRN36..CBU;RN46..(EUR,GEN)..CBU198002-198008

RH

main65673-95115iRN36..CBU;RN46..(EUR,GEN)..CBU197901-198002

main65673-95117iLN36,46,RN36,46..CBU198008-198307

RH

main65674-95117iRN36..CBU;RN46..(EUR,GEN)..CBU198002-198008

LH

main65674-95118iLN36,46,RN36,46..CBU198008-198307

LH

65687MUDGUARD, WHEEL HOUSE, RH

main65675-95110iLN36,46,RN36,46..T1..CBU197901-198307

FR

main65675-95112iLN36,46,RN36,46..T1..CBU197901-198307

FR

main65677-95110iLN36,46,RN36,46..T1..CBU197901-198307

RR

main65677-95112iLN46,RN46..TW..CBU198001-198307

65688MUDGUARD, WHEEL HOUSE, LH

main65676-95110iLN36,46,RN36,46..T1..CBU197901-198307

FR

main65677-95112iLN46,RN46..TW..CBU198001-198307

main65678-95110iLN36,46,RN36,46..T1..CBU197901-198307

RR

7751

9011906112

main90119-06112

9015960008

main90159-60008

9017906115

main90179-06115

9017908123

main90179-08123

9017908143

main90179-08143

9046710005

main90467-10005

9054009060

main90540-09060

9095001134

main90950-01134

9095001353

main90950-01353

9163140614

main91631-40614

9327018016

main93270-18016

9327018025

main93270-18025

9411040800

main94110-40800

38 parts on this diagram · 2 diagrams in section
