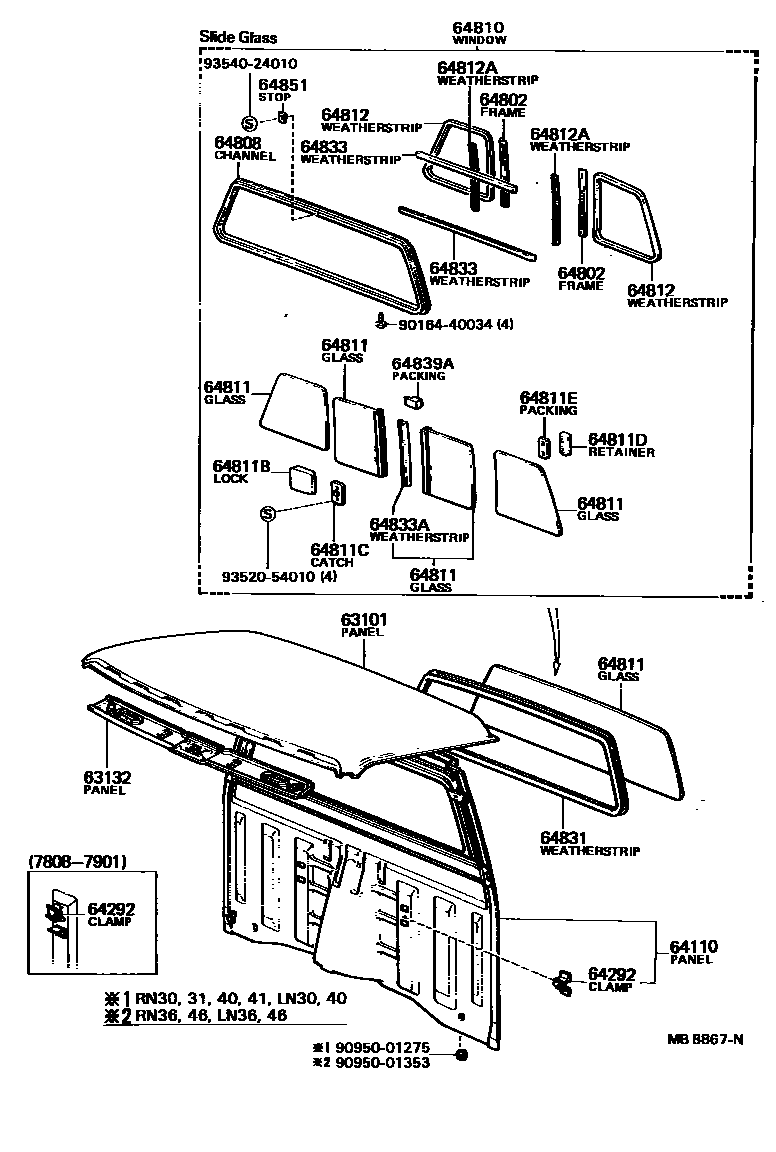

ROOF PANEL & BACK PANEL

0001 1 0002 1

63101PANEL SUB-ASSY, ROOF

main63111-89104iLN30,40,RN30,31,40,41..RCB197808-198403

main63111-89105iLN3#,4#,RN3#,4#..T1..ECB197808-198312

main63111-89107iLN4#,RN4#..TW197901-198307

63132PANEL, WINDSHIELD HEADER, INNER

main63102-89101iLN3#,4#,RN3#,4#197808-198403

64110PANEL ASSY, FRONT BODY BACK

main64101-89110iRN30,31,40,41..T1..(GEN,ME,PHL,SA)197808-198403

sub64101-89115

main64101-89111iRN30,31,40,41..STD..(ARL,EUR)197808-198307

sub64101-89117

main64101-89113iLN4#,RN40,46..TW197901-198307

sub64101-89119

main64101-89115iLN30,40..T1..(GEN,SA)197909-198403

main64101-89117iRN41..SR5..ARL197908-198307

main64101-95110iLN36,46,RN36,46..T1197901-198108

main64101-95111iLN46,RN36,46..T1..ARL198108-198307

W/SEPARATE SEAT

main64101-95112iLN46,RN36,46..T1..ARL198108-198307

W/BENCH SEAT

main64101-95113iLN46,RN46..TW198108-198307

64292CLAMP, JACK HANDLE

main58706-89101iLN3#,4#,RN3#,4#..T1197901-198403

main64292-12010iRN3#,4#197808-197901

main64292-89102iLN4#,RN4#..TW197901-198307

64802FRAME SUB-ASSY, BACK WINDOW FIX

main64881-89101iLN36,46,RN36,46..GEN,ME,SA197901-198307

RH

main64881-89101iRN41..SR5..ARL198208-198307

*SRP,RH

main64881-89102iRN41..SR5..ARL198208-198307

*SRP,LH

main64881-89102iRN40..LHD..TW197901-198307

LH

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64808-89101iRN31,41..LHD..DLX197901-198307

main64808-89102iLN46,RN46..T1..ARL..CBU198208-198307

*SRP

main64808-89102iLN36,46..LHD198103-198307

W/GUARD BAR

main64808-89102iRN31,41..LHD..DLX..CBU198008-198307

64810WINDOW ASSY, BACK

main64810-89101iRN31,41..LHD..DLX197908-198008

SLIDE CLEAR

main64810-89102iRN36,46..GEN197908-198008

SLIDE TINCT

64811GLASS, BACK WINDOW

main64807-89101iLN36,46,RN36,46..GEN,ME,SA197901-198307

SLIDE GLASS,RH,*TEM,T=4.0

sub64807-89103

main64807-89101iRN41..SR5..ARL198208-198307

*SRP,SLIDE GLASS,RH,*TEM,T=4.0

sub64807-89103

main64807-89102iRN41..SR5..ARL198208-198307

*SRP,SLIDE GLASS,LH,*TEM,T=4.0

sub64807-89104

main64807-89102iRN30,40..LHD..(GEN,ME)..ECB197901-198307

SLIDE GLASS,LH,*TEM,T=4.0

sub64807-89104

main64807-89103iRN31,41..LHD..DLX197901-198307

SLIDE GLASS,RH,*TT,T=4.0

main64807-89104iLN36,46,RN36,46..GEN197901-198307

SLIDE GLASS,LH,*TT,T=4.0

main64811-89107iLN36,46,RN36,46..ARL,EUR197808-198403

*TEM,T=4.0

main64811-89108iLN40..SR5197808-198403

*TT,T=3.5,*TT,T=3.5

main64811-89109iLN36,46,RN36,46..GEN,ME,SA197901-198307

*TEM,T=3.5,*TEM,T=3.5

sub64811-89108

main64811-89110iRN41..SR5..ARL198208-198307

*SRP,FIXED GLASS,RH,*TEM,T=4.0

sub64811-89114

main64811-89110iRN30,40..LHD..(GEN,ME)..ECB197901-198307

FIXED GLASS,RH,*TEM,T=4.0

sub64811-89114

main64811-89111iRN30,40..LHD..(GEN,ME)..ECB197901-198307

FIXED GLASS,LH,*TEM,T=4.0

sub64811-89115

main64811-89111iRN41..SR5..ARL198208-198307

*SRP,FIXED GLASS,LH,*TEM,T=4.0

sub64811-89115

main64811-89114iRN40..LHD..TW197901-198307

FIXED GLASS,RH,*TT,T=4.0

main64811-89115iRN31,41..LHD..DLX197901-198307

FIXED GLASS,LH,*TT,T=4.0

64811BLOCK ASSY, BACK WINDOW

main69370-89101iRN40..LHD..TW197901-198307

main69370-89101iRN41..SR5..ARL198208-198307

*SRP

64811CCATCH, BACK WINDOW LOCK

main69374-89101iRN40..LHD..TW197901-198307

main69374-89101iRN41..SR5..ARL198208-198307

*SRP

64811DRETAINER, BACK WINDOW

main69375-89102iRN40..LHD..TW197901-198307

main69375-89102iRN41..SR5..ARL198208-198307

*SRP

64811EPACKING, BACK WINDOW LOCK

main69376-89101iRN40..LHD..TW197901-198307

main69376-89101iRN41..SR5..ARL198208-198307

*SRP

64812WEATHERSTRIP, BACK WINDOW GLASS, NO.1

main64812-89102iRN40..LHD..TW197901-198307

main64812-89102iRN41..SR5..ARL198208-198307

*SRP

64812AWEATHERSTRIP, BACK WINDOW GLASS, NO.2

main64812-89103iRN40..LHD..TW197901-198307

main64812-89103iRN41..SR5..ARL198208-198307

*SRP

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-89101iLN3#,4#,RN3#,4#197808-198403

64833WEATHERSTRIP, BACK WINDOW CHANNEL

main64833-89101iRN40..LHD..TW197901-198307

LWR

main64833-89101iLN46,RN46..T1..ARL..CBU198208-198307

*SRP,LWR

main64833-89102iRN41..SR5..ARL198208-198307

*SRP,UPR

main64833-89102iLN36,46,RN36,46..GEN,ME,SA197901-198307

UPR

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-89103iRN40..LHD..TW197901-198307

main64833-89103iRN41..SR5..ARL198208-198307

*SRP

64839APACKING, BACK WINDOW

main64839-89101iLN36,46,RN36,46..GEN,ME,SA198009-198307

main64839-89101iRN41..SR5..ARL198208-198307

*SRP

64851STOP, BACK WINDOW SLIDE GLASS

main64851-89101iRN40..LHD..TW197901-198307

main64851-89101iLN46,RN46..T1..ARL..CBU198208-198307

*SRP

9016440034

main90164-40034

9095001275

main90950-01275

9095001353

main90950-01353

9352054010

main93520-54010

9354024010

main93540-24010

24 parts on this diagram · 2 diagrams in section
