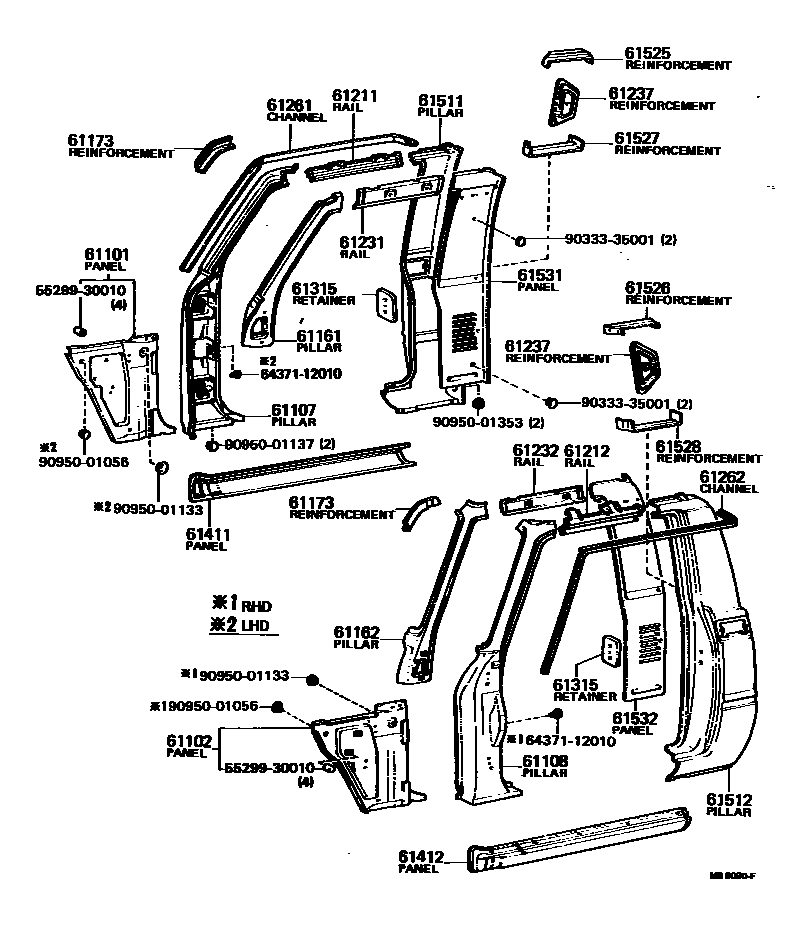

SIDE MEMBER

0001 1 0002 1

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-89116iRN3#,4#..RHD..(EUR,GEN,SA)197808-198108

main61101-89117iRN46..ARL..IV3;RN3#,40,41..ARL197808-198108

main61101-89119iRN30,31,40,41..LHD197808-198307

sub61101-89126

main61101-89122iLN3#,4#..RHD;RN46..ARL..CBU197909-198403

main61101-89123iLN30,40..LHD197909-198108

main61101-89125iRN3#,4#..RHD..(EUR,GEN,SA)198108-198403

main61101-95112iRN36,46..LHD197901-198108

main61101-95114iLN36,46..LHD198103-198108

main61101-95115iLN36,46,RN36,46..LHD198108-198307

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-89113iRN30,31,40,41..RHD197808-198108

sub61102-89122

main61102-89114iRN3#,4#..LHD197808-198108

main61102-89118iLN30,40..RHD197909-198108

main61102-89119iLN3#,4#..LHD197909-198108

sub61102-89121

main61102-89121iLN3#,4#..LHD198108-198307

main61102-89122iLN30,40,RN30,31,40,41..RHD198108-198403

main61102-89123iRN3#,4#..LHD198108-198307

main61102-95112iRN36..RHD;RN46..ARL..IV3;RN46..RHD..(EUR,GEN)197901-198108

main61102-95114iLN36,46..RHD;RN46..ARL..CBU198103-198108

main61102-95115iLN36,46,RN36,46..RHD198108-198307

61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH

main61027-89101iLN3#,4#,RN3#,4#..EUR,GEN,PHL,SA197808-198108

sub61027-89104

sub84230-22050

sub94611-11001

main61027-89102iRN46..ARL..IV3;LN40,RN3#,40,41..ARL197808-198108

sub61027-89105

sub84230-22050

sub94611-11001

main61027-89104iLN3#,4#,RN3#,4#..EUR,GEN,ME,PHL,SA198108-198403

sub61027-89105

main61027-89105iLN4#,RN3#,4#..ARL198108-198307

61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH

main61028-89101iLN3#,4#,RN3#,4#..EUR,GEN,PHL,SA197808-198108

sub61028-89104

sub84230-22050

sub94611-11001

main61028-89102iRN46..ARL..IV3;LN40,RN3#,40,41..ARL197808-198108

sub61028-89105

sub84230-22050

sub94611-11001

main61028-89104iLN3#,4#,RN3#,4#..EUR,GEN,ME,PHL,SA198108-198403

sub61028-89105

main61028-89105iLN4#,RN3#,4#..ARL198108-198307

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-89105iLN3#,4#,RN3#,4#197808-198403

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-89105iLN3#,4#,RN3#,4#197808-198403

61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER

main61106-89107iLN40,RN41..TW..ARL198208-198307

RH

main61107-89106iLN40,RN41..TW..ARL198208-198307

LH

main61173-89101iLN46,RN36,46..ARL197808-198307

RH

main61174-89101iLN46,RN36,46..ARL197808-198307

LH

61211RAIL, ROOF SIDE, OUTER RH

main61211-89103iLN3#,4#,RN3#,4#..T1197808-198403

main61211-89104iLN4#,RN4#..TW197901-198307

61212RAIL, ROOF SIDE, OUTER LH

main61212-89103iLN3#,4#,RN3#,4#..T1197808-198403

main61212-89104iLN4#,RN4#..TW197901-198307

61231RAIL, ROOF SIDE, INNER RH

main61231-89107iLN30,40,RN30,31,40,41..T1197808-198403

main61231-95111iLN36,46,RN36,46..T1197901-198307

61232RAIL, ROOF SIDE, INNER LH

main61232-89107iLN30,40,RN30,31,40,41..T1197808-198403

main61232-95111iLN36,46,RN36,46..T1197901-198307

61237REINFORCEMENT, SAFETY BAND ANCHORAGE

main61766-89101iLN30,40,RN30,40,41..RCB197808-198403

main61766-89102iLN3#,4#,RN3#,4#..T1..(EUR,GEN,ME,SA)..ECB197808-198312

sub61766-89103

main61766-89103iLN4#,RN3#,4#..ARL197808-198307

61261CHANNEL, ROOF DRIP, RH

main61261-89102iLN30,40,RN30,31,40,41..RCB197808-198403

main61261-89103iLN3#,4#,RN3#,4#..T1..ECB197808-198312

main61261-89104iLN4#,RN4#..TW197901-198307

61262CHANNEL, ROOF DRIP, LH

main61262-89102iLN30,40,RN30,31,40,41..RCB197808-198403

main61262-89103iLN3#,4#,RN3#,4#..T1..ECB197808-198312

main61262-89104iLN4#,RN4#..TW197901-198307

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-89101iLN3#,4#,RN3#,4#197808-198403

61411PANEL, ROCKER, OUTER RH

main61411-89104iLN3#,4#,RN3#,4#197808-198403

61412PANEL, ROCKER, OUTER LH

main61412-89104iLN3#,4#,RN3#,4#197808-198403

61511PILLAR, QUARTER LOCK, RH

main61511-89106iLN4#,RN4#..TW;LN30,40,RN30,40,41..RCB197808-198403

sub61511-89122

main61511-89107iLN30,40,RN30,31,40,41..T1..(GEN,SA)..ECB197808-198307

sub61511-89108

main61511-89108iLN40,RN30,31,40,41..T1..(ARL,EUR,ME)197808-198312

61512PILLAR, QUARTER LOCK, LH

main61512-89110iLN4#,RN4#..TW;LN30,40,RN30,40,41..RCB197808-198403

sub61512-89131

main61512-89111iLN30,40,RN30,31,40,41..T1..GEN..ECB197808-198307

sub61512-89112

main61512-89112iLN40,RN30,31,40,41..T1..(ARL,EUR,ME)197808-198312

61525REINFORCEMENT, QUARTER LOCK PILLER, UPPER RH

main61525-89101iLN4#,RN3#,4#..T1..ARL197808-198307

61526REINFORCEMENT, QUARTER LOCK PILLER, UPPER LH

main61526-89101iLN4#,RN3#,4#..T1..ARL197808-198307

61527REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH

main61527-89101iLN4#,RN3#,4#..T1..ARL197808-198307

61528REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH

main61528-89101iLN4#,RN3#,4#..T1..ARL197808-198307

61531PANEL, BACK CORNER, INNER RH

main61531-89107iLN4#,RN4#..TW;LN30,40,RN30,40,41..RCB197808-198403

sub61531-89119

main61531-89108iLN3#,4#,RN3#,4#..T1..ECB197808-198312

61532PANEL, BACK CORNER, INNER LH

main61532-89107iLN4#,RN40,46..TW;LN30,40,RN30,31,40,41..RCB197808-198403

sub61532-89119

main61532-89108iLN3#,4#,RN3#,4#..T1..ECB197808-198312

5529930010CAP, TEE NUT(FOR 6MM)

main55299-30010

6437112010RETAINER, PACKAGE TRAY TRIM

main64371-12010

9033335001

main90333-35001

9095001056

main90950-01056

9095001133

main90950-01133

9095001137

main90950-01137

9095001353

main90950-01353

32 parts on this diagram · 2 diagrams in section
