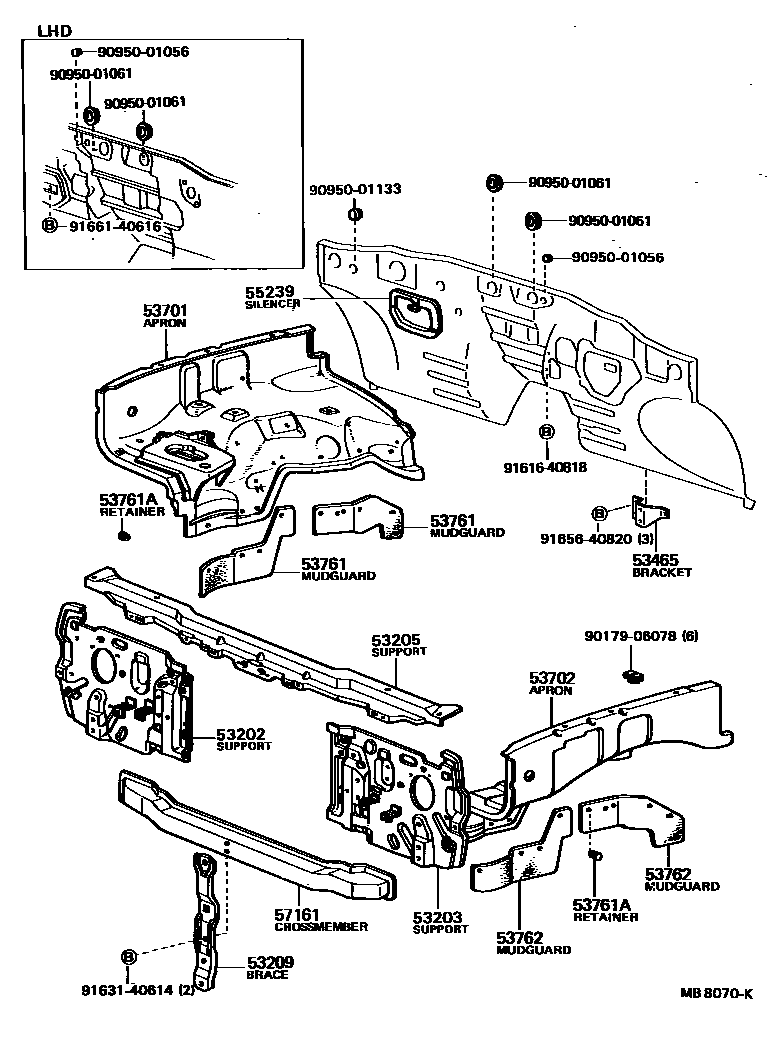

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-89109iLN30,40,RN30,31,40,41197808-198108

main53202-89113iLN30,40,RN30,31,40,41198108-198403

main53202-95110iLN36,46,RN36,46..LHD197901-198108

main53202-95112iLN36,46,RN36,46..RHD197901-198108

main53202-95117iLN36,46,RN36,46198108-198307

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-89109iLN30,40,RN30,31,40,41197808-198008

main53203-89114iLN30,40,RN30,31,40,41198008-198108

main53203-89118iLN30,40,RN30,31,40,41198108-198403

main53203-95110iRN36..RHD;RN46..ARL..IV3;RN46..RHD..(EUR,GEN)197901-198008

main53203-95114iRN36,46..LHD197901-198008

main53203-95119iLN36,46,RN36,46198008-198108

main53203-95124iLN36,46,RN36,46198108-198307

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-89108iRN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3197808-197909

main53205-89109iLN3#,4#;RN46..ARL..CBU197909-198108

W/CYCLONE AIR CLEANER

main53205-89110iRN36;RN46..ARL..IV3;RN46..EUR,GEN,ME,SA;LN46..RHD..T1..(ARL,EUR)..CBU198108-198307

main53205-89114iLN30,40..EUR,GEN198108-198208

sub53205-89116

main53205-89115iLN30,40..ARL,GEN,SA198108-198403

W/CYCLONE AIR CLEANER

main53205-95110iLN36,46..LHD..EUR198108-198307

W/*HC

53209BRACE SUB-ASSY, HOOD LOCK

main53217-89105iLN30,40,RN30,31,40,41197808-198108

main53217-89106iLN30,40,RN30,31,40,41198108-198403

main53217-95110iLN36,46,RN36,46197901-198307

53465BRACKET,WASHER TANK

main74465-89102iLN30,40..RHD..(ARL,GEN,SA)198008-198012

main74465-89103iLN40..5F..EUR198012-198307

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-89115iRN30,31,40,41197808-198403

main53701-89117iLN30,40..EUR,GEN,SA197909-198108

main53701-89118iLN30,40..ARL,GEN,SA197909-198403

W/CYCLONE AIR CLEANER

main53701-89122iLN40..5F..EUR198008-198307

W/*HC

main53701-95110iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197902

main53701-95111iRN36;RN46..EUR,GEN;RN46..ARL..IV3197902-198008

main53701-95123iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198008-198307

main53701-95128iLN46..TW;LN46..T1..IV3;RN46..ARL..CBU;LN36,46..T1..GEN..CBU198103-198307

main53701-95130iLN36,46..LHD..EUR198108-198307

main53701-95131iLN46..RHD..EUR198108-198307

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-89141iRN30,40..GEN,PHL,SA197808-198108

W/CYCLONE AIR CLEANER

main53702-89142iRN31,41..GEN,ME,SA197808-198312

W/CYCLONE AIR CLEANER

main53702-89143iRN30,40..EUR197808-198307

main53702-89144iRN30,40..GEN,PHL197808-198307

main53702-89145iRN30,40..ARL197808-198307

main53702-89146iRN31,41..ARL197808-198307

main53702-89147iRN31,41..(GEN,ME,SA)..ECB198108-198307

main53702-89148iLN30,40..4F..GEN198108-198208

main53702-89149iLN30,40..4F197909-198403

W/CYCLONE AIR CLEANER

main53702-89150iLN30,40..(5F,5H)..(GEN,SA)198101-198108

main53702-89151iLN30,40..5F..(GEN,SA)198108-198403

W/CYCLONE AIR CLEANER

main53702-89154iRN30,40..4F..EUR198008-198307

W/*HC

main53702-89155iLN40..EUR198101-198108

main53702-95110iRN36,46..EUR,GEN197901-198008

main53702-95112iRN36,46..GEN197901-198008

W/CYCLONE AIR CLEANER

main53702-95114iRN36..ARL;RN46..ARL..IV3197901-198008

main53702-95128iRN36,46..EUR,GEN198008-198307

W/O CYCLONE AIR CLEANER

main53702-95129iRN36,46..GEN,ME,SA198008-198307

W/CYCLONE AIR CLEANER

main53702-95130iRN36..ARL;RN46..ARL..IV3;LN46..T1..ARL..CBU198008-198307

main53702-95137iLN36,46..GEN198103-198307

main53702-95140iLN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU198108-198307

main53702-95141iLN36,46..LHD..EUR198108-198307

W/O *HC

main53702-95142iLN46..RHD..EUR198108-198307

main53702-95143iLN36,46..LHD..EUR198108-198307

W/*HC

53761MUDGUARD, RH

main53736-89105iLN30,40,RN30,31,40,41197808-198108

FR

main53736-89106iLN30,40,RN30,31,40,41198108-198403

FR

main53736-95110iLN36,46,RN36,46197901-198307

main53737-89102iLN30,40,RN30,31,40,41197808-198403

RR

53761ARETAINER(FOR MUDGUARD)

main90467-10005×11iLN36,46,RN36,46197901-198307

sub90467-06017

53762MUDGUARD, LH

main53736-89105iLN30,40,RN30,31,40,41197808-198108

FR

main53736-89106iLN30,40,RN30,31,40,41198108-198403

FR

main53737-89102iRN30,31,40,41197808-198403

RR

main53737-89103iLN30,40197909-198403

RR

main53737-95110iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197905

main53737-95112iLN36,46,RN36,46197905-198307

55239SILENCER, STEERING COLUMN HOLE COVER

main55210-89126iLN30,40,RN30,31,40,41..RHD..(4F,5F)197808-198403

main55210-89127iLN40,RN30,31,40,41..4H,5H197808-198312

main55210-89128iLN30,40,RN30,31,40,41..LHD197808-198307

main55210-95112iLN36,46,RN36,46..RHD197901-198307

main55210-95113iLN36,46,RN36,46..LHD197901-198307

57161CROSSMEMBER, FRONT

main57104-89101iLN30,40,RN30,31,40,41197808-198403

sub57104-89102

main57104-95110iLN36,46,RN36,46197901-198307

9017906078

main90179-06078

9095001056

main90950-01056

9095001061

main90950-01061

9095001133

main90950-01133

9161640818

main91616-40818

9163140614

main91631-40614

9165640820

main91656-40820

9166140616

main91661-40616

20 parts on this diagram · 2 diagrams in section
