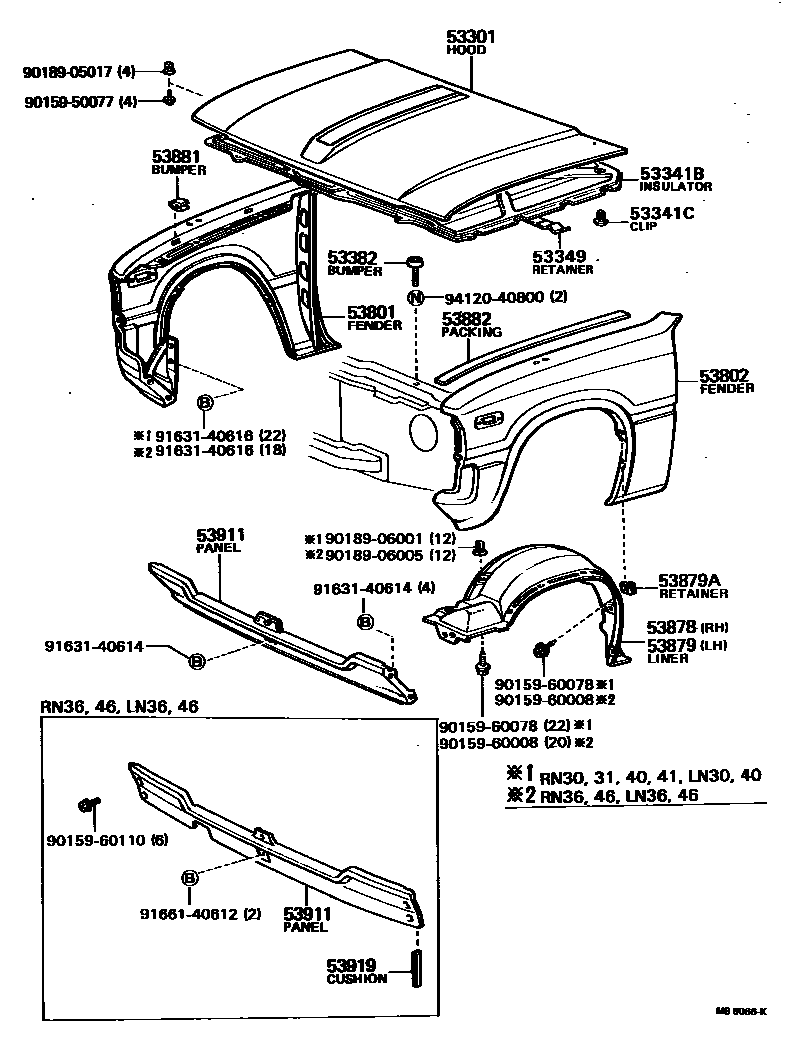

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-89115iRN46..ARL..IV3;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41;RN46..EUR,GEN,ME,SA197808-198403

main53301-95110iLN36,46;RN46..ARL..CBU198103-198307

sub53301-95111

main53301-95111iLN36,46..EUR198108-198307

sub53301-92301

sub75331-92300

53341BINSULATOR, HOOD

main53341-89101iRN30,40..EUR197909-198403

53341CCLIP(FOR HOOD INSULATOR)

main90467-09004iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)197909-198403

53349RETAINER, HOOD SILENCER

main53349-89101iRN30,40..EUR198101-198403

53382BUMPER, HOOD, FRONT

main53382-20011iLN3#,4#,RN3#,4#197808-198403

sub53382-90A00

53801FENDER SUB-ASSY, FRONT RH

main53801-89140iLN30,40,RN30,31,40,41..GEN,PHL197808-198108

W/MIRROR

main53801-89145iLN30,40,RN30,31,40,41..ARL,EUR,GEN,SA197808-198108

W/O MIRROR

main53801-89148iRN31,41..GEN..ECB;LN30,40,RN30,40..STD..GEN198108-198307

W/MIRROR

main53801-89149iRN31,41..(ARL,GEN,ME)..ECB;LN30,40,RN30,40..(DLX,STD)..(ARL,GEN,ME)198108-198307

W/O MIRROR

main53801-89152iLN40..SR5198307-198403

main53801-89152iLN30,40,RN30,31,40,41..T1..(EUR,GEN,PHL,SA)198108-198307

*GIS,W/O MIRROR

main53801-89160iLN30,40,RN30,31,40,41..T1..GEN198108-198307

*GIS,W/MIRROR

main53801-89160iLN30,40,RN30,40..STD..RCB198307-198403

main53801-95110iLN36,46,RN36,46..ARL,GEN,ME197901-198307

W/O MIRROR

sub53801-92301

main53801-95111iLN36,46,RN36,46..GEN197901-198307

W/MIRROR

sub53801-92300

main53801-95113iLN36,46,RN36,46..EUR197901-198307

W/O MIRROR

sub53801-92304

main53801-95114iLN36,46,RN36,46..GEN,SA198108-198307

*GIS,W/O MIRROR

sub53801-92301

main53801-95137iLN36,46,RN36,46..GEN198108-198307

*GIS,W/MIRROR

sub53801-92300

53802FENDER SUB-ASSY, FRONT LH

main53802-89135iLN30,40,RN30,31,40,41..GEN,PHL197808-198108

W/MIRROR

main53802-89139iLN30,40,RN30,31,40,41..ARL,EUR,GEN,SA197808-198108

W/O MIRROR

sub53802-89157

main53802-89141iRN31,41..GEN..ECB;LN30,40,RN30,40..STD..GEN198108-198307

W/MIRROR

main53802-89142iRN31,41..(ARL,GEN,ME)..ECB;LN30,40,RN30,40..(DLX,STD)..(ARL,GEN,ME)198108-198307

W/O MIRROR

main53802-89145iLN30,40,RN30,4#..ECB198307-198403

sub53802-89157

main53802-89145iRN31,41..(GEN,SA)..ECB;LN30,40,RN30,40..T1..(EUR,GEN,PHL,SA)198108-198307

*GIS,W/O MIRROR

sub53802-89157

main53802-89151iLN30,40,RN30,31,40,41..T1..GEN198108-198307

*GIS,W/MIRROR

main53802-89151iLN30,40,RN30,40..STD..RCB198307-198403

main53802-95112iLN36,46,RN36,46..ARL,GEN,ME197901-198307

W/O MIRROR

sub53802-92301

main53802-95113iLN36,46,RN36,46..EUR197901-198307

W/O MIRROR

sub53802-92304

main53802-95114iLN36,46,RN36,46..GEN,SA198108-198307

*GIS,W/O MIRROR

sub53802-92301

main53802-95115iLN36,46,RN36,46..GEN197901-198307

W/MIRROR

sub53802-92300

main53802-95136iLN36,46,RN36,46..GEN198108-198307

*GIS,W/MIRROR

sub53802-92300

53878LINER, FRONT FENDER, RH

main53875-89102iLN30,40,RN30,31,40,41197808-198403

main53875-95110iLN36,46,RN36,46197901-198108

sub53875-95112

main53875-95112iLN36,46,RN36,46198108-198307

53879LINER, FRONT FENDER, LH

main53876-89102iLN30,40,RN30,31,40,41197808-198403

main53876-95110iLN36,46,RN36,46197901-198108

sub53876-95112

main53876-95112iLN36,46,RN36,46198108-198307

53879ARETAINER, FRONT FENDER LINER

main53879-22010iLN30,40,RN30,31,40,41197808-198403

53881BUMPER, FENDER TO HOOD

main53384-89101iLN3#,4#,RN3#,4#197808-198403

53882PACKING, FRONT FENDER MAIN

main53882-89103iLN3#,4#,RN3#,4#197808-198403

53911PANEL, FRONT VALANCE

main53161-95110iRN46..GEN;RN36..ARL,GEN;RN46..ARL..IV3197901-198008

sub53161-95112

main53161-95112iRN36,46..EUR197901-198307

main53911-89103iLN30,40,RN30,31,40,41..ARL,GEN,PHL,SA197808-198008

sub53911-89104

main53911-89104iLN30,40,RN30,31,40,41197808-198108

main53911-89105iLN30,40,RN30,31,40,41198108-198403

53919CUSHION, VALANCE PANEL

main53919-95110iLN36,46,RN36,46197901-198307

9015950077

main90159-50077

9015960008

main90159-60008

9015960078

main90159-60078

9015960110

main90159-60110

9018905017

main90189-05017

9018906001

main90189-06001

9018906005

main90189-06005

9163140614

main91631-40614

9163140616

main91631-40616

9166140612

main91661-40612

9412040800

main94120-40800

25 parts on this diagram · 1 diagram in section
