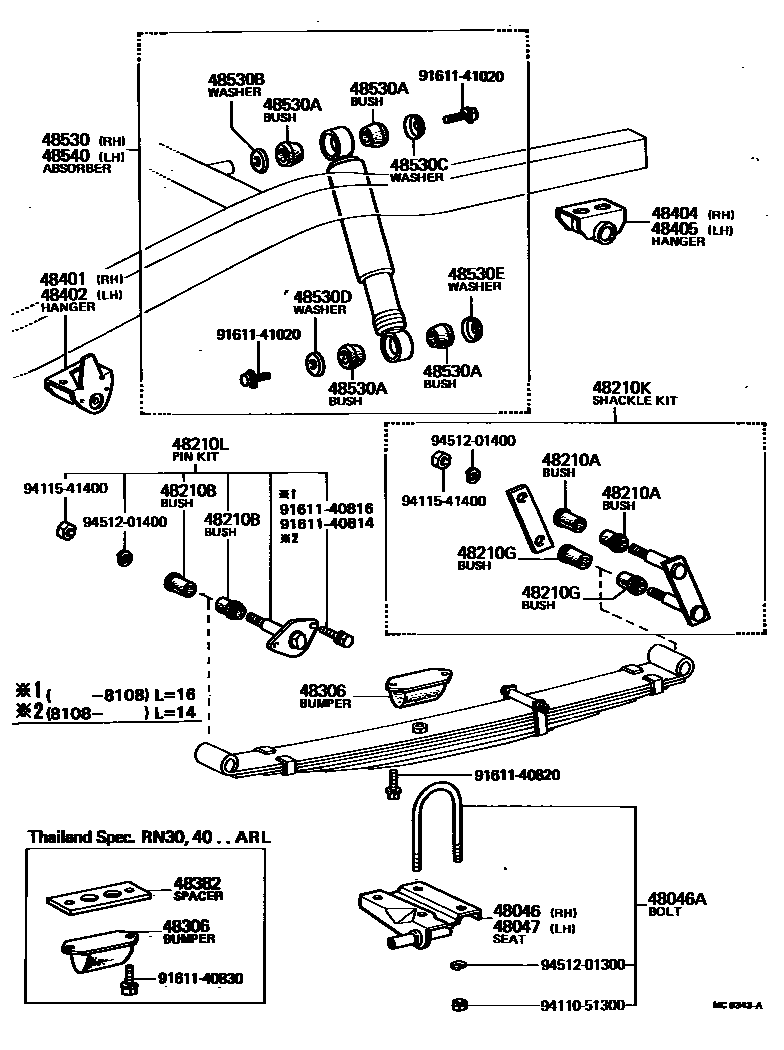

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35040iLN36,46,RN36,46197901-198307

main48046-35050iLN30,40,RN30,31,40,41197808-198403

48046ABOLT, U(FOR REAR SPRING)

main90118-13091iRN31..4H..IV3197808-198403

sub90117-13082

sub94110-51300

sub94512-01300

main90118-13133iRN41..SR5..ARL197808-198307

sub90118-13217

main90118-13152iRN31..(4F,5F)..IV3197808-197812

sub90118-13218

main90118-14174iLN36,46,RN36,46197901-198307

sub90117-14008

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-35040iLN36,46,RN36,46197901-198307

main48047-35050iLN30,40,RN30,31,40,41197808-198403

48210SPRING ASSY, REAR RH

main48210-35120iRN31..4H..IV3197808-198403

main48210-35130iRN41..SR5..ARL197808-198108

main48210-35150iRN31..(4F,5F)..IV3197808-197812

main48210-35170iLN36,46,RN36,46197901-198307

main48210-35230iRN31,41..RCB198101-198403

main48210-35230iRN30,31,40,41..ARL197901-198403

W/FR&RR 6.45-14-8 TIRE

main48210-35230iRN31..DLX..GEN..CBU;LN40..LHD..T1..4F..ECB198108-198307

W/185R14C-8 TIRE

main48210-35240iRN41..SR5..ARL198108-198307

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18046iLN3#,4#,RN3#,4#197808-198403

48210BBUSH(FOR REAR SPRING PIN)

main90385-18001iRN41..SR5..ARL197808-198108

main90385-18046iRN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)197808-198403

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18046iLN3#,4#,RN3#,4#197808-198403

48210KSHACKLE KIT, REAR SPRING

main04483-26010iLN3#,4#,RN3#,4#197808-198403

sub04483-35040

48210LPIN KIT, REAR SPRING

main04484-27010iRN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)197808-198403

sub04482-35030

main04484-27020iRN41..SR5..ARL197808-198108

sub04482-35030

main04484-35050iRN41..SR5..ARL198108-198307

48306BUMPER SUB-ASSY, REAR SPRING

main48306-35040iLN36,46,RN36,46197901-198307

main48341-35020iLN30,40,RN30,31,40,41197808-198403

48382SPACER, BUMPER BLOCK

main48382-35020iRN31,41..RCB198101-198403

main48382-35020iRN30,40..ARL197901-198307

W/FR&RR 6.45-14-8 TIRE

main48382-35020iRN31..DLX..GEN..CBU;LN40..LHD..T1..4F..ECB198108-198307

W/185R14C-8 TIRE

main48382-35020iRN30,40..IV1;RN30,40..RHD..RCB..CBU197901-198403

W/FR&RR,6.45-14-8 TIRE

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-35050iLN3#,4#,RN3#,4#197808-198403

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-35050iLN3#,4#,RN3#,4#197808-198403

48404BRACKET SUB-ASSY, REAR SPRING, REAR RH

main48416-35050iLN3#,4#,RN3#,4#197808-198403

48405BRACKET SUB-ASSY, REAR SPRING, REAR LH

main48416-35050iLN3#,4#,RN3#,4#197808-198403

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39325iRN31..4H..IV3197808-198403

sub48531-39326

main48531-39335iRN41..SR5..ARL197808-198307

sub48531-39337

main48531-39336iRN41..SR5..ARL197904-198008

sub48531-39335

main48531-39375iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198307

sub48531-39475

main48531-39475iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198307

sub48531-39476

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007iLN3#,4#,RN3#,4#197808-198403

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004iLN3#,4#,RN3#,4#197808-198403

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03012iLN3#,4#,RN3#,4#197808-198403

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03012iLN3#,4#,RN3#,4#197808-198403

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iLN3#,4#,RN3#,4#197808-198403

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39325iRN31..4H..IV3197808-198403

sub48531-39326

main48531-39335iRN41..SR5..ARL197808-198307

sub48531-39337

main48531-39336iRN41..SR5..ARL197904-198008

sub48531-39335

main48531-39345iLN40..SR5198208-198307

SOFT RIDE

sub48531-39347

main48531-39375iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198307

sub48531-39475

main48531-39475iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198307

sub48531-39476

9161140814

main91611-40814

9161140816

main91611-40816

9161140820

main91611-40820

9161140830

main91611-40830

9161141020

main91611-41020

9411051300

main94110-51300

9411541400

main94115-41400

9451201300

main94512-01300

9451201400

main94512-01400

31 parts on this diagram · 3 diagrams in section
