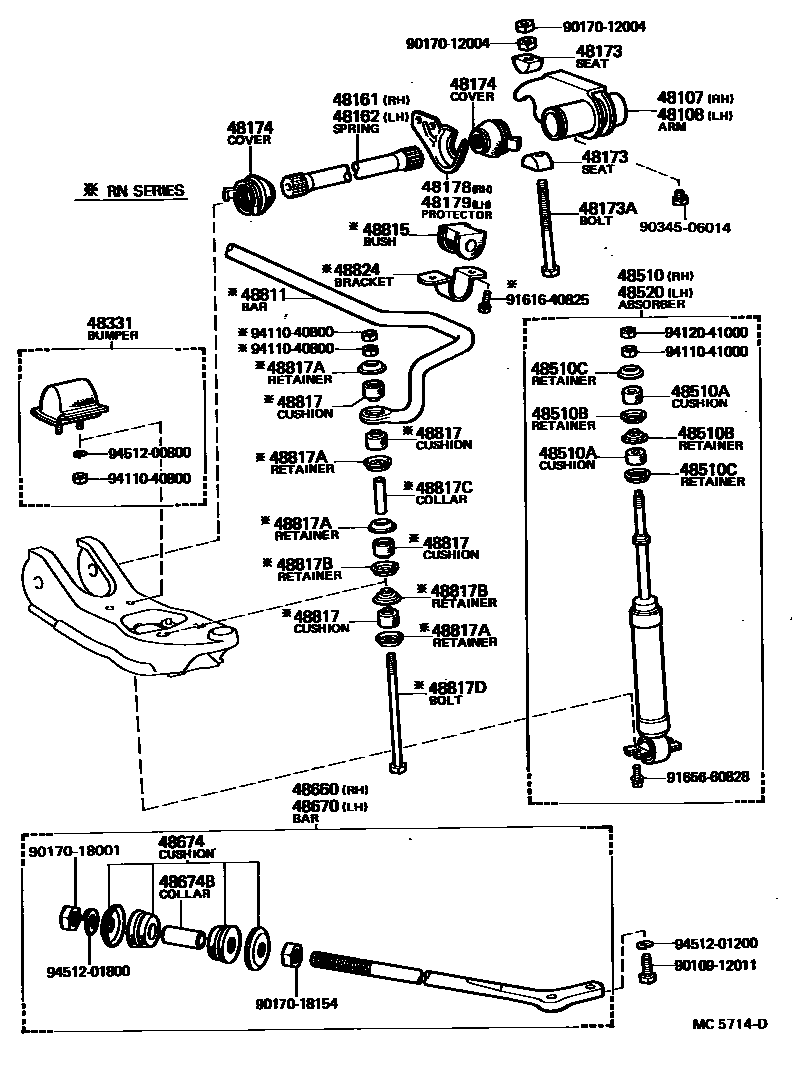

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-35010iLN30,40,RN30,31,40,41197808-198105

sub48107-35011

sub48174-35020

sub90345-06014

main48107-35011iLN30,40,RN30,31,40,41198105-198307

sub48107-35012

main48107-35012iLN30,40,RN30,4#198308-198403

48108ARM SUB-ASSY, ANCHOR, LH

main48108-35010iLN30,40,RN30,31,40,41197808-198105

sub48108-35011

sub48174-35020

sub90345-06014

main48108-35011iLN30,40,RN30,31,40,41198105-198307

sub48108-35012

main48108-35012iLN30,40,RN30,4#198308-198403

48161SPRING, TORSION BAR, RH

main48161-35010iRN30,31,40;RN41..DLX,STD;RN41..SR5..GEN197808-198403

main48161-35020iRN41..SR5..ARL197808-198108

main48161-35030iLN40..GEN..ECB..IV3198008-198108

W/185R14C-8 TIRE

main48161-35030iLN30,40198108-198403

48162SPRING, TORSION BAR, LH

main48162-35010iRN30,31,40;RN41..DLX,STD;RN41..SR5..GEN197808-198403

main48162-35020iRN41..SR5..ARL197808-198108

main48162-35030iLN40..EUR198008-198108

W/185R14C-8 TIRE

main48162-35030iLN30,40198108-198403

48173SEAT, ANCHOR ARM ADJUSTER

main48173-35010iLN30,40,RN30,31,40,41197808-198403

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12038iLN30,40,RN30,31,40,41197808-198403

48174COVER, TORSION BAR DUST

main48174-35010iLN30,40,RN30,31,40,41198105-198403

FR

main48174-35010iLN30,40,RN30,31,40,41197808-198105

main48174-35020iLN30,40,RN30,31,40,41198105-198403

RR

48178PROTECTOR, TORSION BAR DUST COVER, RH

main48178-35010iLN30,40,RN30,31,40,41..ARL,GEN,ME,PHL,SA198101-198403

48179PROTECTOR, TORSION BAR DUST COVER, LH

main48179-35010iLN30,40,RN30,31,40,41..ARL,GEN,ME,PHL,SA198101-198403

48331BUMPER, FRONT SPRING, NO.1

main48304-35040iLN36,46,RN36,46198001-198307

RH

sub48304-35100

main48304-35040iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198001

sub48304-35100

main48304-35070iLN36,46,RN36,46198001-198307

LH

sub48304-35110

main48304-39045iLN30,40,RN30,31,40,41197808-198403

H=48.2

main48304-39055iRN30,40..ARL197901-198307

H=52.2,W/FR&RR 6.50-14-8 TIRE

main48304-39055iRN30,40..RCB198308-198403

H=52.2

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39015iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198201

sub48510-39016

main48510-39015iRN36,46..EUR,GEN,ME,SA198201-198307

OIL SHOCK

sub48510-39016

main48510-39045iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198201

sub48510-39015

main48510-39045iLN36,46..EUR,GEN198201-198307

OIL SHOCK

sub48510-39015

main48511-39245iRN30,31,40,41197808-197904

sub48511-39246

main48511-39246iRN30,31,40,41197904-197905

sub48511-39247

main48511-39247iLN30,40,RN30,31,40,41197905-198008

sub48511-39315

main48511-39315iLN30,40,RN30,31,40,41198008-198403

sub48511-39316

main48511-39335iLN46,RN36..ARL;RN46..RHD..IV3;RN46..ARL..CBU;LN46..RHD..GEN..IV3198201-198307

GAS SHOCK

sub48511-39336

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01002iLN30,40,RN30,31,40,41197808-198403

main90948-01003iLN36,46,RN36,46197901-198307

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002iLN36,46,RN36,46197901-198307

main90948-02005iLN30,40,RN30,31,40,41197808-198403

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02004iLN30,40,RN30,31,40,41197808-198403

main90948-02007iLN36,46,RN36,46197901-198307

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-39015iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198201

sub48510-39016

main48510-39015iRN36,46..EUR,GEN,ME,SA198201-198307

OIL SHOCK

sub48510-39016

main48510-39045iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198201

sub48510-39015

main48510-39045iLN36,46..EUR,GEN198201-198307

OIL SHOCK

sub48510-39015

main48511-39245iRN30,31,40,41197808-197904

sub48511-39246

main48511-39246iRN30,31,40,41197904-197905

sub48511-39247

main48511-39247iLN30,40,RN30,31,40,41197905-198008

sub48511-39315

main48511-39315iLN30,40,RN30,31,40,41198008-198403

sub48511-39316

main48511-39335iLN46,RN36..ARL;RN46..RHD..IV3;RN46..ARL..CBU;LN46..RHD..GEN..IV3198201-198307

GAS SHOCK

sub48511-39336

48660BAR ASSY, STRUT, RH

main48661-39025iRN30,31,40,41197808-198403

main48661-39035iLN30,40197909-198403

48670BAR ASSY, STRUT, LH

main48671-39015iRN30,31,40,41197808-198403

main48671-39025iLN30,40197909-198403

48674CUSHION, STRUT BAR

main48674-29026iLN30,40197909-198403

main48674-39035iRN30,31,40,41197808-198403

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002iLN30,40,RN30,31,40,41197808-198403

48811BAR, STABILIZER, FRONT

main48811-35080iRN41..SR5..ARL;RN30,31,40,41..DLX,STD197808-198312

D=18

main48811-35090iRN36,46..LHD197901-198001

D=19

main48811-35091iLN36,46,RN36,46..LHD..STD198001-198307

D=19

main48811-35100iRN30,40..EUR197808-197901

D=19

main48811-35101iRN30,40..IV1;RN30,40..RHD..RCB..CBU197901-198307

D=21,THAI LAND SPEC

main48811-35101iRN31,41..RCB197901-198403

D=21

main48811-35101iRN30,40..EUR197901-198307

D=21,W/FR&RR 6.45-14-8 TIRE

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-16010iRN41..SR5..ARL;RN30,31,40,41..DLX,STD197808-198312

D=18

main48815-20020iRN30,40..EUR197808-197901

D=19

sub48815-20021

main48815-20030iLN36,46,RN36,46..LHD..STD197901-198307

D=19

main48815-20060iRN30,40..IV1;RN30,40..RHD..RCB..CBU197901-198403

D=21

main48815-20060iRN30,40..IV1;RN30,40..RHD..RCB..CBU197901-198307

D=21,THAI LAND SPEC

main48815-20060iRN30,40..IV1;RN30,40..RHD..RCB..CBU197901-198307

D=21,W/FR&RR 6.45-14-8 TIRE

48817CUSHION, FRONT STABILIZER

main48817-30010iRN30,31,40,41197808-198403

main90948-01002iLN36,46,RN36,46..LHD..STD197901-198307

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iLN36,46,RN36,46..LHD..STD197901-198307

main90948-02032iRN30,31,40,41197808-198403

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005iRN36,46..LHD197901-198003

main90948-02015iRN30,31,40,41197808-198403

main90948-02034iLN36,46,RN36,46..LHD..STD198003-198307

48817CCOLLAR(FOR STABILIZER BAR)

main90387-09004iRN30,31,40,41197808-198403

main90440-14003iLN36,46,RN36,46..LHD..STD197901-198307

48817DBOLT(FOR FRONT STABILIZER)

main90101-08038iRN30,31,40,41197808-198403

main90101-10058iLN36,46,RN36,46..LHD..STD197901-198307

48824BRACKET, STABILIZER, FRONT

main48824-35030iRN30,31,40,41197808-198403

9010912011

main90109-12011

9017012004

main90170-12004

9017018001

main90170-18001

9017018154

main90170-18154

9034506014

main90345-06014

9161640825

main91616-40825

9165660828

main91656-60828

9411040800

main94110-40800

9411041000

main94110-41000

9412041000

main94120-41000

9451200800

main94512-00800

9451201200

main94512-01200

9451201800

main94512-01800

40 parts on this diagram · 4 diagrams in section
