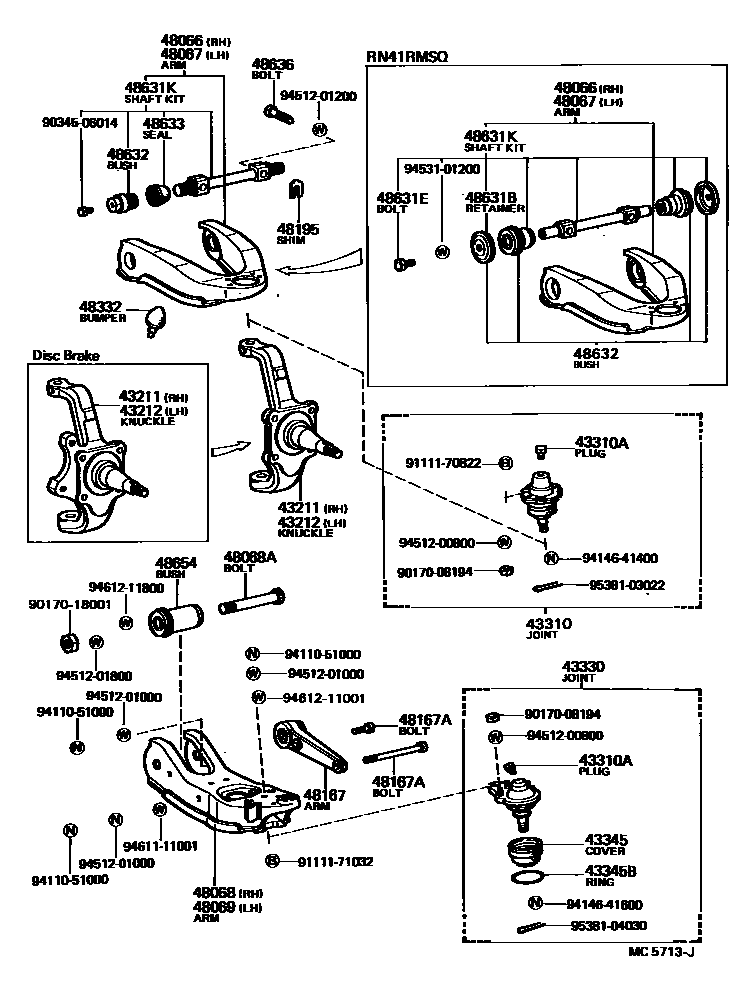

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-26020iRN31..LHD;RN41..SR5..GEN..ECB;RN41..(DLX,STD)..(GEN,ME,SA)197808-198307

FR DRUM BRAKE

main43211-26030iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

FR DISC BRAKE

main43211-35040iRN41..SR5..ARL197808-198307

FR DISC BRAKE

main43211-35050iLN36,46,RN36,46..GEN,ME198008-198307

FR DRUM BRAKE

main43211-35060iLN36,46,RN36,46198008-198307

FR DISC BRAKE

sub43211-35090

main43211-60024iRN36,46..GEN197901-198008

FR DRUM BRAKE

sub43211-60040

main43211-60032iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

FR DISC BRAKE

sub43211-60050

43212KNUCKLE, STEERING, LH

main43211-26020iRN31..LHD;RN41..SR5..GEN..ECB;RN41..(DLX,STD)..(GEN,ME,SA)197808-198307

FR DRUM BRAKE

main43212-26010iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

FR DISC BRAKE

main43212-35010iRN41..SR5..ARL197808-198307

FR DISC BRAKE

main43212-35020iLN36,46,RN36,46..GEN,ME198008-198307

FR DRUM BRAKE

main43212-35030iLN36,46,RN36,46198008-198307

FR DISC BRAKE

sub43212-35050

main43212-60024iRN36,46..GEN197901-198008

FR DRUM BRAKE

sub43212-60040

main43212-60032iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

FR DISC BRAKE

sub43212-60050

43310JOINT ASSY, UPPER BALL

main43360-39015iLN30,40,RN30,31,40,41197808-198105

sub43360-39055

main43360-39055iLN30,40,RN30,31,40,41198105-198403

43310APLUG (FOR BALL JOINT)

main90345-06014iLN30,40,RN30,31,40,41197808-198403

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39045iLN30,40,RN30,31,40,41197808-198403

RH

main43340-39075iLN30,40,RN30,31,40,41197808-198403

LH

sub43330-39045

43345COVER, LOWER BALL JOINT DUST

main43345-35010iLN30,40,RN30,31,40,41197808-198403

43345BRING, SET (FOR LOWER BALL JOINT DUST COVER)

main90522-58039iLN30,40,RN30,31,40,41197808-198403

sub90580-09002

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-35030iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

main48066-35040iRN41..SR5..ARL197808-198307

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48066-35030iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

main48066-35040iRN41..SR5..ARL197808-198307

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48605-35030iRN30,31,40,41197808-198008

sub48605-35031

main48605-35031iRN30,31,40,41198008-198312

sub48605-35041

main48605-35040iLN30,40197909-198008

sub48605-35041

main48605-35041iLN30,40..STD198008-198312

main48605-35050iLN30,40,RN30,40,41..RHD..RCB..CBU198111-198403

THAILAND SPEC

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90114-18001iLN30,40,RN30,31,40,41197808-198403

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48606-35030iRN30,31,40,41197808-198008

sub48606-35031

main48606-35031iRN30,4#..ECB198008-198312

sub48606-35041

main48606-35040iLN30,40197909-198008

sub48606-35041

main48606-35041iLN30,40..ECB198008-198312

main48606-35050iLN40,RN31,41..SR5..RCB;LN30,40,RN30,40..RHD..(4F,4H)..RCB..CBU198111-198403

THAILAND SPEC

48167ARM, TORQUE

main48167-35010iLN30,40,RN30,31,40,41197808-198403

48167ABOLT(FOR TORQUE ARM SETTING)

main90101-10389iLN30,40,RN30,31,40,41197808-198403

OD=10,L=135

main91111-51025iLN30,40,RN30,31,40,41197808-198403

OD=10,L=25

sub91112-61025

48195SHIM, CAMBER ADJUST

main90565-12023iLN30,40,RN30,31,40,41197808-198403

T=2.3

main90565-12024iLN30,40,RN30,31,40,41197808-198403

T=1.6

main90565-12025iLN30,40,RN30,31,40,41197808-198403

T=1.2

48332BUMPER, FRONT SPRING, NO.2

main48332-35010iLN30,40,RN30,31,40,41197808-198403

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02020iRN41..SR5..ARL197808-198307

48631EBOLT(FOR UPPER SUSPENSION ARM)

main90101-12299iRN41..SR5..ARL197808-198307

48631KSHAFT KIT, UPPER SUSPENSION ARM

main04485-30040iRN41..SR5..ARL197808-198307

main04485-35020iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

48632BUSH, UPPER ARM

main48632-30012iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

main48632-39016iRN41..SR5..ARL197808-198307

sub48632-39025

48633SEAL, UPPER ARM PIVOT DUST

main48633-35010iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

48636BOLT, UPPER ARM SET

main90101-12036iLN30,40,RN30,31,40,41197808-198403

48654BUSH, LOWER ARM

main48654-35010iLN30,40,RN30,31,40,41197808-198403

9017008194

main90170-08194

9017018001

main90170-18001

9034506014

main90345-06014

9111170822

main91111-70822

9111171032

main91111-71032

9411051000

main94110-51000

9414641400

main94146-41400

9414641600

main94146-41600

9451200800

main94512-00800

9451201000

main94512-01000

9451201200

main94512-01200

9451201800

main94512-01800

9453101200

main94531-01200

9461111001

main94611-11001

9461211001

main94612-11001

9461211800

main94612-11800

9538103022

main95381-03022

9538104030

main95381-04030

41 parts on this diagram · 2 diagrams in section
