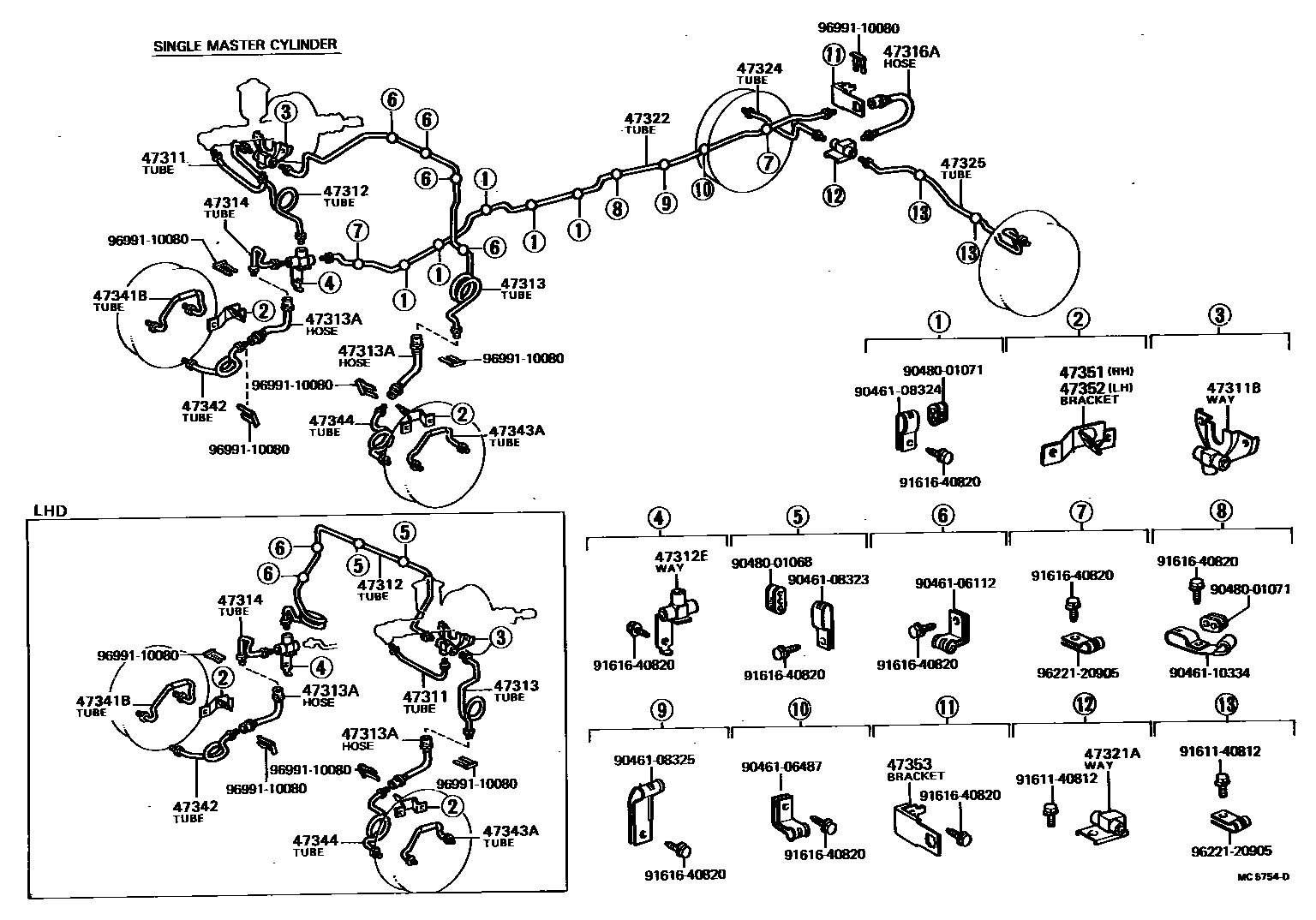

BRAKE TUBE & CLAMP

0001 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1

47311TUBE, FRONT BRAKE, NO.1

main47311-35250iRN36,46..GEN,ME¥530197901-198307

TANDEM MASTER CYLINDER,FR DRUM

main47311-35250iRN30,31,40;RN41..DLX,STD;RN41..SR5..(GEN,SA)¥530197808-198403

TANDEM MASTER CYLINDER

main47311-35260iRN30,40..GEN¥440197808-198307

SINGLE MASTER CYLINDER

main47311-35270iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA¥890197901-198307

FR DISC BRAKE

main47311-35290iRN41..SR5..ARL¥530197808-198307

main47311-35310iLN30,40¥540197909-198403

TANDEM MASTER CYLINDER

main47311-35320iRN46..ARL..CBU;LN3#,4#..ARL,GEN,SA¥550197909-198307

SINGLE MASTER CYLINDER

main47311-35330iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)¥520198103-198307

TANDEM MASTER CYLINDER,FR DRUM

main47311-35340iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198307

FR DISC BRAKE

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10058iRN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)¥930197808-198403

TANDEM MASTER CYLINDER

main90413-10067iLN3#,4#,RN30,36,40,46..GEN,PHL,SA¥1,000197808-198307

SINGLE MASTER CYLINDER

main90413-10111iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)¥1,210198103-198307

TANDEM MASTER CYLINDER

47312TUBE, FRONT BRAKE, NO.2

main47312-35141iRN30,31,40..RHD;RN41..RHD..(DLX,STD);RN41..RHD..SR5..(GEN,SA)¥990197808-198403

TANDEM MASTER CYLINDER

main47312-35151iRN30,31,40,41..LHD¥1,780197808-198307

TANDEM MASTER CYLINDER

sub47312-35270

main47312-35160iRN30,40..RHD..GEN197808-198307

SINGLE MASTER CYLINDER

main47312-35170iRN30,40..LHD..GEN197808-198307

SINGLE MASTER CYLINDER

main47312-35180iRN36..RHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(EUR,GEN,SA)197901-198307

TANDEM MASTER CYLINDER

main47312-35190iRN36,46..LHD¥1,880197901-198108

TANDEM MASTER CYLINDER

sub47312-35280¥1,700

main47312-35200iLN30,40..RHD¥1,020197909-198403

TANDEM MASTER CYLINDER

main47312-35210iLN30,40..LHD197909-198307

TANDEM MASTER CYLINDER

main47312-35250iRN41..SR5..ARL197808-198307

TANDEM MASTER CYLINDER

main47312-35280iRN36,46..LHD¥1,700198108-198307

TANDEM MASTER CYLINDER

main47312-35290iLN30,40..LHD..GEN197909-198307

SINGLE MASTER CYLINDER

main47312-35310iLN30,40..RHD..(GEN,SA)197909-198307

SINGLE MASTER CYLINDER

main47312-35340iLN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN)¥860198103-198307

TANDEM MASTER CYLINDER

main47312-35350iLN36,46..LHD198103-198307

TANDEM MASTER CYLINDER

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10049iLN3#,4#,RN3#,4#¥910197808-198403

TANDEM MASTER CYLINDER

main90413-10057iLN3#,4#,RN30,36,40,46..GEN,PHL,SA¥1,120197808-198307

SINGLE MASTER CYLINDER

47313TUBE, FRONT BRAKE, NO.3

main47313-35121iRN41..RHD..(DLX,STD);LN30,40,RN30,31,40..RHD;RN41..RHD..SR5..(GEN,SA)¥1,260197808-198403

main47313-35131iLN30,40,RN30,31,40,41..LHD197808-198307

sub47313-35220

main47313-35140iLN36,46,RN36,46..RHD¥1,190197901-198307

TANDEM MASTER CYLINDER

main47313-35150iLN36,46,RN36,46..LHD¥890197901-198108

TANDEM MASTER CYLINDER

sub47313-35230¥800

main47313-35180iLN36,46,RN36,46..RHD..GEN197901-198108

SINGLE MASTER CYLINDER

main47313-35190iLN36,46,RN36,46..LHD..GEN197901-198108

SINGLE MASTER CYLINDER

main47313-35200iRN41..SR5..ARL197808-198307

TANDEM MASTER CYLINDER

main47313-35230iLN36,46,RN36,46..LHD¥800198108-198307

TANDEM MASTER CYLINDER

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02378iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD¥1,530197808-198307

FR DRUM BRAKE

main90947-02379iRN41..SR5..ARL197808-198307

main90947-02382iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA¥1,690197808-198403

FR DISC BRAKE

main90947-02383iLN36,46,RN36,46¥1,900197901-198307

47314TUBE, FRONT BRAKE, NO.4

main47314-35141iLN30,40,RN30,40..STD..GEN197808-198307

SINGLE MASTER CYLINDER

main47314-35150iLN36,46,RN36,46..GEN197901-198108

SINGLE MASTER CYLINDER

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96910-31403iRN3#,4#..EUR,GEN,PHL,SA¥1,390197808-197901

W/LSPV

sub96910-34005¥1,390

main96910-31443iRN3#,4#¥1,390197808-197901

W/O LSPV

sub96910-34405¥1,390

main96910-34005iRN41..SR5..ARL¥1,390198108-198307

main96910-34005iLN30,40,RN30,31,40,41..EUR,GEN,PHL,SA¥1,390197901-198403

W/LSPV

main96910-34405iLN30,40,RN30,31,40,41¥1,390197901-198307

W/O LSPV

main96910-34805iLN36,46,RN36,46197901-198307

47321TUBE, REAR BRAKE, NO.1

main47321-35030iRN30,31,40..RHD;RN41..RHD..(DLX,STD);RN41..RHD..SR5..(GEN,SA)¥970197808-198403

TANDEM MASTER CYLINDER

sub47321-35400¥990

main47321-35040iRN30,31,40,41..LHD197808-198307

TANDEM MASTER CYLINDER

main47321-35050iRN36..RHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(EUR,GEN,SA)¥780197901-198307

TANDEM MASTER CYLINDER

main47321-35060iRN36,46..LHD¥1,810197901-198307

TANDEM MASTER CYLINDER

main47321-35090iRN41..SR5..ARL197808-198307

TANDEM MASTER CYLINDER

main47321-35110iLN30,40..RHD¥800197909-198403

TANDEM MASTER CYLINDER

main47321-35120iLN30,40..LHD197909-198307

TANDEM MASTER CYLINDER

main47321-35160iLN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN)¥680198103-198307

TANDEM MASTER CYLINDER

main47321-35170iLN36,46..LHD198103-198307

TANDEM MASTER CYLINDER

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10054iLN30,40,RN30,31,40,41¥940197808-198403

main90413-10081iLN36,46,RN36,46¥990197901-198307

47322TUBE, REAR BRAKE, NO.2

main47322-35030iLN30,RN30,31¥2,060197808-198208

main47322-35031iLN30,RN30,31¥1,970198208-198403

main47322-35040iLN40,RN40,41..T1¥2,130197808-198208

main47322-35041iLN40,RN40,41..T1¥2,360198208-198403

main47322-35090iRN36¥2,130197901-198103

sub47322-35140¥2,150

main47322-35100iRN46..ARL..IV3;RN46..T1..(EUR,GEN)¥2,250197901-198103

sub47322-35150¥2,060

main47322-35120iLN40,RN40..TW197901-198208

main47322-35121iLN40,RN40..TW198208-198307

main47322-35130iRN46..TW¥2,390198001-198103

sub47322-35160

main47322-35140iLN36,RN36¥2,150198103-198307

main47322-35150iLN46,RN46..T1¥2,060198103-198307

main47322-35160iLN46,RN46..TW198103-198307

47324TUBE, REAR BRAKE, NO.4

main47324-35010iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)¥590197808-198403

sub47324-35140¥610

main47324-35020iRN41..SR5..ARL¥800197808-198307

main47324-35030iLN36,46,RN36,46¥780197901-198307

47325TUBE, REAR BRAKE, NO.5

main45307-35061iLN30,40,RN30,31,40,41..LHD..(EUR,GEN,ME)¥10,800198208-198307

W/STEERING LOCK

main47325-35020iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)¥1,530197808-198403

sub47325-35150¥1,510

main47325-35030iRN41..SR5..ARL¥1,320197808-198307

main47325-35040iLN36,46,RN36,46¥1,320197901-198307

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47342-26010iRN31..LHD;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..(DLX,STD)..(EUR,GEN,ME,PHL,SA)¥1,190197808-198307

FR DRUM BRAKE

main47342-35010iLN36,46,RN36,46..GEN,ME¥720197901-198307

RR DRUM BRAKE

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47341-35010iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD¥810197808-198307

FR DRUM BRAKE

main47341-35020iRN41..SR5..ARL¥890197808-198307

main47341-35030iLN36,46,RN36,46¥610197901-198307

FR DISC BRAKE

sub47341-35120¥390

main47341-35040iLN36,46,RN36,46..GEN,ME197901-198307

FR DRUM BRAKE

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47342-26010iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD¥1,190197808-198307

FR DRUM BRAKE

main47342-35010iLN36,46,RN36,46..GEN,ME¥720197901-198307

FR DRUM BRAKE

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47343-35010iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD¥810197808-198307

FR DRUM BRAKE

main47343-35020iRN41..SR5..ARL197808-198307

main47343-35030iLN36,46,RN36,46¥610197901-198307

FR DISC BRAKE

sub47343-35120¥390

main47343-35040iLN36,46,RN36,46..GEN,ME197901-198307

FR DRUM BRAKE

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47354-35030iRN41..SR5..ARL¥1,020197808-198307

FR DISC BRAKE

main47354-35030iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD¥1,020197808-198307

FR DRUM BRAKE

main47354-35040iRN30,31,40..(SR5,STD)..(EUR,SA)..ECB197808-197902

FR DISC BRAKE

main47354-35042iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR¥1,080197902-198403

FR DISC BRAKE

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47355-35030iRN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD¥760197808-198307

FR DRUM BRAKE

main47355-35030iRN41..SR5..ARL¥760197808-198307

FR DISC BRAKE

main47355-35040iRN30,31,40..(SR5,STD)..(EUR,SA)..ECB197808-197902

FR DISC BRAKE

main47355-35042iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)¥1,080197902-198403

FR DISC BRAKE

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47352-35040iRN31,41..ECB;LN30,40,RN30,40197808-198307

W/O LSPV

main47352-35060iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

W/LSPV

9046106112

main90461-06112¥130

9046106487

main90461-06487¥130

9046108323

main90461-08323¥240

9046108324

main90461-08324¥140

9046108325

main90461-08325

9046110334

main90461-10334¥550

9048001068

main90480-01068¥250

9048001071

main90480-01071¥240

9161140812

main91611-40812¥110

9161640820

main91616-40820¥160

9622120905

main96221-20905¥240

9699110080

main96991-10080¥100

32 parts on this diagram · 14 diagrams in section
