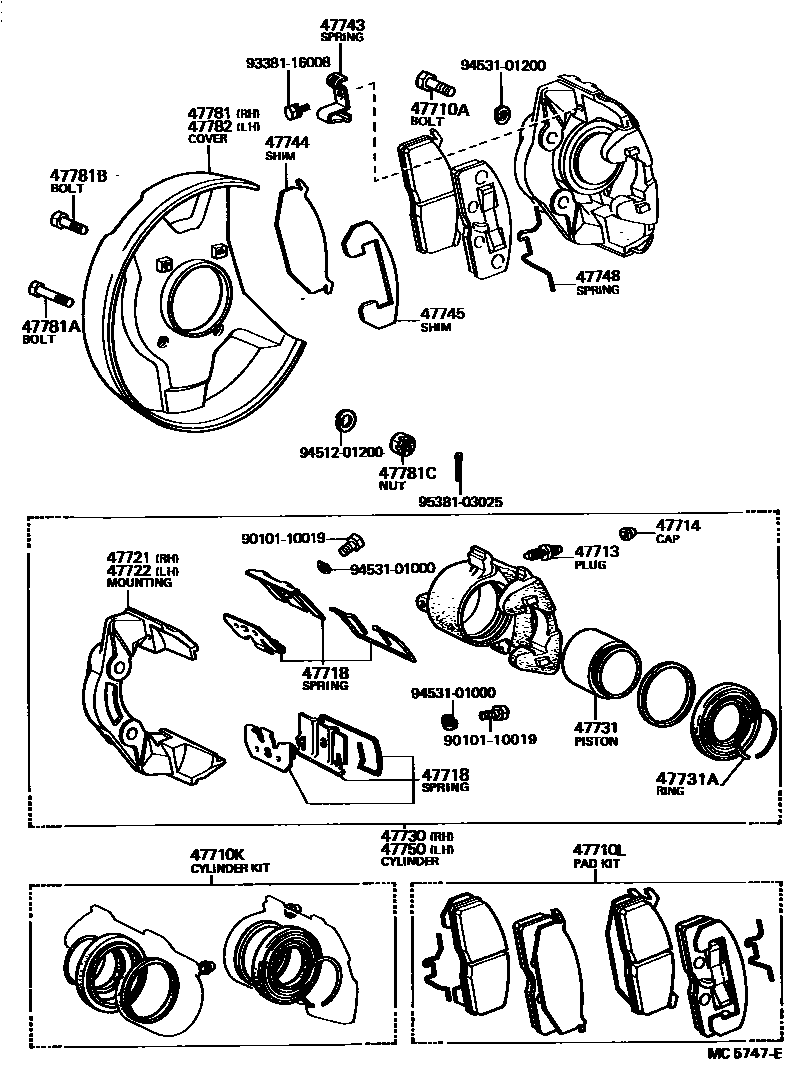

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0004 1 0005 1 0006 1

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA197808-198403

*12-1.25PX50-26

main90101-12379iRN41..SR5..ARL197808-198307

main90101-12491iLN36,46,RN36,46197901-198307

*12-1.25PX42-24

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-26010iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA197808-198212

main04479-26020iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA198212-198403

main04479-30021iRN41..SR5..ARL197808-198307

sub04479-30022

main04479-30030iLN36,46,RN36,46197901-198307

sub04479-30031

47710LPAD KIT, DISC BRAKE, FRONT

main04491-22070iRN41..SR5..ARL197808-197910

sub04491-22071

main04491-22071iRN41..SR5..ARL197910-198108

sub04465-22170

main04491-26020iRN31,41..RCB198101-198102

sub04491-26021

main04491-26021iLN40,RN31,41..SR5..RCB198102-198212

sub04465-26190

main04491-26021iLN30,40,RN30,40..RHD..STD..RCB..CBU198112-198212

THAILAND SPEC

sub04465-26190

main04491-26050iLN40..SR5198212-198403

THAILAND SPEC

sub04465-26190

main04491-26050iLN30,40,RN30,40,41..SA198212-198312

sub04465-26190

main04491-26060iRN41..GEN..ECB198212-198307

sub04465-35160

main04491-35010iRN30,40..EUR197808-197908

sub04491-35020

main04491-35020iRN31..SR5..IV3197908-198102

sub04491-35021

main04491-35021iLN40..STD..(ARL,EUR,GEN)198102-198212

sub04465-35160

main04491-35030iRN41..SR5..ARL198108-198307

sub04465-22170

main04491-60010iLN36,46,RN36,46197901-198307

sub04465-35170

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198403

main47547-20030iRN41..SR5..ARL;LN36,46,RN36,46197808-198307

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLN36,46,RN36,46;LN40,RN30,40..EUR197808-198403

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-29015iRN31..SR5..IV3;LN40,RN30,40..EUR197808-198403

UPR

main47718-29025iLN40,RN30,31,40,41..STD..(ARL,EUR)198108-198307

UPR

main47719-29015iRN31..SR5..IV3;LN40,RN30,40..EUR197808-198403

LWR

main47719-29025iLN40,RN30,31,40,41..STD..(ARL,EUR)198108-198307

LWR

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-26010iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA197808-198403

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-26010iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198403

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20060iRN41..SR5..ARL197808-198103

sub47730-20130

main47730-20130iRN41..SR5..ARL198103-198307

main47730-26010iLN30,40,RN30,31,40,41..GEN,ME,SA197808-198212

main47730-26030iLN40,RN30,31,40,41..STD..(ARL,EUR)198108-198212

main47730-26050iLN40,RN30,31,40,41..STD..(ARL,EUR)198212-198307

main47730-35010iLN36,46,RN36,46197901-198307

main47730-35020iLN30,40,RN30,31,40,41..GEN,ME,SA198212-198403

47731PISTON, FRONT DISC BRAKE

main47731-20040iRN41..SR5..ARL197808-198307

main47731-26010iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA197808-198212

main47731-26020iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA198212-198403

main47731-30020iLN36,46,RN36,46197901-198307

OD=42.82

main47732-30010iLN36,46,RN36,46197901-198307

OD=33.93

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-40043iLN36,46,RN36,46197901-198307

PISTON OD=33.93

main90522-48044iLN36,46,RN36,46197901-198307

PISTON OD=42.82

main90522-58026iRN41..SR5..ARL197808-198307

main90522-65001iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA198212-198403

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47736-26010iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA198212-198403

RH

main47738-26010iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA198212-198403

LH

main47743-26010iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA197808-198212

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-26010iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198102

sub47744-26020

main47744-26020iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR198102-198212

main47744-26030iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA198212-198403

main47744-30012iRN41..SR5..ARL197808-198307

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-26010iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198403

main47745-30012iRN41..SR5..ARL197808-198307

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-26010iRN41..DLX,STD;RN41..SR5..(GEN,SA);LN30,40,RN30,31,40..ARL,EUR,GEN,ME,SA197808-198403

main47748-30013iRN41..SR5..ARL197808-198403

main47748-60010iLN36,46,RN36,46197901-198306

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20050iRN41..SR5..ARL197808-198103

sub47750-20120

main47750-20120iRN41..SR5..ARL198103-198307

main47750-26010iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198212

main47750-26030iLN40,RN30,31,40,41..STD..(ARL,EUR)198108-198212

main47750-26050iLN40,RN30,31,40,41..STD..(ARL,EUR)198212-198307

main47750-35010iLN36,46,RN36,46197901-198307

main47750-35020iLN30,40,RN30,31,40,41..GEN,ME,SA198212-198403

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-35010iLN36,46,RN36,46197901-198307

sub47703-35020

sub47786-60020

main47781-26010iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198403

main47781-26020iLN40,RN30,40..EUR198108-198307

main47781-35010iRN41..ARL197808-197901

sub47781-35011

main47781-35011iRN41..SR5..ARL197901-198307

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10439iLN36,46,RN36,46197901-198307

main90102-12004iLN30,40,RN30,31,40,41198008-198403

SERRATION

main90102-12065iRN41..SR5..ARL;RN30,31,40..(SR5,STD)..(EUR,SA)..ECB197808-198008

*12-1.25PX58.5-20

main90114-12138iRN41..SR5..ARL;RN30,31,40..(SR5,STD)..(EUR,SA)..ECB197808-198008

SERRATION

47781BBOLT(FOR DUST COVER SETTING)

main90102-12058iRN41..SR5..ARL197808-198307

main91611-40828iRN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA)197808-198403

sub91611-60828

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iLN40,RN30,40..EUR;RN31,41..SR5..(ARL,SA)197808-198403

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-35010iLN36,46,RN36,46197901-198307

sub47704-35020

sub47787-60020

main47782-26010iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198403

main47782-26020iLN40,RN30,40..EUR198108-198307

main47782-35010iRN41..ARL197808-197901

sub47782-35011

main47782-35011iRN41..SR5..ARL197901-198307

9010110019

main90101-10019

9338116008

main93381-16008

9451201200

main94512-01200

9453101000

main94531-01000

9453101200

main94531-01200

9538103025

main95381-03025
