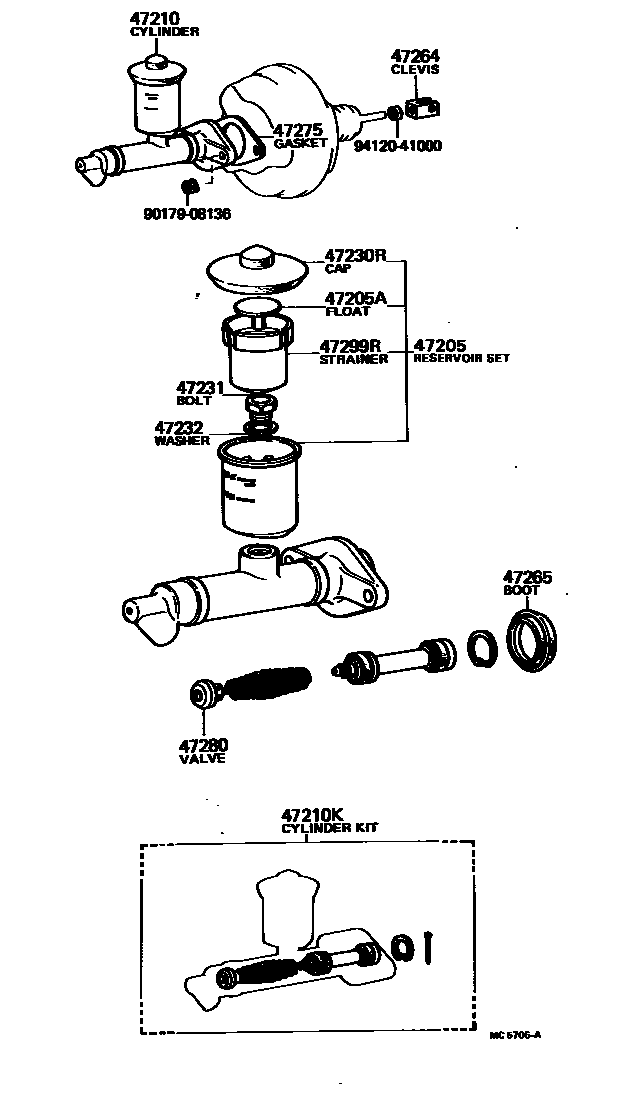

BRAKE MASTER CYLINDER

0001 1 0003 1 0006 1

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-14270iLN30,40,RN30,31,40,41..ARL,EUR,ME,SA198106-198312

W/LEVEL WARNING

main47202-20121iLN3#,4#,RN30,36,40,46..GEN,PHL,SA197808-198307

SINGLE M/C

main47202-35040iRN30,40..EUR197808-198106

W/LEVEL WARNING

sub47202-14270

main47202-35050iLN30,40,RN30,31,40,41..GEN,SA197808-198403

TANDEM M/C,W/O LEVEL WARNING

main47202-35060iRN46..EUR,SA;RN36..ARL,EUR;RN46..ARL..IV3;LN46..T1..ARL..CBU197901-198307

W/LEVEL WARNING

main47202-35070iLN36,46,RN36,46..GEN,ME197901-198307

TANDEM M/C,W/O LEVEL WARNING

47205AFLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE)

main31426-20010iRN30,31,40,41..ARL,GEN,SA197808-198403

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-35090iRN30,40..EUR197808-198208

FR DRUM BRAKE

main47201-35090iLN30,40,RN30,31,40,41..(DLX,STD)..(EUR,ME,SA)198208-198307

FR DRUM BRAKE,W/LEVEL WARNING

main47201-35100iRN41..SR5..SA;LN30,40,RN30,31,40,41..(DLX,STD)..(ARL,EUR,SA)197808-198208

FR DISC BRAKE

main47201-35100iRN41..SR5..SA;LN30,40,RN30,31,40,41..(DLX,STD)..(ARL,EUR,ME,SA)198208-198312

FR DISC BRAKE,W/LEVEL WARNING

main47201-35110iLN30,40,RN30,40..STD..GEN197808-198307

SINGLE M/C

main47201-35120iRN41..DLX,STD;RN41..SR5..GEN;RN30,31,40..ARL,GEN,PHL,SA197808-197904

FR DRUM BRAKE,TANDEM M/C

main47201-35120iLN40..STD..GEN;LN30,RN30,31,40,41..GEN,ME,PHL197904-198307

FR DRUM,TANDEM M/C,W/O WARNING

main47201-35130iRN31,41..RCB;RN31..SR5..IV3197808-198108

FR DISC BRAKE

main47201-35130iLN30,40,RN30,31,40,41..GEN,ME198108-198403

FR DISC,W/O LEVEL WARNING

main47201-35150iRN41..SR5..ARL197808-197904

sub47201-22340

main47201-35151iRN41..SR5..ARL197904-198307

main47201-35160iRN46..EUR;RN36..ARL,EUR;RN46..ARL..IV3197901-198108

W/LEVEL WARNING

sub47207-35030

sub84460-12011

main47201-35160iLN36,46,RN36,46..ARL,EUR,SA198108-198307

FR DISC,W/LEVEL WARNING

sub47207-35030

sub84460-12011

main47201-35170iLN36,46,RN36,46..GEN,ME197901-198307

FR DRUM,TANDEM M/C,W/O WARNING

sub47207-35070

sub31426-20010

sub47230-20030

main47201-35180iLN36,46,RN36,46197901-198307

FR DISC,W/O LEVEL WARNING

sub47207-35030

sub31426-20010

sub47230-20030

main47201-35290iRN36,46..ME198208-198307

FR DRUM,W/LEVEL WARNING

sub47207-35070

sub84460-12011

47210KCYLINDER KIT, BRAKE MASTER

main04471-26020iLN30,40,RN30,40..STD..GEN197808-198307

SINGLE M/C

main04493-14050iLN36,46,RN36,46197901-198307

FR DISC BRAKE

main04493-30030iRN41..SR5..ARL197808-198307

main04493-35050iLN36,46,RN36,46..GEN,ME197808-198307

FR DRUM BRAKE,TANDEM M/C

main04493-35060iRN31,41..RCB;RN31..SR5..IV3;LN40,RN30,40..EUR197808-198403

FR DISC BRAKE

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main47230-20030iRN36,46..GEN197808-198403

TANDEM M/C,W/O LEVEL WARNING

main47230-20040iLN30,40,RN30,40..STD..GEN197808-198307

SINGLE M/C

main84460-12011iLN3#,4#,RN3#,4#..ARL,EUR,SA197808-198312

W/LEVEL WARNING

main84460-12011iRN46..EUR;RN36..ARL,EUR;RN46..ARL..IV3197901-197904

W/LEVEL WARINING

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010iLN3#,4#,RN3#,4#197808-198403

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iLN3#,4#,RN3#,4#197808-198403

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12040iLN30,40,RN30,31,40,41197808-198403

main47264-20020iLN36,46,RN36,46197901-198307

47265BOOT, MASTER CYLINDER

main47265-20050iLN3#,4#,RN3#,4#197808-198403

TANDEM M/C

main47265-35030iLN3#,4#,RN30,36,40,46..GEN,SA197808-198307

SINGLE M/C

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iLN3#,4#,RN30,36,40,46..GEN,SA197808-198307

SINGLE M/C

sub47275-26010

main47275-22010iLN3#,4#,RN3#,4#197808-198403

TANDEM M/C

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-26020iLN3#,4#,RN30,36,40,46..GEN,SA197808-198307

SINGLE M/C

main47280-30030iLN30,40,RN30,31,40,41..ARL,EUR,GEN,ME,SA197808-198403

FR DISC BRAKE

sub47280-14010

main47281-30020iLN36,46,RN36,46..GEN,ME197808-198307

FR DRUM BRAKE,TANDEM M/C

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iLN3#,4#,RN3#,4#198106-198403

TANDEM M/C

main47299-20010iRN46..EUR,GEN;RN46..ARL..IV3;LN3#,4#,RN3#,40,41197808-198106

TANDEM M/C

main47299-20020iLN3#,4#,RN30,36,40,46..GEN,PHL,SA197808-198307

SINGLE M/C

9017908136

main90179-08136

9412041000

main94120-41000

14 parts on this diagram · 3 diagrams in section
