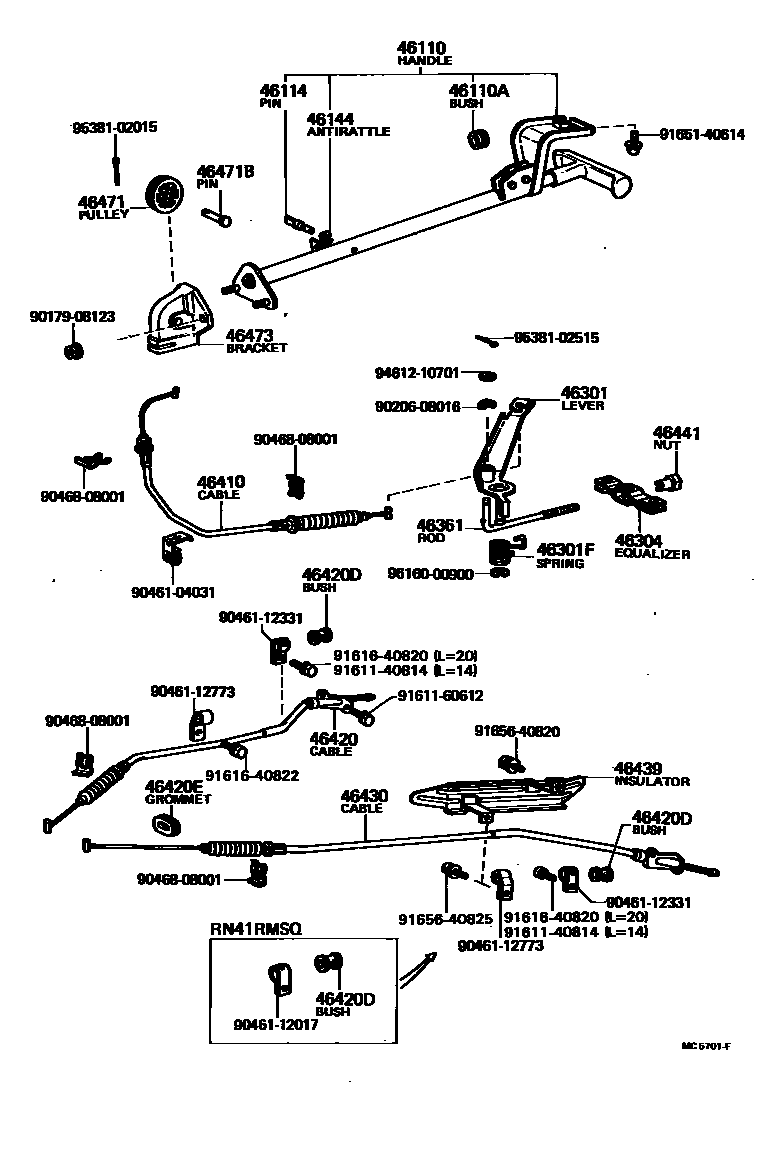

PARKING BRAKE & CABLE

0001 1 0003 1 0004 1 0005 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46110-35090iRN30,31,40,41..RHD197808-198403

main46110-35100iLN3#,4#,RN3#,4#..LHD197808-198307

main46110-35140iLN4#,RN3#,4#..ARL197901-198307

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iLN3#,4#,RN3#,4#197808-198403

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLN3#,4#,RN3#,4#197808-198403

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLN3#,4#,RN3#,4#197808-198403

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-35080iLN30,40,RN30,31,40,41..RHD197808-198403

main46301-35090iLN30,40,RN30,31,40,41..LHD197808-198307

main46301-35100iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197905

main46301-35101iLN36,46,RN36,46197905-198307

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-32007iLN30,40,RN30,31,40,41..LHD197808-198307

main90508-32008iLN30,40,RN30,31,40,41..RHD197808-198403

main90508-35007iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197903

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iLN30,40,RN30,31,40,41197808-198403

main46341-30040iLN36,46,RN36,46197901-198108

sub46341-35020

main46341-35020iLN36,46,RN36,46198108-198307

46361ROD, PARKING BRAKE PULL

main46361-35040iLN30,40,RN30,31,40,41197808-198403

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35151iLN30,40..RHD..4F197808-198403

main46410-35160iRN36..RHD197901-197905

main46410-35161iRN36..RHD197905-198103

main46410-35162iLN36,RN36..RHD198103-198307

main46410-35170iRN46..ARL..IV3;RN46..RHD..(EUR,GEN)197901-197905

main46410-35171iRN46..ARL..IV3;RN46..RHD..(EUR,GEN)197905-198103

main46410-35172iLN46,RN46..RHD198103-198307

main46410-35180iRN36..LHD197901-197905

main46410-35181iLN36,RN36..LHD197905-198307

main46410-35190iRN46..LHD197901-197905

main46410-35191iLN46,RN46..LHD197905-198307

main46410-35220iLN30,40..RHD..5F197911-198403

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35111iRN30,31197808-197902

sub46420-35112

main46420-35112iLN30,RN30,31197902-198403

main46420-35121iRN41..SR5..GEN;RN40,41..DLX,STD197808-197902

sub46420-35122

main46420-35122iLN40,RN40;RN41..DLX,STD;RN41..SR5..(GEN,SA)197902-198403

main46420-35141iRN41..SR5..ARL197808-197902

sub46420-35142

main46420-35142iRN41..SR5..ARL197902-198307

main46420-35150iRN36197901-198102

sub46420-35151

main46420-35151iLN36,RN36198102-198108

sub46420-35152

main46420-35152iLN36,RN36198108-198307

sub46420-35171

main46420-35160iRN46..EUR,GEN;RN46..ARL..IV3197901-198102

sub46420-35161

main46420-35161iLN46,RN46198102-198108

sub46420-35162

main46420-35162iLN46,RN46198108-198307

sub46420-35181

46420DGROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP)

main90385-13051iLN36,46,RN36,46197808-198403

46420EGROMMET(FOR PARKING BRAKE CABLE CLAMP)

main90480-01019iLN30,40,RN30,31,40,41197808-198403

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35121iRN30,31197808-197902

sub46430-35122

main46430-35122iLN30,RN30,31197902-198403

main46430-35131iRN41..SR5..GEN;RN40,41..DLX,STD197808-197902

sub46430-35132

main46430-35132iLN40,RN40;RN41..DLX,STD;RN41..SR5..(GEN,SA)197902-198403

main46430-35151iRN41..ARL197808-197902

sub46430-35152

main46430-35152iRN41..SR5..ARL197902-198307

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-35020iLN30,40,RN30,31,40,41197808-198403

46441NUT, WIRE ADJUSTING, NO.1

main46441-22010iLN30,40,RN30,31,40,41197808-198403

main46441-30030iLN36,46,RN36,46197904-198307

main46441-30041iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197904

46471PULLEY, WIRE

main46471-20010iLN3#,4#,RN3#,4#197808-198403

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08070iLN3#,4#,RN3#,4#197808-198403

46473BRACKET, PULLEY

main46473-35020iLN3#,4#,RN3#,4#197808-198403

9017908123

main90179-08123

9020608016

main90206-08016

9046104031

main90461-04031

9046112017

main90461-12017

9046112331

main90461-12331

9046112773

main90461-12773

9046808001

main90468-08001

9161140814

main91611-40814

9161160612

main91611-60612

9161640820

main91616-40820

9161640822

main91616-40822

9165140614

main91651-40614

9165640820

main91656-40820

9165640825

main91656-40825

9461210701

main94612-10701

9538102015

main95381-02015

9538102515

main95381-02515

9616000900

main96160-00900

36 parts on this diagram · 4 diagrams in section
