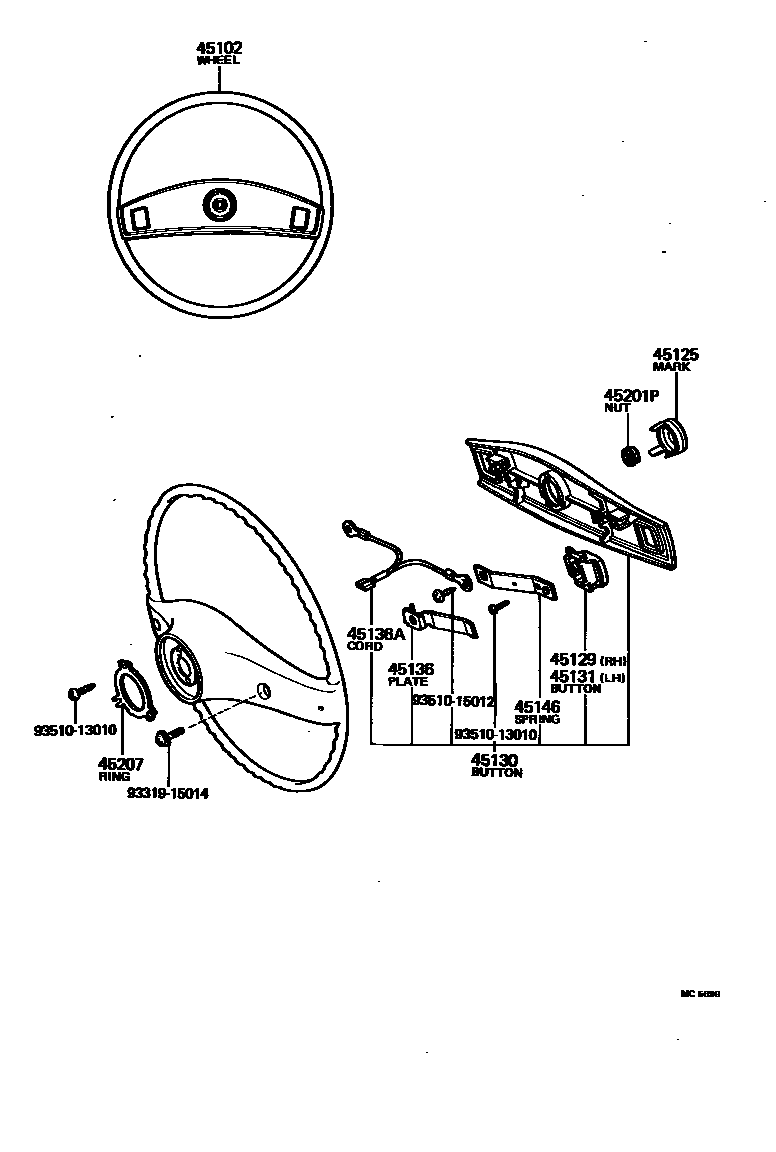

STEERING WHEEL

0001 1 0002 1 0003 1 0004 1

45102WHEEL SUB-ASSY, STEERING

main45100-35150-01iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE,BLACK,BLACK,TRIM2#

sub45100-35140

main45100-35150-04iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE,BLUE,BLUE,TRIM8#

sub45100-35140

main45100-35150-05iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE,BEIGE,BEIGE,TRIM4#

sub45100-35140

main45100-35170iRN31,41..LHD..DLX;LN36,46,RN31,36,41,46..(4F,5F)..(SR5,STD)197808-198108

3-SPOKE,URETHANE

main45100-35171-01iLN40,RN30,40..EUR198108-198403

3-SPOKE,URETHANE,BLACK,BLACK,TRIM2#

sub45100-35171

main45100-35171-04iLN40,RN30,40..EUR198108-198307

3-SPOKE,URETANE,BLUE,BLUE,TRIM8#

sub45100-35171

main45100-35171-04iRN41..SR5..CBU;RN41..LHD..DLX;LN40,RN31..DLX,SR5198108-198403

3-SPOKE,URETHANE,BLUE,BLUE,TRIM8#

sub45100-35171

main45100-35171-06iLN36,46,RN36,46..ARL,EUR,GEN,ME198108-198307

3-SPOKE,URETANE,BROWN,BROWN,TRIM4#

sub45100-35171

main45100-35171-06iLN40,RN30,40..EUR198108-198403

3-SPOKE,URETHANE,BROWN,BROWN,TRIM4#

sub45100-35171

main45100-35181-01iLN36,46,RN36,46..EUR,GEN,ME,SA198108-198307

BLACK,BLACK,TRIM2#

sub45100-35181

main45100-35181-04iLN36,46,RN36,46..EUR,GEN,ME,SA198108-198307

BLUE,BLUE,TRIM8#

sub45100-35181

main45100-35181-06iLN36,46,RN36,46..EUR,GEN,ME,SA198108-198307

BROWN,BROWN,TRIM4#

sub45100-35181

main45100-35190-01iLN36,46,RN36,46197901-198108

BLACK,BLACK,TRIM2#

sub45100-35181

main45100-35190-04iLN36,46,RN36,46197901-198108

BLUE,BLUE,TRIM8#

sub45100-35181

main45100-35190-05iLN36,46,RN36,46197901-198108

BEIGE,BEIGE,TRIM4#

sub45100-35181

main45100-35200-01iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE,BLACK,BLACK,TRIM2#

sub45100-35200

main45100-35200-04iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE,BLUE,BLUE,TRIM8#

sub45100-35200

main45100-35200-06iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE,BROWN,BROWN,TRIM4#

sub45100-35200

45125MARK, STEERING WHEEL PAD

main45125-35030iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE

main45125-35050iRN31,41..LHD..DLX;LN36,46,RN31,36,41,46..(4F,5F)..(SR5,STD)197808-198307

3-SPOKE

main45125-35051-01iRN41..SR5..CBU;RN41..LHD..DLX;LN40,RN31..DLX,SR5198108-198403

3-SPOKE,BLACK,BLACK,TRIM2#

sub45125-35051

main45125-35051-04iRN41..SR5..CBU;RN41..LHD..DLX;LN40,RN31..DLX,SR5198108-198403

3-SPOKE,BLUE,BLUE,TRIM8#

sub45125-35051

main45125-35051-06iLN36,46,RN36,46198108-198403

3-SPOKE,BROWN,BROWN,TRIM4#

sub45125-35051

main45125-35060-01iLN36,46,RN36,46197901-198307

2-SPOKE,BLACK,BLACK,TRIM2#

sub45125-35060

main45125-35060-04iLN36,46,RN36,46197901-198307

2-SPOKE,BLUE,BLUE,TRIM8#

sub45125-35060

main45125-35060-05iLN36,46,RN36,46197901-198108

2-SPOKE,BEIGE,BEIGE,TRIM4#

sub45125-35060

main45125-35060-06iLN36,46,RN36,46..EUR,GEN,ME,SA198108-198307

2-SPOKE,BROWN,BROWN,TRIM4#

sub45125-35060

main45125-35070-01iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE,BLACK,BLACK,TRIM2#

sub45125-35070

main45125-35070-04iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE,BLUE,BLUE,TRIM8#

sub45125-35070

main45125-35070-06iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE,BROWN,BROWN,TRIM4#

sub45125-35070

45129BUTTON, HORN, NO.2

main45129-35020iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE

main45131-14050iLN40,RN30,40..EUR197808-198307

3-SPOKE

main45131-14050iRN41..SR5..CBU;RN41..LHD..DLX;LN40,RN31..DLX,SR5198108-198403

main45131-35091iLN36,46,RN36,46..EUR,GEN,ME,SA198108-198307

2-SPOKE

main45131-35100iLN36,46,RN36,46197901-198108

2-SPOKE

sub45131-35091

main45131-35110iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE

45130BUTTON ASSY, HORN

main45130-35110-01iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE,BLACK,BLACK,TRIM2#

sub45130-35100

main45130-35110-04iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE,BLUE,BLUE,TRIM8#

sub45130-35100

main45130-35110-05iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE,BEIGE,BEIGE,TRIM4#

sub45130-35100

main45130-35130iRN31,41..LHD..DLX;LN36,46,RN31,36,41,46..(4F,5F)..(SR5,STD)197808-198108

3-SPOKE

main45130-35131-01iLN36,46,RN36,46198108-198403

3-SPOKE,BLACK,BLACK,TRIM2#

sub45130-35131

main45130-35131-04iRN41..SR5..CBU;RN41..LHD..DLX;LN40,RN31..DLX,SR5198108-198403

3-SPOKE,BLUE,BLUE,TRIM8#

sub45130-35131

main45130-35131-06iLN40,RN30,40..EUR198108-198403

3-SPOKE,BROWN,BROWN,TRIM4#

sub45130-35131

main45130-35141-01iLN36,46,RN36,46..EUR,GEN,ME,SA198108-198307

BLACK,BLACK,TRIM2#

sub45130-35141

main45130-35141-04iLN36,46,RN36,46..EUR,GEN,ME,SA198108-198307

BLUE,BLUE,TRIM8#

sub45130-35141

main45130-35141-06iLN36,46,RN36,46..EUR,GEN,ME,SA198108-198307

BROWN,BROWN,TRIM4#

sub45130-35141

main45130-35150-01iLN36,46,RN36,46197901-198108

BLACK,BLACK,TRIM2#

sub45130-35141

sub45130-35150

main45130-35150-04iLN36,46,RN36,46197901-198108

BLUE,BLUE,TRIM8#

sub45130-35141

sub45130-35150

main45130-35150-05iLN36,46,RN36,46197901-198108

BEIGE,BEIGE,TRIM4#

sub45130-35141

sub45130-35150

main45130-35160-01iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE,BLACK,BLACK,TRIM2#

sub45130-35160

main45130-35160-04iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE,BLUE,BLUE,TRIM8#

sub45130-35160

main45130-35160-06iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE,BROWN,BROWN,TRIM4#

sub45130-35160

45131BUTTON, HORN, NO.1

main45129-35030iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE

main45131-14050iLN40,RN30,40..EUR197808-198403

3-SPOKE

main45131-35080iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE

main45131-35091iLN36,46,RN36,46..EUR,GEN,ME,SA198108-198307

2-SPOKE

main45131-35100iLN36,46,RN36,46197901-198108

2-SPOKE

sub45131-35091

45136PLATE, HORN BUTTON CONTACT

main45136-14040iLN36,46,RN36,46197808-198403

3-SPOKE

main45136-26020iLN36,46,RN36,46197901-198307

2-SPOKE

main45136-35030iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE,RH

main45136-35040iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE,RH

main45137-35030iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE,LH

main45137-35040iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE,LH

45136ACORD(FOR HORN CONTACT RING)

main90945-02006iRN46..EUR,GEN;RN46..ARL..IV3;RN31,41..LHD..DLX;RN31,36,41..(4F,5F)..(SR5,STD)197808-198307

3-SPOKE,L=120

main90945-02040iLN36,46,RN36,46..EUR,GEN,ME,SA197808-198307

2-SPOKE

main90945-02041iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE

main90945-02046iRN31,41..LHD..DLX;LN36,46,RN31,36,41,46..(4F,5F)..(SR5,STD)197908-198403

3-SPOKE,L=110

45146SPRING, HORN BUTTON CONTACT

main45146-14040iRN31,41..LHD..DLX;LN36,46,RN31,36,41,46..(4F,5F)..(SR5,STD)197808-198403

3-SPOKE

main45146-35040iRN31,41..ECB;LN30,40,RN30,40197808-198108

2-SPOKE

main45146-35050iLN36,46,RN36,46197901-198307

2-SPOKE

main45146-35060iLN30,RN30,40;RN41..SR5..GEN..ECB;LN40,RN31..(ARL,GEN,SA)..ECB;RN41..(DLX,STD)..(ARL,GEN,SA)198108-198403

2-SPOKE

45201PNUT, STEERING WHEEL SET

main90179-12086iLN3#,4#,RN3#,4#197808-198403

45207RING, HORN CONTACT

main45176-20030iLN3#,4#,RN3#,4#197808-198403

9331915014

main93319-15014

9351013010

main93510-13010

9351015012

main93510-15012

13 parts on this diagram · 4 diagrams in section
