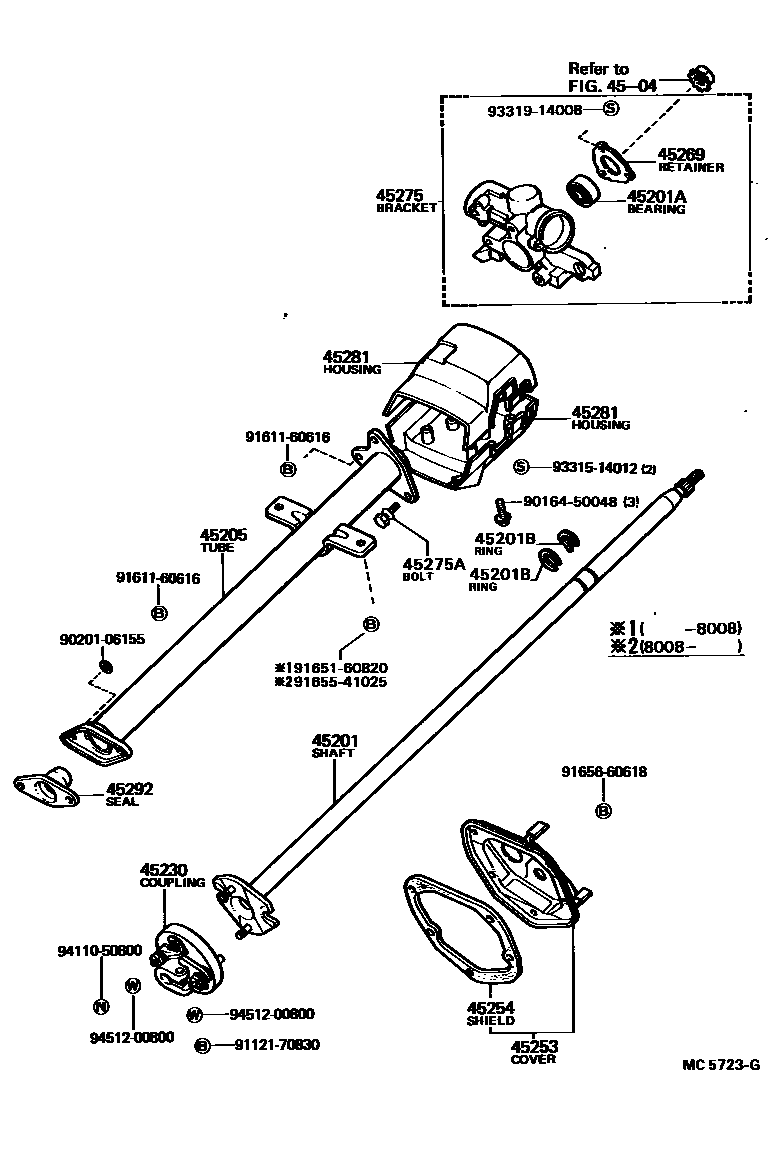

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

4504

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-35090iLN30,40,RN30,31,40,41..STD197808-198108

W/O STEERING LOCK

main45201-35100iLN30,40,RN30,31,40,41197808-198208

W/STEERING LOCK

main45210-22050iLN36,46,RN36,46..ARL,GEN,SA198108-198307

W/TILT STEERING

main45210-35020iLN36,46,RN36,46197901-198307

W/STEERING LOCK

main45210-35030iLN36,46,RN36,46..ARL,EUR,GEN,ME197901-198307

W/O STEERING LOCK

main45210-35040iRN30,40..LHD..GEN..ECB198008-198108

COLLAPSIBLE,W/O STEERING LOCK

main45210-35050iRN41..LHD..DLX..CBU;RN30,31,40..LHD..4F..GEN..ECB..CBU198008-198108

COLLAPSIBLE,W/STEERING LOCK

main45210-35060iRN36,46..ME198108-198307

COLLAPSIBLE,W/STEERING LOCK

sub45210-35070

main45210-35080iRN30,31,40,41..ME198208-198307

COLLAPSIBLE

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iLN36,46,RN36,46..ARL,GEN,SA198108-198307

UPR,W/TILT STEERING

main90363-18038iLN36,46,RN36,46..ARL,EUR,GEN,ME197901-198307

UPR

main90363-28001iRN41..LHD..(DLX,SR5)..GEN;LN30,40,RN30,31,40..LHD..GEN198108-198307

LWR,W/TILT STEERING

main90363-30007iLN36,46,RN36,46..ARL,EUR,GEN,ME197901-198307

LWR

main90369-43027iRN41..LHD..(DLX,SR5);LN30,40,RN30,31,40..LHD..(GEN,ME)198108-198308

LWR,W/COLLAPSIBLE STEERING

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLN3#,4#,RN3#,4#197808-198403

T=1.20,T=1.2

main90520-17269iLN3#,4#,RN3#,4#197808-198403

T=1.20,STEERING WHEEL SIDE

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-35060iRN30,31,40,41..RHD197808-198008

main45205-35061iLN30,40..RHD..(4F,5F)198008-198307

main45205-35070iLN30,40,RN30,31,40,41..LHD197808-198008

main45205-35071iLN30,40,RN30,31,40,41..LHD198008-198307

main45205-35080iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

main45205-35081iLN36,46,RN36,46..ARL,EUR,GEN,ME198008-198307

main45205-35090iLN36,46,RN36,46..ARL,GEN,SA198108-198307

W/TILT STEERING

main45205-35100iLN30,40..5H197911-198008

main45205-35101iLN30,40..5H198008-198307

main45870-35010iRN41..LHD..DLX..CBU;RN30,31,40..LHD..4F..GEN..ECB..CBU198008-198108

W/COLLAPSIBLE STEERING

main45870-35020iRN41..LHD..(DLX,SR5)..GEN;LN30,40,RN30,31,40..LHD..GEN198108-198307

W/TILT STEERING

main45870-35030iRN36,46..ME198108-198307

W/COLLAPSIBLE STEERING

main45870-35050iRN30,31,40,41..ME198208-198307

W/COLLAPSIBLE STEERING

45230COUPLING ASSY, FLEXIBLE

main45230-35020iLN30,40,RN30,31,40,41197808-198403

main45230-35030iLN36,46,RN36,46197901-198307

45253COVER, STEERING COLUMN HOLE

main45025-35010iLN36,46,RN36,46..LHD197901-198307

main45025-35020iLN36,46,RN36,46..RHD197901-198307

sub45025-35030

main45025-35040iRN36,46..ME198108-198307

W/COLLAPSIBLE STEERING

main45025-89101iLN30,40,RN30,31,40,41..RHD..(4F,5F)197808-198403

main45025-89102iLN30,40,RN30,31,40,41..4H,5H197808-198403

sub45025-89105

main45025-89103iLN30,40,RN30,31,40,41..LHD197808-198307

main45025-89104iRN41..LHD..(DLX,SR5)..GEN;LN30,40,RN30,31,40..LHD..GEN198108-198307

W/TILT STEERING

45254SHIELD, STEERING COLUMN HOLE

main45254-89101iLN3#,4#,RN3#,4#..RHD197808-198403

main45254-89102iLN3#,4#,RN3#,4#..LHD197808-198307

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iLN3#,4#,RN3#,4#197808-198403

45275BRACKET, STEERING COLUMN, UPPER

main45275-12090iRN30,31,40,41..ME198208-198307

NEIMAN

main45280-22181iLN36,46,RN36,46..RHD..(ARL,GEN,SA)198108-198209

W/TILT STEERING

main45280-22200iLN36,46,RN36,46..LHD..GEN198108-198209

W/TILT STEERING

main45280-60110iLN36,46,RN36,46..RHD..(ARL,GEN,SA)198209-198307

W/TILT STEERING

main45280-60130iLN36,46,RN36,46..LHD..GEN198209-198307

W/TILT STEERING

sub45280-60250

main45307-35040iLN3#,4#,RN3#,4#..RHD197808-198108

W/O STEERING LOCK

main45307-35041iLN3#,4#,RN30,36,40,46..RHD..STD..(EUR,GEN)198208-198307

W/O STEERING LOCK

main45307-35050iLN3#,4#,RN3#,4#..RHD197808-198108

W/STEERING LOCK

main45307-35051iLN36,46,RN36,46..RHD..(ARL,EUR,GEN)198208-198307

W/STEERING LOCK

main45307-35060iLN30,40,RN30,31,40,41..LHD198108-198208

W/STEERING LOCK

main45307-35061iLN36,46,RN36,46..LHD198208-198307

W/STEERING LOCK

main45307-35070iRN41..STD..GEN..CBU198108-198208

W/O STEERING LOCK

main45307-35071iRN41..STD..GEN..CBU198208-198307

W/O STEERING LOCK

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main45897-12030iLN36,4#,RN30,36,40,46..EUR198208-198307

45281HOUSING, STEERING COLUMN

main45286-35080-01iRN30,31,40,41..4H197808-198312

UPR,BLACK,W/STEERING LOCK,BLACK,TRIM2#

main45286-35080-04iRN30,31,40,41..4H197808-198312

UPR,BLUE,W/STEERING LOCK,BLUE,TRIM8#

main45286-35080-05iRN30,31,40,41..4H197808-198108

UPR,BEIGE,W/STEERING LOCK,BEIGE,TRIM4#

main45286-35080-06iRN30,31,40,41..4H198108-198312

UPR,BROWN,W/STEERING LOCK,BROWN,TRIM4#

main45286-35090-01iRN30,40..4H198108-198307

UPR,BLACK,W/O STEERING LOCK,BLACK,TRIM2#

main45286-35090-04iRN30,40..4H198108-198307

UPR,BLUE,W/O STEERING LOCK,BLUE,TRIM8#

main45286-35090-05iRN30,31,40,41..4H..STD197808-198108

UPR,BEIGE,W/O STEERING LOCK,BEIGE,TRIM4#

main45286-35090-06iRN30,40..4H198108-198307

UPR,BROWN,W/O STEERING LOCK,BROWN,TRIM4#

main45286-35100-01iLN30,40,RN30,31,40,41..RHD..(4F,5F)198108-198403

UPR,BLACK,W/STEERING LOCK,BLACK,TRIM2#

main45286-35100-04iRN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD..(4F,5F)197808-198108

UPR,BLUE,W/STEERING LOCK,BLUE,TRIM8#

main45286-35100-05iRN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD..(4F,5F)197808-198108

UPR,BEIGE,W/STEERING LOCK,BEIGE,TRIM4#

main45286-35100-06iLN36,46,RN36,46..RHD..(ARL,EUR,GEN)198108-198307

UPR,BROWN,W/STEERING LOCK,BROWN,TRIM4#

main45286-35110-01iRN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN30,36,40..RHD..(4F,5F)197808-198108

UPR,BLACK,W/O STEERING LOCK,BLACK,TRIM2#

main45286-35110-04iLN36,46,RN36,46..RHD..(EUR,GEN)198108-198307

UPR,BLUE,W/O STEERING LOCK,BLUE,TRIM8#

main45286-35110-05iRN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN30,36,40..RHD..(4F,5F)197808-198108

UPR,BEIGE,W/O STEERING LOCK,BEIGE,TRIM4#

main45286-35110-06iLN36,46,RN36,46..RHD..(EUR,GEN)198108-198307

UPR,BROWN,W/O STEERING LOCK,BROWN,TRIM4#

main45286-35120-01iLN30,40,RN30,31,40,41..LHD198108-198208

UPR,BLACK,W/STEERING LOCK,BLACK,TRIM2#

main45286-35120-04iLN36,46,RN36,46..LHD198108-198307

UPR,BLUE,W/STEERING LOCK,BLUE,TRIM8#

main45286-35120-05iLN30,40,RN3#,4#..LHD197808-198108

UPR,BEIGE,W/STEERING LOCK,BEIGE,TRIM4#

main45286-35120-06iLN30,40,RN30,31,40,41..LHD..(EUR,GEN,ME)198208-198307

UPR,BROWN,W/STEERING LOCK,BROWN,TRIM4#

main45286-35130-01iRN41..STD..GEN..CBU198108-198307

UPR,BLACK,W/O STEERING LOCK,BLACK,TRIM2#

main45286-35130-04iRN41..STD..GEN..CBU198108-198307

UPR,BLUE,W/O STEERING LOCK,BLUE,TRIM8#

main45286-35130-05iLN30,40,RN30,36,4#..LHD..STD197808-198108

UPR,BEIGE,W/O STEERING LOCK,BEIGE,TRIM4#

main45286-35130-06iRN41..STD..GEN..CBU198108-198307

UPR,BROWN,W/O STEERING LOCK,BROWN,TRIM4#

main45286-35140-01iRN41..LHD..(DLX,SR5)..GEN;LN3#,4#,RN3#,40,46..LHD..GEN198108-198307

UPR,W/TILT STEERING,BLACK,BLACK,TRIM2#

main45286-35140-04iRN41..LHD..(DLX,SR5)..GEN;LN3#,4#,RN3#,40,46..LHD..GEN198108-198307

UPR,W/TILT STEERING,BLUE,BLUE,TRIM8#

main45286-35140-06iRN41..LHD..(DLX,SR5)..GEN;LN3#,4#,RN3#,40,46..LHD..GEN198108-198307

UPR,W/TILT STEERING,BROWN,BROWN,TRIM4#

main45286-35150-01iLN30,40..5H..RCB197911-198108

UPR,BLACK,W/STEERING LOCK,BLACK,TRIM2#

main45286-35150-04iLN40..5H198108-198307

UPR,BLUE,W/STEERING LOCK,BLUE,TRIM8#

main45286-35150-05iLN30,40..5H..RCB197911-198108

UPR,W/STEERING LOCK,BEIGE,BEIGE,TRIM4#

main45286-35150-06iLN40..5H198108-198307

UPR,BROWN,W/STEERING LOCK,BROWN,TRIM4#

main45286-35160-01iLN30,40..5H197911-198307

UPR,BLACK,W/O STEERING LOCK,BLACK,TRIM2#

main45286-35160-04iLN30,40..5H197911-198307

UPR,BLUE,W/O STEERING LOCK,BLUE,TRIM8#

main45286-35160-05iLN30,40..5H197911-198108

UPR,BEIGE,W/O STEERING LOCK,BEIGE,TRIM4#

main45286-35160-06iLN40..5H198108-198307

UPR,BROWN,W/O STEERING LOCK,BROWN,TRIM4#

main45286-35170-01iLN36,46,RN36,46..RHD..(ARL,GEN,SA)198108-198307

UPR,W/TILT STEERING,BLACK,BLACK,TRIM2#

main45286-35170-04iLN36,46,RN36,46..RHD..(ARL,GEN,SA)198108-198307

UPR,W/TILT STEERING,BLUE,BLUE,TRIM8#

main45286-35170-06iLN36,46,RN36,46..RHD..(ARL,GEN,SA)198108-198307

UPR,W/TILT STEERING,BROWN,BROWN,TRIM4#

main45286-35180-01iRN30,31,40,41..ME198208-198307

UPR,BLACK,BLACK,TRIM2#

main45286-35180-04iRN30,31,40,41..ME198208-198307

UPR,BLUE,BLUE,TRIM8#

main45286-35180-06iRN30,31,40,41..ME198208-198307

UPR,BROWN,BROWN,TRIM4#

main45287-35050-01iLN30,40,RN30,31,40,41..4H,5H197808-198108

LWR,BLACK,BLACK,TRIM2#

main45287-35050-04iLN30,40,RN30,31,40,41..4H,5H197808-198108

LWR,BLUE,BLUE,TRIM8#

main45287-35050-05iLN30,40,RN30,31,40,41..4H,5H197808-198108

LWR,BEIGE,BEIGE,TRIM4#

main45287-35060-01iRN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD..(4F,5F)197808-198108

LWR,BLACK,BLACK,TRIM2#

main45287-35060-04iRN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD..(4F,5F)197808-198108

LWR,BLUE,BLUE,TRIM8#

main45287-35060-05iRN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD..(4F,5F)197808-198108

LWR,BEIGE,BEIGE,TRIM4#

main45287-35070-01iLN30,40,RN3#,4#..LHD197808-198108

LWR,BLACK,BLACK,TRIM2#

main45287-35070-04iLN30,40,RN3#,4#..LHD197808-198108

LWR,BLUE,BLUE,TRIM8#

main45287-35070-05iLN30,40,RN3#,4#..LHD197808-198108

LWR,BEIGE,BEIGE,TRIM4#

main45287-35081-01iLN36,40,RN36,46..LHD..GEN198108-198307

LWR,W/TILT STEERING,BLACK,BLACK,TRIM2#

main45287-35081-04iLN36,40,RN36,46..LHD..GEN198108-198307

LWR,W/TILT STEERING,BLUE,BLUE,TRIM8#

main45287-35081-06iLN36,40,RN36,46..LHD..GEN198108-198307

LWR,W/TILT STEERING,BROWN,BROWN,TRIM4#

main45287-35090-01iLN3#,4#,RN3#,4#..RHD..(4F,5F)198108-198403

LWR,BLACK,BLACK,TRIM2#

main45287-35090-04iLN3#,4#,RN3#,4#..RHD..(4F,5F)198108-198403

LWR,BLUE,BLUE,TRIM8#

main45287-35090-06iLN3#,4#,RN3#,4#..RHD..(4F,5F)198108-198403

LWR,BROWN,BROWN,TRIM4#

main45287-35100-01iLN40,RN30,31,40,41..4H,5H198108-198312

LWR,BLACK,BLACK,TRIM2#

main45287-35100-04iLN40,RN30,31,40,41..4H,5H198108-198312

LWR,BLUE,BLUE,TRIM8#

main45287-35100-06iLN40,RN30,31,40,41..4H,5H198108-198312

LWR,BROWN,BROWN,TRIM4#

main45287-35110-01iLN36,46,RN36,46..LHD198208-198307

LWR,BLACK,BLACK,TRIM2#

main45287-35110-04iLN36,46,RN36,46..LHD198208-198307

LWR,BLUE,BLUE,TRIM8#

main45287-35110-06iLN36,46,RN36,46..LHD198208-198307

LWR,BROWN,BROWN,TRIM4#

main45287-35120-01iLN36,46,RN36,46..RHD..(ARL,GEN,SA)198108-198307

LWR,W/TILT STEERING,BLACK,BLACK,TRIM2#

main45287-35120-04iLN36,46,RN36,46..RHD..(ARL,GEN,SA)198108-198307

LWR,W/TILT STEERING,BLUE,BLUE,TRIM8#

main45287-35120-06iLN36,46,RN36,46..RHD..(ARL,GEN,SA)198108-198307

LWR,W/TILT STEERING,BROWN,BROWN,TRIM4#

main45287-35130-01iRN30,31,40,41..ME198208-198307

LWR,BLACK,BLACK,TRIM2#

main45287-35130-04iRN30,31,40,41..ME198208-198307

LWR,BLUE,BLUE,TRIM8#

main45287-35130-06iRN30,31,40,41..ME198208-198307

LWR,BROWN,BROWN,TRIM4#

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35020iLN30,40,RN30,31,40,41197808-198008

main45292-35021iLN30,40,RN30,31,40,41198008-198403

main45292-35030iLN36,46,RN36,46197901-198307

main45292-60030iRN36,46..ME198108-198307

W/COLLAPSIBLE STEERING

9016450048

main90164-50048

9020106155

main90201-06155

9112170830

main91121-70830

9161160616

main91611-60616

9165160820

main91651-60820

9165541025

main91655-41025

9165660618

main91656-60618

9331514012

main93315-14012

9331914008

main93319-14008

9411050800

main94110-50800

9451200800

main94512-00800

24 parts on this diagram · 8 diagrams in section
